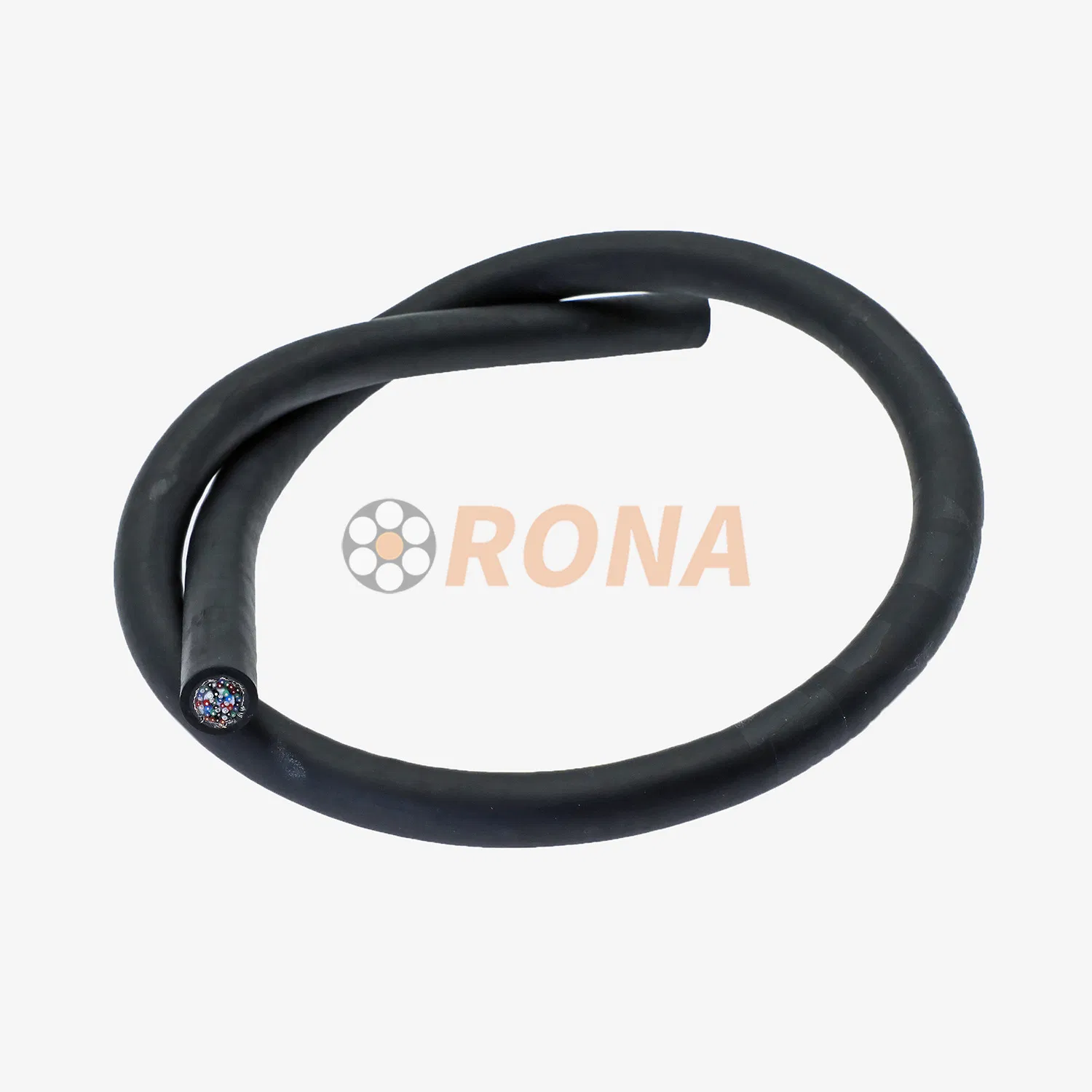

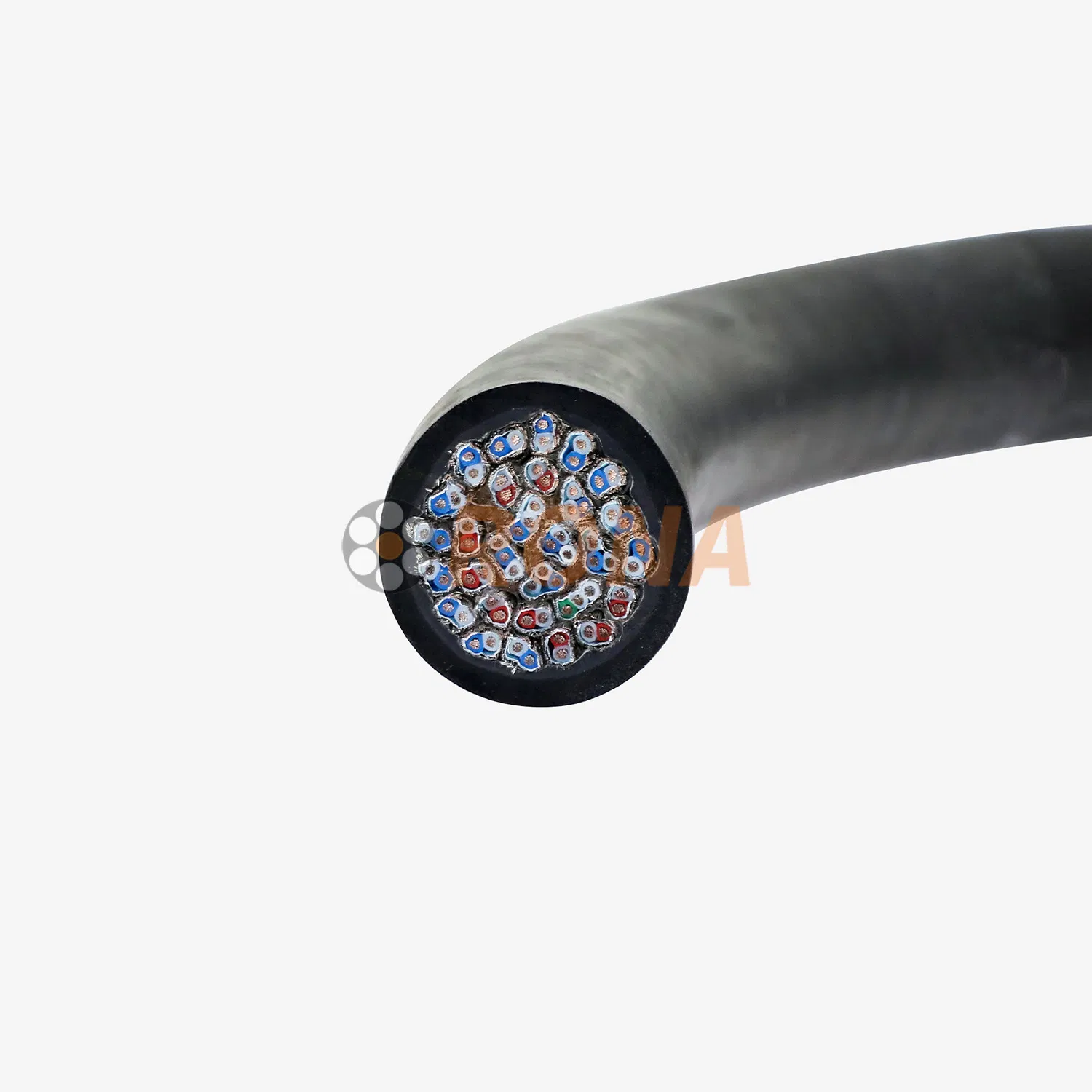

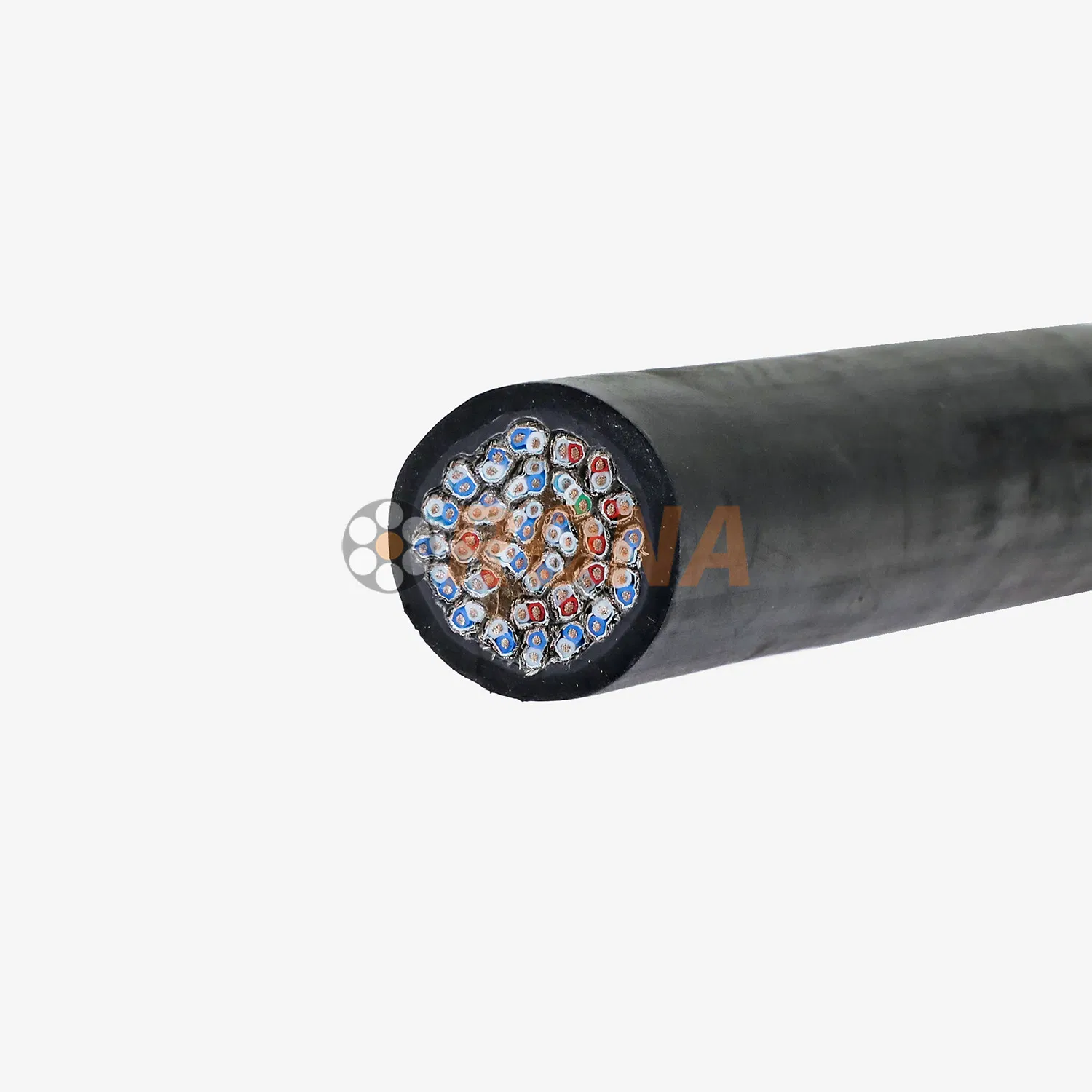

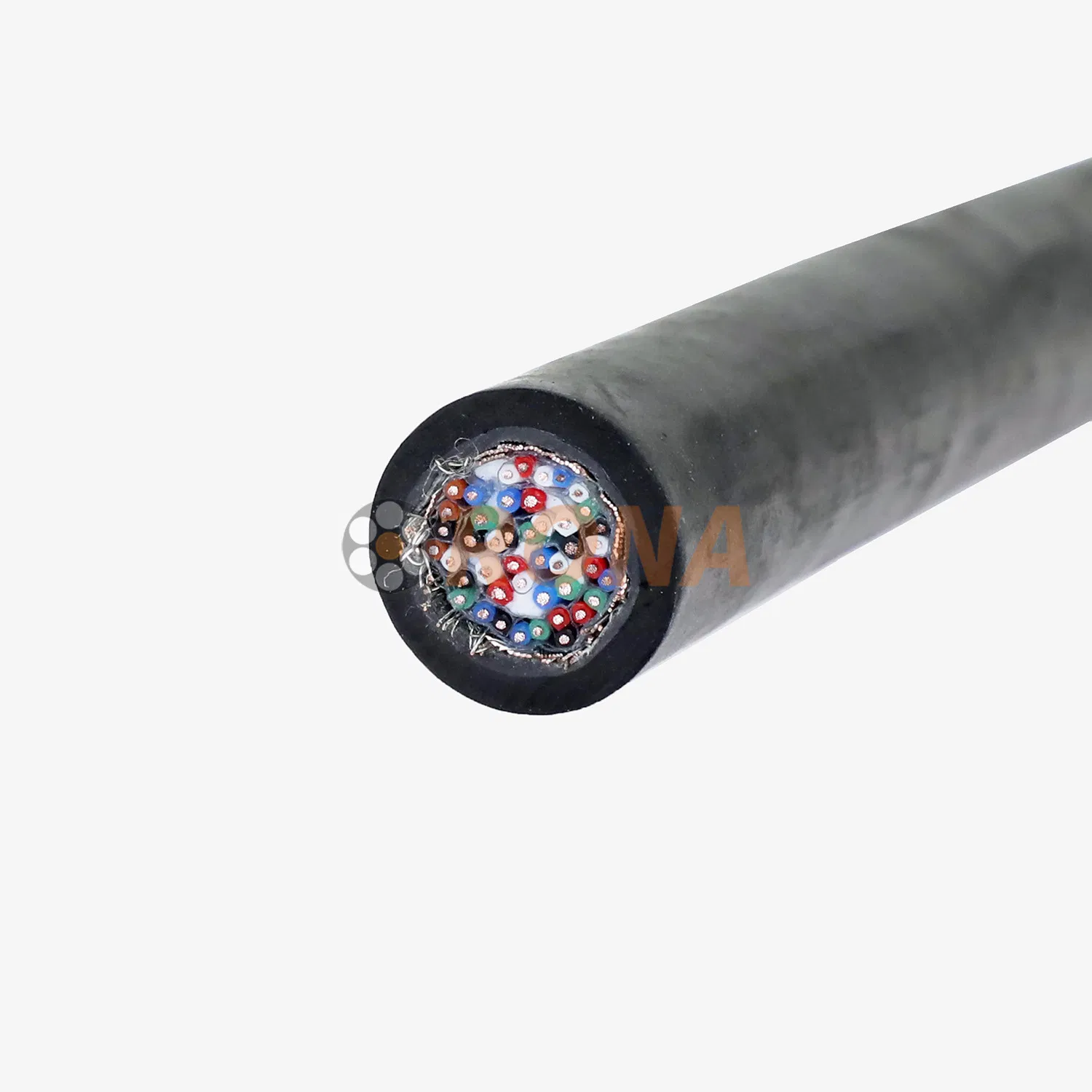

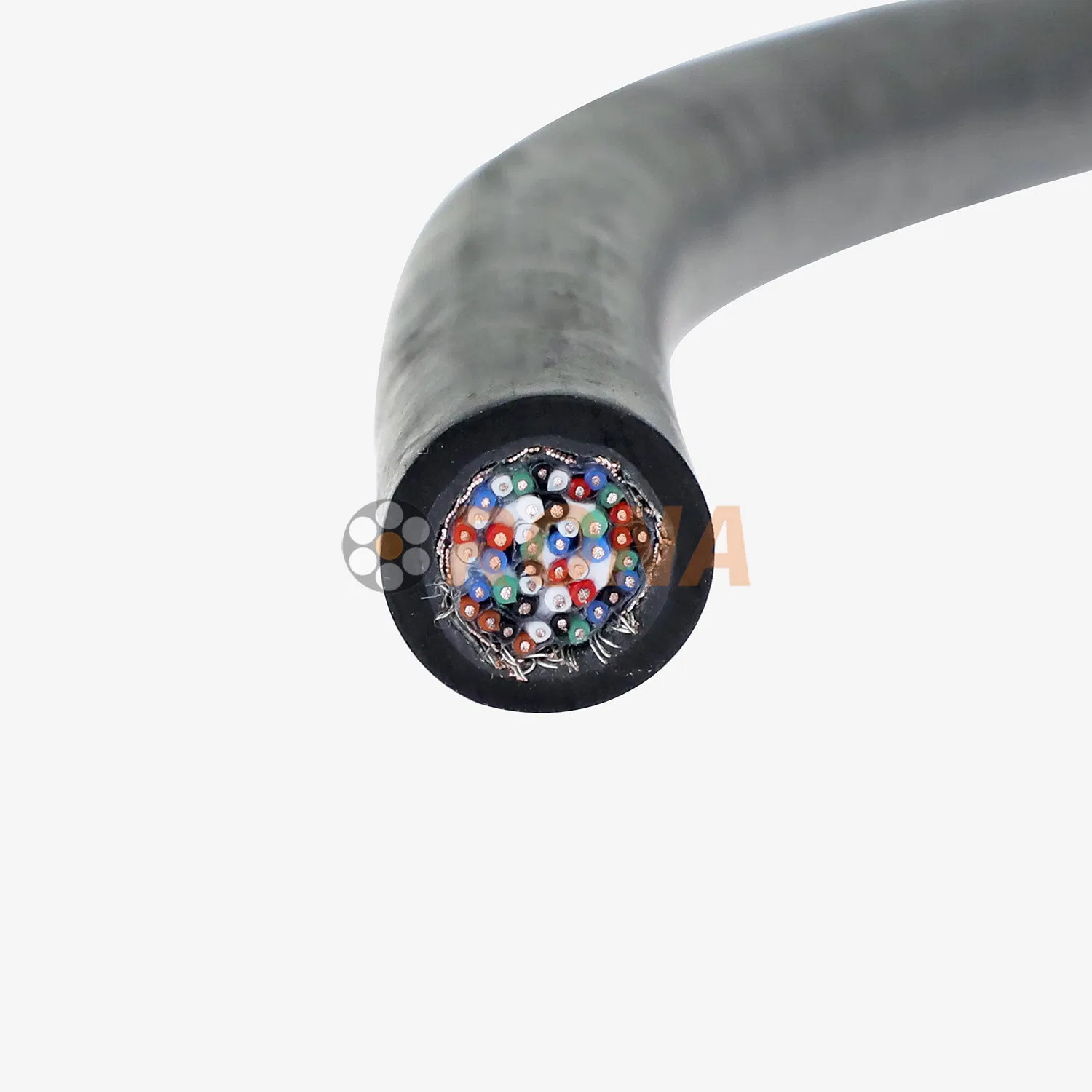

Our watertight cables are engineered for extreme underwater environments. They are categorized into longitudinal and transverse watertight designs, including power, coaxial, signal, control, and composite optical cables.
These cables are essential for underwater detection, robotics, cameras, thrusters, ship-towed sonar, and torpedoes, ensuring reliable electrical connections and signal transmission between devices.
| Parameter | Value |
|---|---|
| Voltage Rating | Control: 300/500V | Power: 0.6/1KV |
| Temperature Range | Fixed: -40ºC to 90ºC | Moving: -35ºC to 90ºC |
| Min. Bend Radius | Fixed: 5x Diameter | Movable: 10x Diameter |
| Flame Retardant | Compliant with IEC 60332-1 |
| Resistance | Water, UV, and Temperature Change resistant |
| Nominal Cross Section (mm²) | Core Configurations |
|---|---|
| 0.25 to 1.0 mm² | 1 to 64 Cores |
| 1.5 to 2.5 mm² | 1 to 64 Cores |
| 4.0 to 6.0 mm² | 1 to 10 Cores |
| 10 to 95 mm² | 1 to 5 Cores |
| Twisted Pairs (0.14 to 1.5 mm²) | 1 to 37 Pairs |
Ocean Engineering: Subsea oil/gas platforms, fiber optic laying, and exploration equipment.
Marine Buildings: Power and signal systems for ships, docks, and bridges.
Aquaculture: Reliable power for oxygenators, feeding, and monitoring equipment.
Water Conservancy: Pump stations, reservoirs, and water level monitoring systems.
