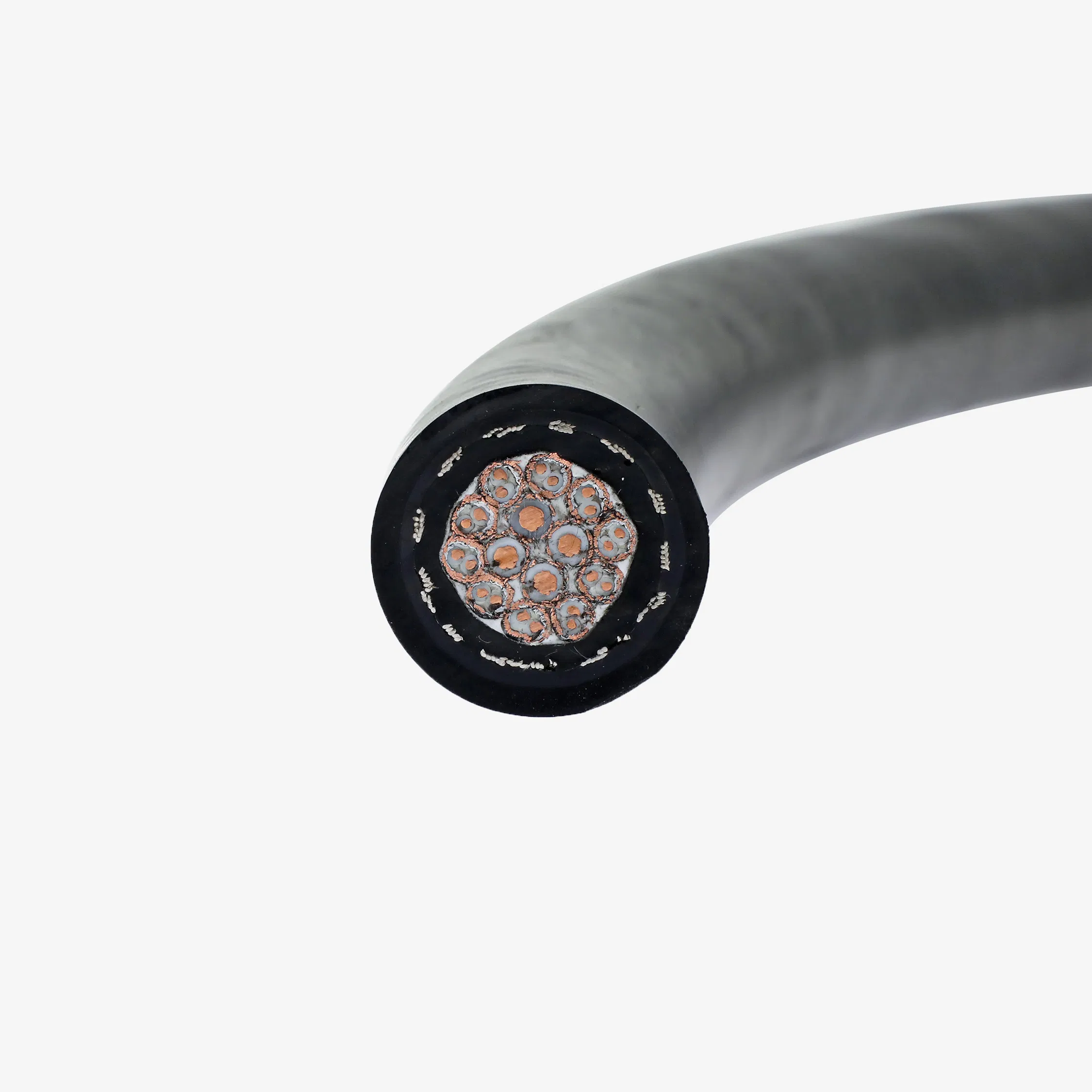

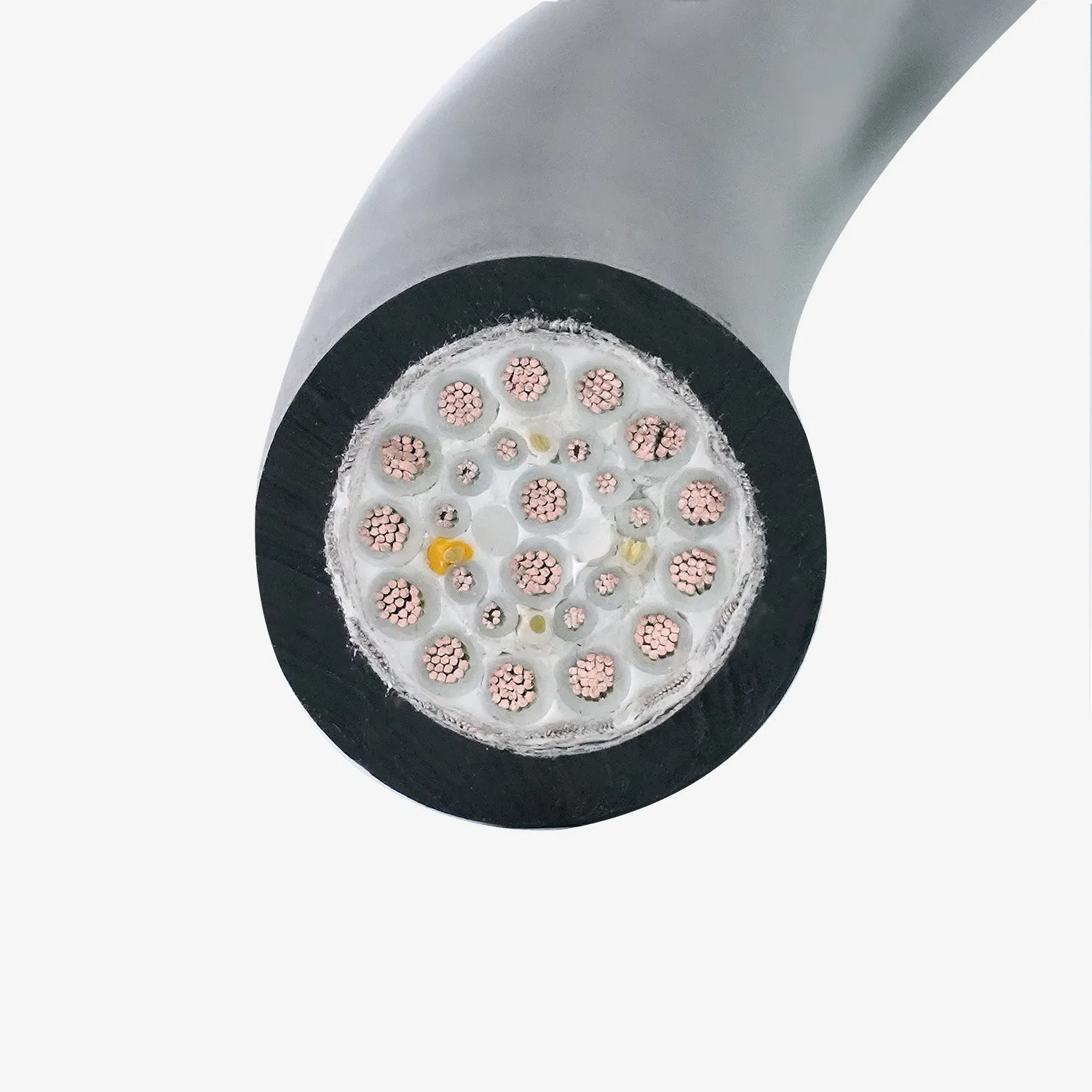

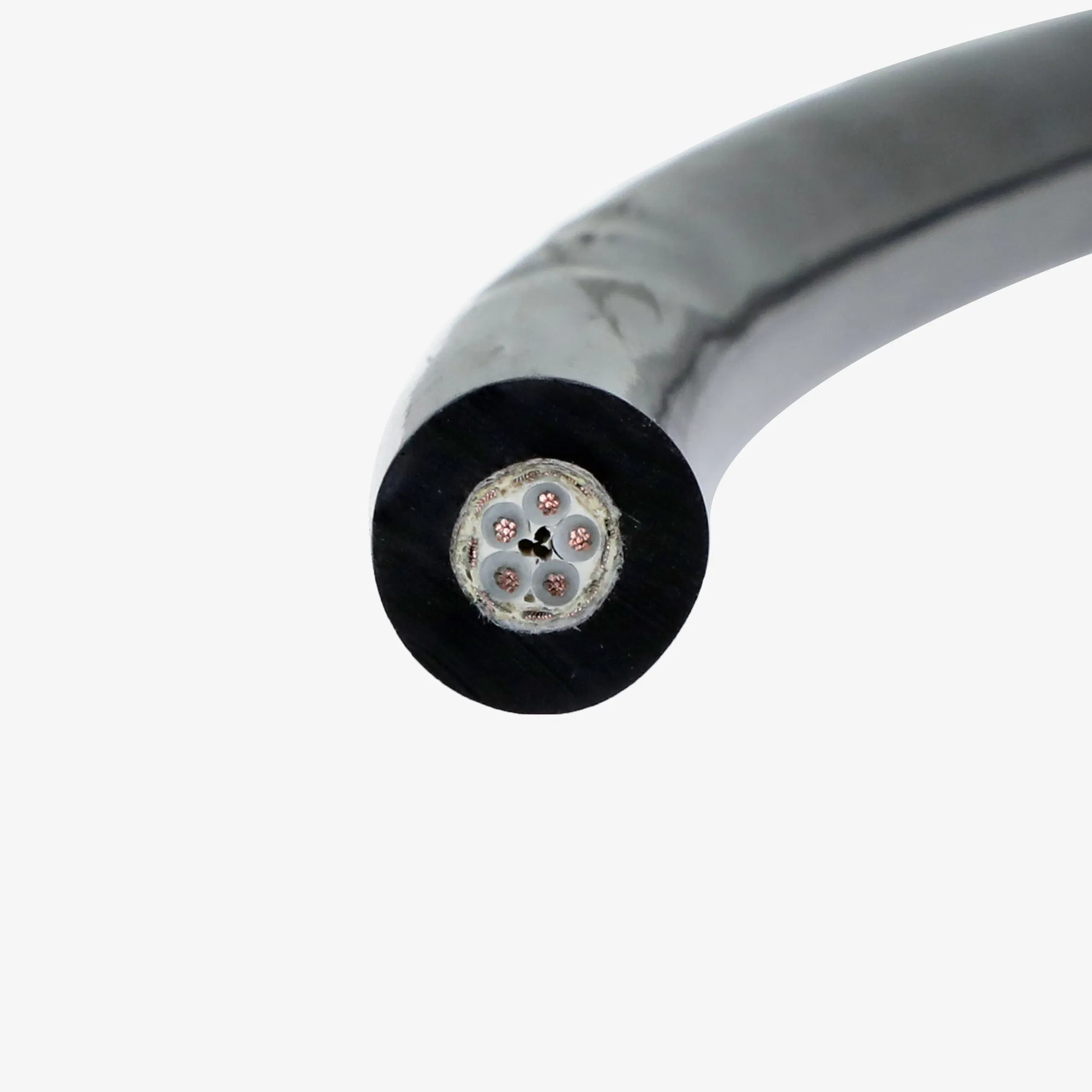

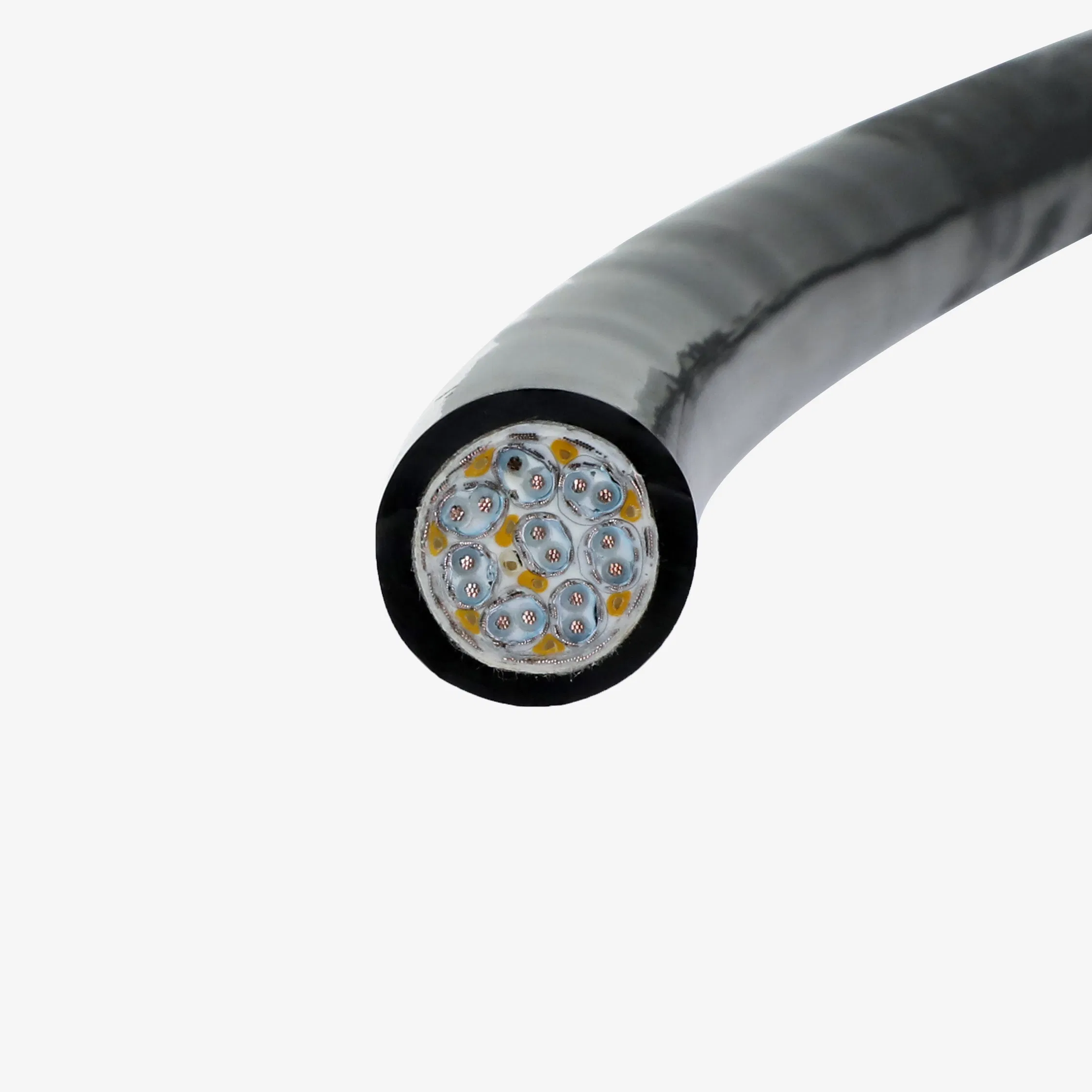

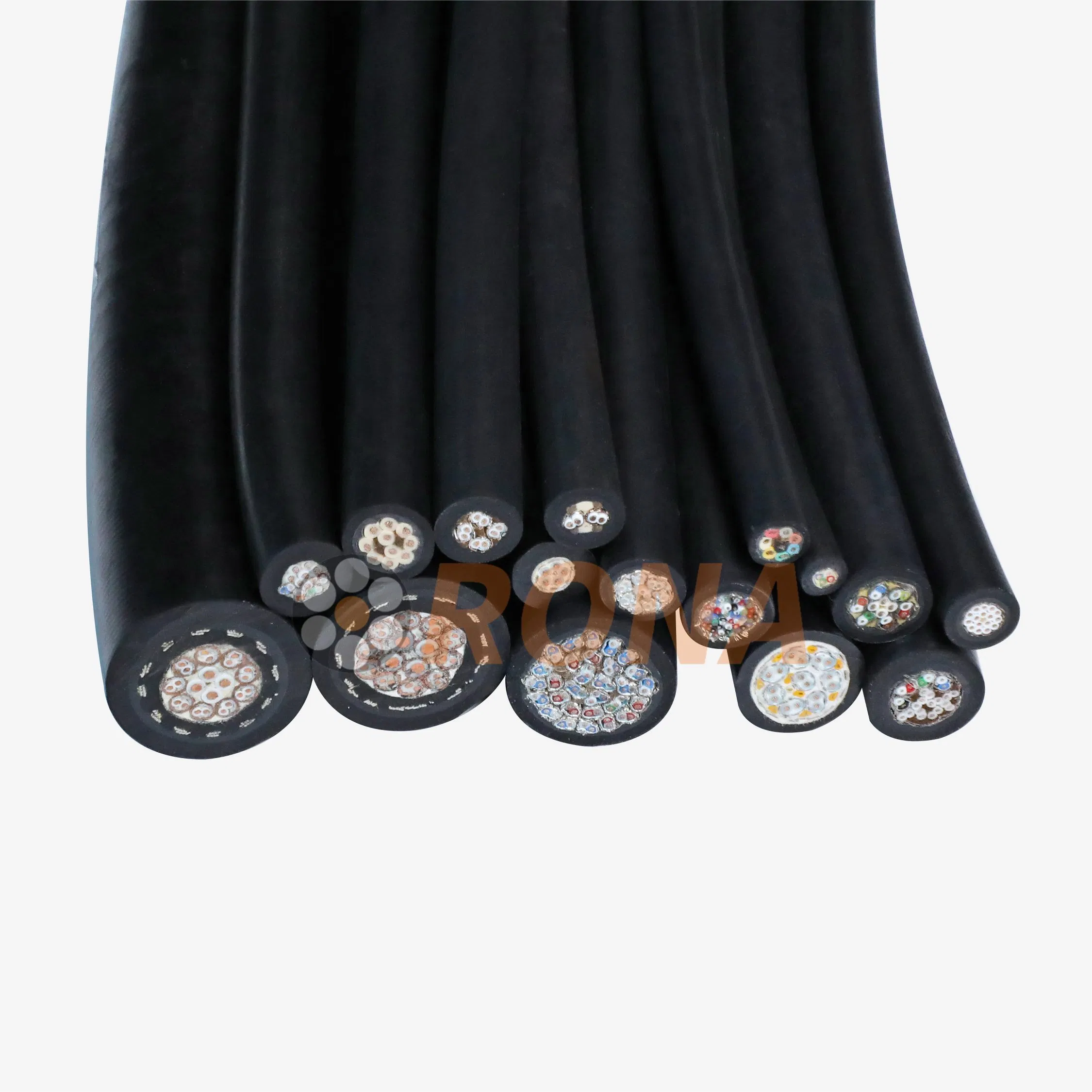

Watertight cables are essential for marine environments, divided into longitudinal and transverse watertight types. These include waterproof power cables, coaxial cables, signal cables, control cables, optical cables, and composite cables.
Specially engineered for underwater detection and robotics, including underwater cameras, thrusters, ship-towed sonar, and torpedoes, ensuring reliable electrical connections and signal integrity.
| Parameter | Standard Value |
|---|---|
| Voltage Rating | Control: 300/500V | Power: 0.6/1KV |
| Temperature Range | Fixed: -40ºC to 90ºC | Moving: -35ºC to 90ºC |
| Min. Bend Radius | Fixed: 5x Cable Diameter | Movable: 10x Cable Diameter |
| Flame Retardant | IEC 60332-1 Compliant |
| Weather Resistance | Waterproof, UV Resistant, Thermal Shock Resistant |
| Nominal Cross Section (mm²) | (1~64) * 0.25, 0.35, 0.5, 0.75, 1.0, 1.5, 2.5 |
|---|---|
| (1~10) * 4.0, 6.0 | (1~5) * 10, 25, 35, 50, 70, 95 | |
| (1~37) * 2 * (0.14 to 1.5) |
Ocean Engineering: Subsea oil/gas extraction, fiber optic laying, and exploration equipment.
Marine Construction: Power and signal systems for ships, docks, and bridges.
Aquaculture: Reliable power for oxygenation, feeding, and monitoring equipment.
Water Conservancy: Reservoir facilities, pump stations, and water level monitoring.
