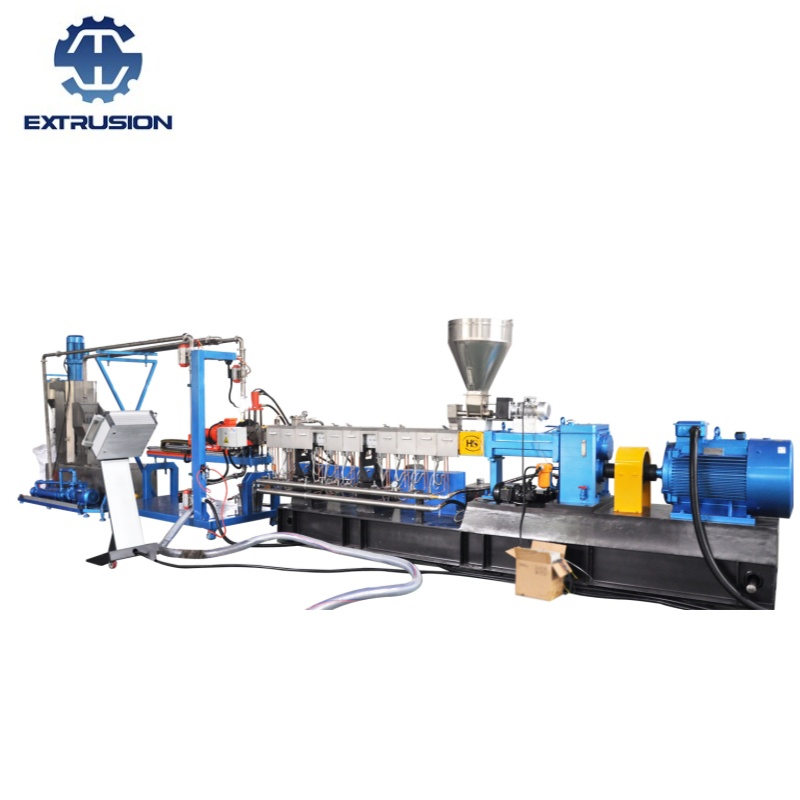

TPE TPR EVA PE Compound Production Hot Melt Underwater Pelletizing Line

1 / 5

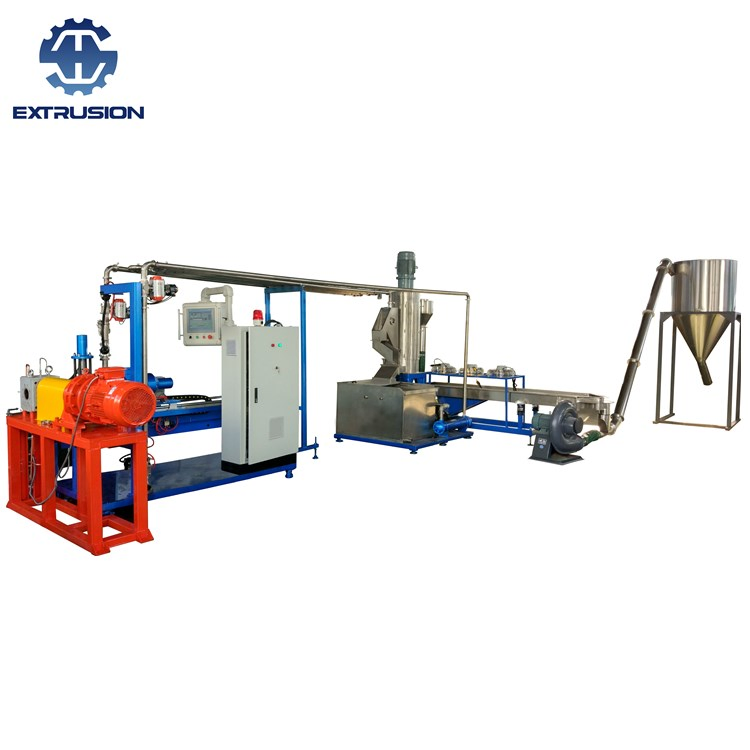

TPE TPR EVA PE Compound Production Hot Melt Underwater Pelletizing Line

Customization:	Available
After-sales Service:	Engineers Available to Service Machinery Overseas
Warranty:	1 Year

Send Inquiry

Product Description

📋 Basic Specifications

Model NO.

TSE

Raw Material

EVA

Screw

Double-Screw

Inverter

Heater

Electromagnetic Heater

Automation

Automatic

Computerized

Certification

CE, ISO9001:2008

Condition

New

Type

Underwater Pelletizer

Voltage

220V/380V

Material

EVA TPU TPR TPE

HS Code

84772090

Capacity

300 Sets Per Year

📦 Packaging & Delivery

Package Size

700.00cm * 300.00cm * 150.00cm

Gross Weight

4000.000kg

Transport Package

Wooden Case

💡 Product Description

The machines are designed using the "toy bricks" principle. The screw configuration, barrel setup, L/D ratio, feeding and venting modes, screen changing, granulating methods, and control modes can be optimally adjusted according to different material properties and requirements, ensuring versatility in general applications.

Co-rotating parallel twin-screw extruders are widely used for general plastics, engineering plastics, and thermoplastic rubbers (TPE, TPR, EVA, PE). They excel in polymer processing fields such as filling, reinforcing, toughening, blending modification, as well as special fiber and adhesive processing.

📊 Technical Parameters

Model	Diameter (mm)	L/D	Speed (r/min)	Power (kw)	Capacity (kg/h)
TSE-20	22	32-44	600	5.5	0.5-10
TSE-30A/B	31	32-48	500/600	11/15	5-40
TSE-35A/B	35.6	32-52	600-800	15-22	30-70
TSE-40A/B	41	32-64	400/600	22/30	100-160
TSH-40B	41	32-52	600	45-55	150-220
TSE-50A/B	50.5	32-52	500	45-55	180-270
TSH-52B	51.5	32-60	600	90-132	682
TSE-65B/C	62.4	32-64	600	90/110	250-400
TSH-65B	62.4	32-64	600-800	110-160	350-500
TSE-75B/C	71	32-64	600	132/160	350-600
TSH-75B	71	32-64	600-800	200-250	600-800
TSE-95A/B	93	32-64	500/600	250/315	600-1200
TSH-95B	93	32-64	600-800	400-450	1200-1600
TSE-135A	133	32-64	500	550	1500-2250

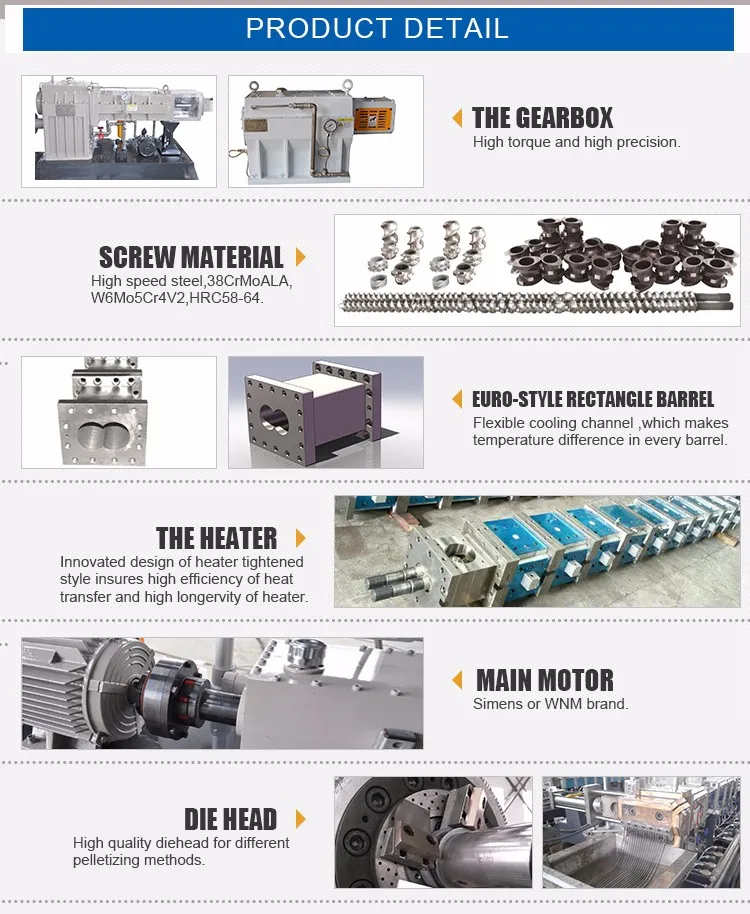

🛠️ Key Characteristics & Components

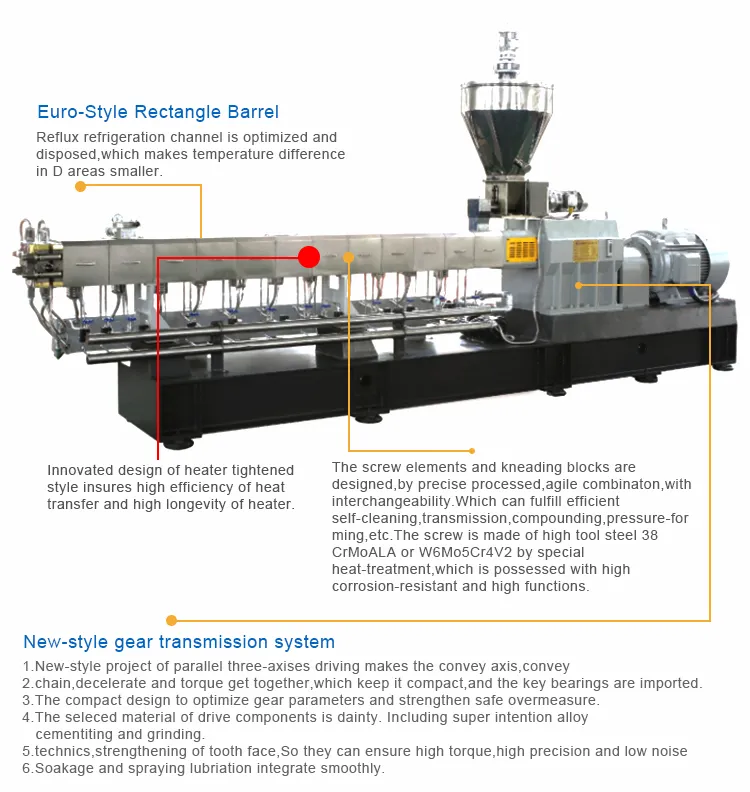

1. The Gearbox New-style parallel three-axis drive project. Drive components use super-intensity alloy steel with gear grinding technics and tooth face strengthening to ensure high torque, high precision, and low noise.
2. The Feeding System Equipped with various options: single screw, twin screw, hollow screw, forced-feeding, side feeding, and liquid-adding systems.
3. Screw Elements Designed for efficient self-cleaning, transmission, compounding, and pressure-forming. Made of high tool steel 38CrMoALA or W6Mo5Cr4V2 with special heat treatment.
4. The Barrel Eurostyle rectangle barrel with optimized reflux refrigeration to minimize temperature differences. High-quality nitrided steel for corrosion and friction resistance.
5. The Heater Innovated tightened style design ensures high heat transfer efficiency and long service life.

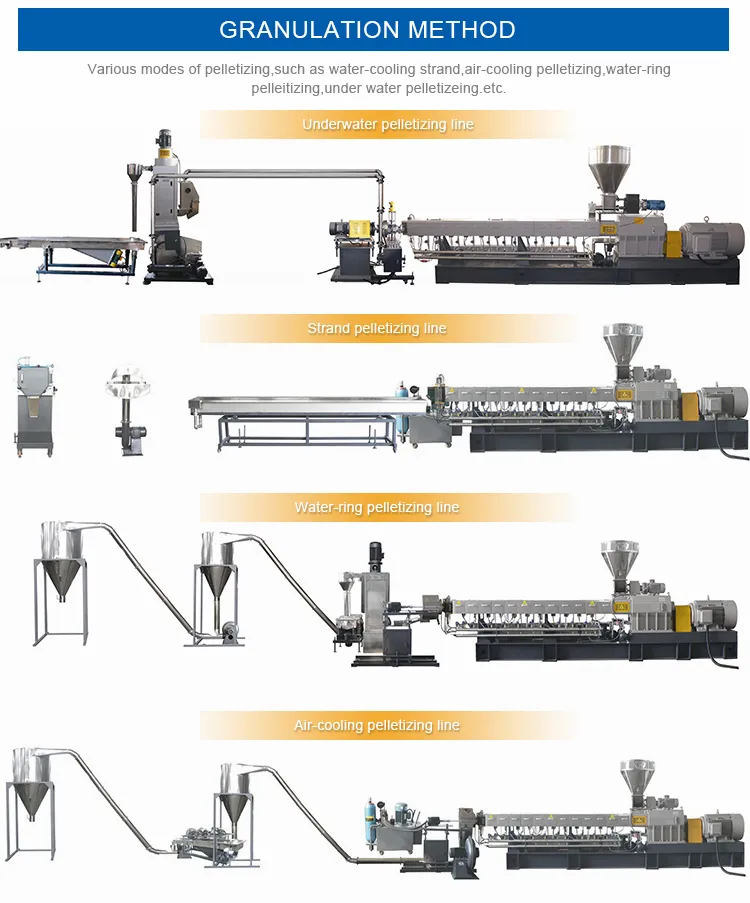

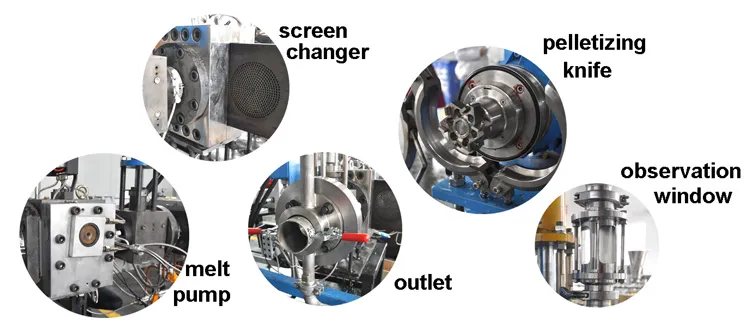

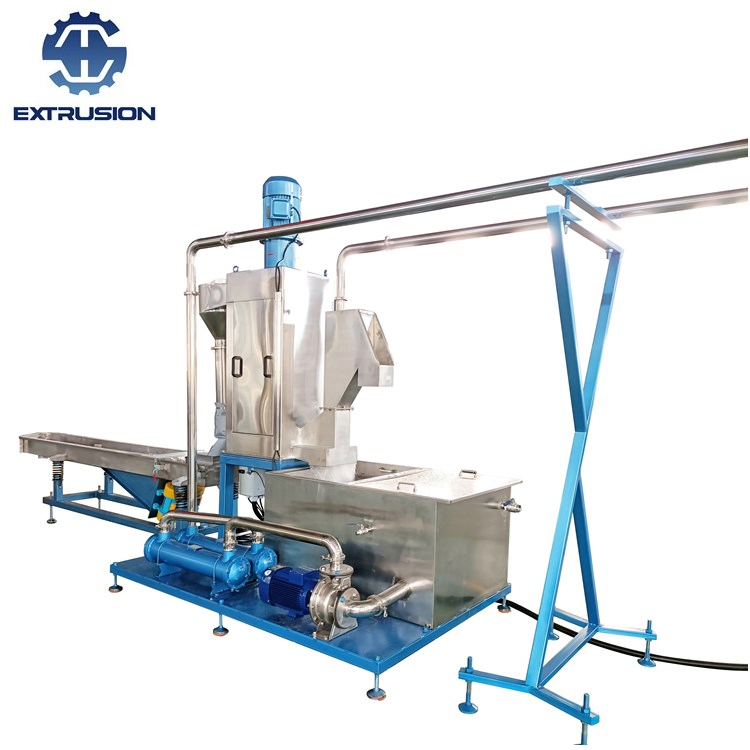

6. Pelletizing Modes Supports water-cooling strand, air-cooling pelletizing, water-ring pelletizing, and underwater pelletizing.

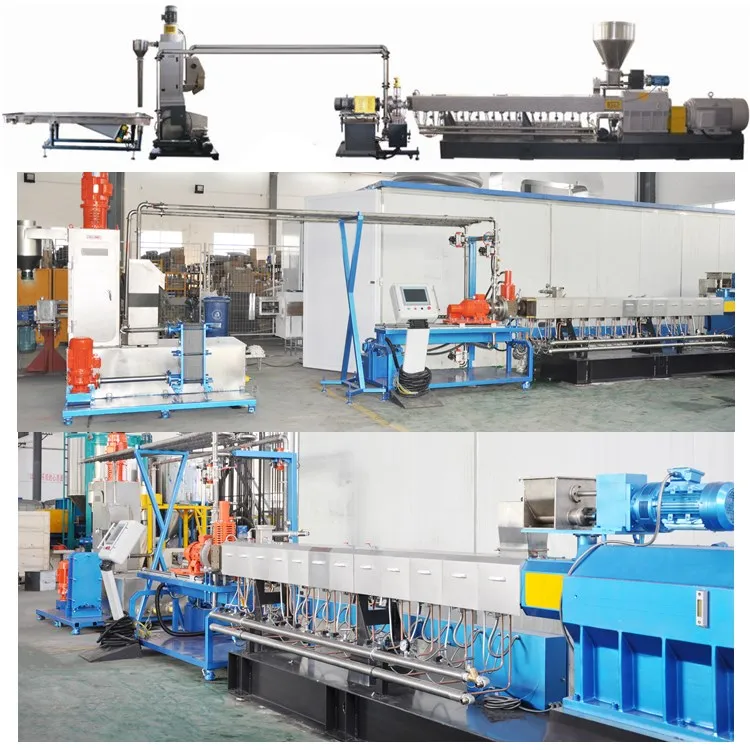

🏭 Work Line Gallery

Frequently Asked Questions

What materials can this pelletizing line process?

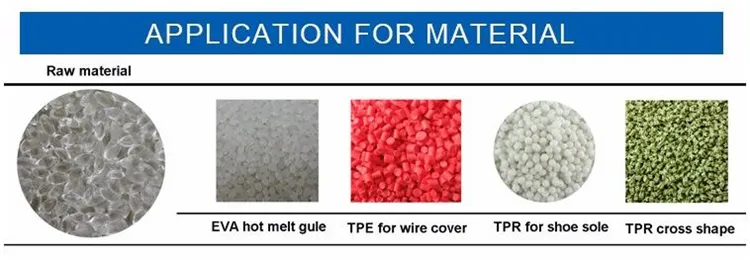

This line is specifically designed for polymer materials including EVA, TPU, TPR, TPE, and PE compounds, suitable for filling, reinforcing, and blending modification.

What is the advantage of the "toy bricks" design principle?

The modular design allows for flexible configuration of the screw, barrel, and feeding systems. This means the machine can be customized and optimized for specific material properties and production requirements.

How is the quality of the gearbox and drive system ensured?

We use a parallel three-axis drive design with components made from high-intensity alloy steel. Gear grinding and quenching techniques are applied to ensure high torque, precision, and low-noise operation.

What pelletizing methods are available for this machine?

The system supports multiple granulating modes, including water-cooling strand, air-cooling, water-ring, and hot-melt underwater pelletizing to suit different production needs.

How long is the typical manufacturing time and how is it shipped?

The typical manufacturing time is approximately 60 days to ensure quality testing. Machines are packed in professional wooden cases to prevent any damage during international shipping.

What certifications does the equipment carry?

Our production lines are fully certified with CE and ISO9001:2008 standards, ensuring compliance with international safety and quality regulations.
