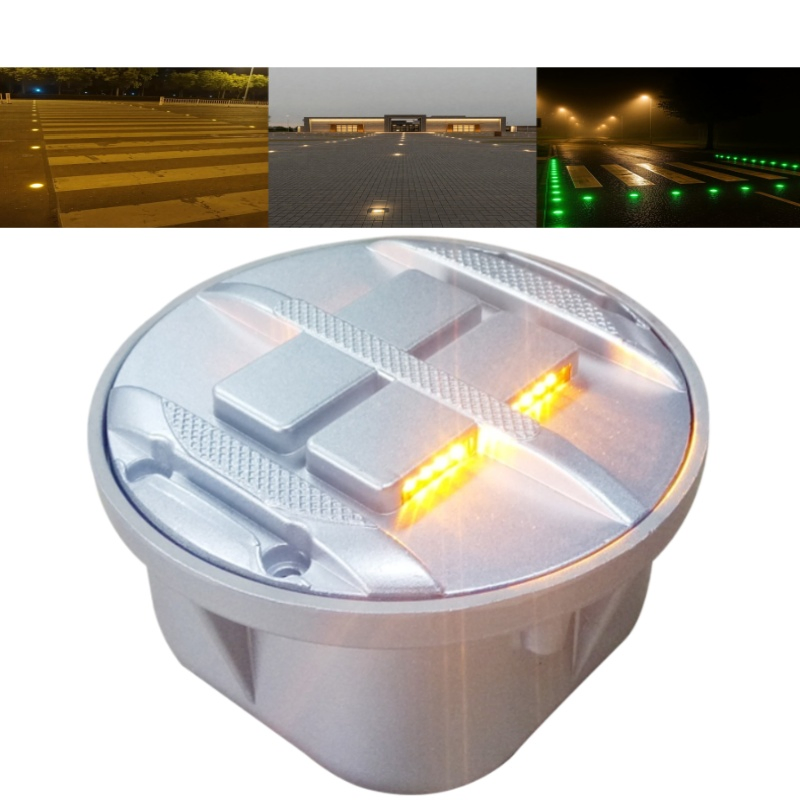

Solar Powered LED Road Stud Cat Eye Underground Traffic Safety Lighting

Basic Specifications

Model NO.	BL-005CA
Power	≤5W
Application	Industrial / Traffic Safety
LED Chips Brand	Epistar
Voltage	12-24V DC
LED Type	SMD 3528
Certification	CCC, RoHS
Material	Aluminum and PC
Mechanical Resistance	30-Ton Truck
Working Temperature	-20 ℃ ~ + 80 ℃
Specification	170*98.2 mm

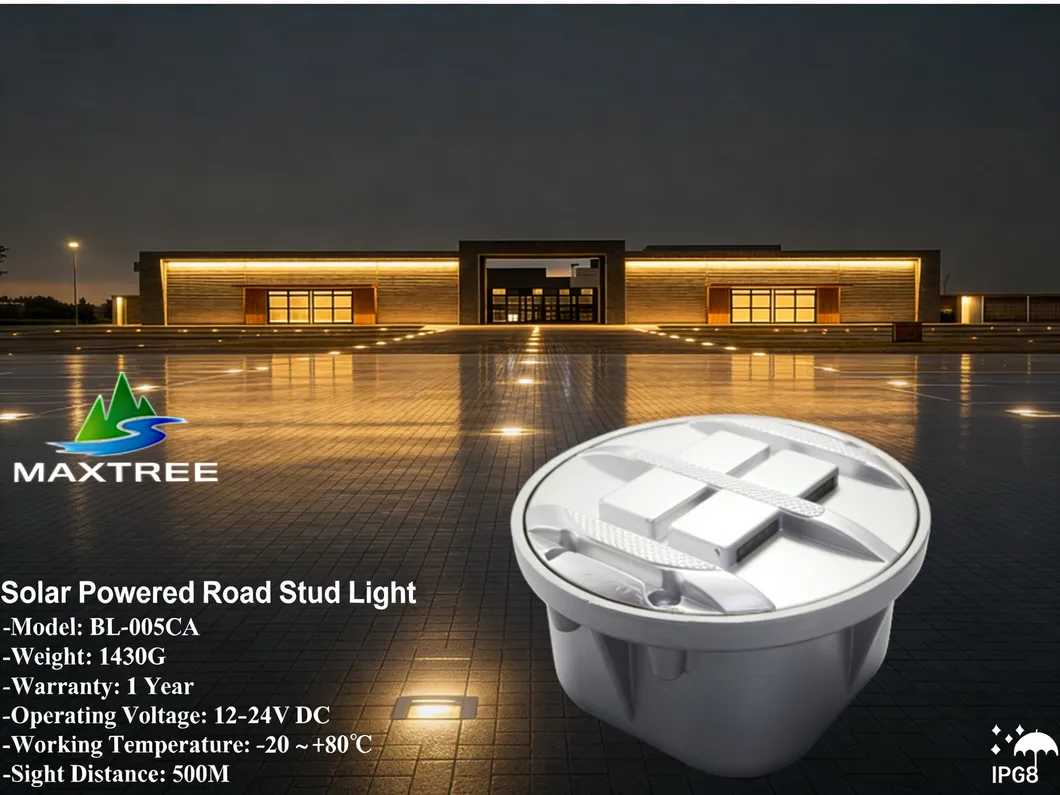

Solar Powered LED Road Stud

Underground Traffic Safety Lighting & Cat Eye Studs

Technical Parameters

Parameters	Specifications
Material	Aluminum + PC
Power Supply	12~24V DC
Visibility Distance	500M in the Darkness
Operation Mode	Flashing / Steady / Synchronous Flash / Sequential Flash
IP Rating	IP68
Mechanical Resistance	≥30 Tons Truck
Work Temperature	-20ºC to +80ºC

Key Performance Features

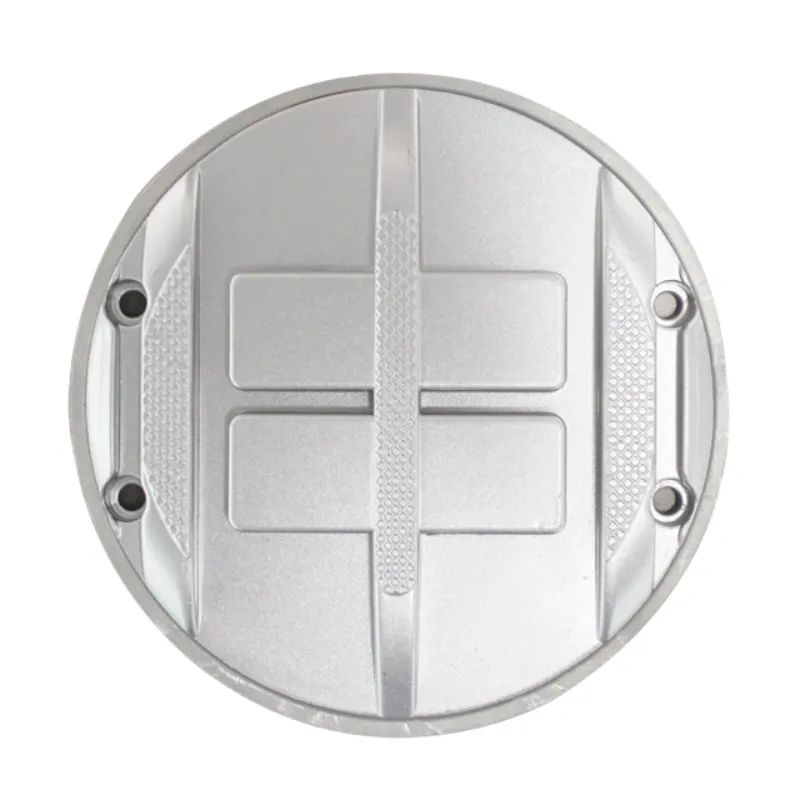

Super Durable Construction

6061-T6 aluminum frame with ≥30-ton load capacity
Low-profile design: Only 8.2mm above road surface
Pressure resistance: >100 kN/m²
IK10 impact-rated top cover with UV-resistant polycarbonate

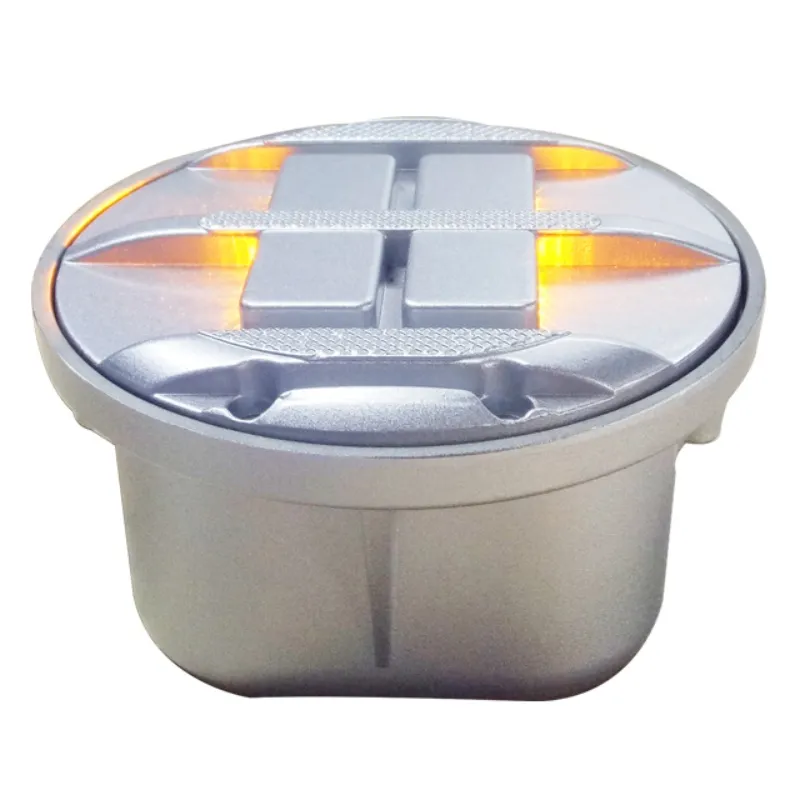

Ultra-High Brightness

Peak LED intensity: 300,000 mcd
Night visibility: >500 meters
120° wide-angle illumination with anti-glare coating

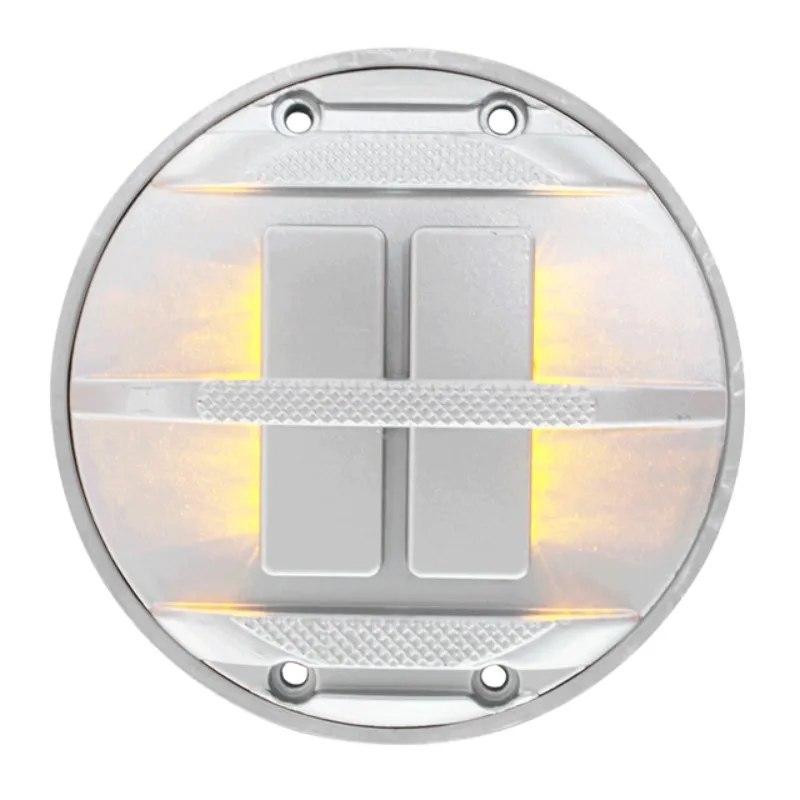

All-Weather Protection

IP68 waterproof: Submersible up to 3m for 72 hours
Self-draining 3° sloped top with hydrophobic coating
Operating range: -40°C to +85°C

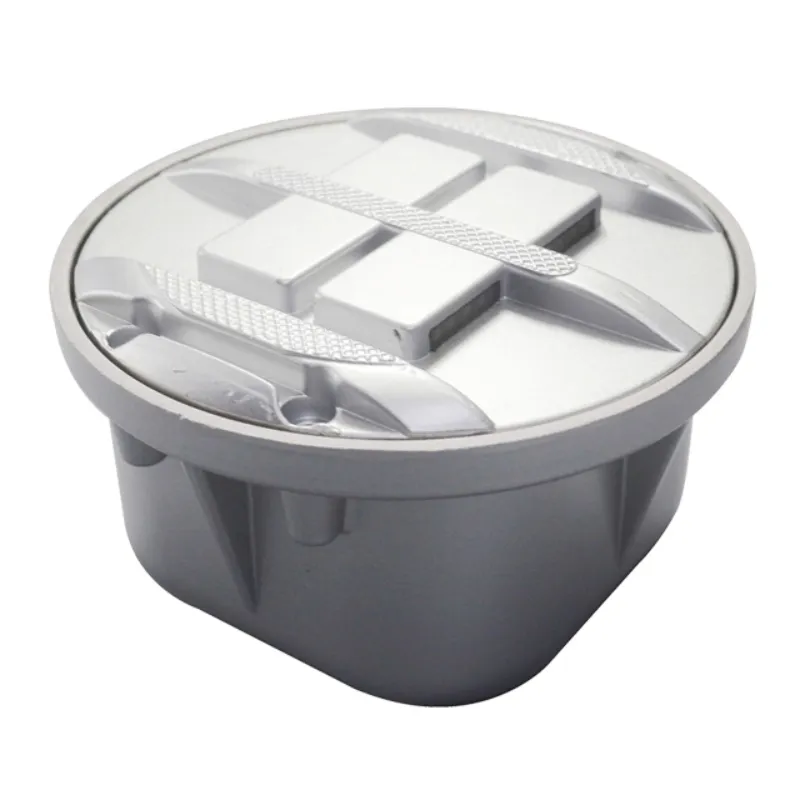

Smart Operating Modes

Steady-on (100% brightness)
1Hz flashing (adjustable via PWM)
Synchronous Flashing: GPS/RF-synchronized
Sequential Flashing: Programmable sequences

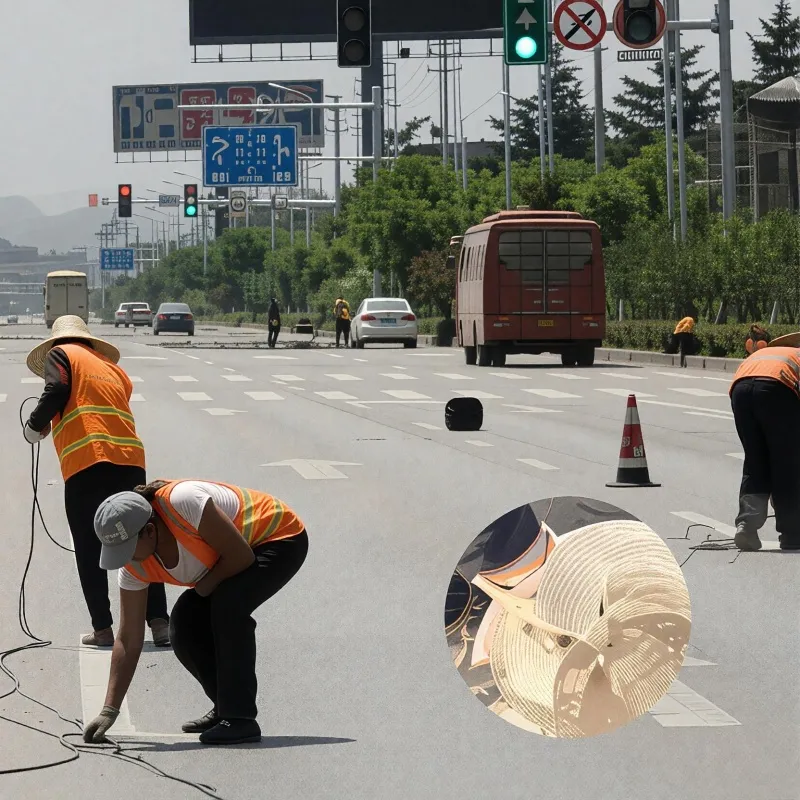

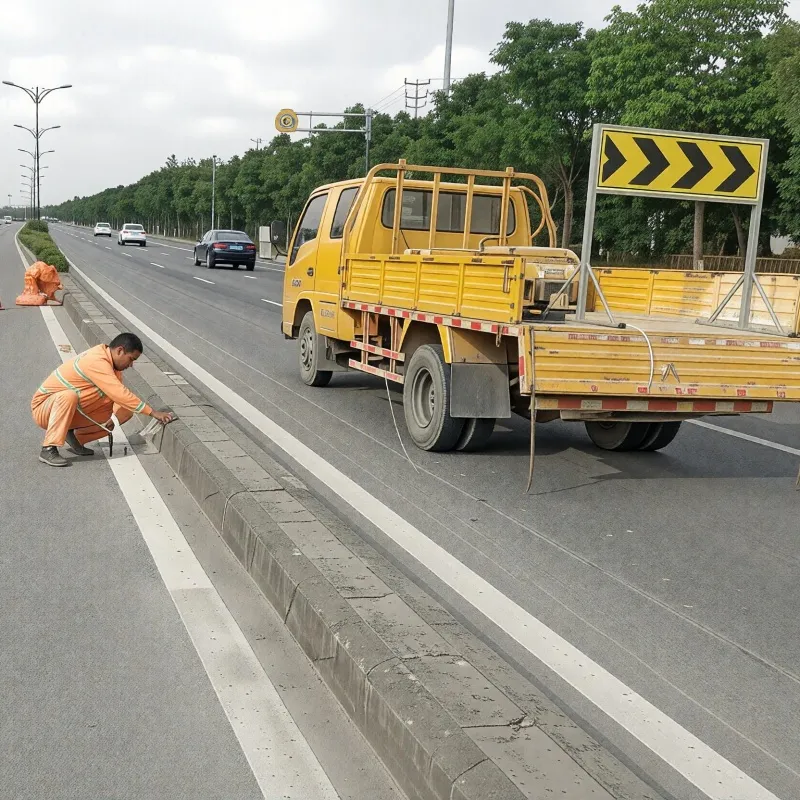

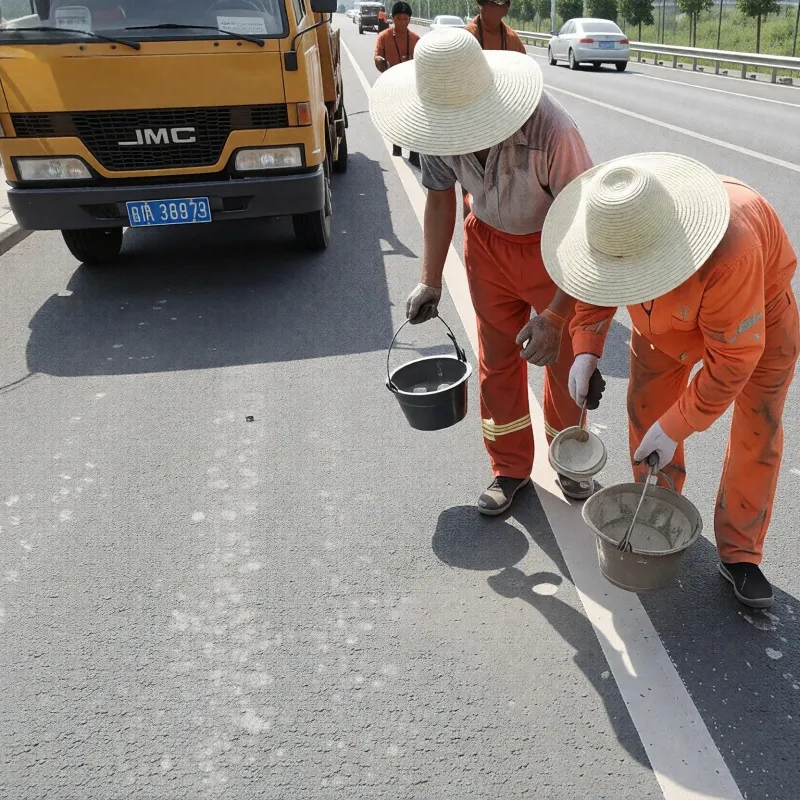

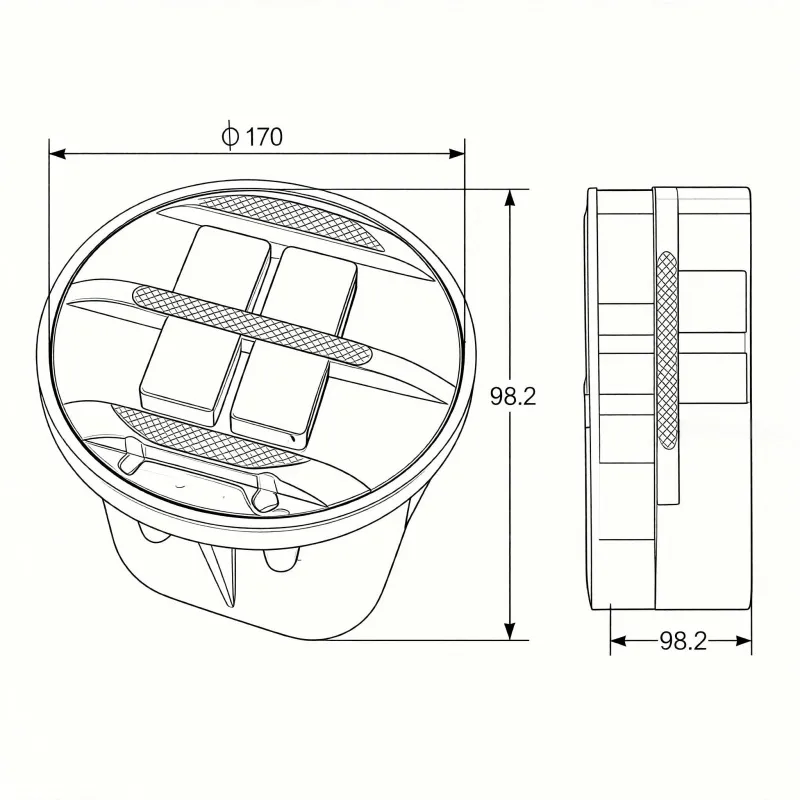

Installation & Dimensions

🛠️

Technical Precision: Install 100 mm below road surface using M12 chemical bolts (substrate ≥20 MPa). For maintenance, unscrew the main body (45° CCW) after cutting power and drying the area. Reseal with supplied 1:1 epoxy.

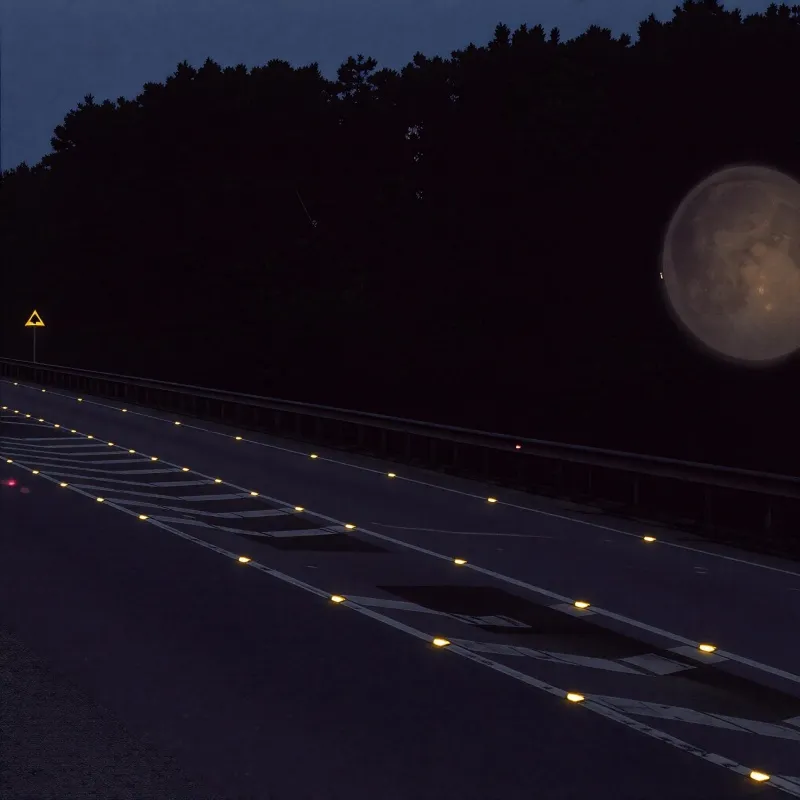

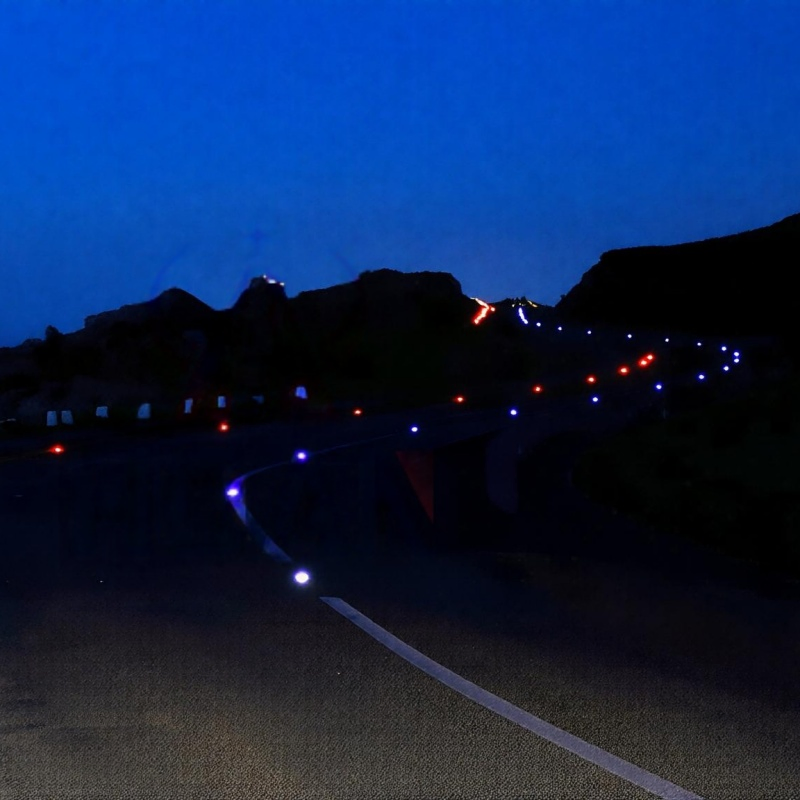

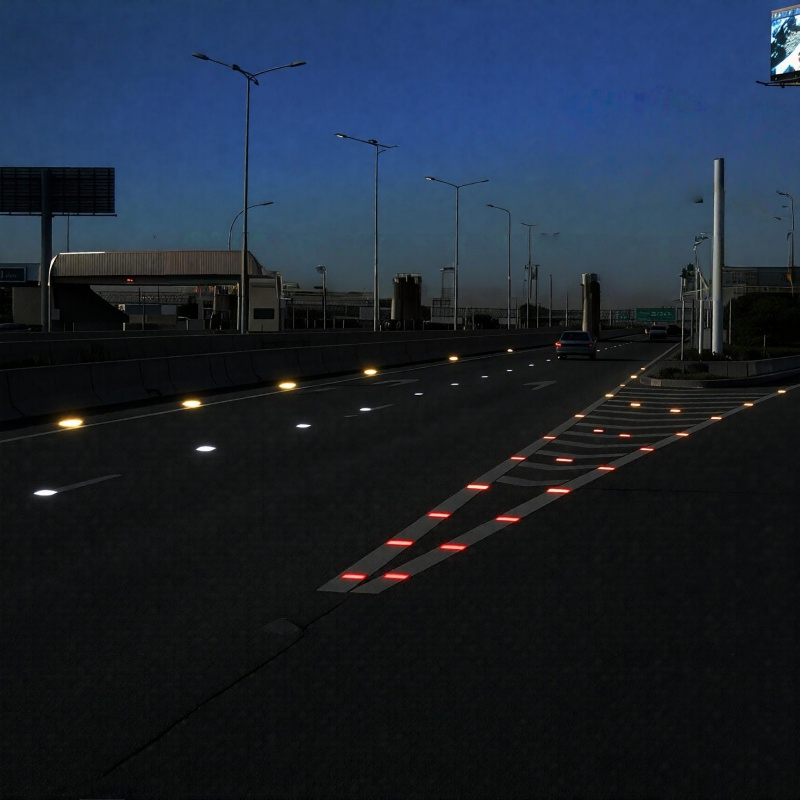

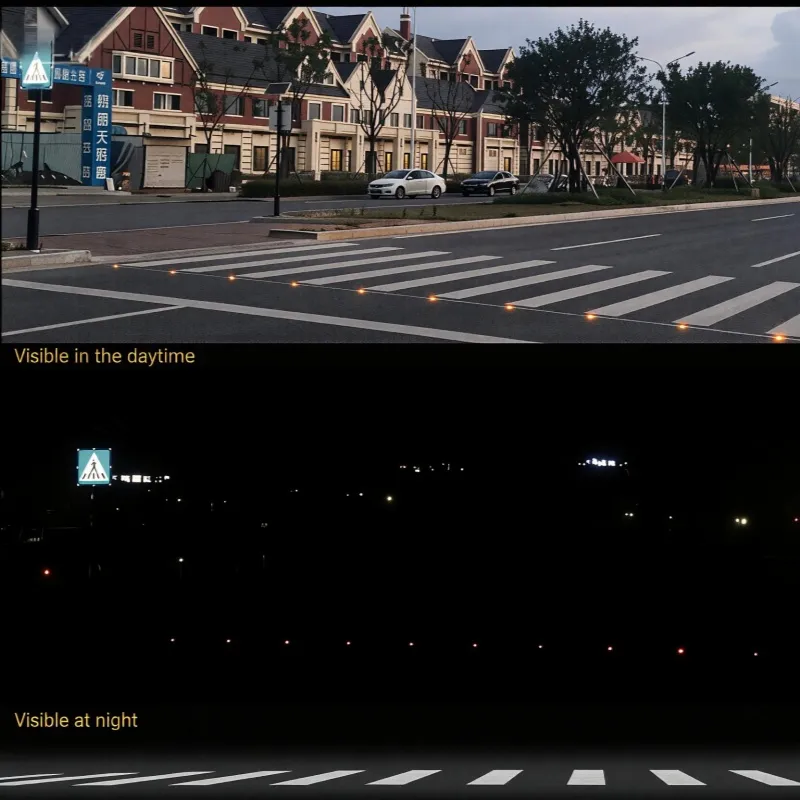

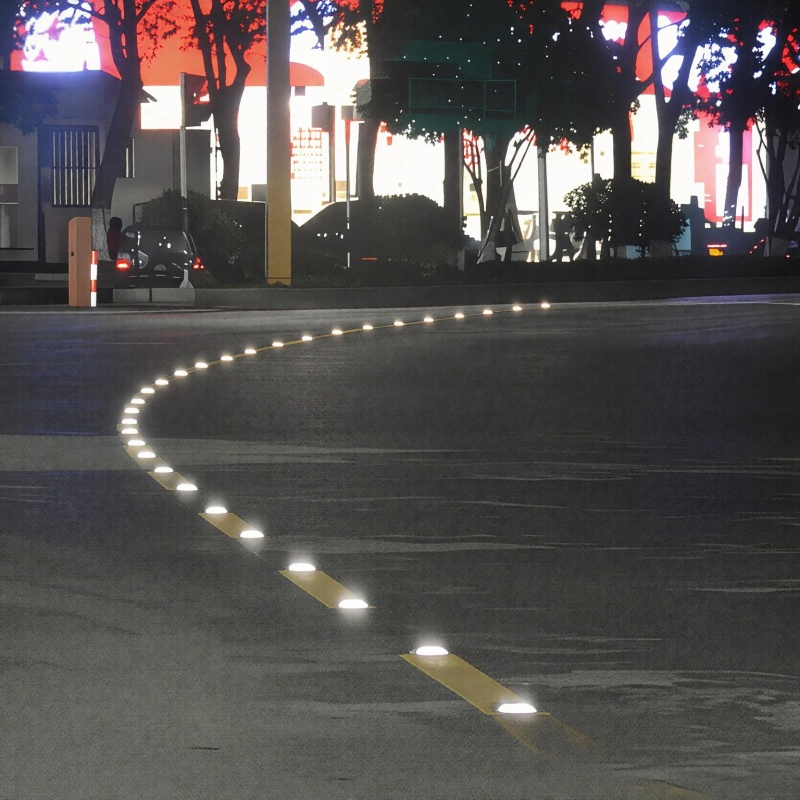

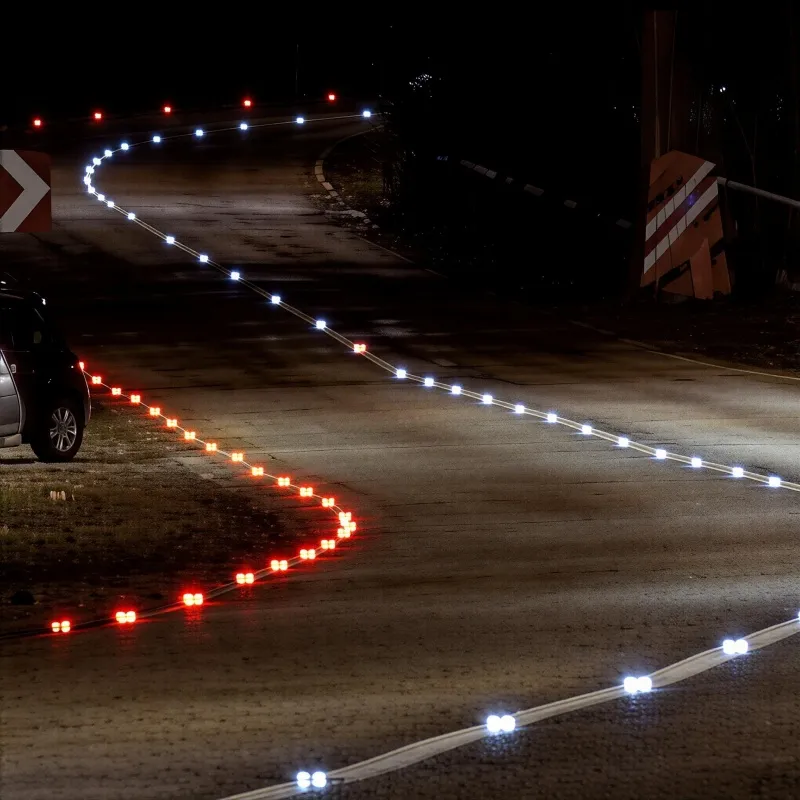

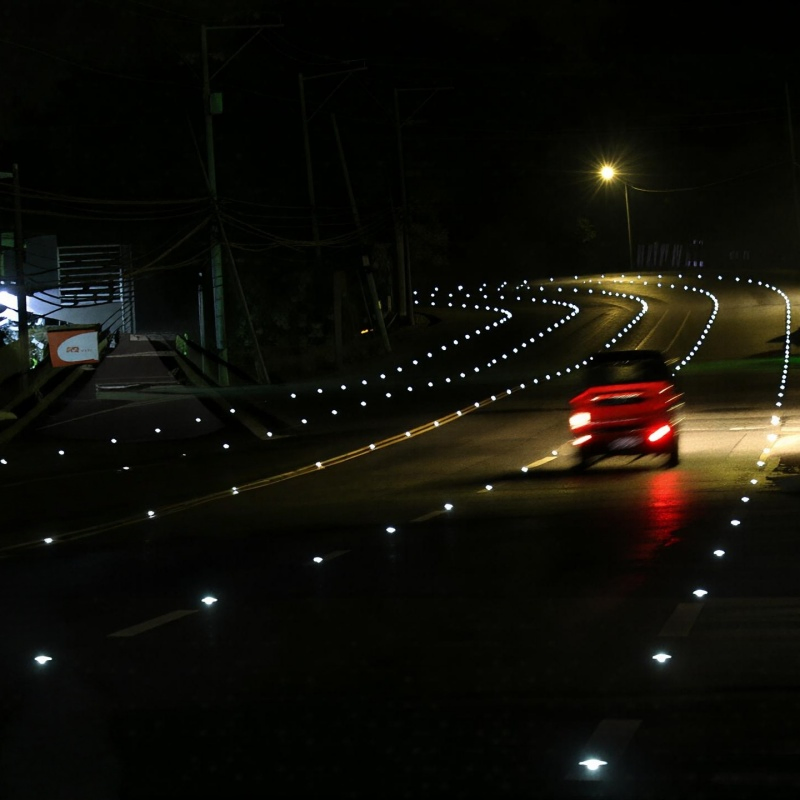

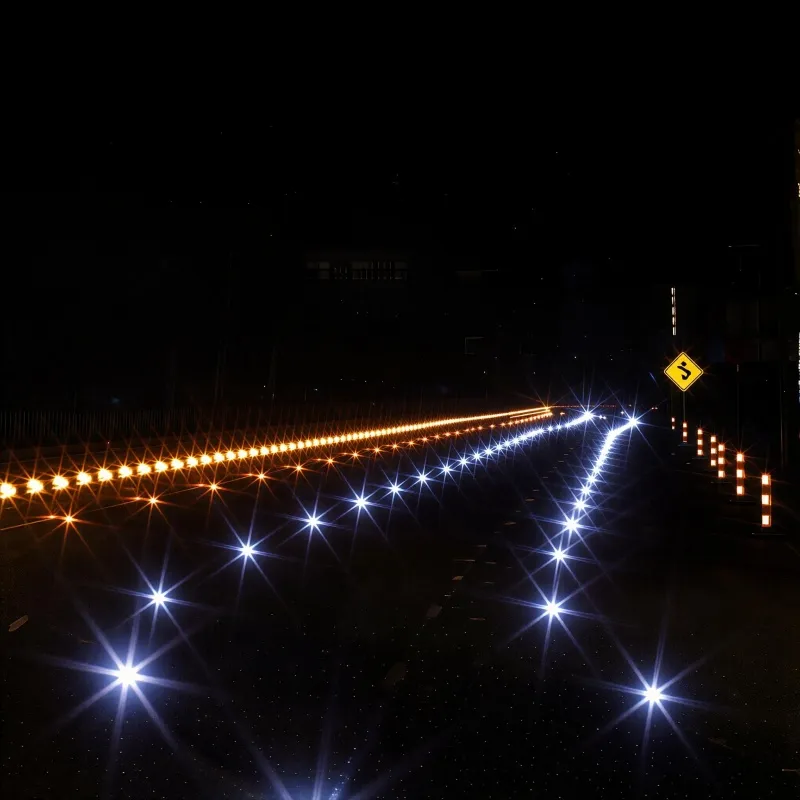

Wide Application Scenarios

🛣️

Enhance visibility at blind corners, sharp curves, tunnels, and rural roads. Ideal for foggy, coastal, or rainy regions. Perfect for intersections, crosswalks, bridges, roundabouts, airport taxiways, and pedestrian pathways.

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a professional manufacturer specializing in traffic safety products, including warning lights, LED beacons, solar road studs, and traffic signs.

Can I order samples of these road studs?

Absolutely! We fully support sample orders for quality testing and trial purchases.

What is the typical lead time for an order?

Standard orders typically take 10-20 business days. Please confirm exact timing based on your order volume.

Can I mix different models or colors in one order?

Yes, custom combinations of different models and LED colors are welcome to suit your specific project needs.

How do you ensure product quality?

Quality is our top priority. Our QC team inspects every product from raw materials to final assembly, conducting rigorous testing before shipment.

What shipping methods are available?

We offer sea freight, air cargo, and international express (such as DHL or FedEx) depending on your urgency and budget.
