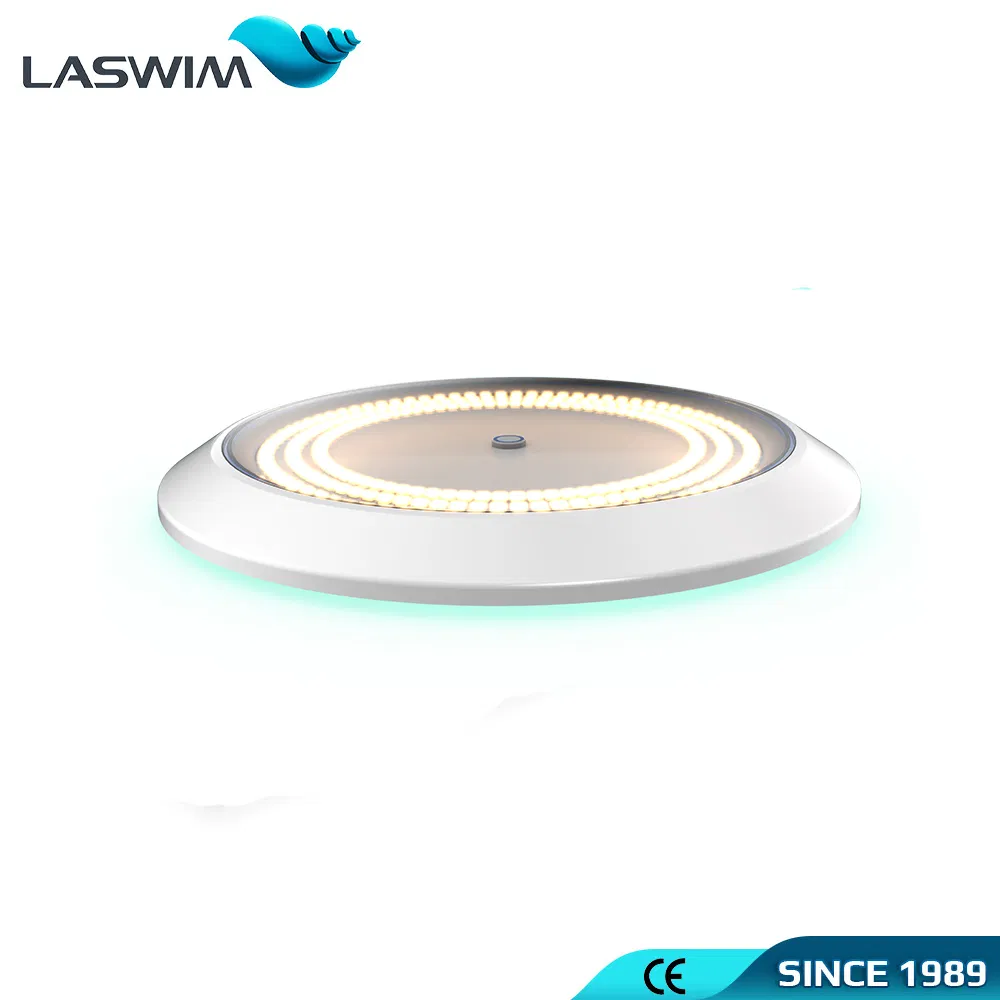

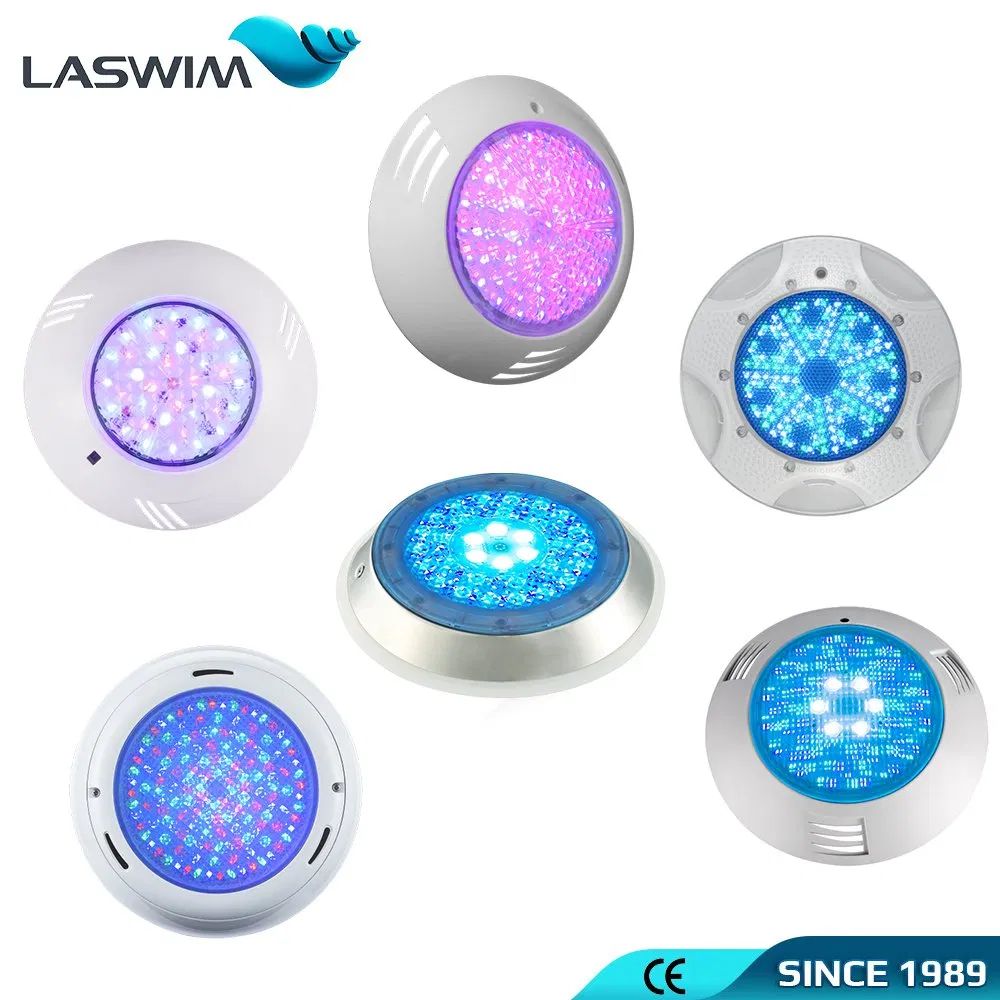

Smart LED Swimming Pool Underwater Light 115° Wide Angle RGB+White APP Control
Smart LED Swimming Pool Underwater Light 115° Wide Angle RGB+White APP Control
Smart LED Swimming Pool Underwater Light 115° Wide Angle RGB+White APP Control
Smart LED Swimming Pool Underwater Light 115° Wide Angle RGB+White APP Control
Smart LED Swimming Pool Underwater Light 115° Wide Angle RGB+White APP Control
1 / 5
Smart LED Swimming Pool Underwater Light 115° Wide Angle RGB+White APP Control
Smart LED Swimming Pool Underwater Light 115° Wide Angle RGB+White APP Control
Smart LED Swimming Pool Underwater Light 115° Wide Angle RGB+White APP Control
Smart LED Swimming Pool Underwater Light 115° Wide Angle RGB+White APP Control
Smart LED Swimming Pool Underwater Light 115° Wide Angle RGB+White APP Control

Smart LED Swimming Pool Underwater Light 115° Wide Angle RGB+White APP Control

Customization: Available
Waterproof Standard: IP68
Lamp Body Material: Fiber Reinforced Plastics
Send Inquiry

Product Description

📋 Basic Information
Model NO. WL-PE20 Emitting Color Cool White, Warm White, RGB Mixing
Application Swimming Pool, Fountain, Pond Certification CE, ISO
Voltage AC12V/DC12-24 Light Source LED (240 LEDs, Ring Type)
Beam Angle 115° Power 24W
CRI ≥80 Origin China
📑 Product Description
Smart LED Pool Light Banner
Product View 1

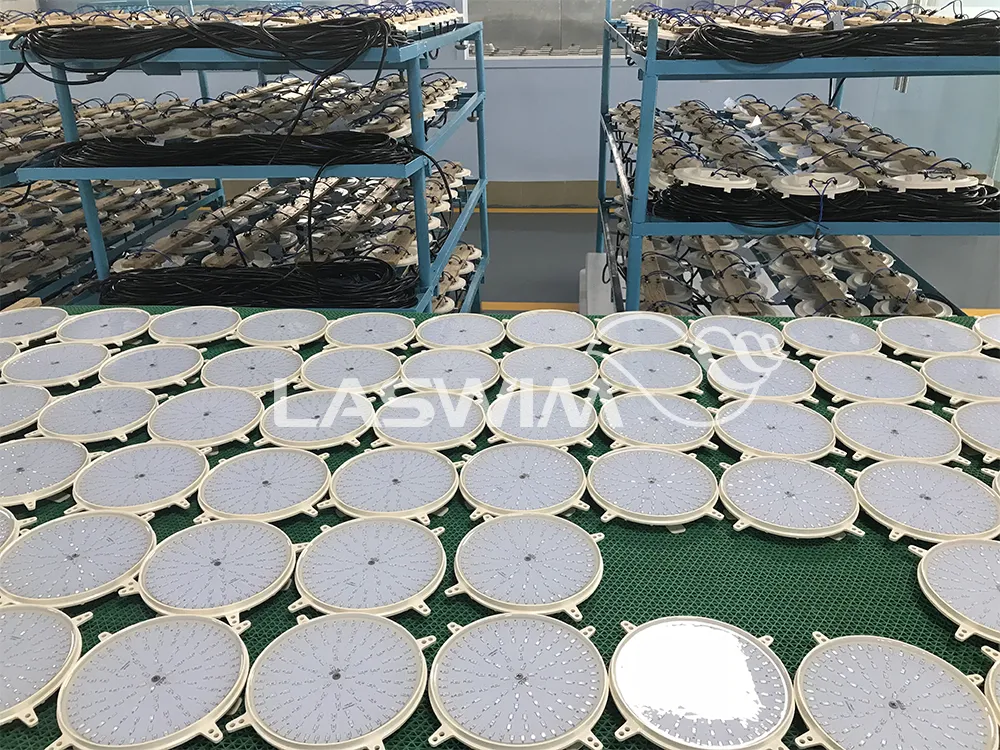

Product View 2

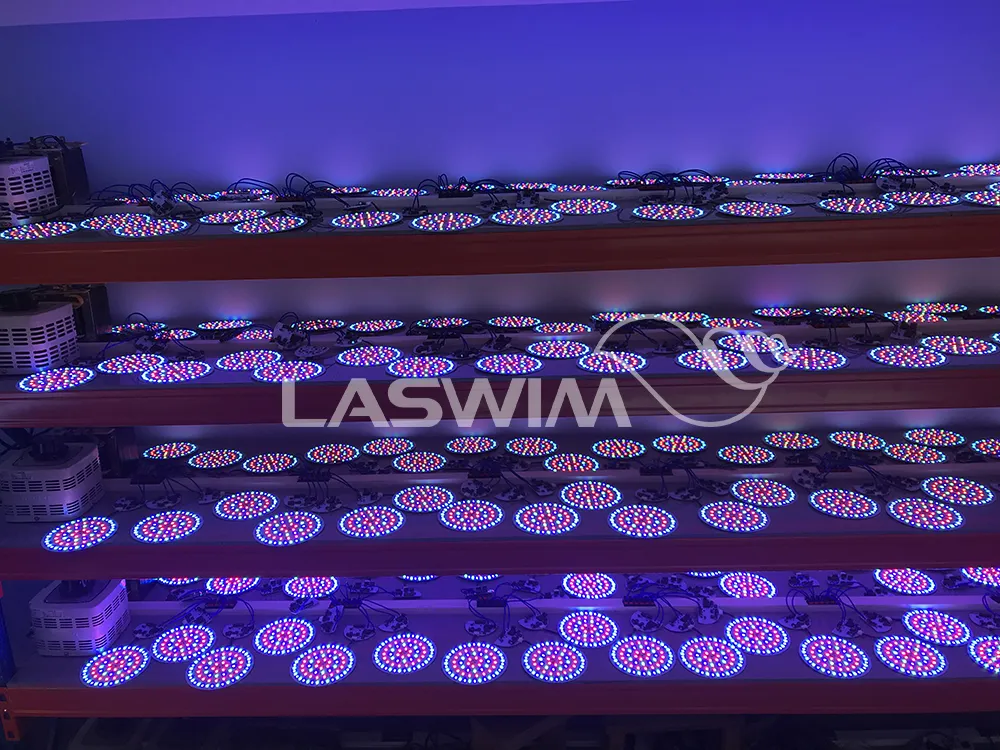

Product View 3

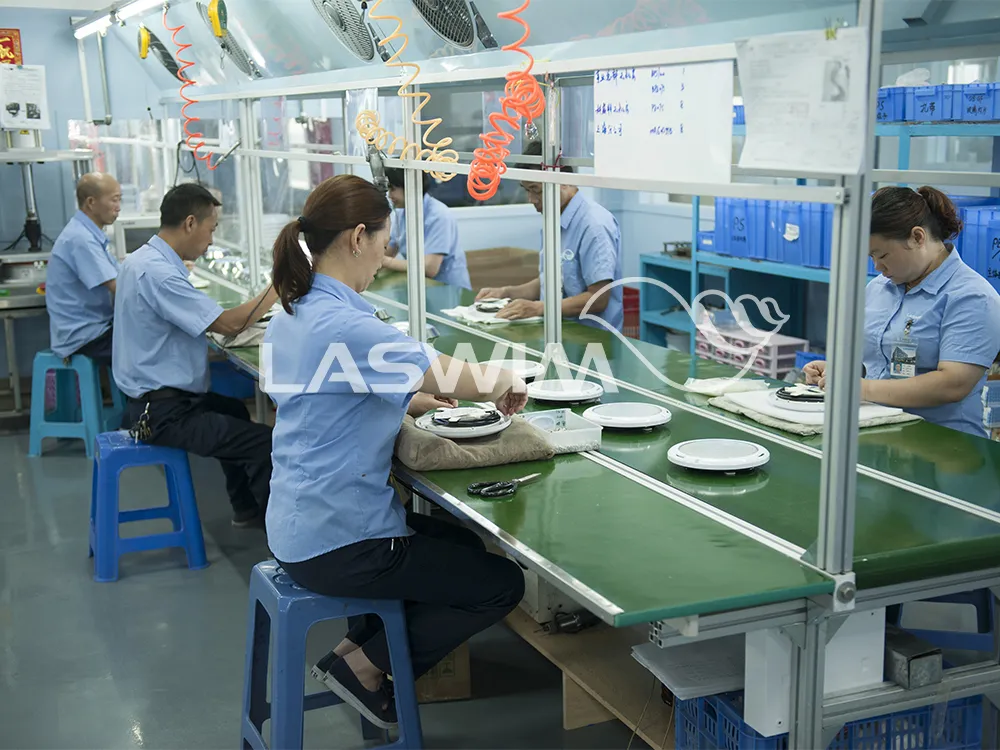

Product View 4
Product View 5
Product View 6

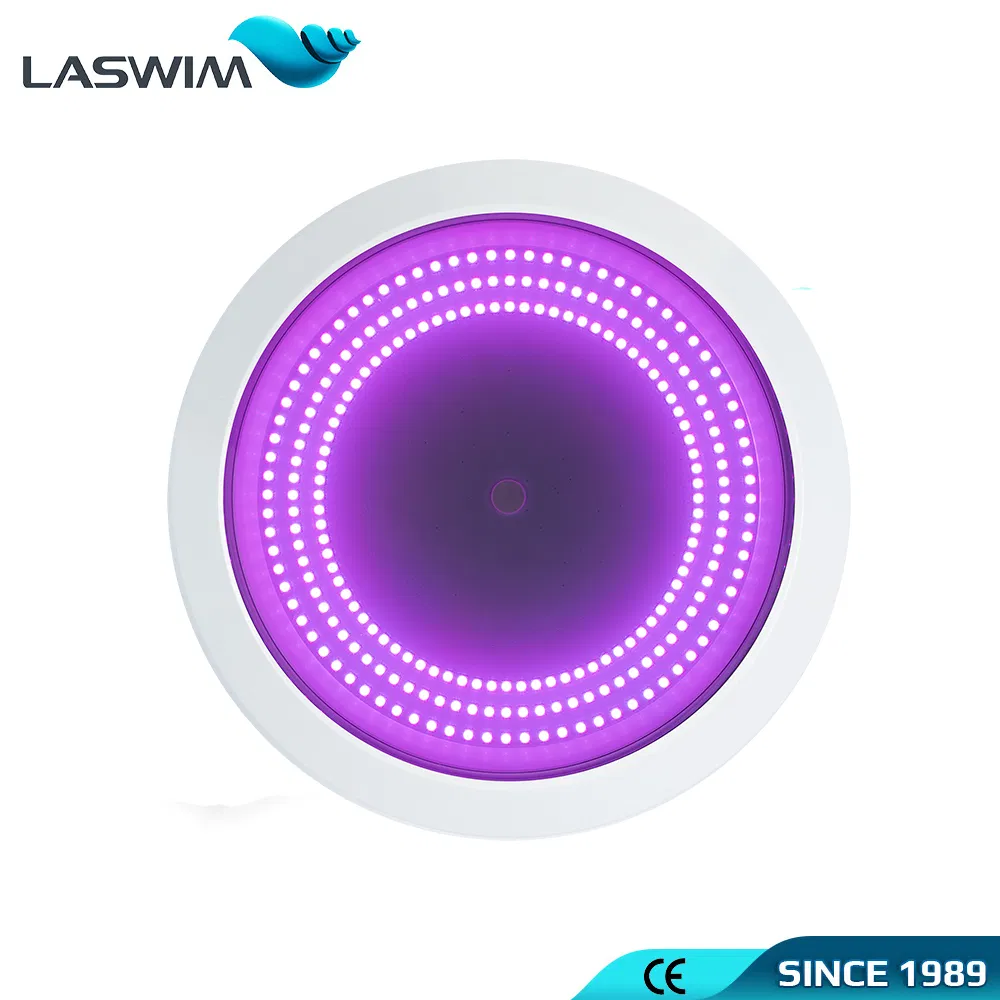

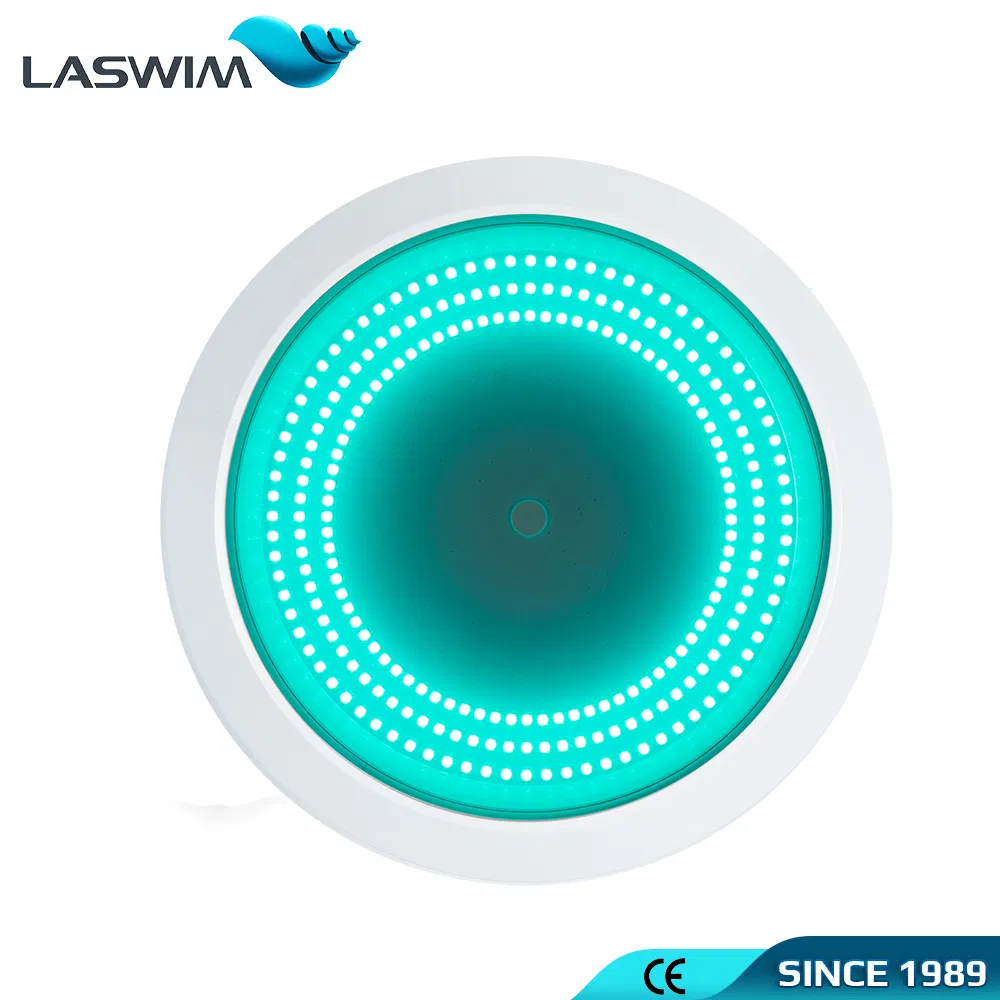

WL-PE20 Smart Underwater Lighting Solution

The WL-PE20 series features an ultra-wide 115° beam angle designed to eliminate shadows, providing flawless and uniform illumination for any swimming pool. Its elegant integrated design combines a slim face plate with a powerful 240-LED ring light source.

⭐ Key Features
💡
Ultra-Wide 115° Beam Angle
Eliminates shadows for uniform, flawless pool lighting.
❄
Advanced Cooling Technology
Lower PCB temperature ensures higher efficiency and longer lifespan.
🛡
Smart Safety Protection
Features overvoltage protection and thermal dimming against power surges.
📱
Smart Control
Compatible with YAQ & APPLUME controllers; supports APP remote control.
🌸
RGB Color Lighting
Free color selection with one-click synchronization for vibrant effects.
⚙
Easy Installation
Supports 12VAC (2-wire) or 12-24VDC (3-wire) with unique communication protocols.
📊 Product Parameters

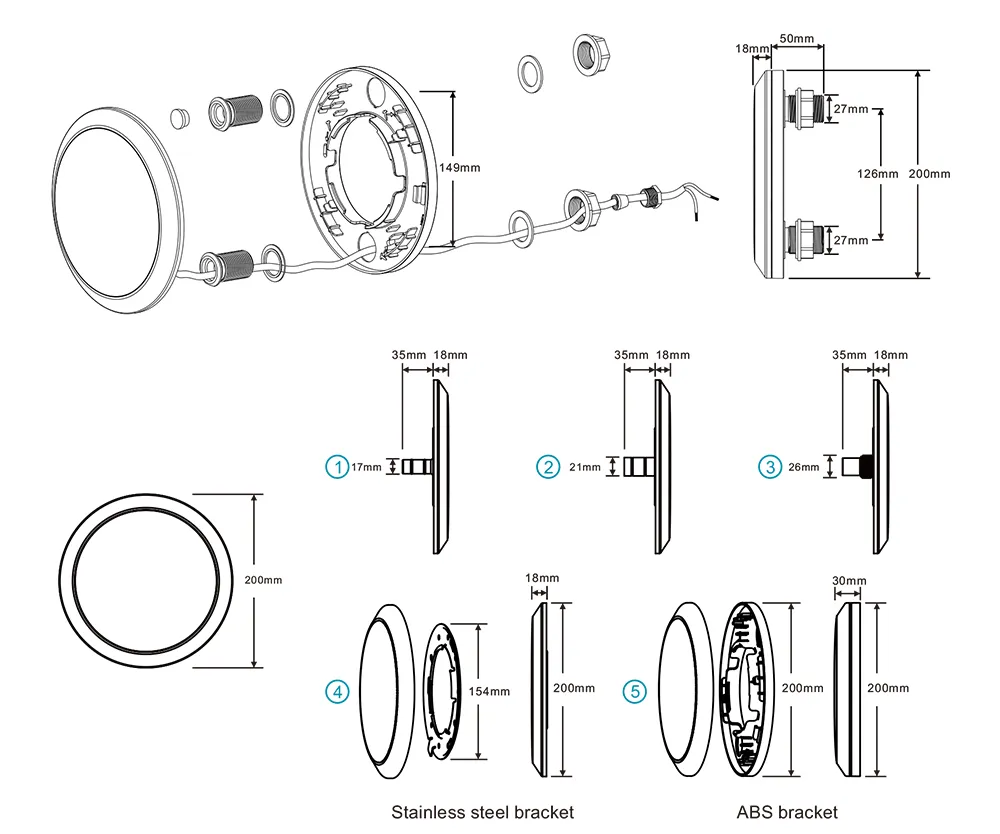

Technical Dimensions
Model Power(W) Voltage(V) LED QTY Light Source Color Lumination (lux) Installation Type
WL-PE20-024JTC 24W AC12V/DC12-24 240 SMD LED RGB 1125 Wall-mounted & wall recessed
WL-PE20-024JTB2 24W AC12V/DC12-24 240 SMD LED Warm white 2688
WL-PE20-024JTB4 24W AC12V/DC12-24 240 SMD LED Day white 3192
WL-PE20-024JTB6 24W AC12V/DC12-24 240 SMD LED Cool white 2712

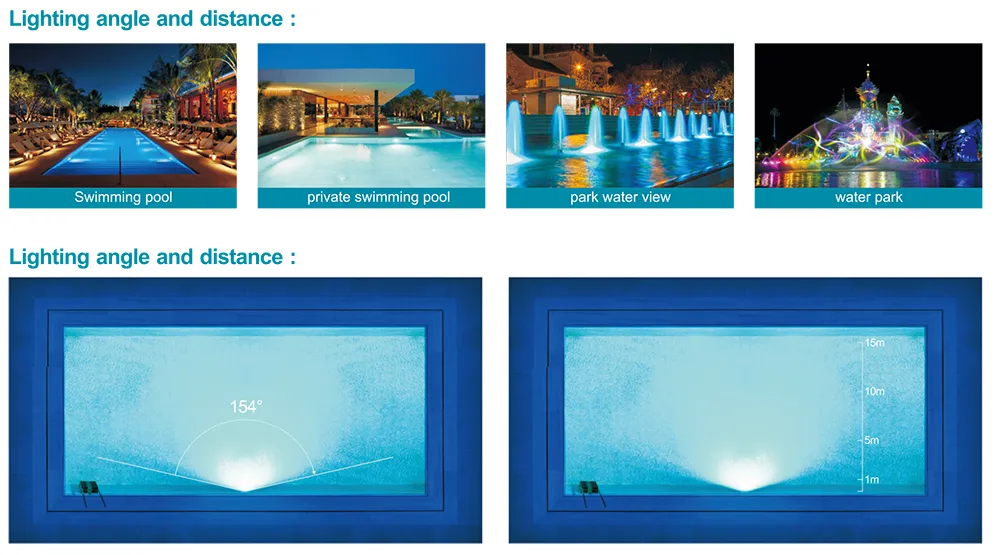

🏔 Application Scenarios
Application Scenarios

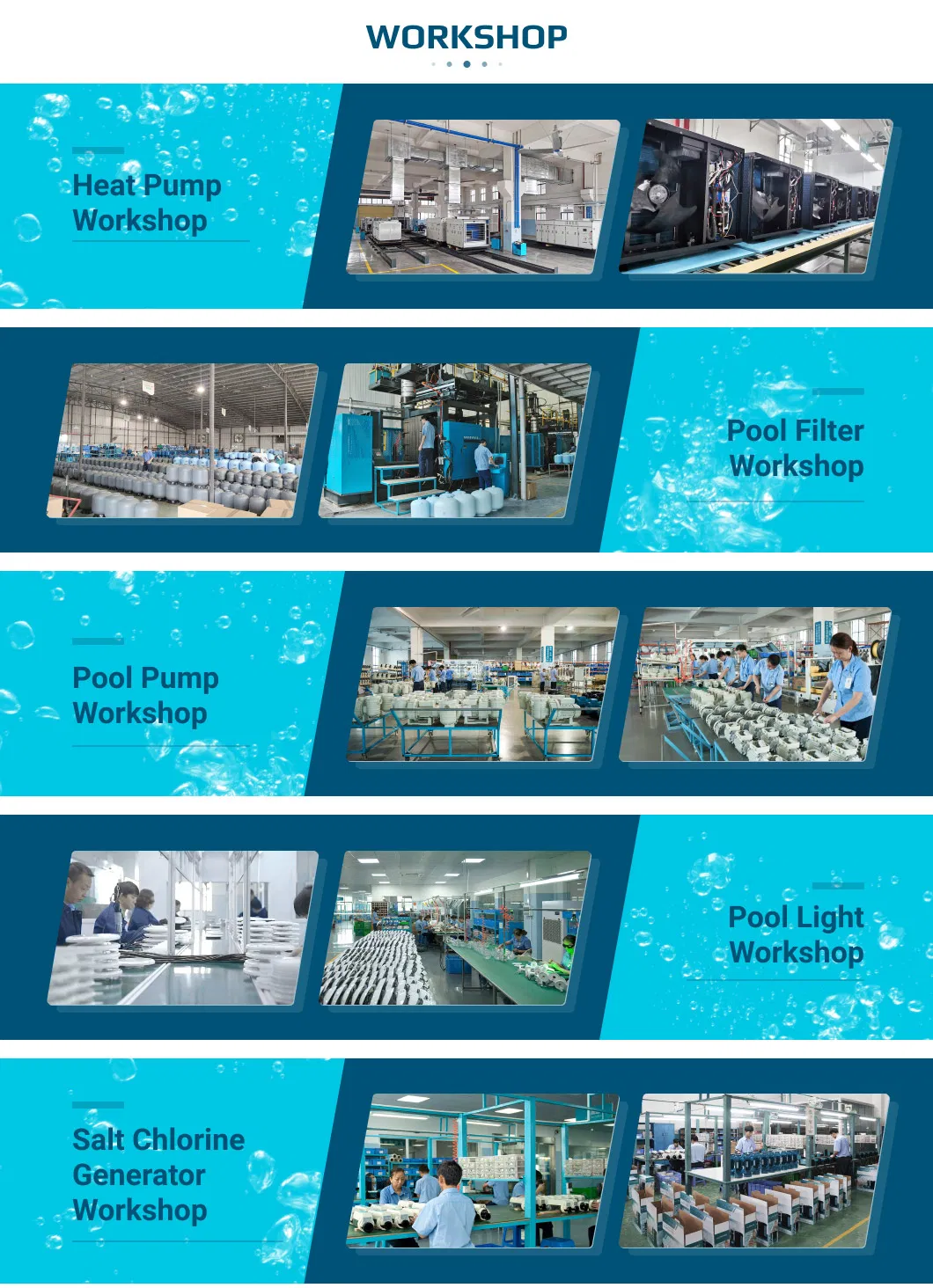

🏭 Production Capability

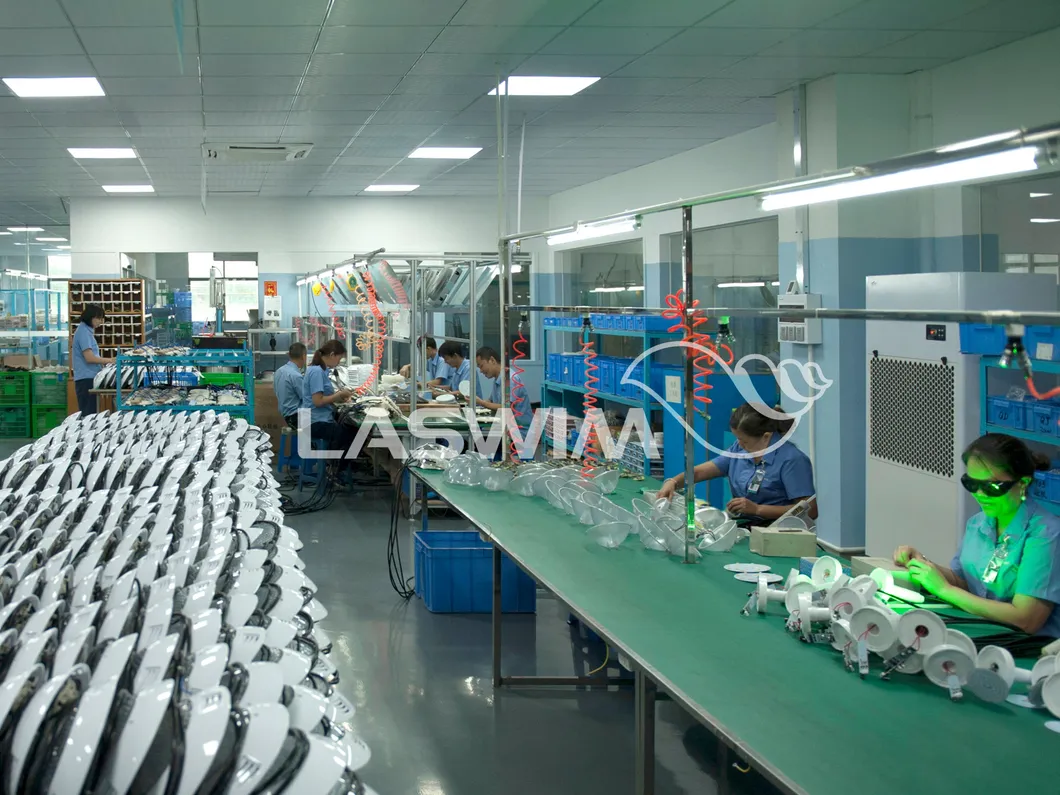

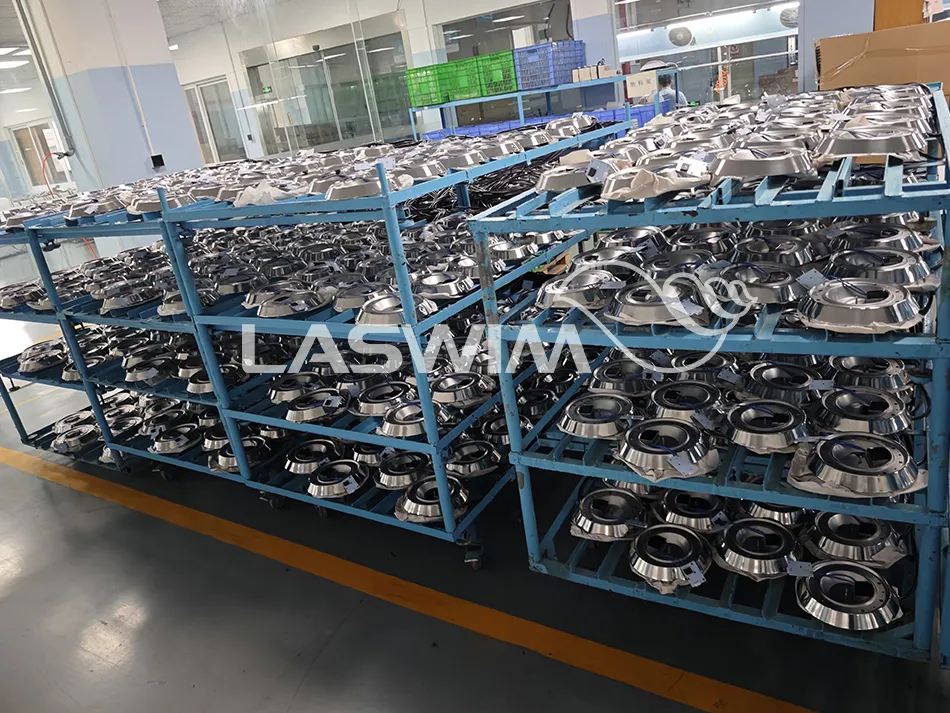

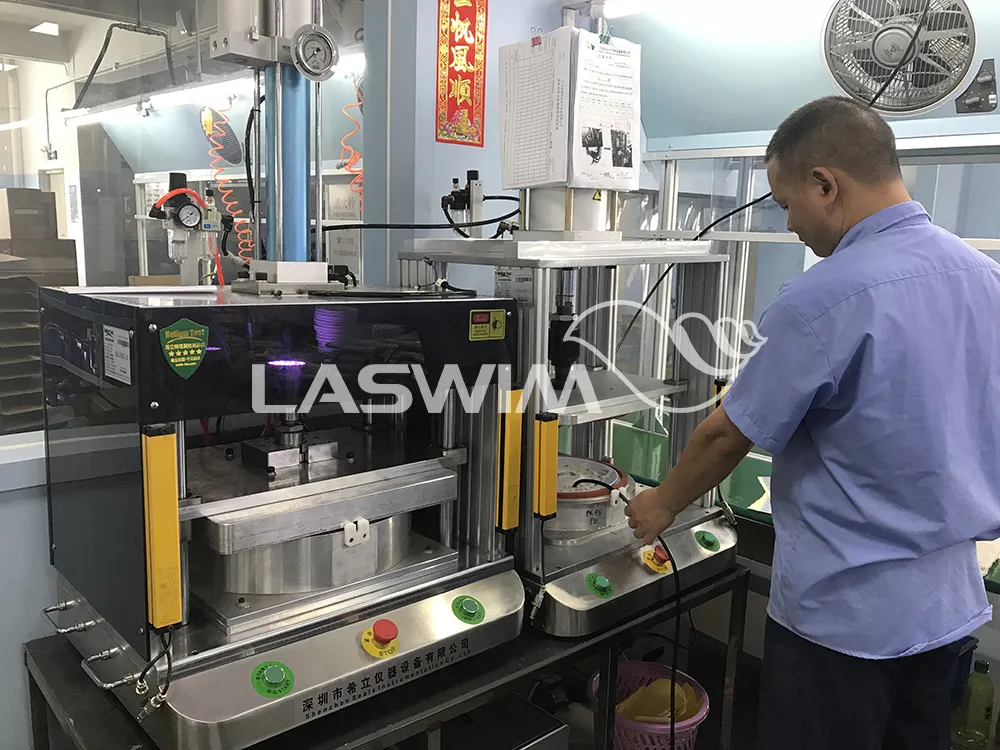

Equipped with advanced manufacturing equipment and a perfect quality management control system, the production facility covers more than 90,000 square meters. All products are made of high-quality raw materials and undergo automated testing to ensure reliability and performance.

Factory View 1
Factory View 2
Factory View 3
Factory View 4
Factory View 5
Factory View 6
❓ Frequently Asked Questions
What makes the 115° beam angle special?
The ultra-wide 115° beam angle is designed to eliminate shadows in the water, providing a more uniform and flawless lighting effect across the entire pool surface.
Can I control these lights with my smartphone?
Yes, the WL-PE20 series is compatible with YAQ and APPLUME controllers, allowing you to remotely manage colors and modes via a dedicated mobile APP.
What are the available color options?
You can choose between RGB color mixing (with synchronization) or specific white light temperatures: Cold White (6500K), Daylight White (4000K), or Warm White (2700K).
How does the light protect itself from overheating?
The unit includes smart safety features like thermal dimming and advanced PCB cooling technology, which automatically manage heat to prevent damage and extend the light's lifespan.
Is the installation difficult?
Installation is streamlined with support for both 12VAC (2-wire) and 12-24VDC (3-wire) cabling. It also includes a variety of accessories to fit different pool types, including wall-mounted and recessed options.
What is the Color Rendering Index (CRI) of these LEDs?
The lights have a CRI of ≥80, ensuring that the colors of your pool and surroundings appear natural and vibrant under the light.
