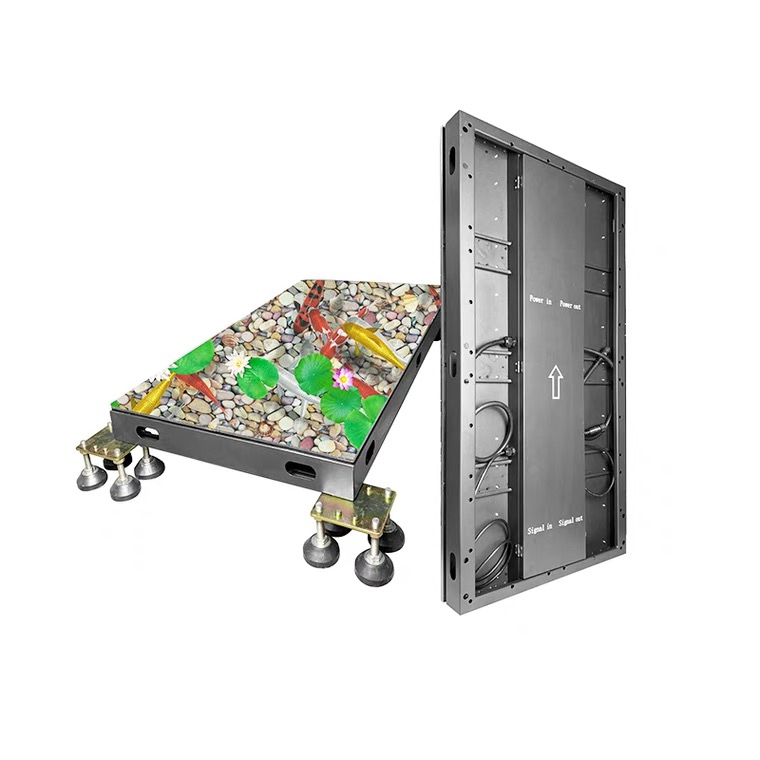

P1.953 Outdoor Indoor Ground Interactive Floor Tile LED Displays Screens Video Wall Dance Stage and Events

1 / 5

P1.953 Outdoor Indoor Ground Interactive Floor Tile LED Displays Screens Video Wall Dance Stage and Events

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

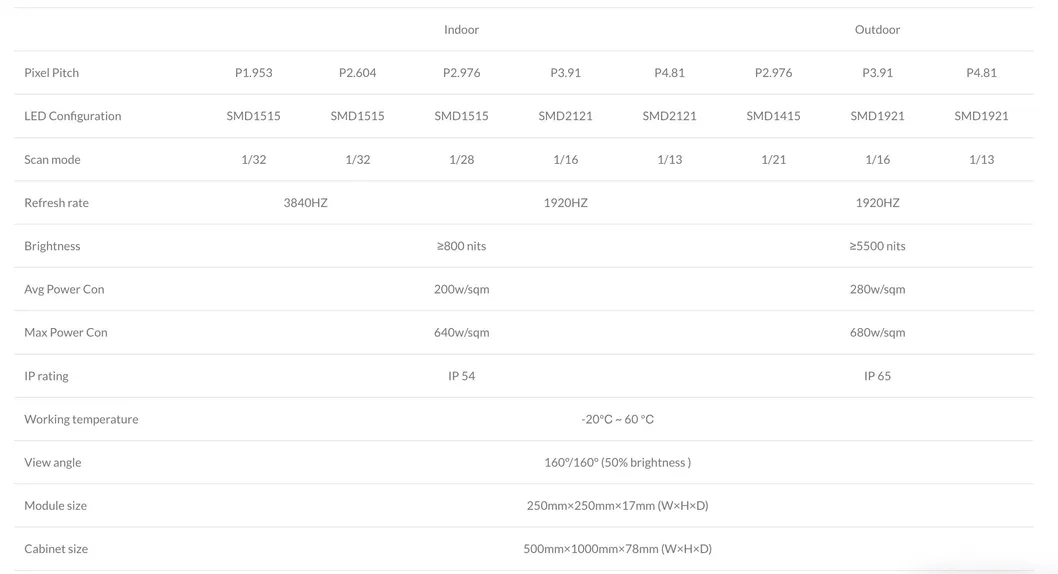

Technical Specifications

Model NO.

FI-C

Pixel Pitch

1.95mm

Pixel Density

262144dots/M²

Scanning Mode

1/32scan

Display Type

LED Video Display

IP Rating

IP65

Cabinet Material

Die-Casting Aluminum

Cabinet Size

500mm×1000mm×78mm

Brightness

Indoor ≥800 Nits / Outdoor ≥5500 Nits

Refresh Frequency

≥3840 Hz

Power Consumption

200-280W/Sqm

Working Temp

-20℃ ~ 60 ℃

View Angle

160°/160°

Module Size

250mm×250mm×17mm

Life Span

About 100,000 Hours

Certification

CE, RoHS, CCC, ETL, ISO

Product Overview

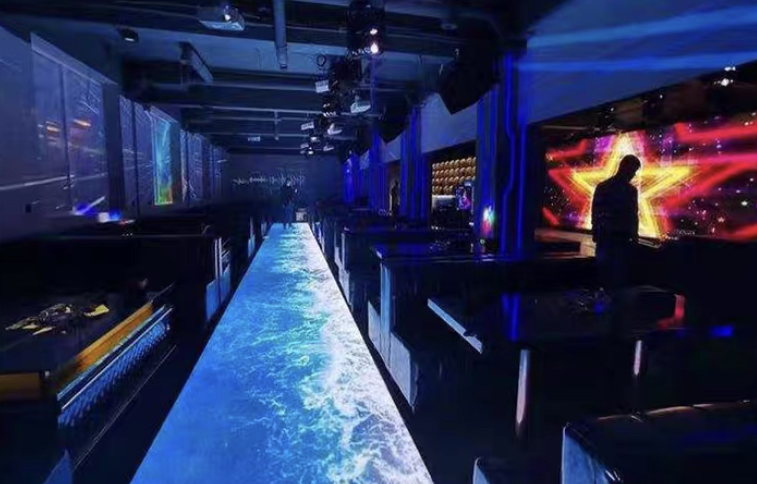

FI series floor LED displays provide interactive and non-interactive floor LED displays. They are mainly used on events stage, night club, concerts, shows, etc. Our floor LED display with ultra-high strength is very strong, capable of bearing 1.5-2ton/m². People can jump or dance on it, and even vehicles can pass. The products feature excellent waterproof and dustproof properties, suitable for both fixed installation and rental use.

Key Features

1. Super Strong Load-bearing

The LED floor screen is constructed from imported PC materials. It offers high wear resistance, flexibility, and excellent resistance to extreme high and low temperatures.

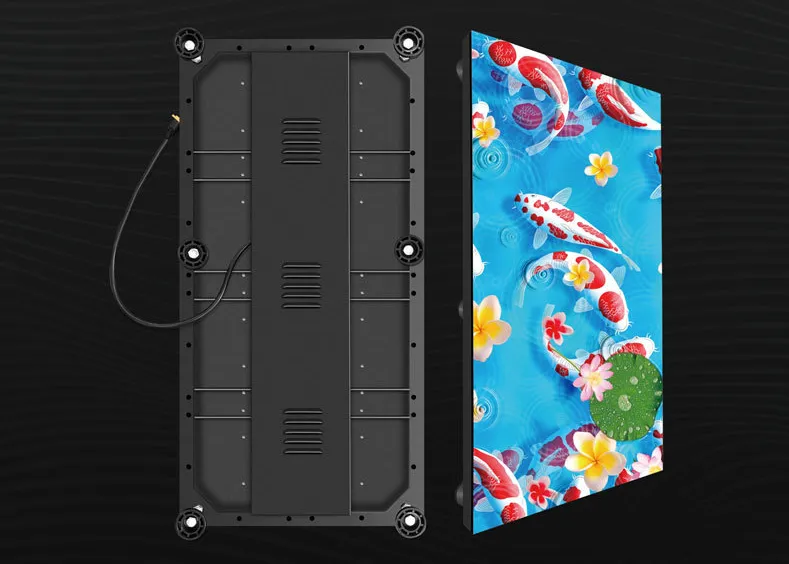

2. Excellent Performance

Equipped with high-quality SMD LEDs for stable quality and consistent color. Features intelligent adjustment of gamut, color temperature, and brightness, ensuring a beautiful and natural high-contrast picture.

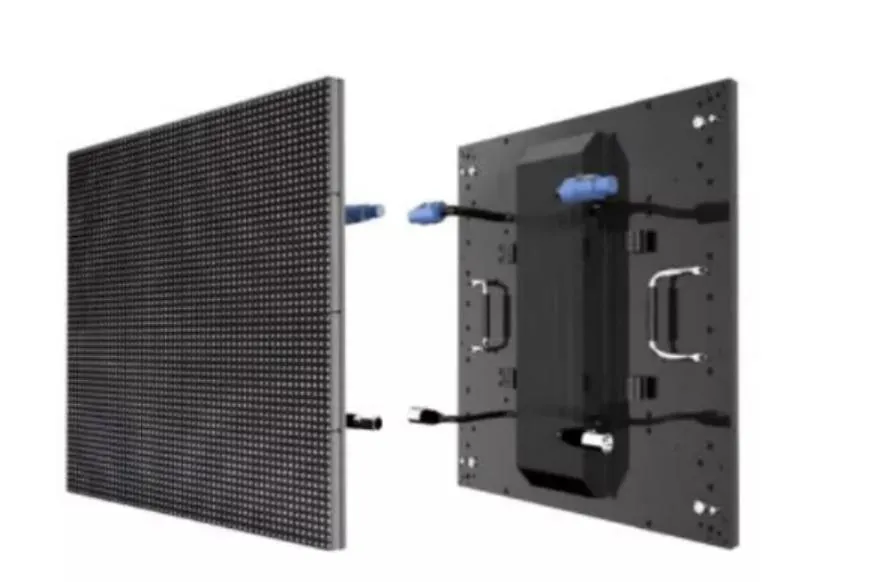

3. Easy Installation & Maintenance

The power box supports quick installation. Tools-free maintenance allows for fast servicing in any operating environment. Full front and back access via inner cable connections.

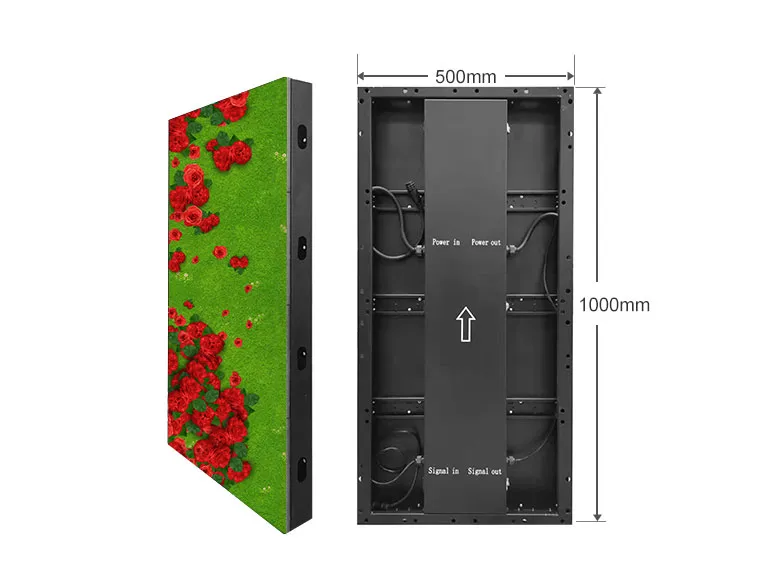

4. Exquisite Craftsmanship

High-precision cabinet splicing controlled within 0.1mm ensures excellent flatness. Uses Die-casting Aluminum or Magnesium cabinets to protect the unit structure with seamless magnetic maintenance support.

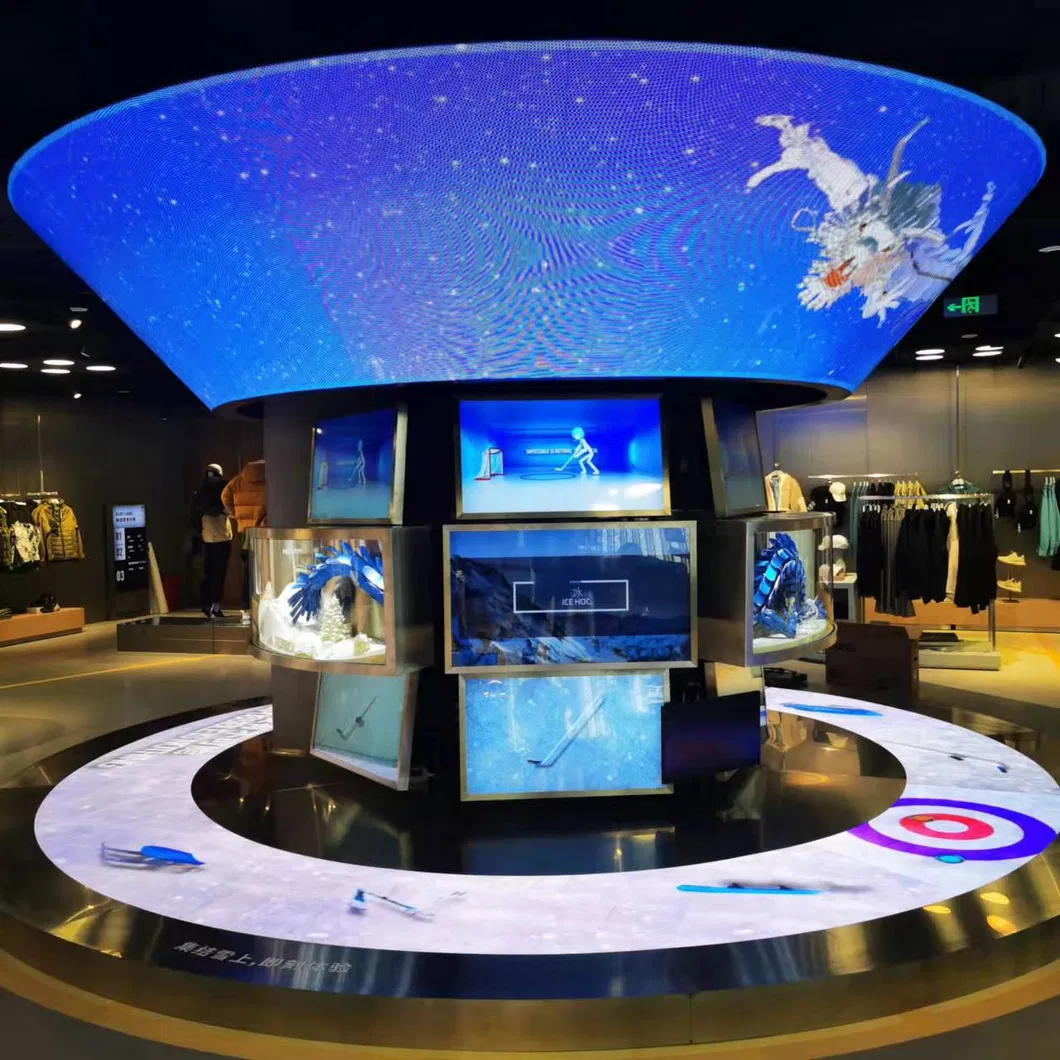

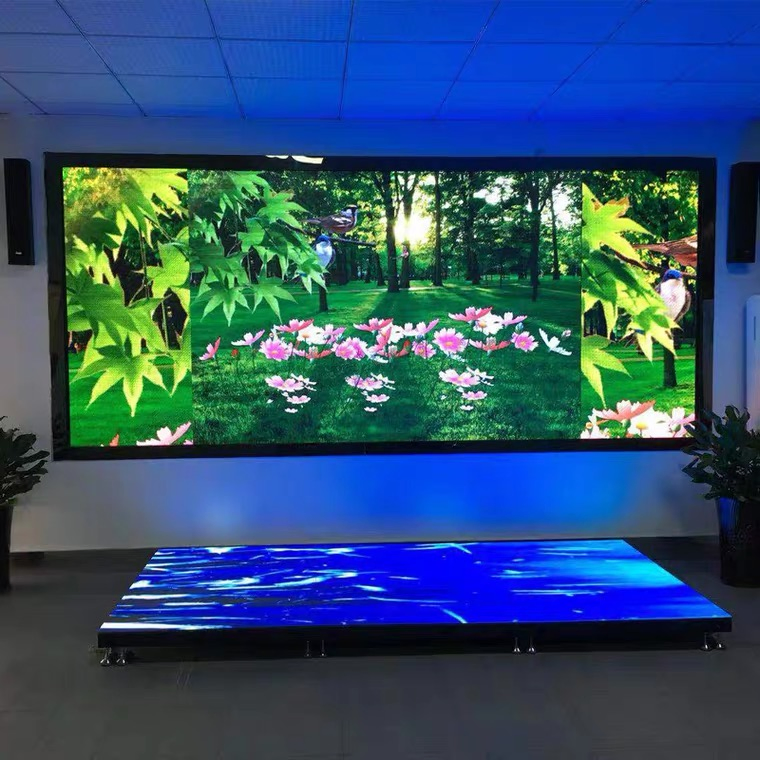

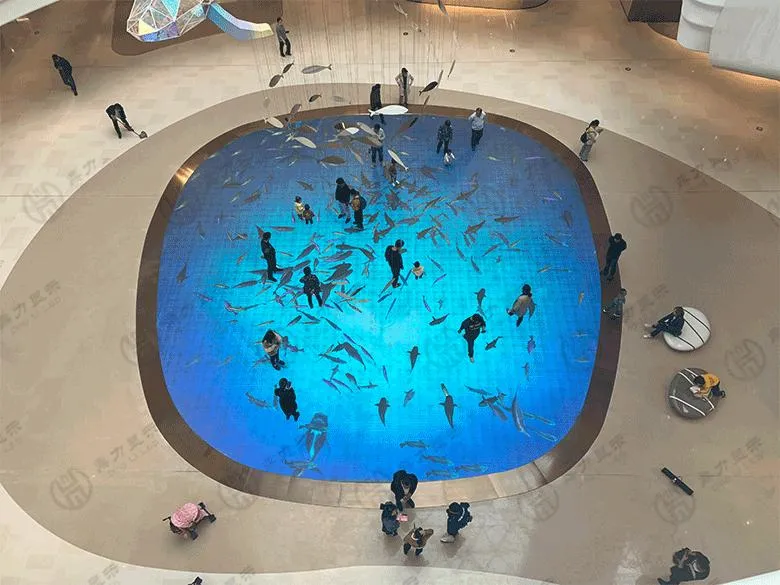

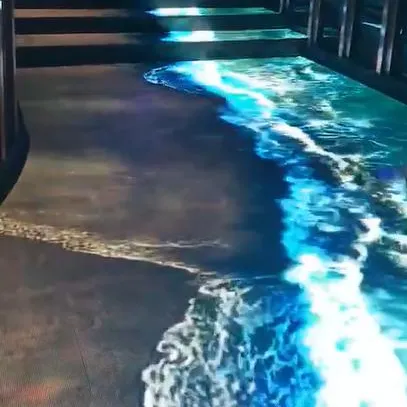

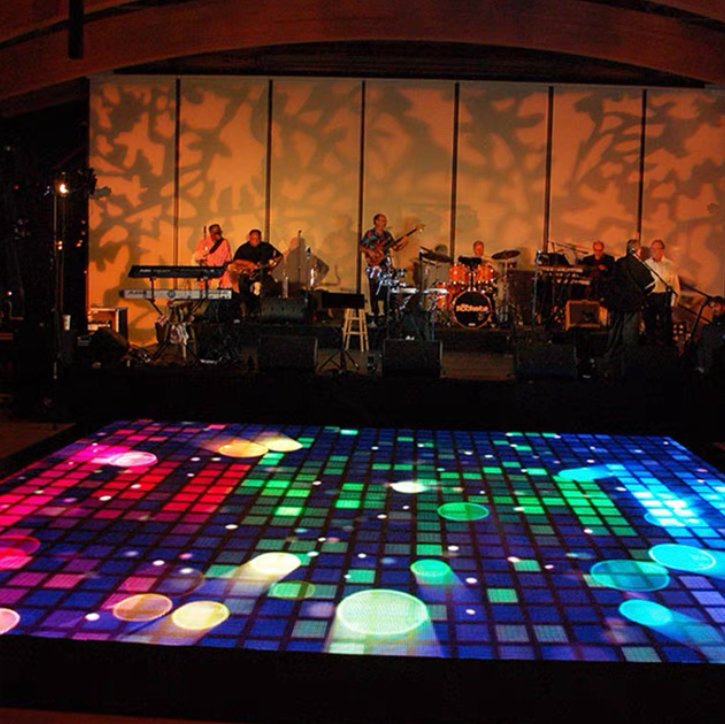

Applications

Ideal for: Stage, Conferences, Expo, Events, Concerts, and more.

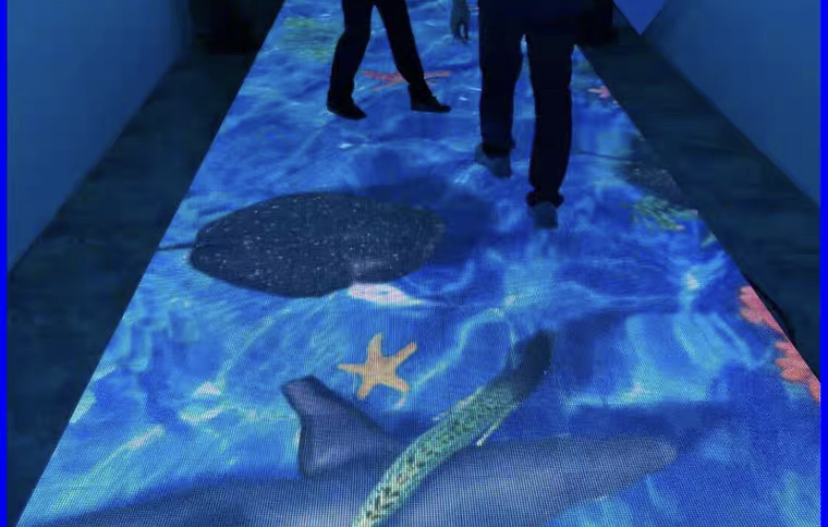

Interactive Technology

The interactive floor LED display adds sensing functions to the standard tile screen using pressure, capacitive, or infrared sensors. It tracks motion trajectories in real-time, allowing the display to respond to human activity with synchronized visual effects.

Hardware Highlights

Plug-in connection for improved stability and easy modular installation.
New cast aluminum shell for lightweight, high precision, and fast heat dissipation.
Point-to-point module design for front & back maintenance.
Seamless connection and precise modules for a smooth visual experience.

Attention: It is recommended to purchase enough LED display modules for spare replacement to avoid color differences between different production batches.

Distribution Mode

Frequently Asked Questions

Q1. Can I have a sample order for the LED display? A: Yes, we welcome sample orders to test and check quality, for both individual modules or full displays.

Q2. What is the lead time for production? A: Usually 2-3 weeks. For customized LED displays, it normally takes around 35 days.

Q3. How are the goods shipped and how long does it take? A: We primarily use FOB terms. Sea shipping usually takes 20-30 days, plus a few days for customs clearance.

Q4. How do I proceed with an order for an LED display? A: First, share your requirements. We provide a quote and design document. Once confirmed, a deposit is placed, and production begins after the balance is settled.

Q5: Do you offer a guarantee for the products? A: Yes, we offer a 1-2 year warranty depending on the specific product type.

Q6: What is the load-bearing capacity of the floor tiles? A: The high-strength structure can bear between 1.5 to 2 tons per square meter, making it safe for dancing or even vehicles.
