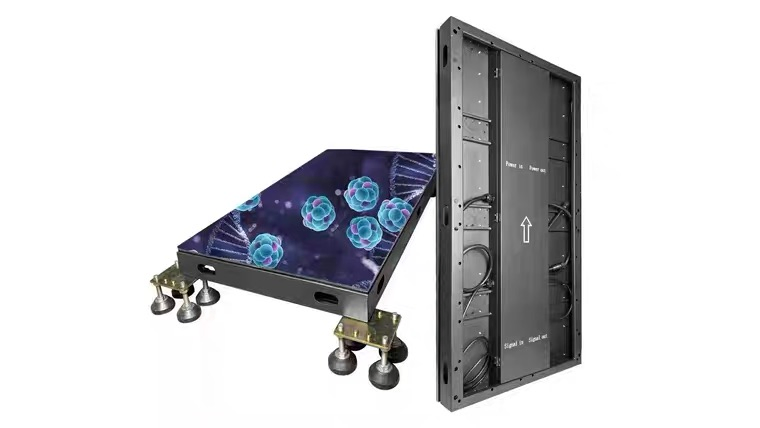

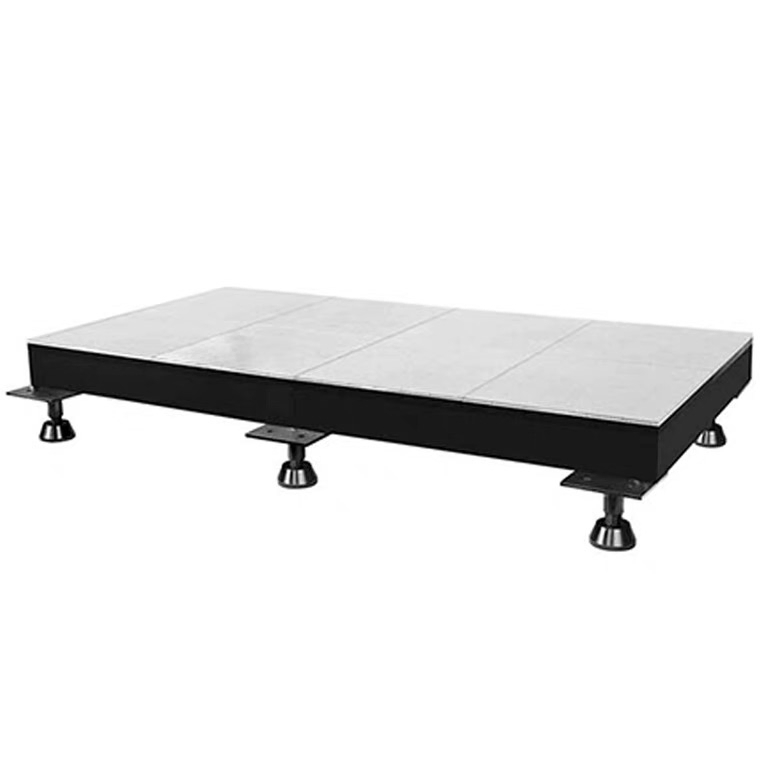

P2.604 Outdoor Indoor Ground Interactive Floor Tile LED Displays Screens Video Wall Dance Stage and Events

Basic Specifications

Model NO.

FI-C

Pixel Pitch

2.604mm

Pixel Configuration

1R,1G,1B

Pixel Density

147456dots/M²

Scanning Mode

1/32scan

Display Type

LED Video Display

IP Rating

IP65

Cabinet Material

Die-Casting Aluminum

Cabinet Size

500mm×1000mm×78mm

Brightness

Indoor ≥800 Nits / Outdoor ≥5500 Nits

Refresh Frequency

≥3840 Hz

Grey Scale

10-16bit

Life Span

About 100,000 Hours

Working Temp

-20℃ ~ 60 ℃

Product Overview

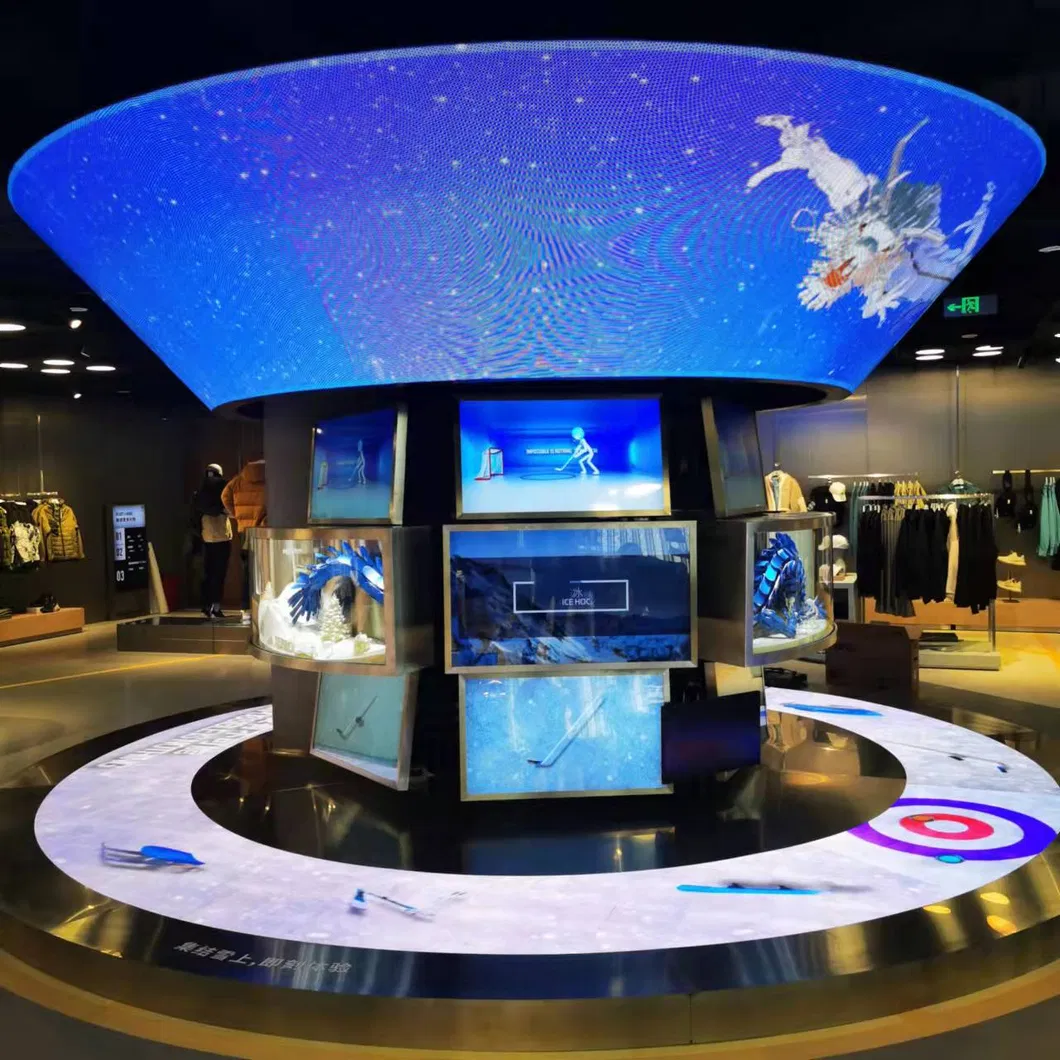

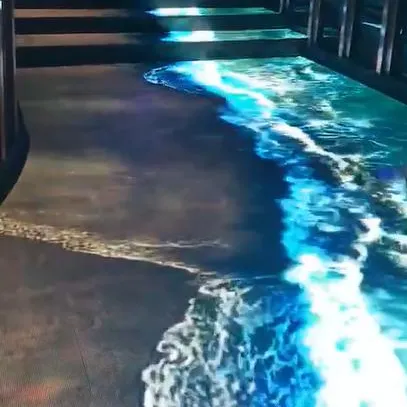

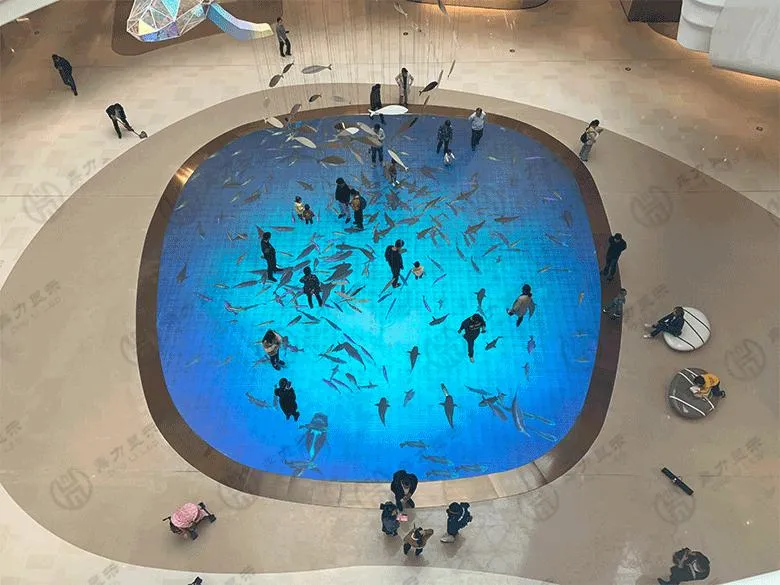

FI series floor LED displays provide interactive and non-interactive floor LED displays. They are mainly used on events stage, night club, concerts, shows, etc. Our floor LED display with ultra-high strength is very strong, capable of bearing 1.5-2ton/m². People can jump or dance on it, and even vehicles can pass. The products feature excellent waterproof and dustproof effects, suitable for both fixed installation and rental use.

Key Features

🏗️

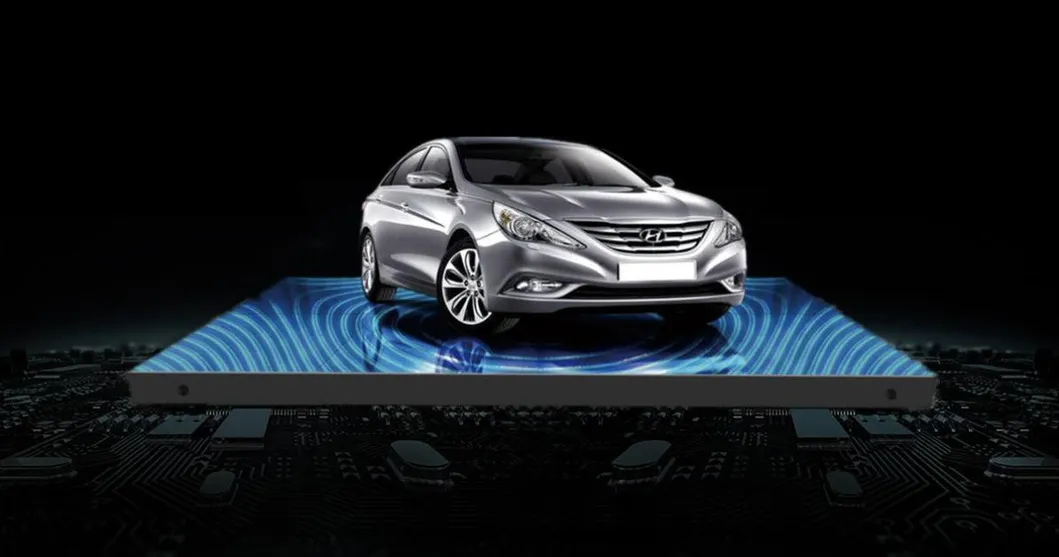

1. Super Strong Load-bearing

Made of imported PC materials with high wear resistance, flexibility, and excellent resistance to extreme temperatures.

💎

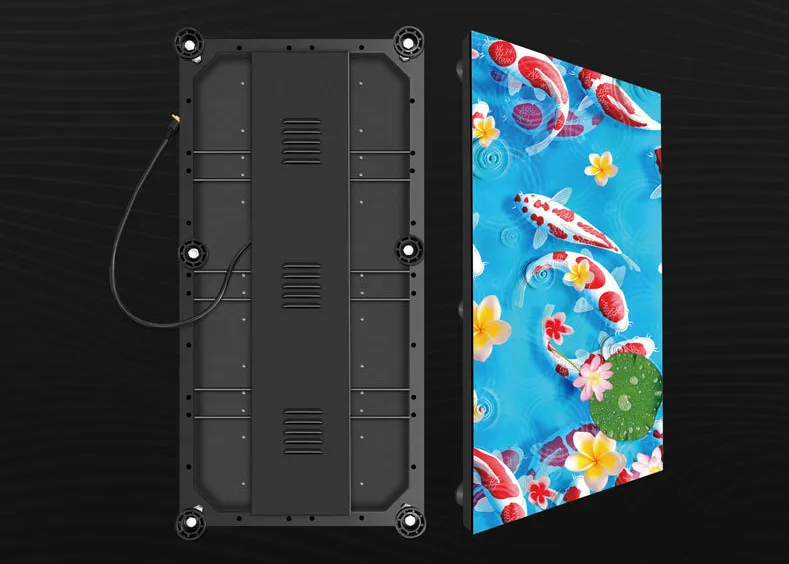

2. Excellent Performance

High-quality SMD LEDs ensure stable quality, good color consistency, and long service life. Features intelligent brightness and contrast adjustment.

🛠️

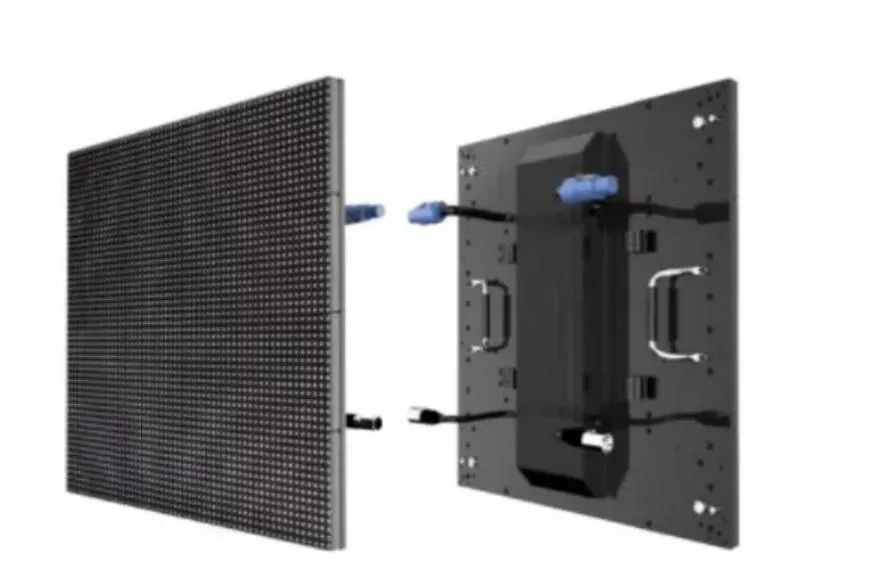

3. Easy Install & Maintain

Power Box supports quick installation. Tools-free maintenance with full front and back access via inner cable connections.

✨

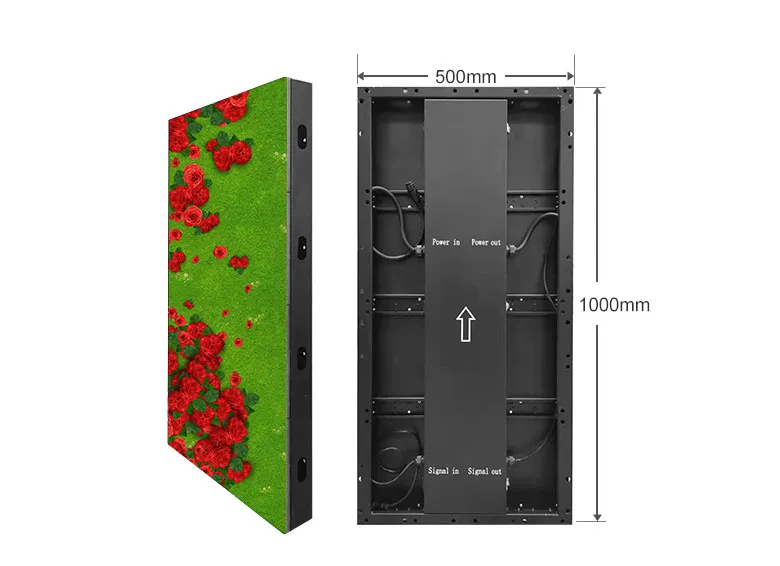

4. Exquisite Craftsmanship

High-precision cabinet splicing within 0.1mm. Die-casting Aluminum structure ensures flatness and seamless connection.

Interactive Technology

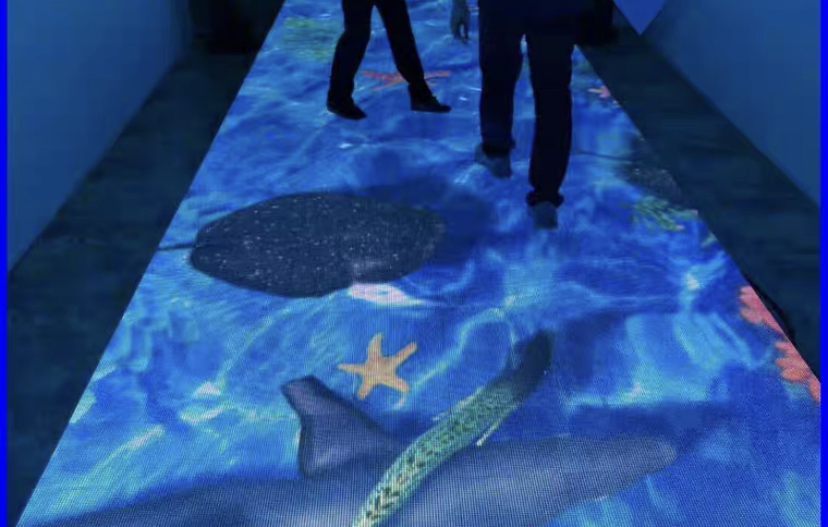

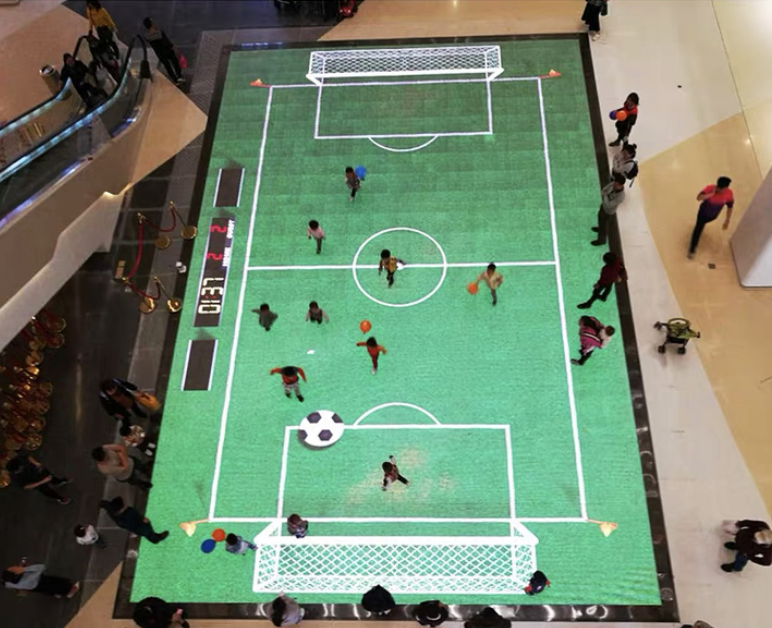

The interactive floor LED display adds sensing functions to the standard tile screen. Equipped with pressure, capacitive, or infrared sensors, it tracks motion trajectories in real-time. When a person moves on the screen, sensors feedback position data to the controller to output corresponding visual effects.

Hardware Features

Modular design for easy installation, disassembly, and maintenance.
New cast aluminum shell: lightweight, high precision, and fast heat dissipation.
Point-to-point module design for both front and back maintenance.
Seamless connection for a smooth visual experience.

⚠️ Attention: It is recommended to purchase enough LED display modules for spare replacement at once. Modules from different batches may have slight color differences.

Frequently Asked Questions

Can I have a sample order for the LED display?

Yes, we welcome sample orders to test and check quality for both individual modules and complete display units.

What is the typical lead time for an order?

Standard orders take about 2-3 weeks. For customized LED display solutions, the lead time is normally around 35 days.

How are the goods shipped and how long does it take?

We primarily use FOB terms. Sea freight usually takes 20 to 30 days, plus a few days for customs clearance. We can assist in arranging shipping agents.

What is the process for proceeding with an order?

First, share your requirements. We provide a quote and suggestions. Once the design is confirmed and a deposit is placed, we move to production after the balance is settled.

Do you offer a guarantee for your LED products?

Yes, we offer a 1-2 year warranty depending on the specific product type and configuration.

Why is it important to buy spare modules?

Purchasing spares from the same production batch ensures color consistency, as different batches may have slight variations in LED output.
