💡Product Overview

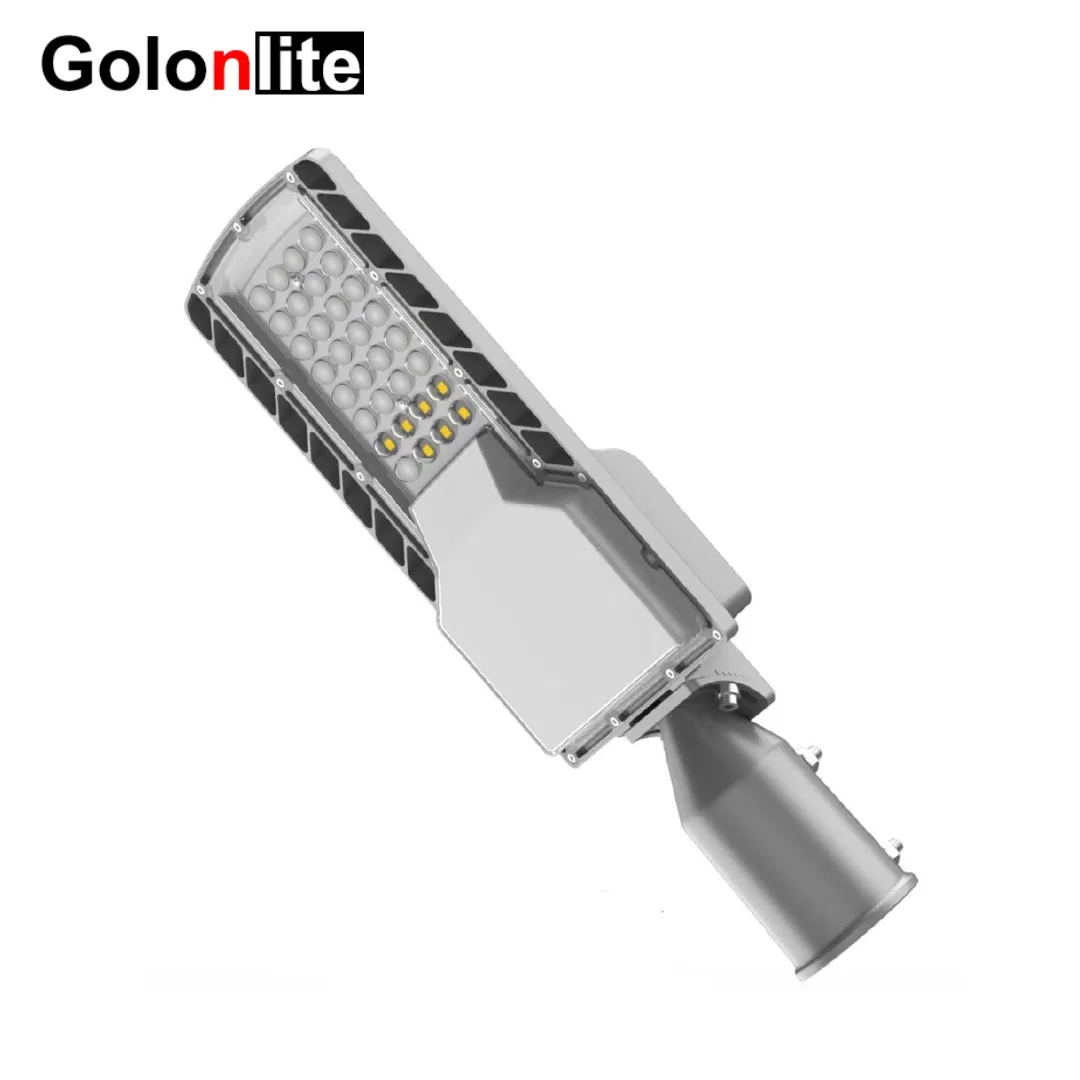

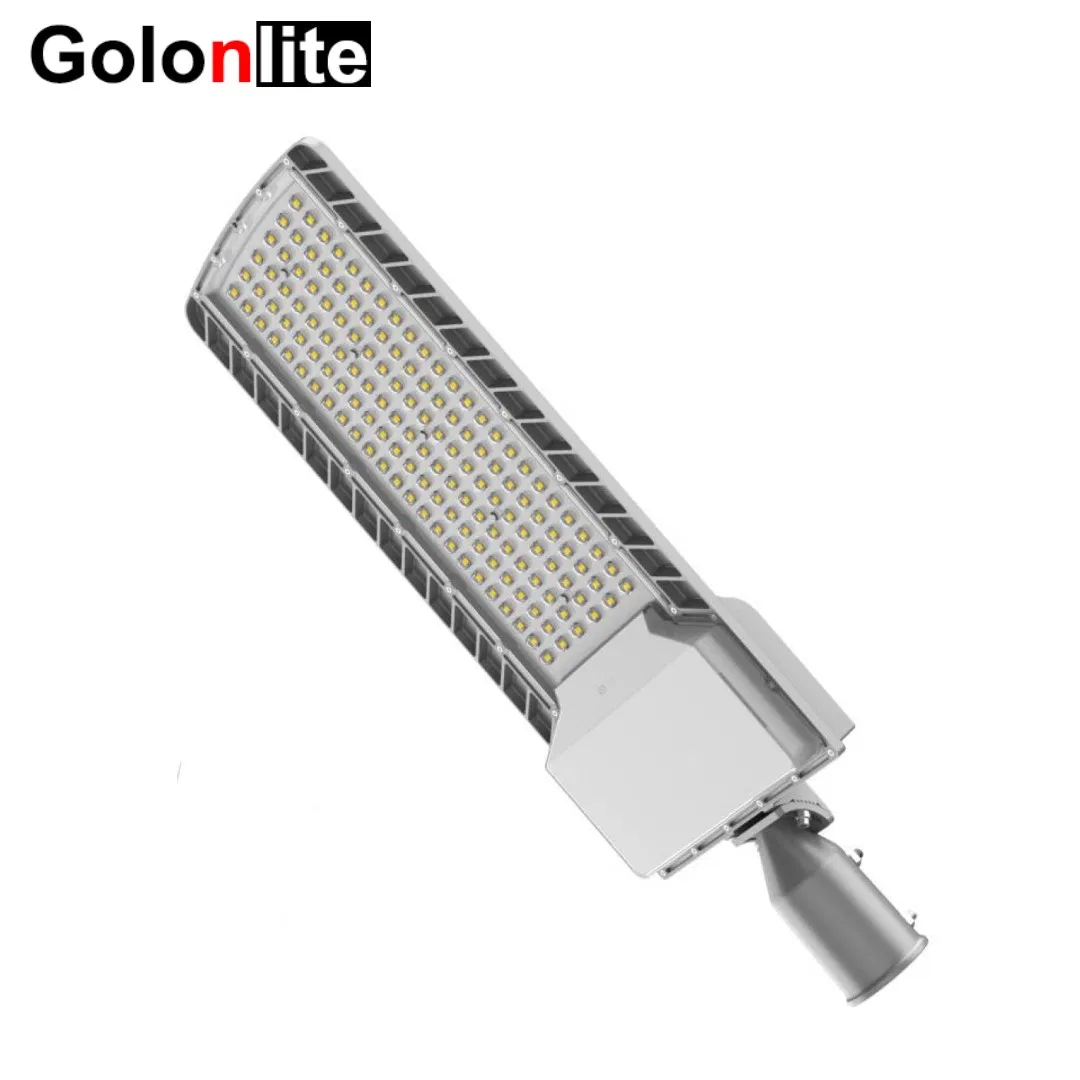

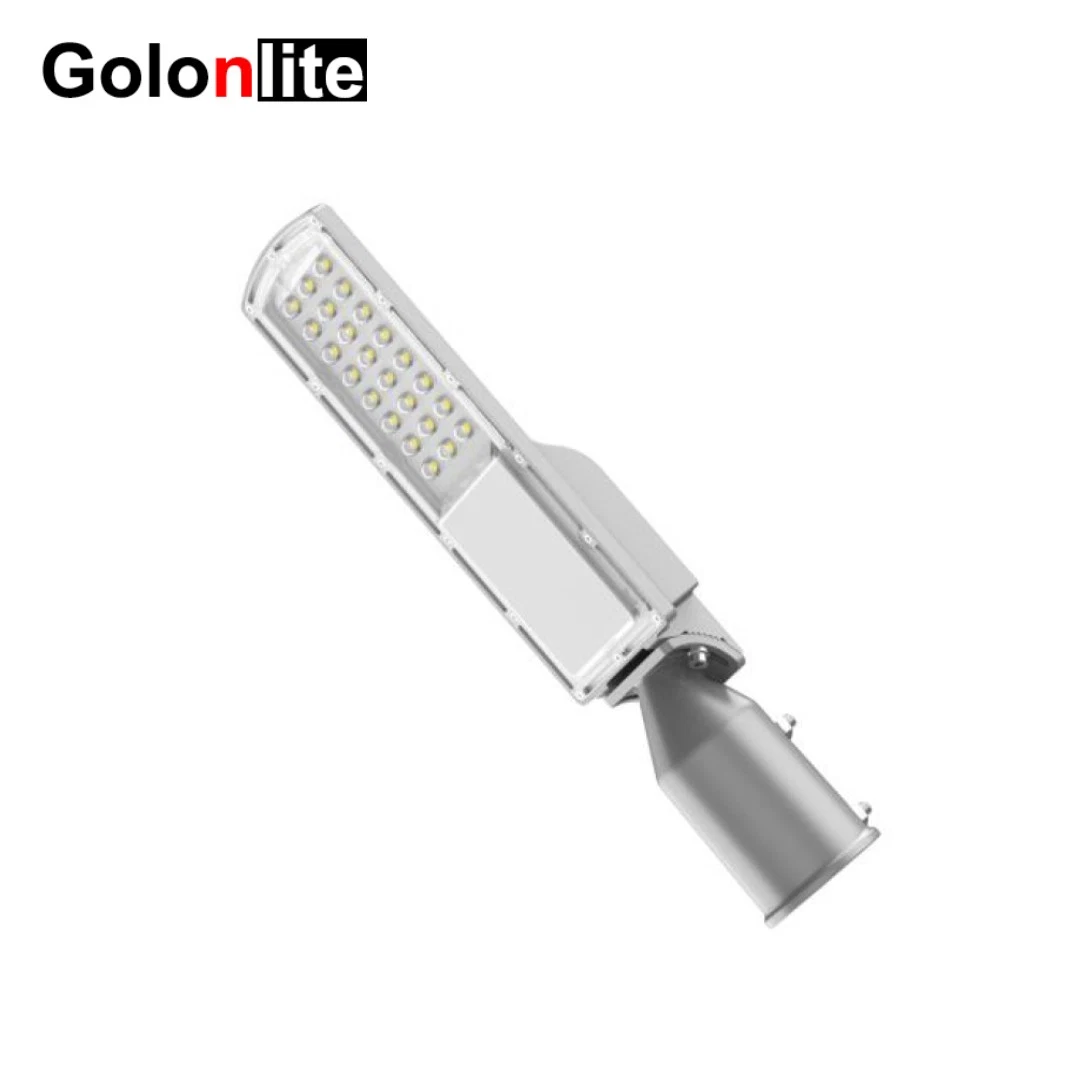

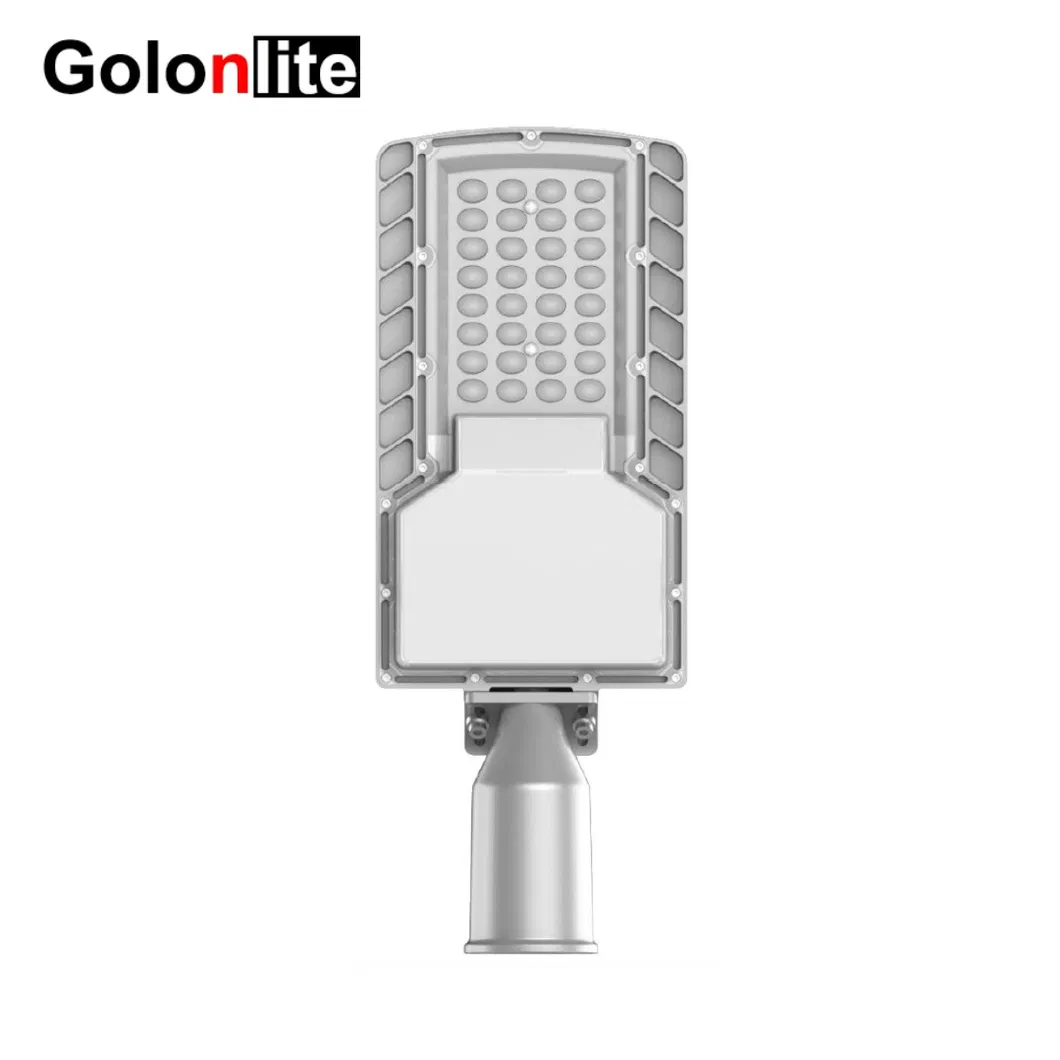

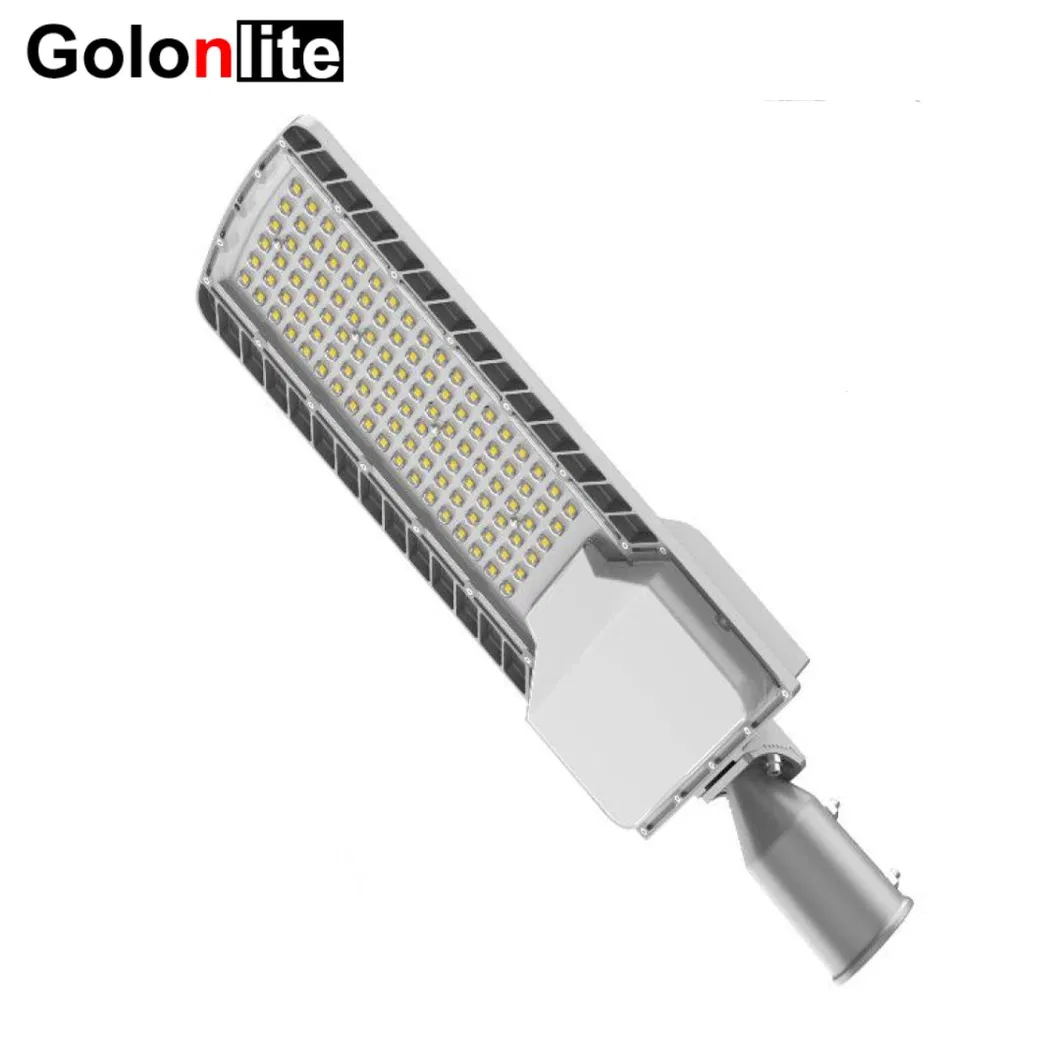

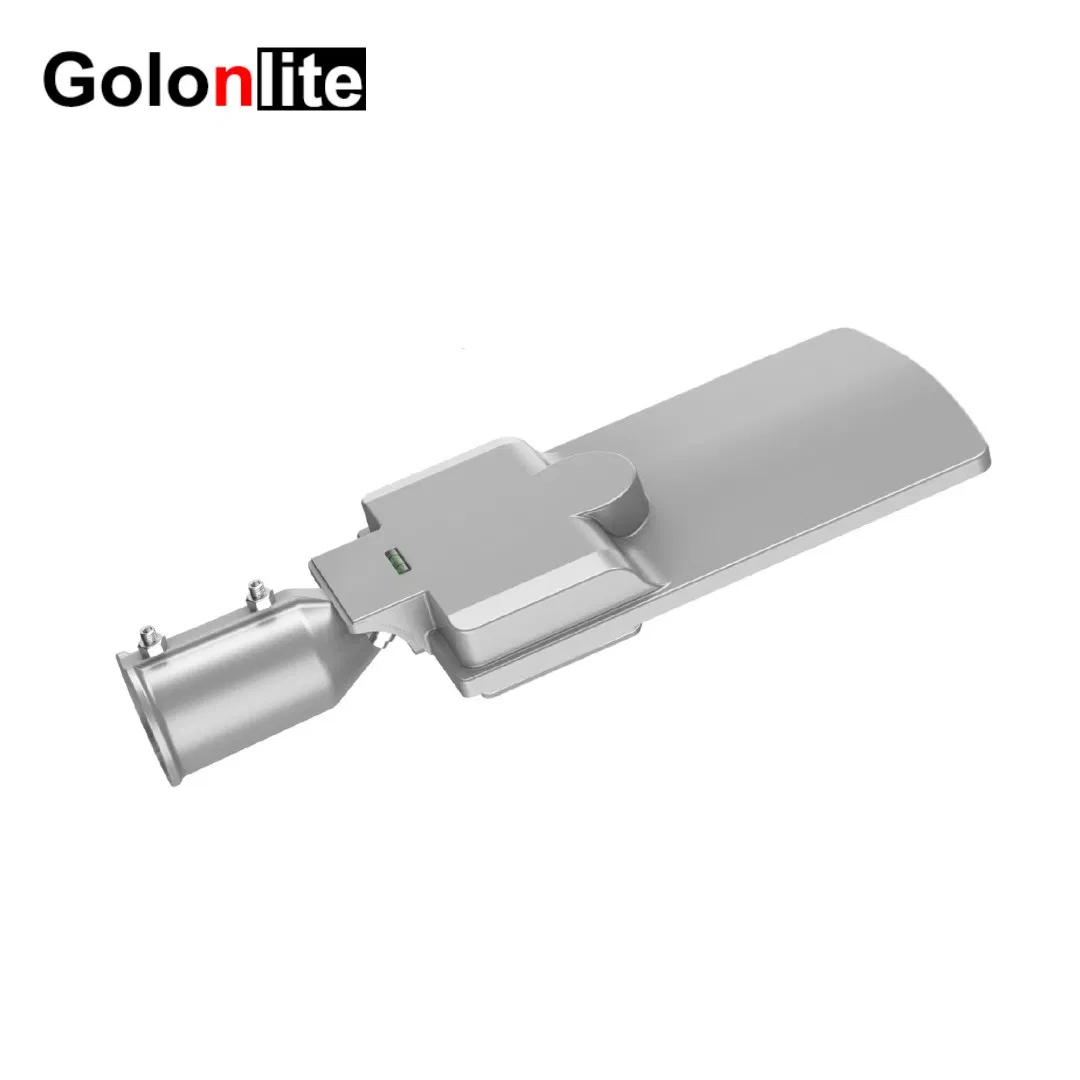

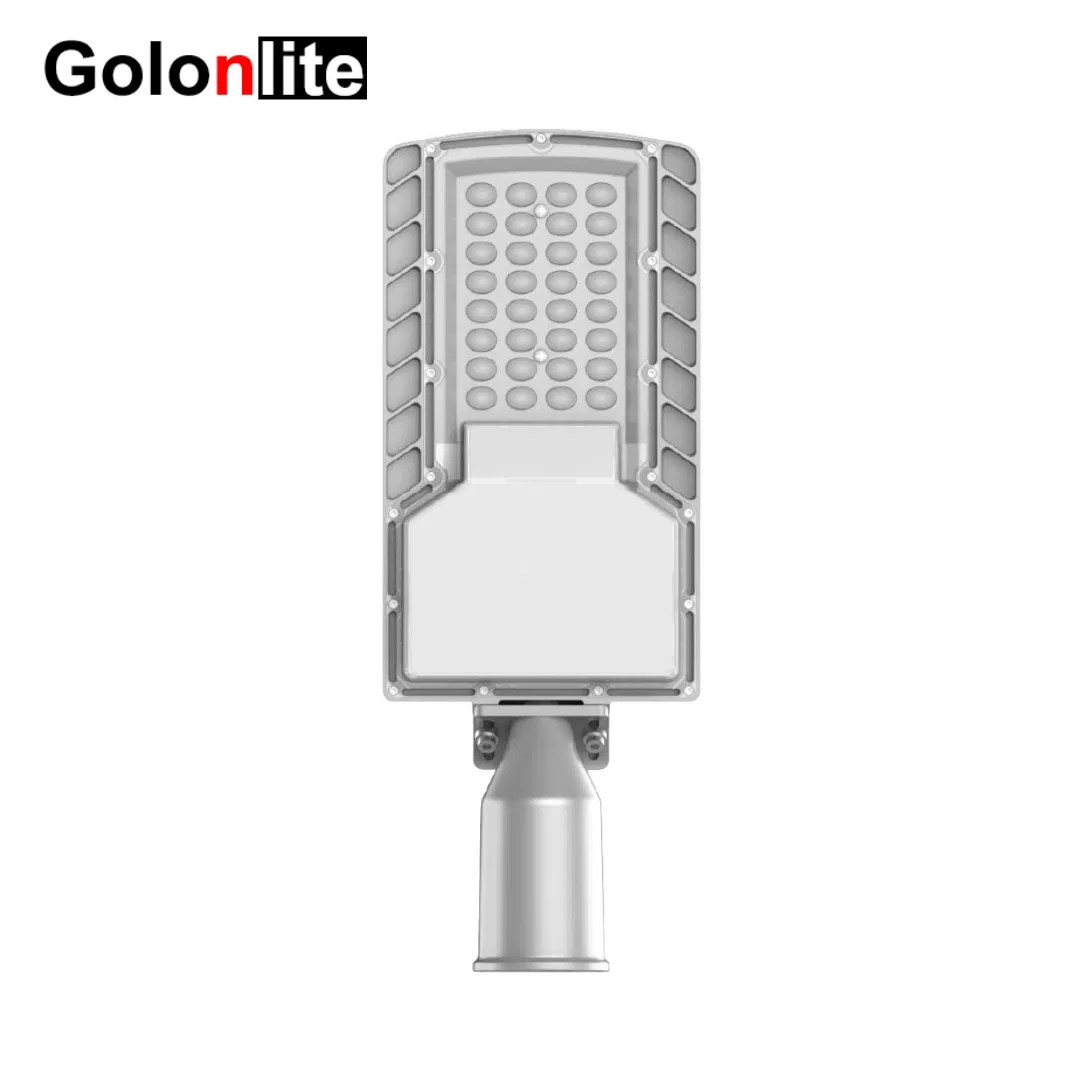

High-Performance LED Area Lighting for Parking Lots, Pathways, and Streets
This series offers versatile lighting solutions ranging from 30W to 240W, featuring exceptional luminous efficiency of 170Lm/W. Designed for durability and energy saving, it is ideal for highways, gardens, and industrial areas.
| Light Source |
Luminous Efficiency |
170 Lm/W |
| CCT (K) |
3000K / 4000K / 5000K / 5700K / 6500K |
| CRI |
> Ra80/70 |
| Lifespan |
> 50,000 Hours |
| Electrical |
Input Voltage |
100-277VAC / 347V / 480VAC (50/60Hz) |

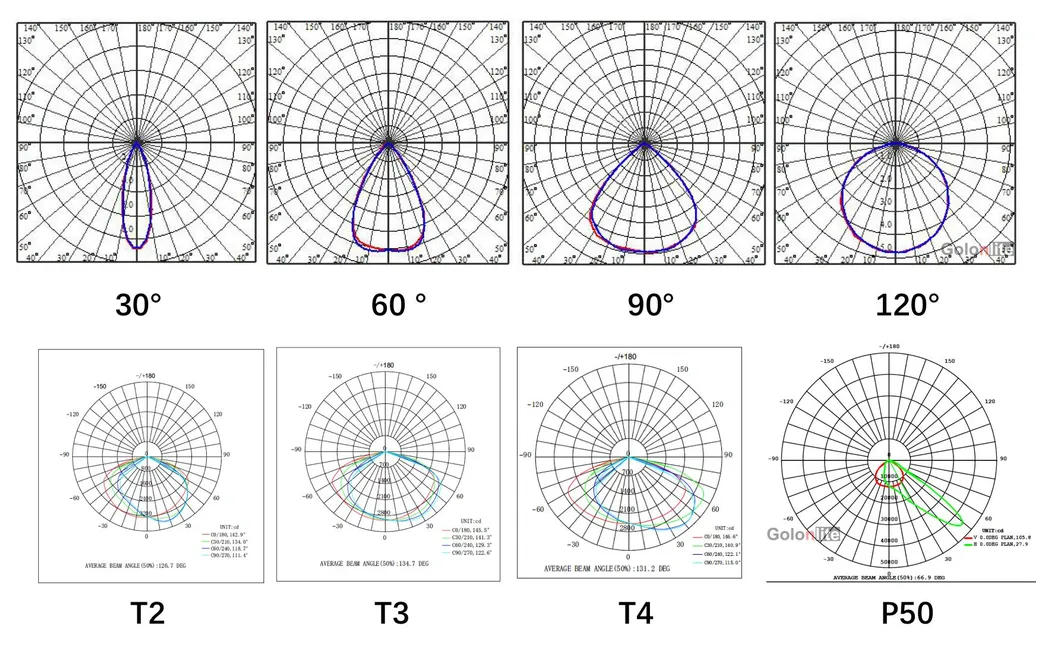

| Beam Angle |

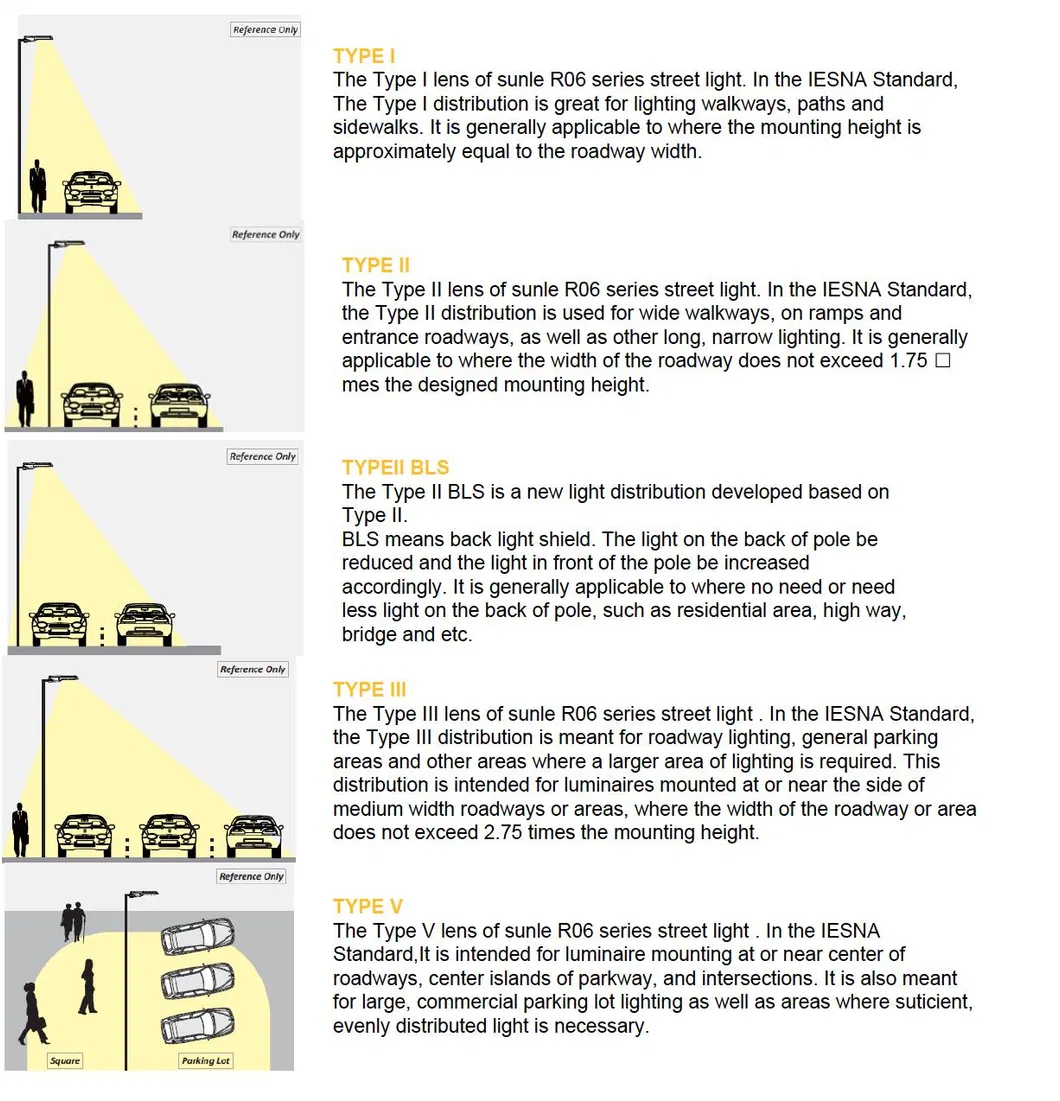

60°/90°/120°/T2M/T3M/T4M |
| SPD |
6KV / 10KV / 20KV |
| Smart Control |
3/5/7 pins NEMA base / Photocell / LoRaWan / Zigbee |
🚀Key Features
Super Bright: 170Lm/W efficiency for maximum energy savings.
Durable Build: Die-casting aluminum housing with IK09 impact resistance.
Weatherproof: IP66 rated for superior outdoor protection.
Optical Precision: Multiple lens options (T2M, T3M, T4M, etc.) for various road types.

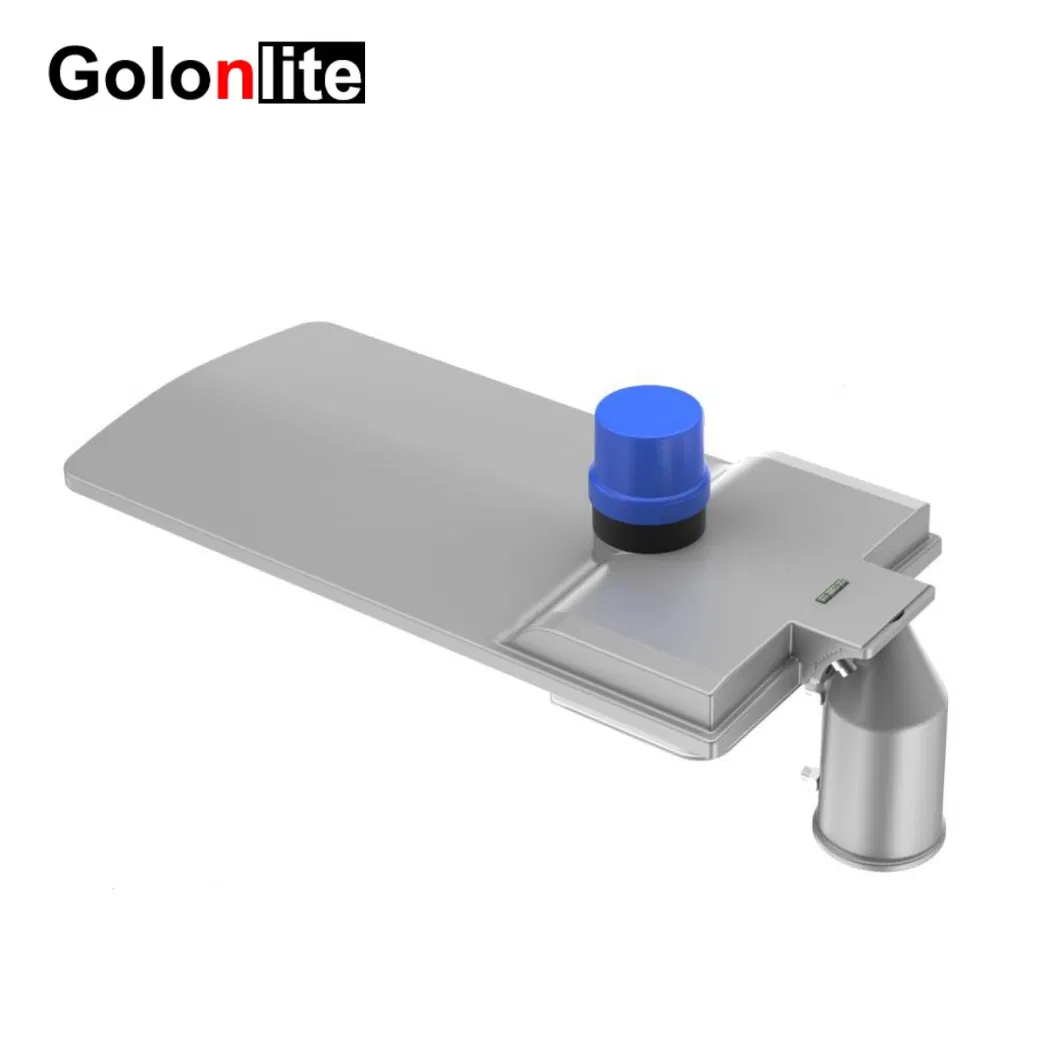

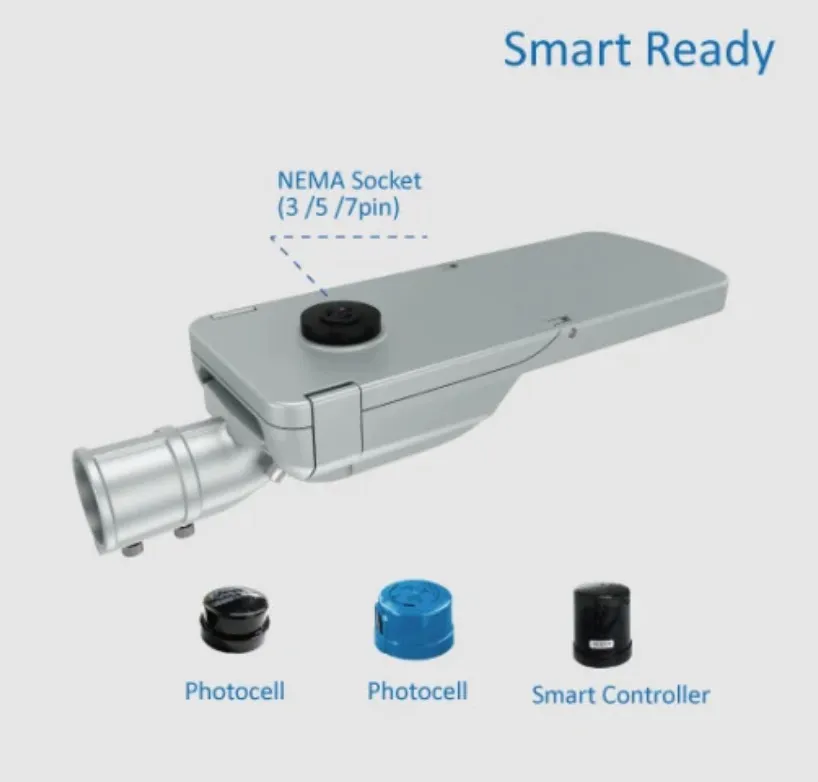

Smart Ready: Supports NEMA photocell, Zigbee, and LoRaWAN systems.

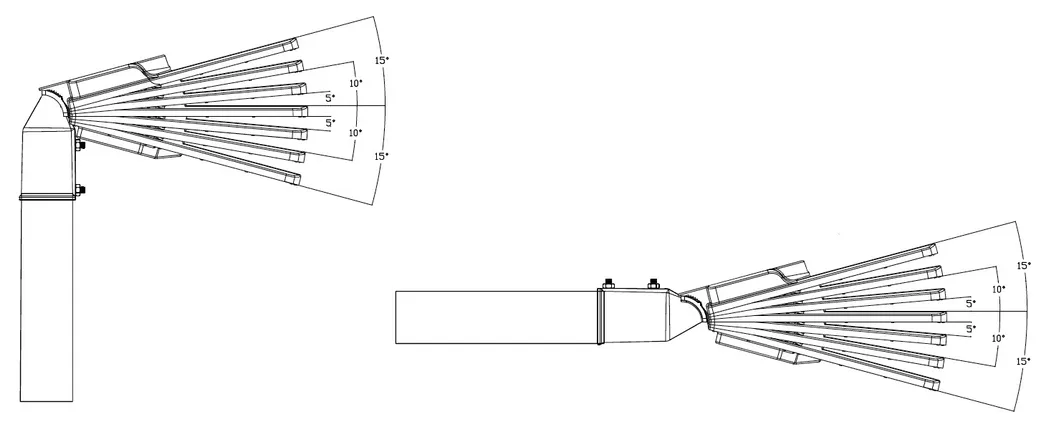

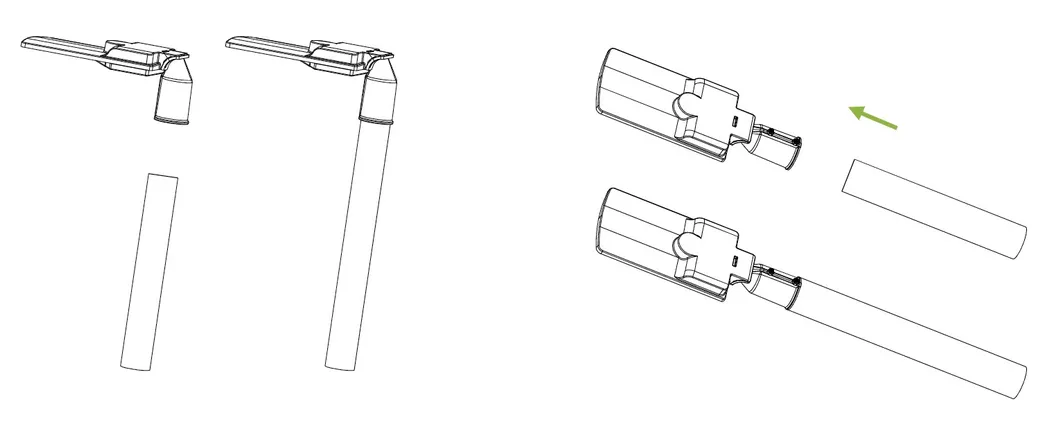

Easy Install: Suitable for 60mm poles, wall, or bracket mounting.
🏭Professional Services
Lighting Design: Free Dialux lighting simulations and IES files provided.
Fast Response: All inquiries and after-sales issues handled within 24 hours.
OEM/ODM: Custom designs and branding solutions available.
Quality Assurance: 5-year warranty with remarkable performance tracking.
❓Frequently Asked Questions
Q1: What is the luminous efficiency of these LED street lights?
A: These high-quality street lights offer a superior luminous efficiency of up to 170Lm/W, ensuring maximum brightness with minimal energy consumption.
Q2: Are these lights suitable for harsh outdoor environments?
A: Yes, they are IP66 waterproof and IK09 rated, featuring a die-casting aluminum housing and SPD protection (up to 20KV) to withstand extreme weather conditions.

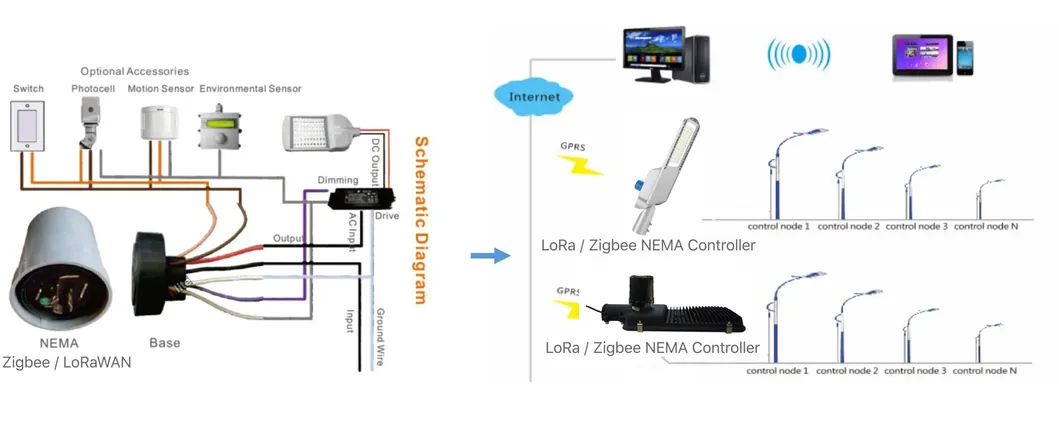

Q3: What smart control options are available?

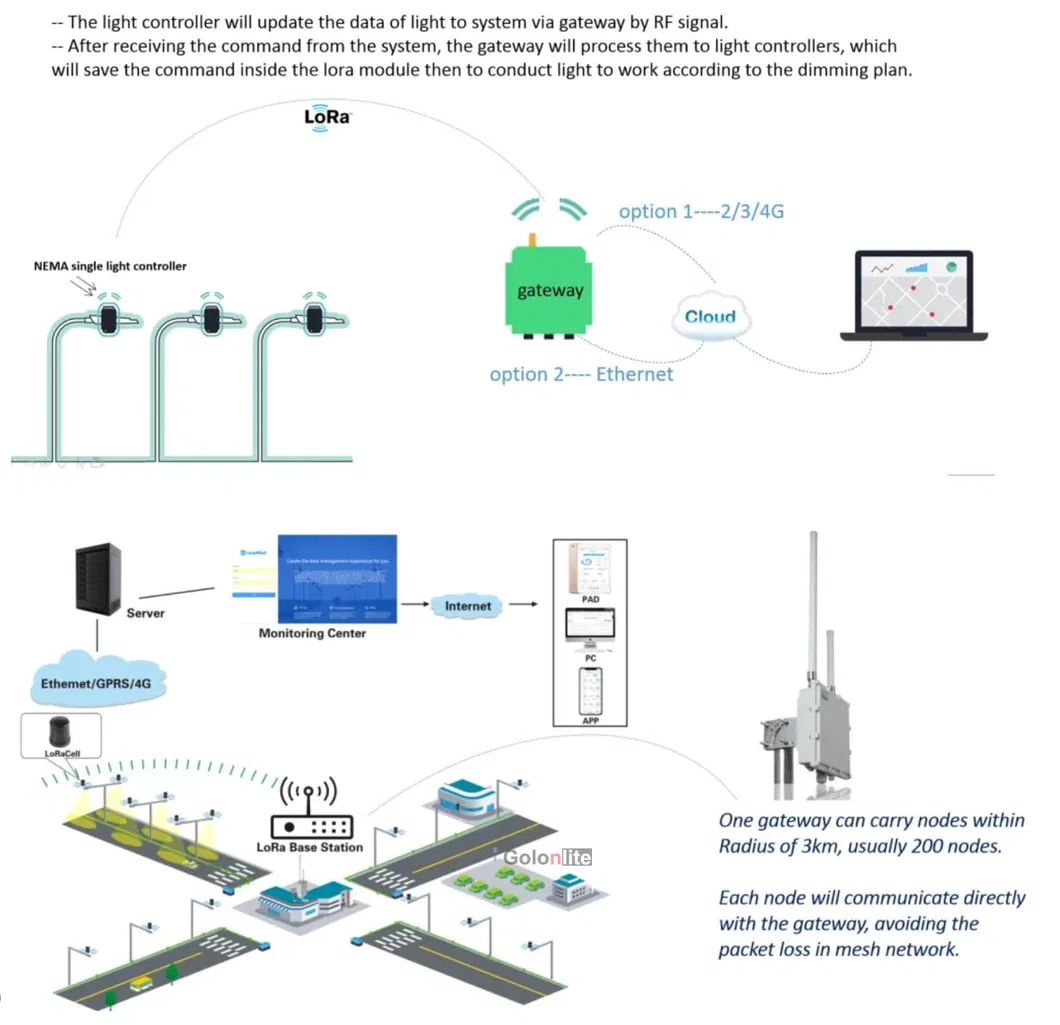

A: We offer various smart solutions including 3/5/7 pins NEMA base photocell sensors, Zigbee, and LoRaWAN for remote monitoring and dimming.
Q4: Can I get a lighting simulation for my project?
A: Absolutely. We provide free Dialux lighting simulations and IES files to help you plan the most efficient lighting layout for your specific area.
Q5: What is the warranty period for this product?
A: We provide a standard 3 to 5-year warranty, depending on the specific configuration and driver choice (Meanwell, Inventronics, or Sosen).
Q6: What are the typical applications for this series?

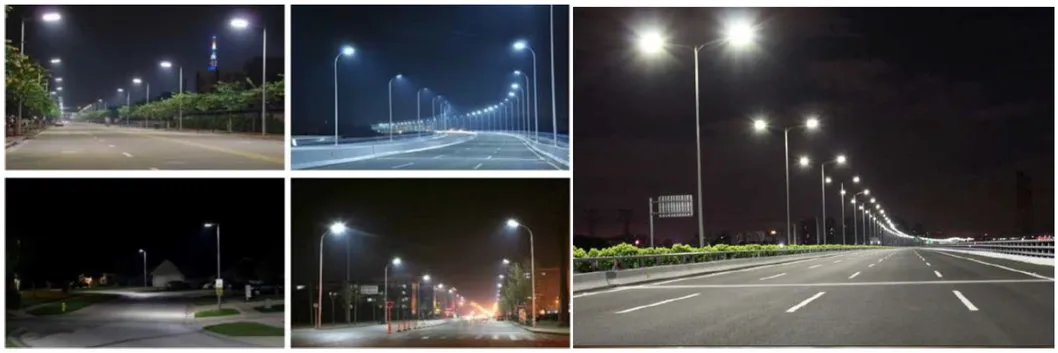

A: These lights are widely used for urban roads, industrial zones, residential areas, parking lots, schools, gardens, and sidewalks.
