Clear Span Structure Wedding Event Party Exhibition Glass Tent
1. Materials of Wedding Tent
- Frame Truss: Hard pressed extruded aluminium 6061 /T6(15HW) which can last 15 to 25 years.
- Fabric Cover: High quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability.
- Connector: Strong hot-DIP galvanized steel.
2. Features of Wedding Tent
- Allowed temperature condition: -30 degree Celsius to +70 degree Celsius.
- Wind load: Max. 80km/h (can be reinforced).
- Snow load: 75kg/sqm (slope design prevents snow accumulation).
- Easy to be assembled, dismantled, and movable.
- No pole inside, 100% available interior space.
3. Optional Accessories
- Flooring system: Cassette floor or economic wooden floor.
- Lining system: Decoration liners (roof and side).
- Doors: Double-wing glass door, single-wing glass door, glass fire door.
- Windows: Dome or square clear PVC windows, glass windows for glass walls.
- Walls: ABS solid wall, Glass wall, Steel Sheet Plate wall or Sandwich panel wall.
- Others: Tables, Chairs, Lights (standard & Crystal Chandelier), Air conditioners, Furniture, earth anchors, heavyweight plate.
Available Tent Sizes
| Type |
Span Width |
Bay Distance |
Eave Height |
Ridge Height |
Main Profile |
| ML | 10m | 3m | 2.6m | 4.5m | 84*48*3mm |
| ML | 12m | 3m, 5m | 3m | 5.2m | 122*68*3mm |
| ML | 15m | 5m | 3m | 5.5m | 166*88*3mm |
| ML | 18m | 5m | 3m | 6m | 165*88*3mm |
| ML | 20m, 25m | 5m | 4m | 7.3m | 203*112*4mm |
| ML | 30m | 5m | 4m | 8.9m | 300*120*5mm |
Event tent: 3-12m clear-span width, length unlimited by 3/5m increments.
Large Tent: 15-25m clear-span width, length unlimited by 5m increments.
Huge Tent: 30-50m clear-span width, length unlimited by 5m increments.

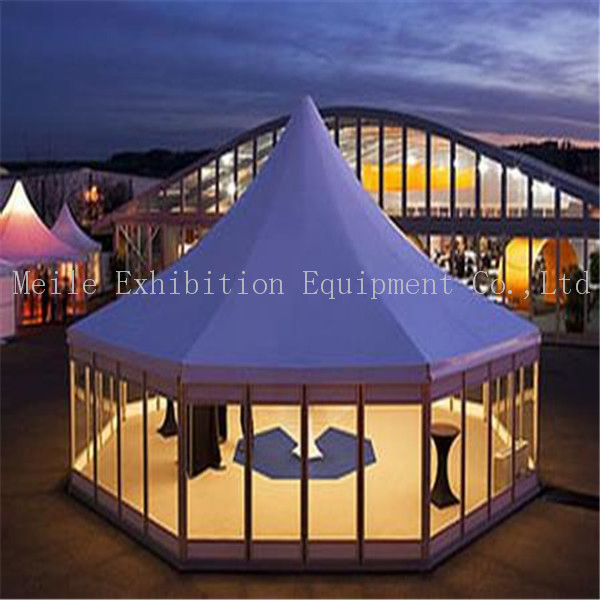

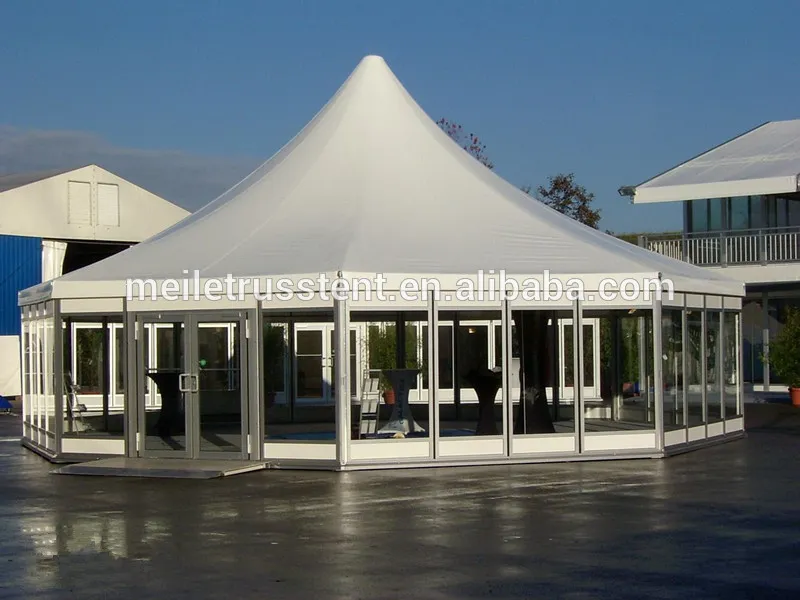

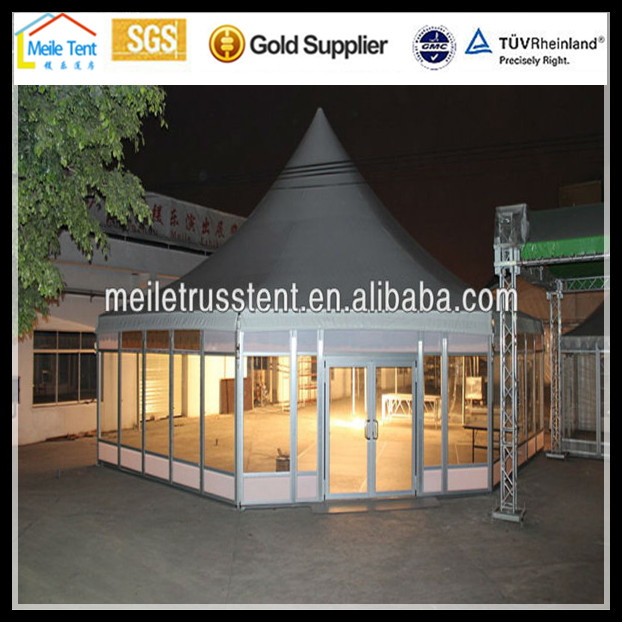

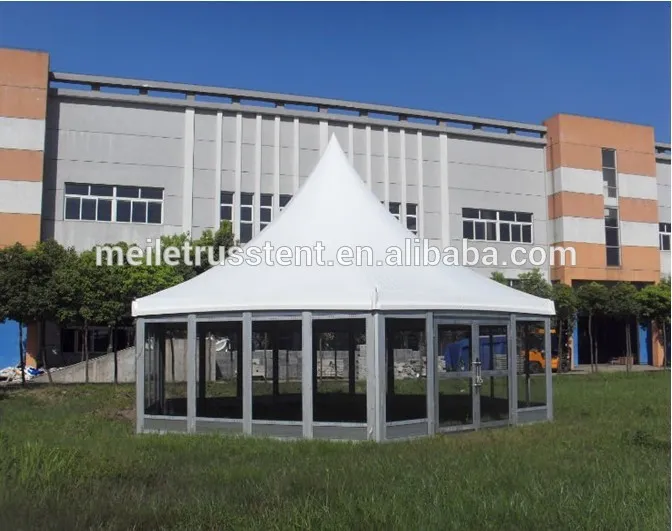

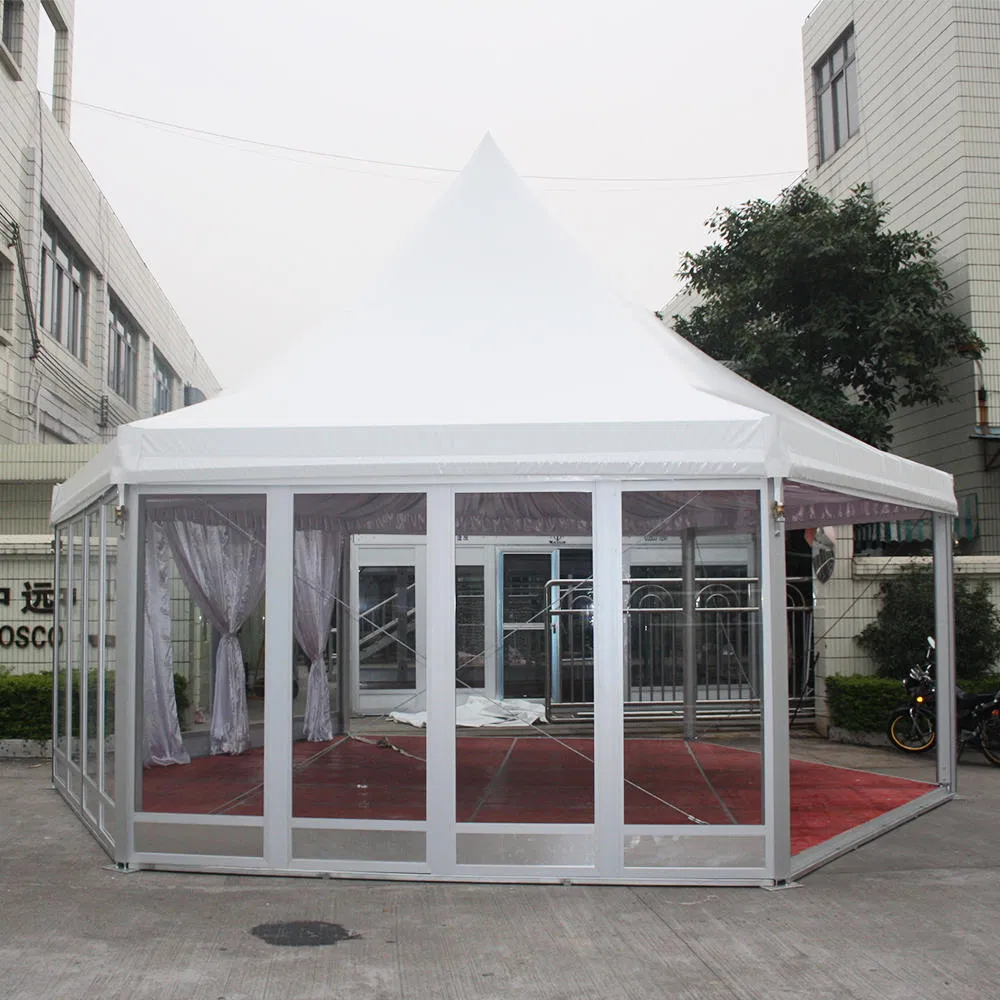

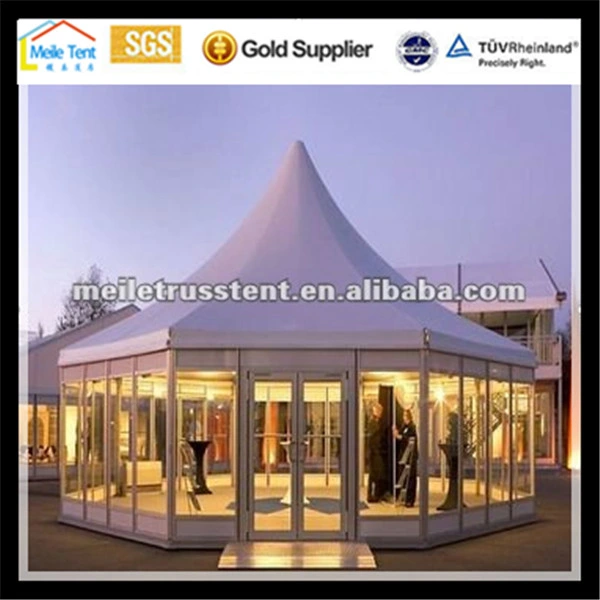

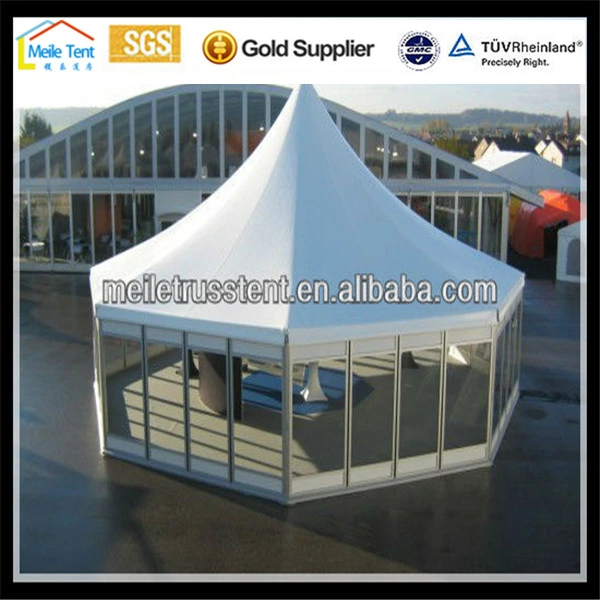

Pagoda Tent: Ranges from 3x3m up to 10x10m.
Dome Tent: 4-30m Diameters.
Frequently Asked Questions
What is the lifespan of the tent frame?
The frame is made of hard pressed extruded aluminium 6061 /T6, which can last between 15 to 25 years.
Is the tent fabric fire resistant?
Yes, the PVC-coated polyester textile is flame retardant according to DIN4102 B1, M2, and CFM standards.
How much wind can the structure withstand?
The standard wind load is Max. 80km/h, and the structure can be reinforced for higher resistance.
Are there any support poles inside the tent?
No, the clear span structure has no interior poles, allowing for 100% usable interior space.
Can the tent handle snow?
Yes, it is designed for a snow load of 75kg/sqm, and the roof pitch prevents snow from staying on the surface.
What size options are available?
We provide customized sizes with span widths ranging from 3m to 50m and unlimited lengths.
