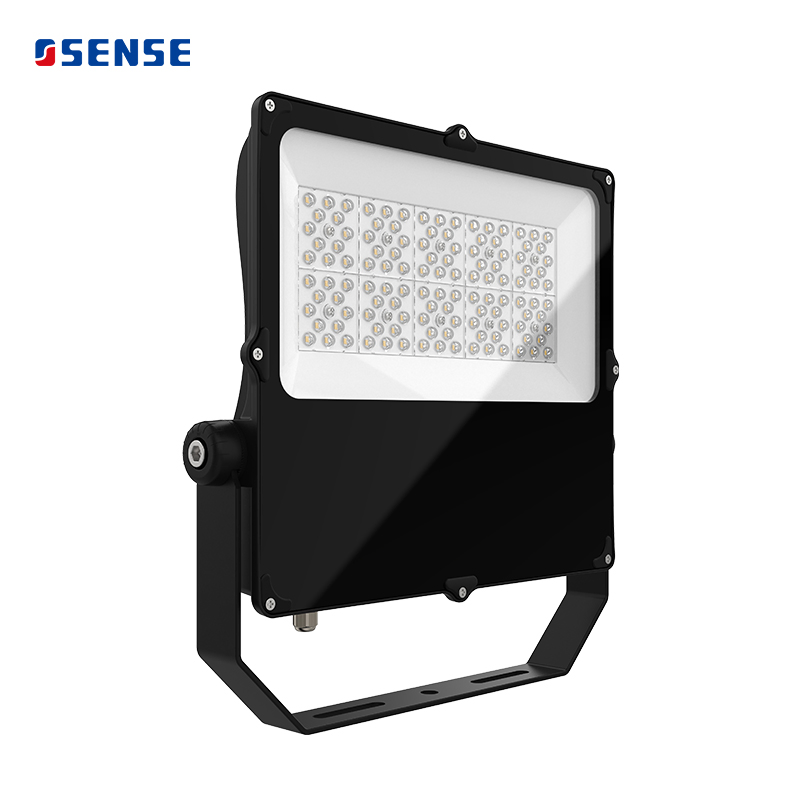

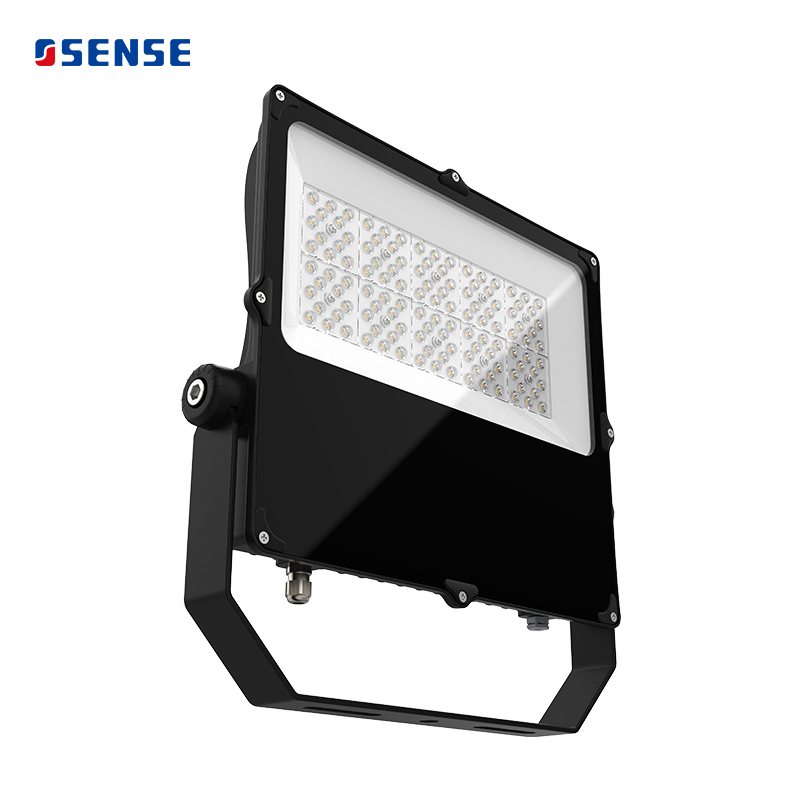

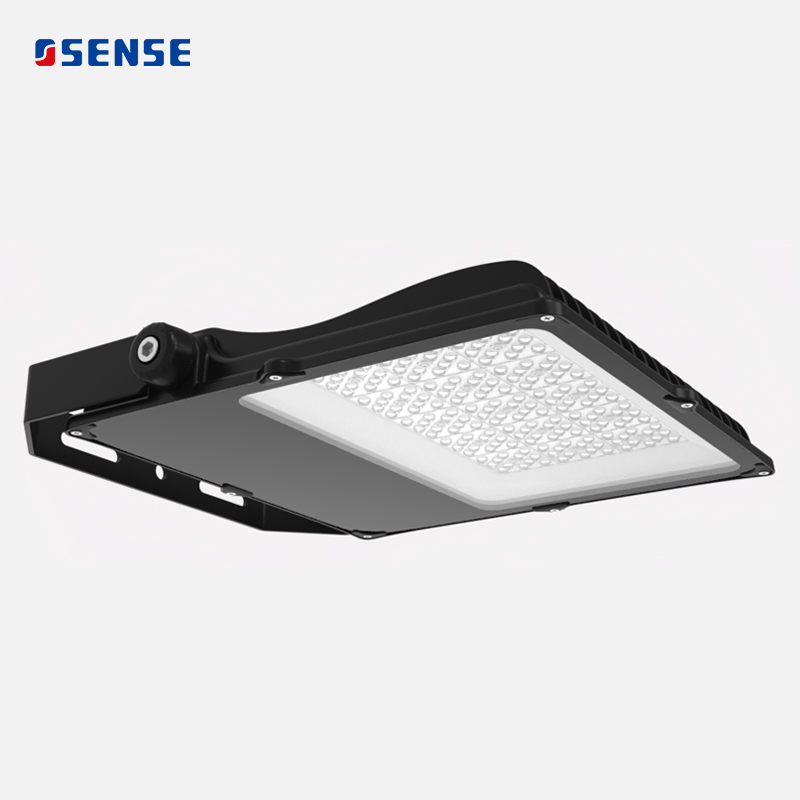

Glass Cover LED Flood Light Industrial Lighting with Microwave Induction Function Optional

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications

Model NO.
SWF-CH 200W
Power

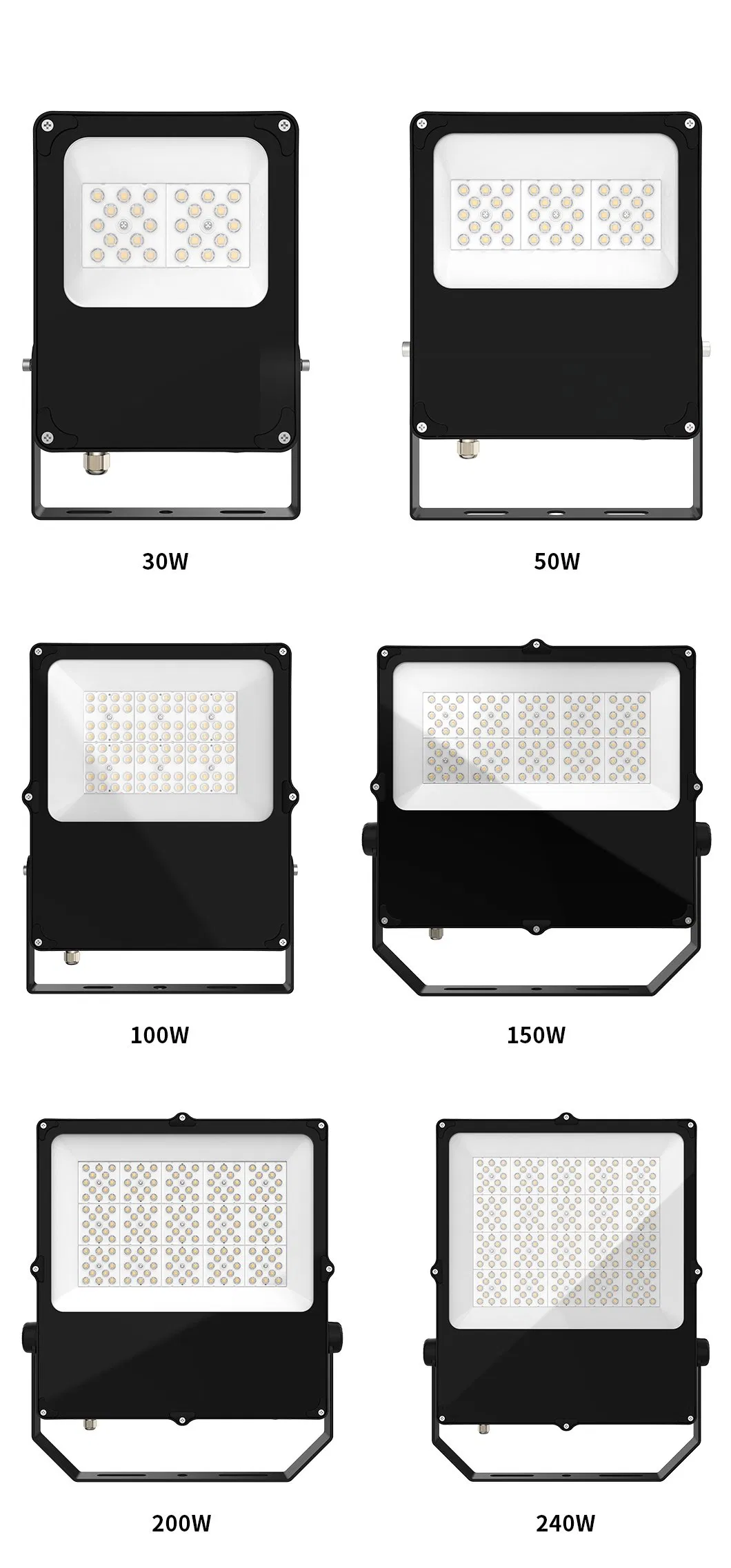

30W - 300W Options
Projection Distance
>35m
IP Rating
IP65
Certification
CCC, CE, EMC, RoHS
LED Chips
CREE 3030
CCT
4000K/5000K/5700K
Beam Angle
30/60/90/120°
Efficiency
130lm/W
Material
ADC12 Die-casting Aluminum

LED CH Flood Light Features

  • High thermal conductivity ADC 12 Aluminum housing for superior heat dissipation.
  • 0 degree angle installation with low glare design.
  • Diverse light distribution angles (15/30/60/90/polarized) for wide application range.
  • Optional DALI/1-10V/0-10V dimming and microwave induction functions.
  • Glass + PC lens design ensuring high luminous efficiency.
  • Impact resistance rating of IK08 (standard) up to IK10 (optional).

Technical Data

GENERAL INFORMATION ELECTRIC INFORMATION
Mounting ModuleBracket system Electrical ClassClass I
Operating Temp-30ºC / +45ºC Nominal Voltage100-240VAC / 100-277VAC / 180-528VAC
Lens Options7°/15°/30°/60°/90°/120° Power Factor≥0.92
Driver BrandMeanwell / Moso / Sosen / Inventronics Surge ProtectionL-N 4KV, L/N-PE 6KV (Up to 20kV optional)
HOUSING AND MATERIALS OPTICAL INFORMATION
Housing MaterialADC 12 die-casting aluminum LED color temp4000K, 5000K, 5700K
OpticPC + Glass CRI≥70 (80/90 optional)
Housing FinishPowder spraying / Electrophoresis LED BrandCREE; Nichia; Lumiled
Impact ResistanceIK08 (IK10 optional) LED Lifetime>50,000h - L70B50

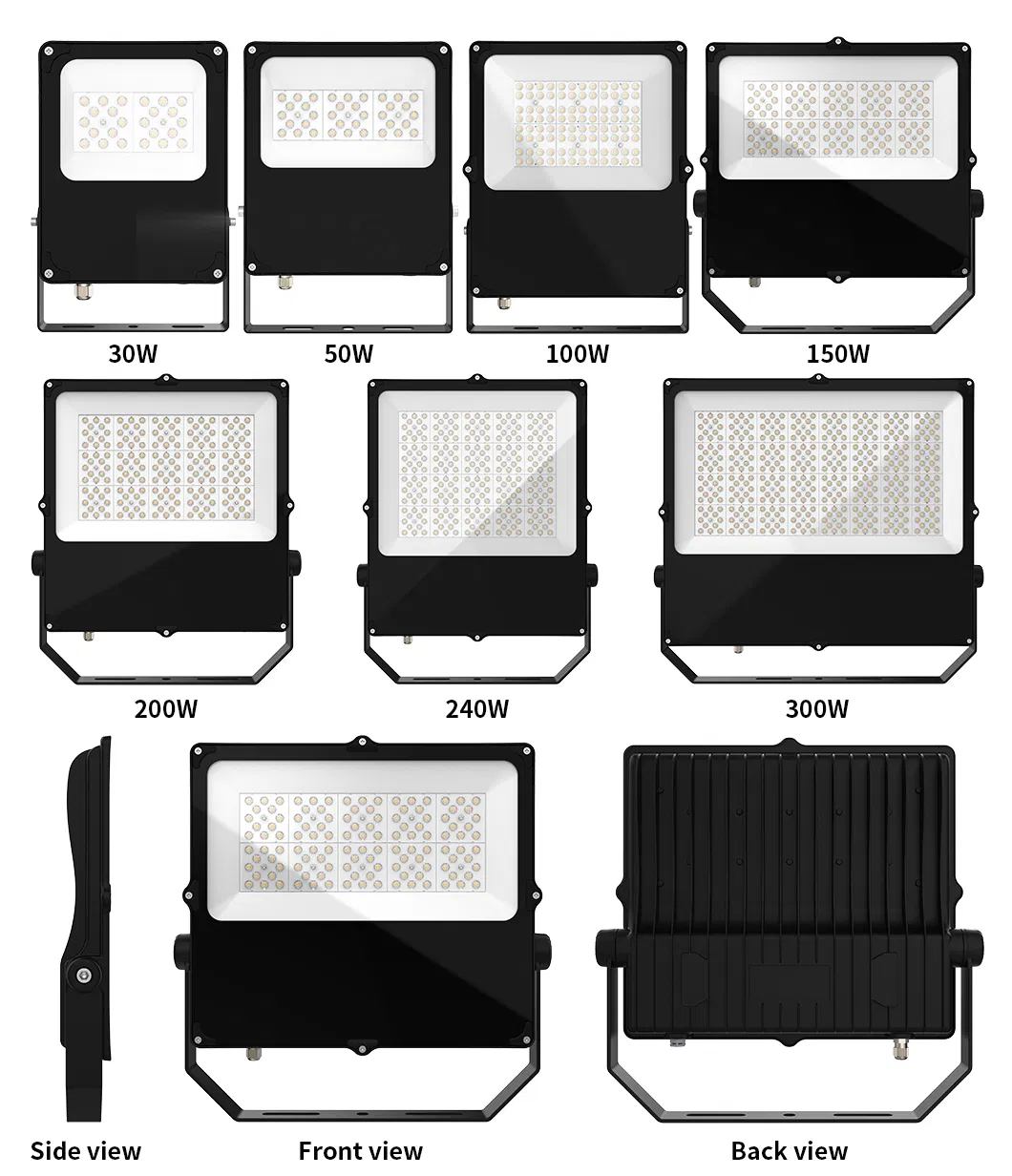

Product Gallery

Frequently Asked Questions

What certifications do these flood lights have?
Our products are TUV, CB, CE, EMC, SAA, CCC, and RoHS approved. They also meet IP65/IP66/IP67 and IK08/IK09/IK10 standards with available LM79/LM80 reports.
Can I customize the products with our own logo?
Yes, we provide full OEM services to our customers, allowing for custom logos on both products and packaging.
What is the standard warranty period?
We offer a 5 to 7-year warranty depending on specific customer requirements and application environments.
What is the typical lead time for orders?
Samples usually take 3-7 days, while mass production typically takes 10-20 days based on the total order quantity.
Do you support ODM requirements?
Yes, we provide both OEM and ODM support to meet different professional application requirements.
How is product quality controlled and handled if faulty?
Products are manufactured under a strict quality control system (defective rate < 0.1%). For any defects within the warranty period, we provide replacements or repairs according to the specific situation.
