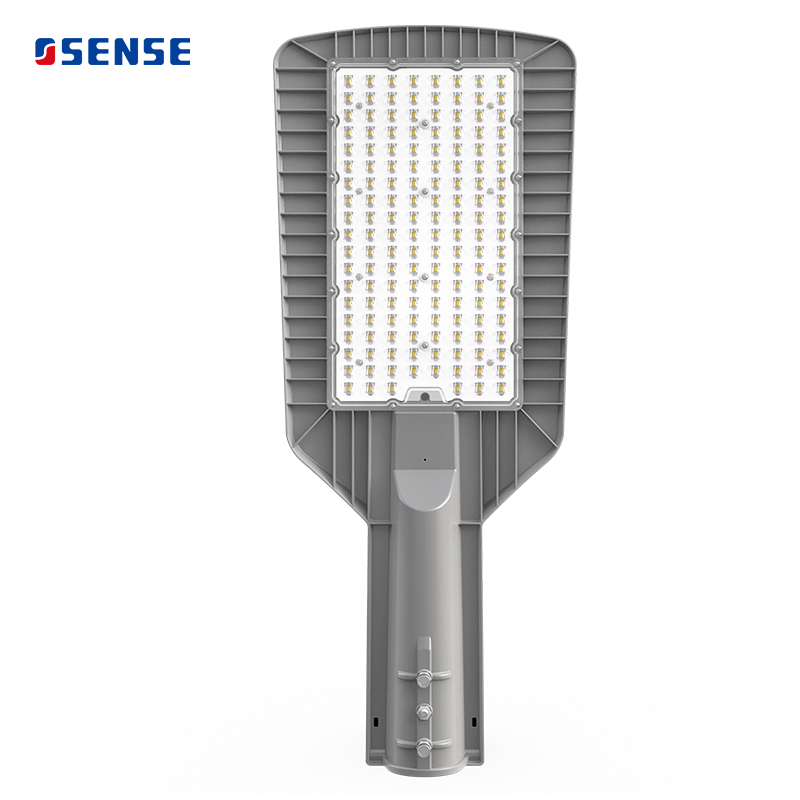

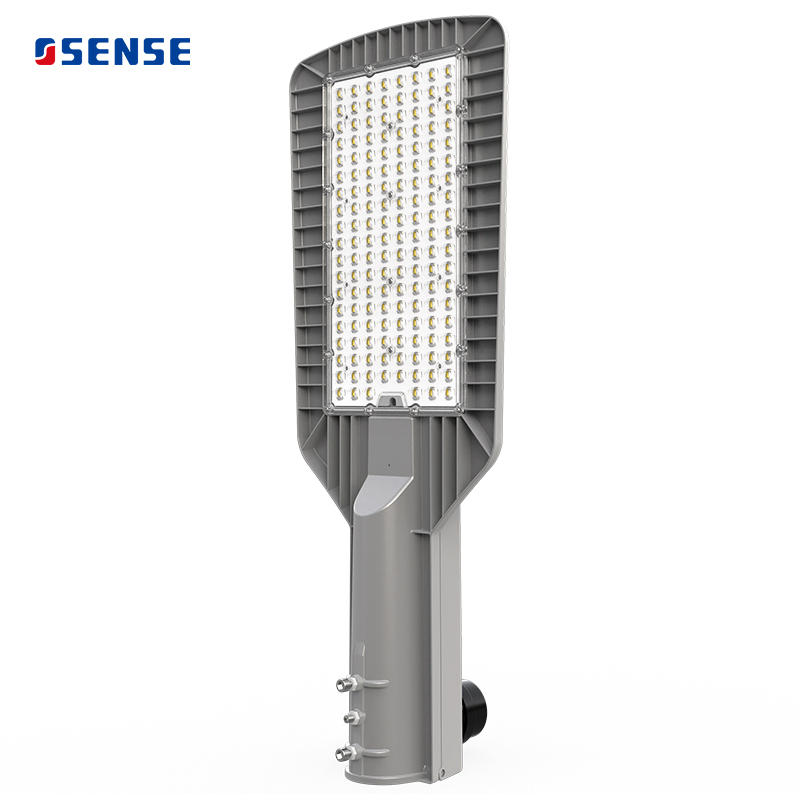

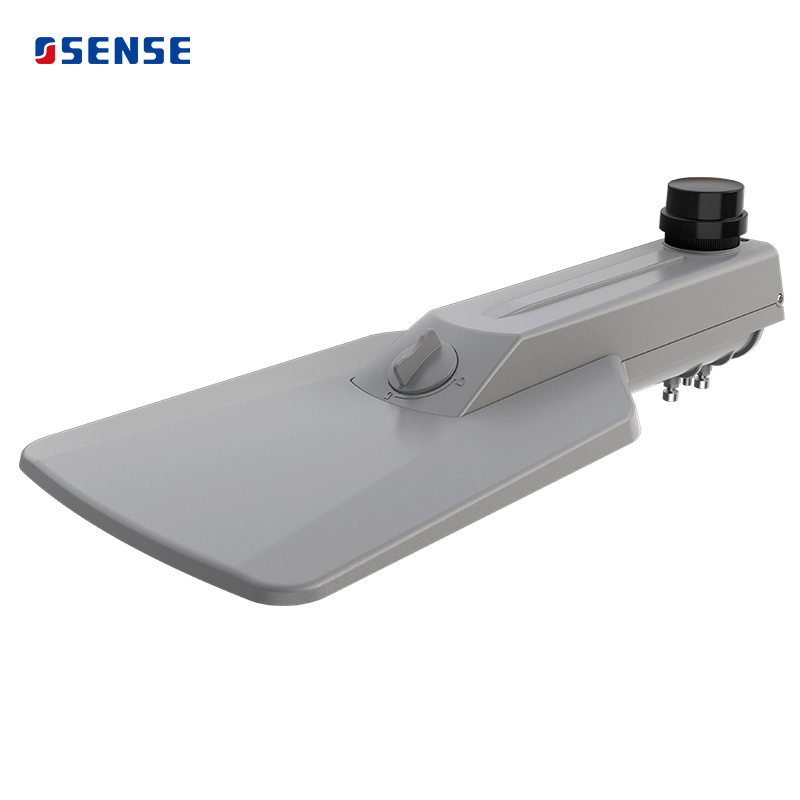

Basic Specifications
Model NO.
SWL-BY 200W/240W
Lamp Body Material
Aluminum
LED Chips
CREE/Lumileds/OSRAM/Brigelux/Nichia
Driver Brand
Moso/Sosen/Meanwell/Inventronics
Surge Protection
10kv/20kv
Smart Control
Dali, 0-10V/1-10V
★
Product Features
✔Patented private mold with integrated Die-casting aluminum housing.
✔High-efficiency coating passing 500 hours salt spray test for superior corrosion resistance.

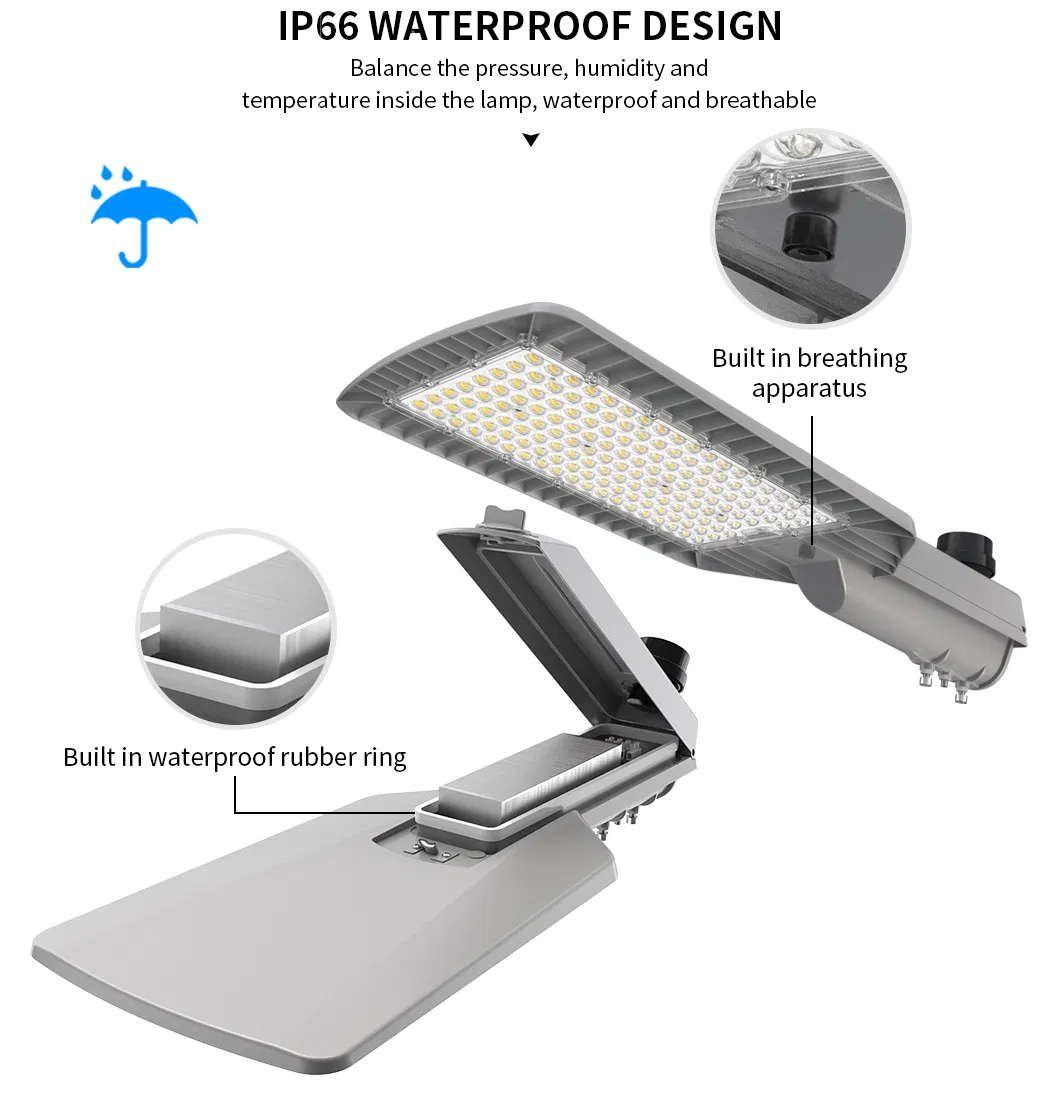

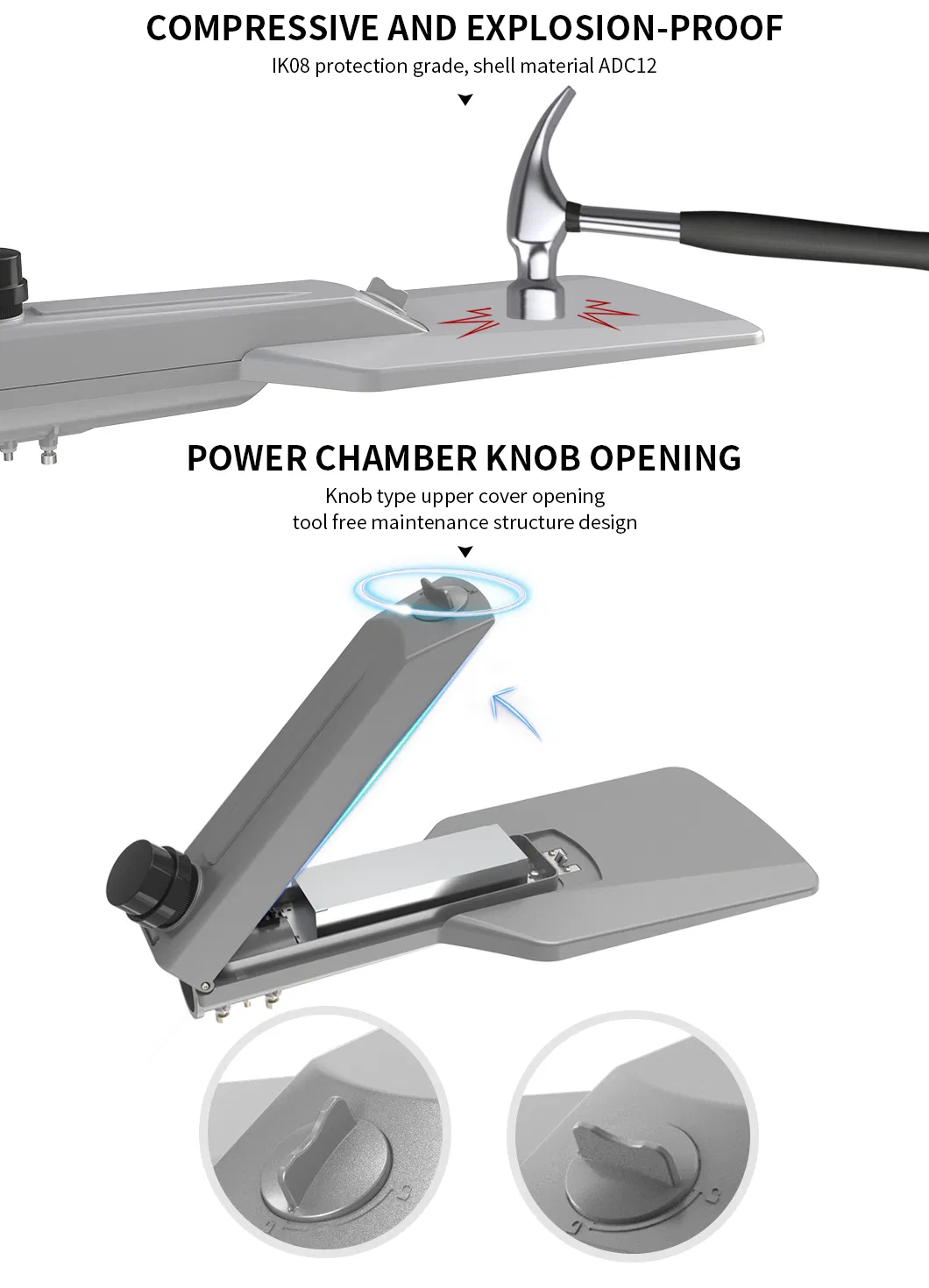

✔Tool-free power cavity opening for easy installation and maintenance.
✔Detachable design with fast turn-off power protector for maximum safety.
✔High luminous efficiency up to 170lm/w for fast return on investment.
✔Equipped with PWM, DALI, and 0-10V/1-10V dimming interfaces.
📋
Technical Parameters
| Model No. |
Power |
LED Brand |
Efficiency |
Luminous Flux |

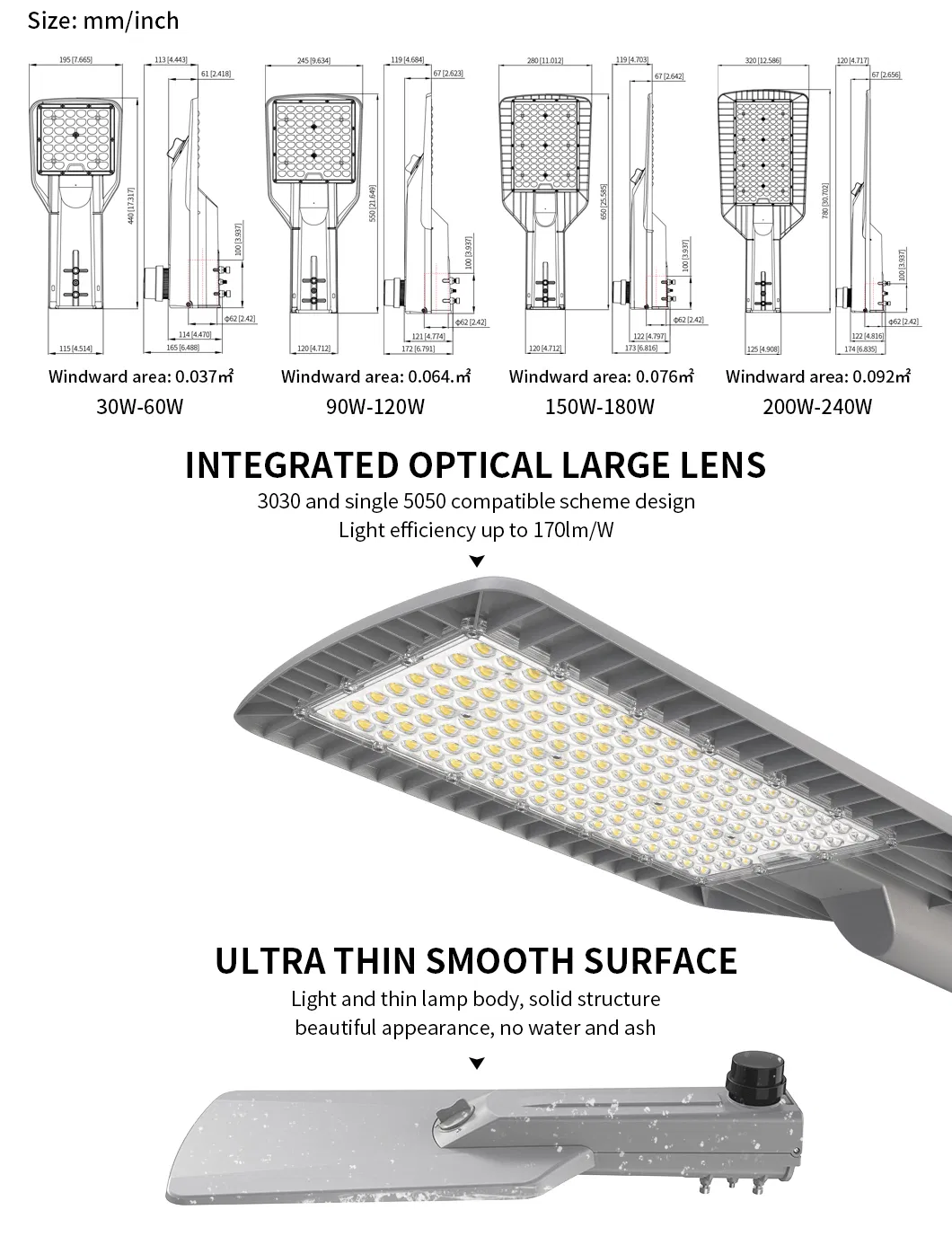

Dimensions (mm) |
N.W (kg) |
| SWL-BY30W | 30W | CREE | 135-165lm/w | 4050-4950lm | 440*195*169 | 2.9 |
| SWL-BY60W | 60W | CREE | 135-165lm/w | 8100-9900lm | 440*195*169 | 2.9 |
| SWL-BY100W | 100W | CREE | 135-165lm/w | 13500-16500lm | 550*245*172 | 4.2 |
| SWL-BY150W | 150W | CREE | 135-165lm/w | 20250-24750lm | 650*280*173 | 5.3 |
| SWL-BY200W | 200W | CREE | 135-165lm/w | 27000-33000lm | 780*320*174 | 6.6 |
| SWL-BY240W | 240W | CREE | 135-165lm/w | 32400-39600lm | 780*320*174 | 6.6 |
?
Frequently Asked Questions
Q1. Are you a manufacturer?
Yes, we have our own factory with over 20 years of R&D and manufacturing experience based on ISO quality management since 2003.
Q2. What Certifications do you have?
Our products are TUV/CB/CE/EMC/SAA/CCC/RoHS approved, and come with IP66/IK10/LM79/LM80 reports.
Q3. Can I have our LOGO on the products and packages?
Yes, we provide comprehensive OEM and ODM services to meet different application requirements.
Q4. What is the warranty for your products?
We offer a 5-7 years warranty depending on the specific customer requests and application environment.
Q5. What about the lead time?
Typically 3-7 days for samples and 10-20 days for mass production based on order quantities.
Q6. How do you handle faulty products?
Our products are produced under a strict quality control system (defective rate < 0.1%). For any issues within the warranty period, we provide replacements or repairs based on the actual situation.
