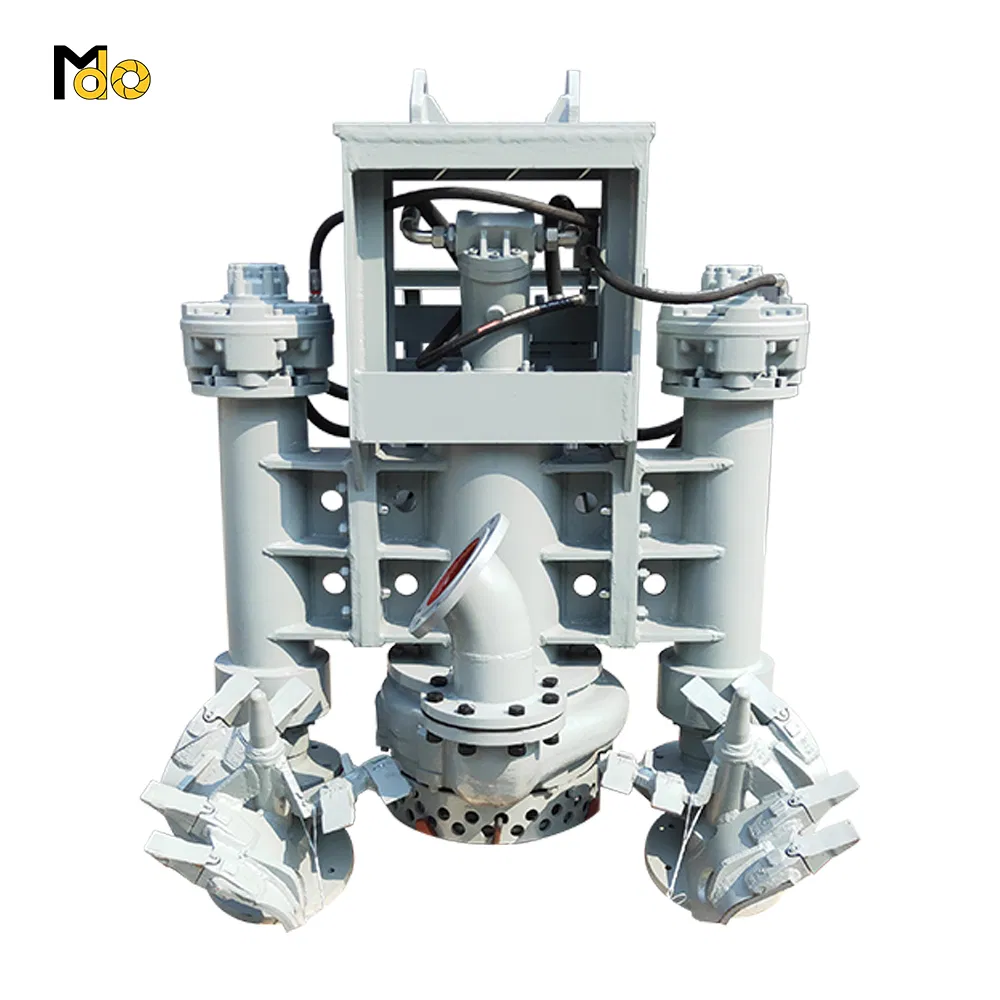

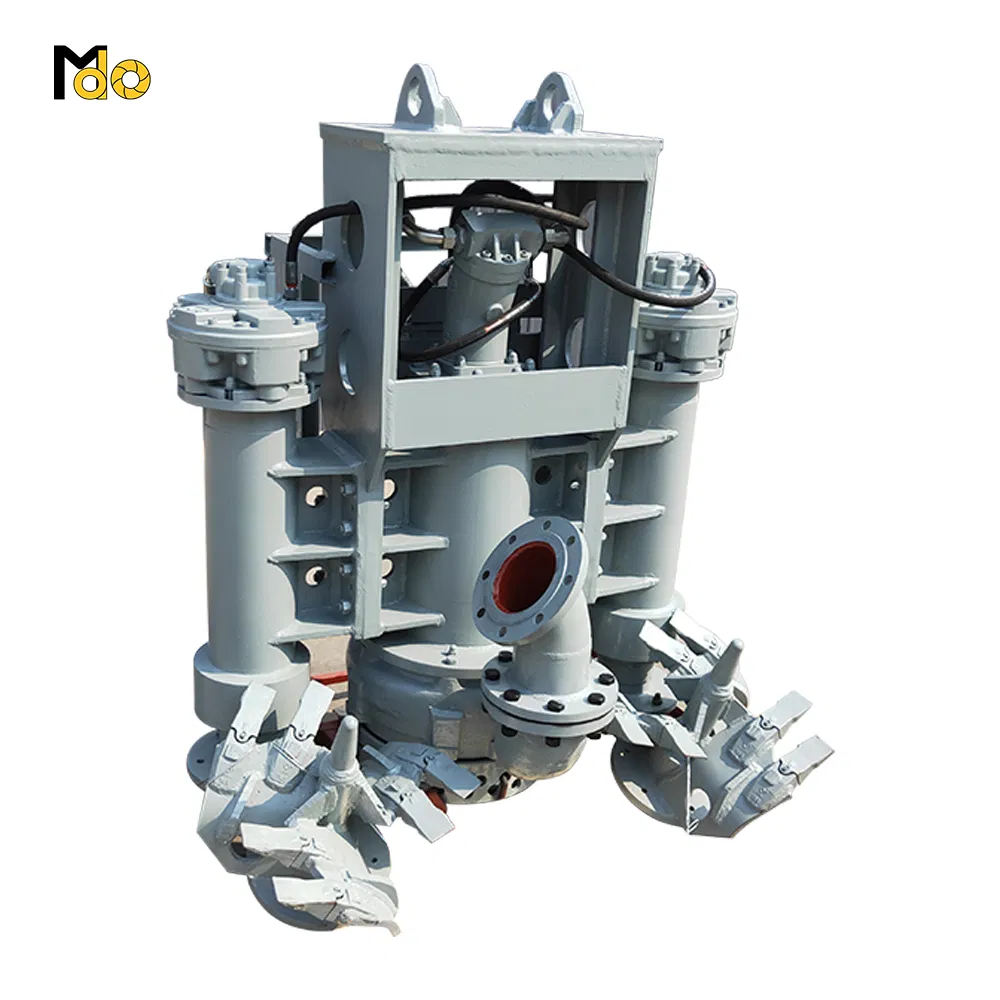

Durable Dredging Underwater 25meter Electric Driven Submersible Slurry Pump
Durable Dredging Underwater 25meter Electric Driven Submersible Slurry Pump
Durable Dredging Underwater 25meter Electric Driven Submersible Slurry Pump
Durable Dredging Underwater 25meter Electric Driven Submersible Slurry Pump
Durable Dredging Underwater 25meter Electric Driven Submersible Slurry Pump
1 / 5
Durable Dredging Underwater 25meter Electric Driven Submersible Slurry Pump
Durable Dredging Underwater 25meter Electric Driven Submersible Slurry Pump
Durable Dredging Underwater 25meter Electric Driven Submersible Slurry Pump
Durable Dredging Underwater 25meter Electric Driven Submersible Slurry Pump
Durable Dredging Underwater 25meter Electric Driven Submersible Slurry Pump

Durable Dredging Underwater 25meter Electric Driven Submersible Slurry Pump

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

🔷 Basic Information
Model NO.
MSS
Max. Head
50-80m
Max. Capacity
>400 L/min
Driving Type
Motor
Impeller Number
Single-Stage Pump
Working Pressure
High Pressure Pump
Position of Pump Shaft
Vertical Pump
Impeller
Semi-Open
Material
Cr27, Cr15mo3
Wet End
A05, A07, A49, Rubber, Polyurethane
Sealing
Mechanical Seal, PTFE Packing, Hi-Seal
Power
Electric
📷 Detailed Photos

Corrosion Resistant Centrifugal Submersible Slurry Pump

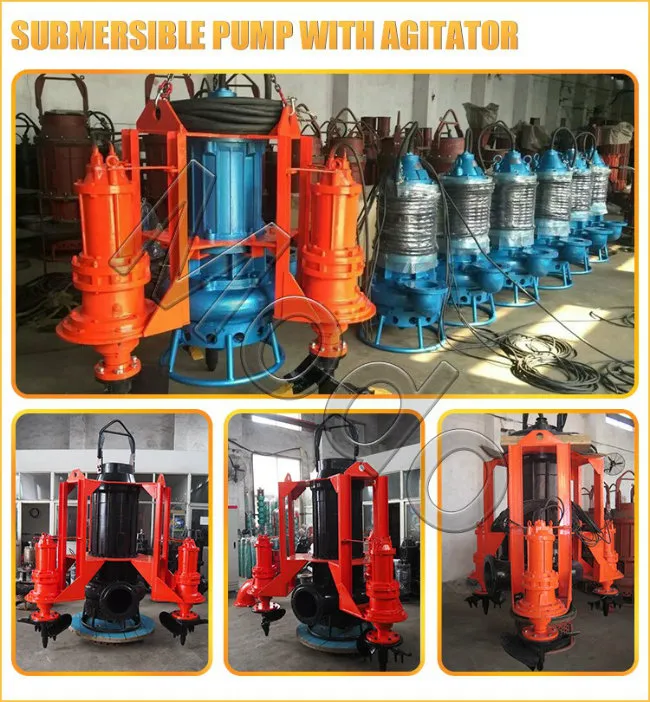

Submersible Slurry Pump View 1

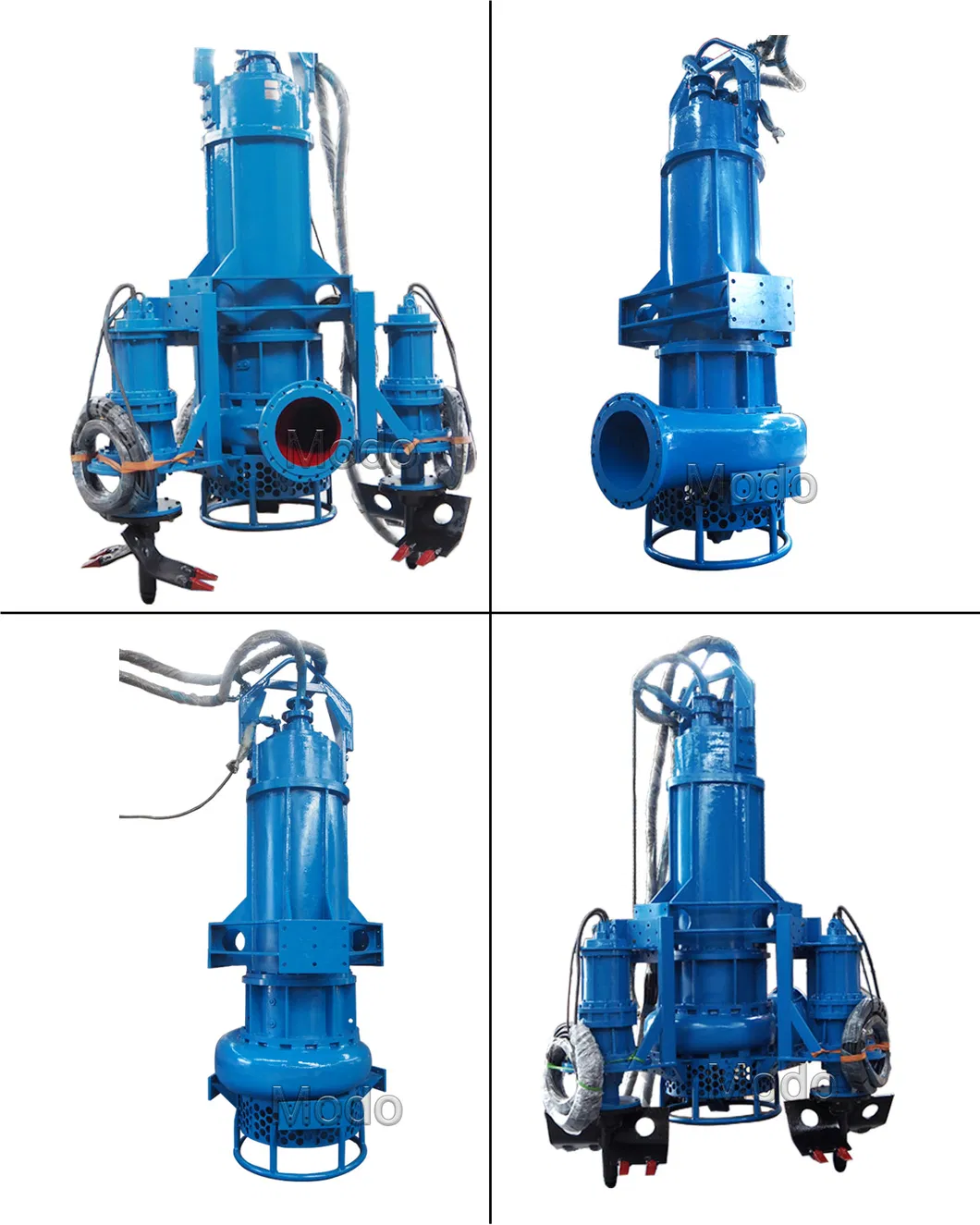

Submersible Slurry Pump View 2
📝 Product Description

The SS Series Submersible Slurry Pumps are electro submersible centrifugal pumps designed for pumping abrasive and high density slurries in mining, heavy industry, civil construction and municipal applications.

ItemSubmersible slurry pumpModelSS
Material27% Chrome White Iron, SS 304, SS 316, or customizedImpellerSingle impeller
DriveDirect couplingSealPacking seal or mechanical seal
Speed1460r/min, 980r/minTheoryCentrifugal pump
Outlet Diameter3.15-16 inchesCapacity22-2400 m3/h
Head8.6-70mPower7.5-315kw
Max Solids Dia2.4 inchesCertificateISO9001, CE
⭐ Key Features
✔ Submersible work without influence of suction head.
✔ No assistant vacuum pump required, saving investment costs.
✔ Low noise operation maintains a quiet work station environment.
✔ Equipped with an agitator, eliminating the need for extra stirring devices.
✔ No need to build a dedicated pump house.
✔ Directly works on the surface of slurry with higher delivery efficiency.
🚀 Applications

Ideal for transfer of waste water, effluent and solids laden water in the following sectors:

📍 Water Treatment 📍 Building Services 📍 Sumps and Basements 📍 Mining Industry 📍 Civil Construction 📍 Dredging & Processing 📍 Municipal Services

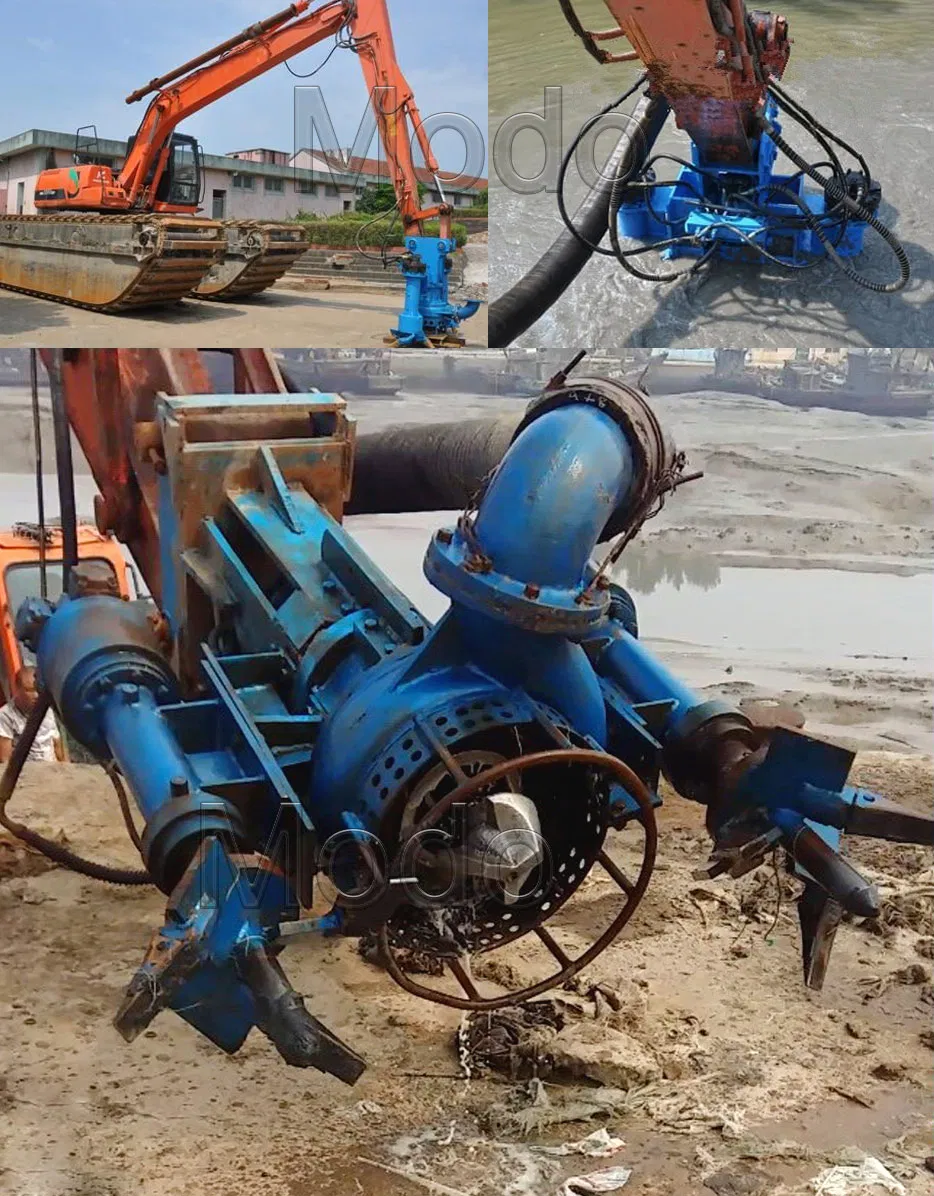

Application View

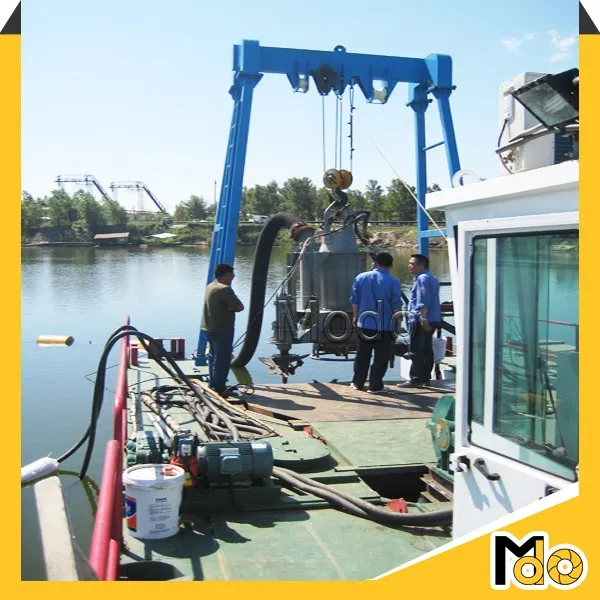

Pump Component
🔍 Technical Details

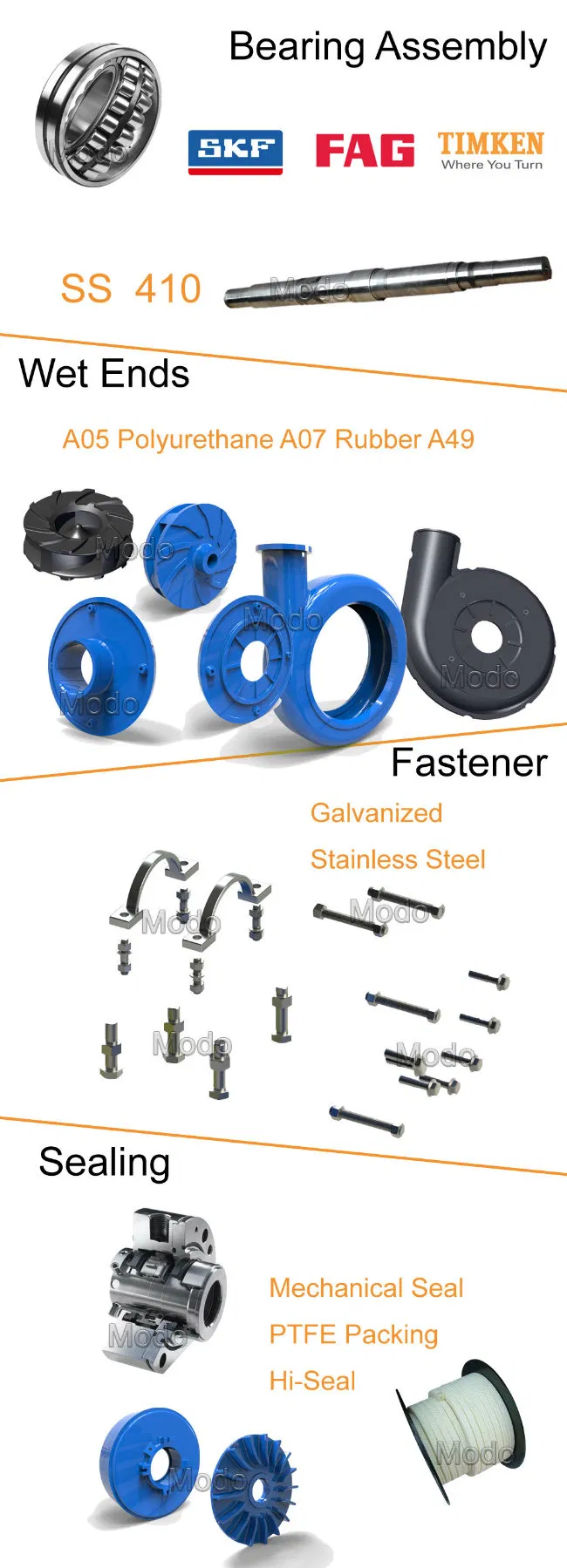

Technical Drawing
❓ Frequently Asked Questions
Q1: What materials are used for the submersible slurry pump?
The pumps are constructed using high-quality materials such as 27% Chrome White Iron, SS 304, or SS 316 to ensure corrosion and wear resistance.
Q2: Does this pump require an external vacuum pump?
No, the SS series is designed to work submersibly without the need for an assistant vacuum pump, which helps in reducing overall investment.
Q3: Can the pump handle high-density solids?
Yes, it is specifically designed for pumping abrasive and high-density slurries with solids up to 2.4 inches in diameter.
Q4: What is the standard warranty for these pumps?
We provide a one-year warranty for the pumps, depending on the specific working conditions and application details.
Q5: What information is needed to get a proper pump solution?
To provide the best solution, please specify the material requirements, required head (m), flow rate (m3/h), medium particle size, pH level, temperature, and power supply details.
Q6: Is OEM branding available for this product?
Yes, OEM branding services are acceptable and welcome to meet specific customer requirements.
