Diesel Engine Hydraulic Control Water Flow 5500m3 24 Inch Cutter Suction Dredger with Underwater Pump Dredging Machine
Diesel Engine Hydraulic Control Water Flow 5500m3 24 Inch Cutter Suction Dredger with Underwater Pump Dredging Machine
Diesel Engine Hydraulic Control Water Flow 5500m3 24 Inch Cutter Suction Dredger with Underwater Pump Dredging Machine
Diesel Engine Hydraulic Control Water Flow 5500m3 24 Inch Cutter Suction Dredger with Underwater Pump Dredging Machine
Diesel Engine Hydraulic Control Water Flow 5500m3 24 Inch Cutter Suction Dredger with Underwater Pump Dredging Machine
1 / 5
Diesel Engine Hydraulic Control Water Flow 5500m3 24 Inch Cutter Suction Dredger with Underwater Pump Dredging Machine
Diesel Engine Hydraulic Control Water Flow 5500m3 24 Inch Cutter Suction Dredger with Underwater Pump Dredging Machine
Diesel Engine Hydraulic Control Water Flow 5500m3 24 Inch Cutter Suction Dredger with Underwater Pump Dredging Machine
Diesel Engine Hydraulic Control Water Flow 5500m3 24 Inch Cutter Suction Dredger with Underwater Pump Dredging Machine
Diesel Engine Hydraulic Control Water Flow 5500m3 24 Inch Cutter Suction Dredger with Underwater Pump Dredging Machine

Diesel Engine Hydraulic Control Water Flow 5500m3 24 Inch Cutter Suction Dredger with Underwater Pump Dredging Machine

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Specifications
Model NO.
QHCSD-52
Cyclone Type
Hydrocyclone
Condition
New
Warranty
2 Year
Diesel Engine
Cummins
Dredging Depth
20m
Water Flow
5500 Cubic Meter
Capacity
1100 Cubic Meter
PLC System
Siemens
Control System
Rexroth Hydraulic
Total Length
41m
Discharge Distance
2000m-6000m
🚢 Product Introduction

The 24 Inch Cutter Suction Dredger is designed for high-performance operations in rivers, lakes, ports, and inland waterways. It is capable of processing sand, mud, and gravel for various dredging projects. By utilizing high-quality international components, this machine achieves maximum efficiency and low fuel consumption.

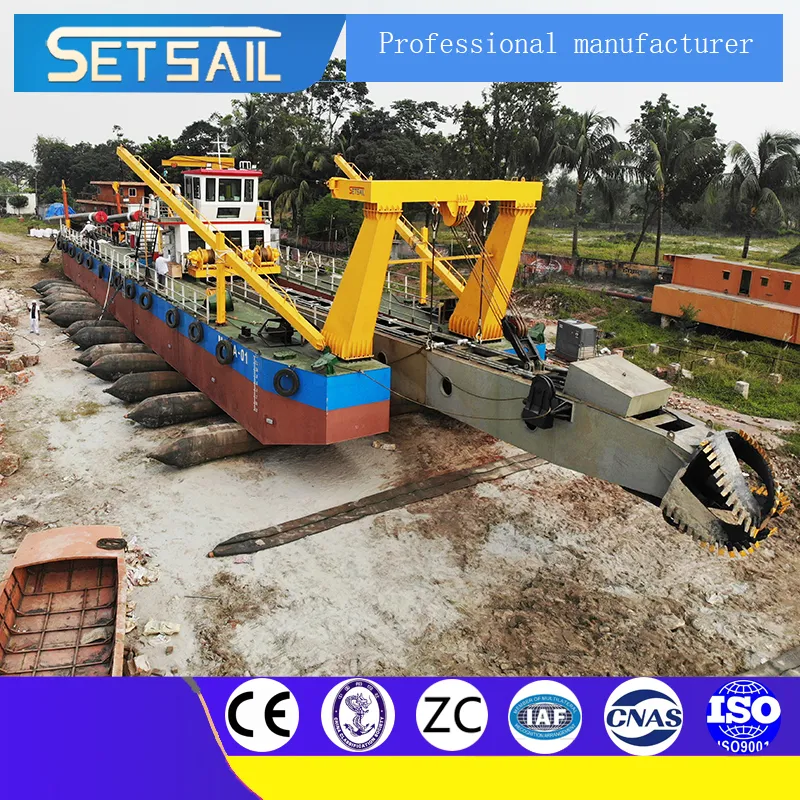

Dredger Front View

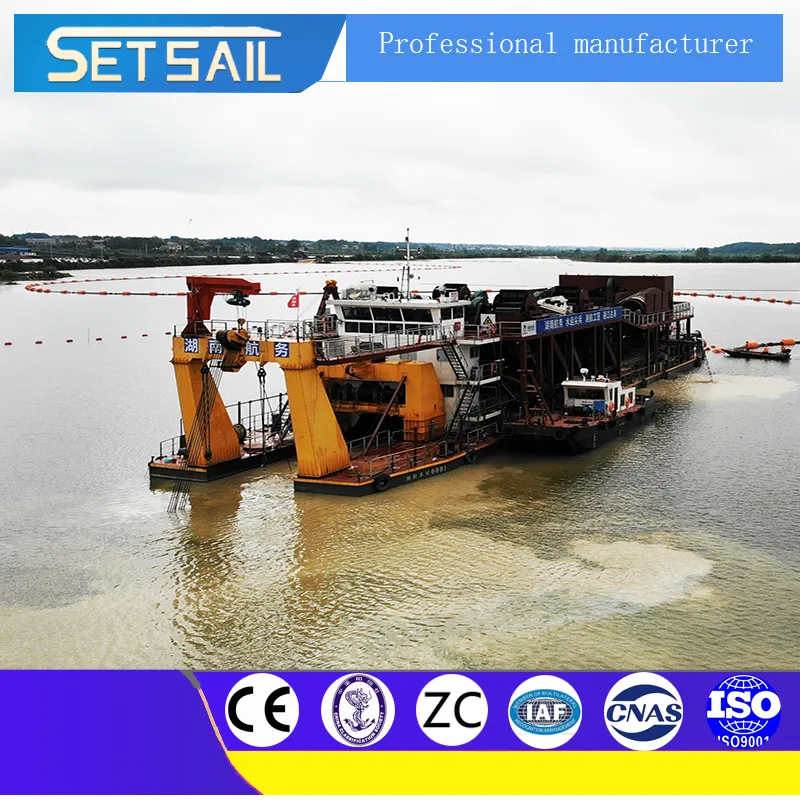

Dredger Side View
📊 24 Inch Technical Parameters
ItemParameter
Capacity1100m³
Water Flow5500m³
Maximum Dredging Depth20m
Discharge Distance2000m
Engine Power2190kw
Cutter Head Power300kw
PLC SystemSiemens
Hydraulic ControlRexroth
Total Length38m - 41m
📉 Model Range Overview
Size Flow (m³) Capacity (m³) Depth (m) Power (kw)
8 inch8001608220
12 inch150030010559
16 inch250050013746
20 inch4000800151268
24 inch55001100162190
32 inch75001500173500
🖼️ Project Gallery

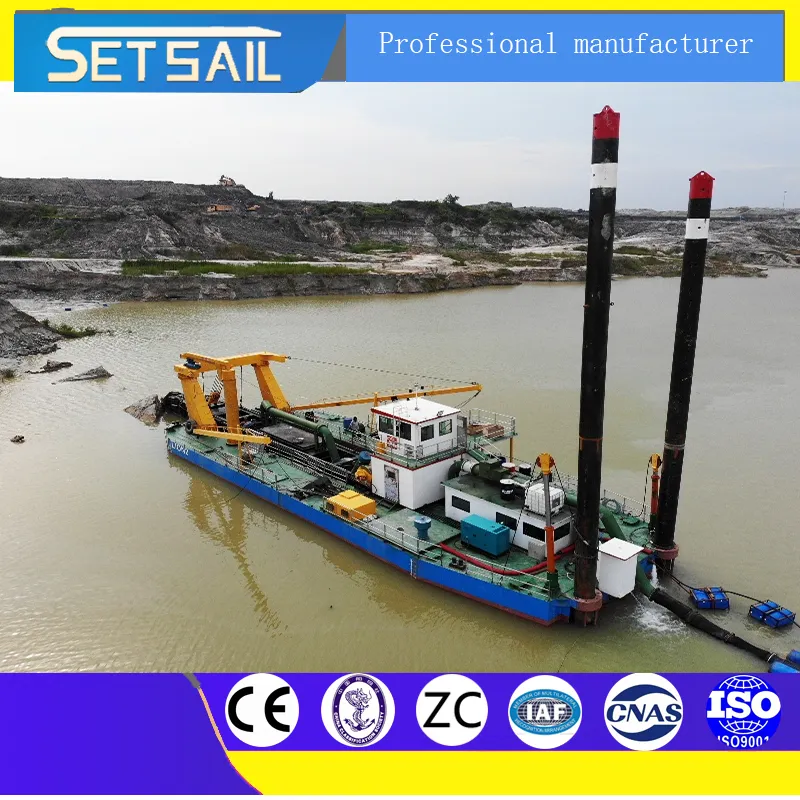

Dredger Operation

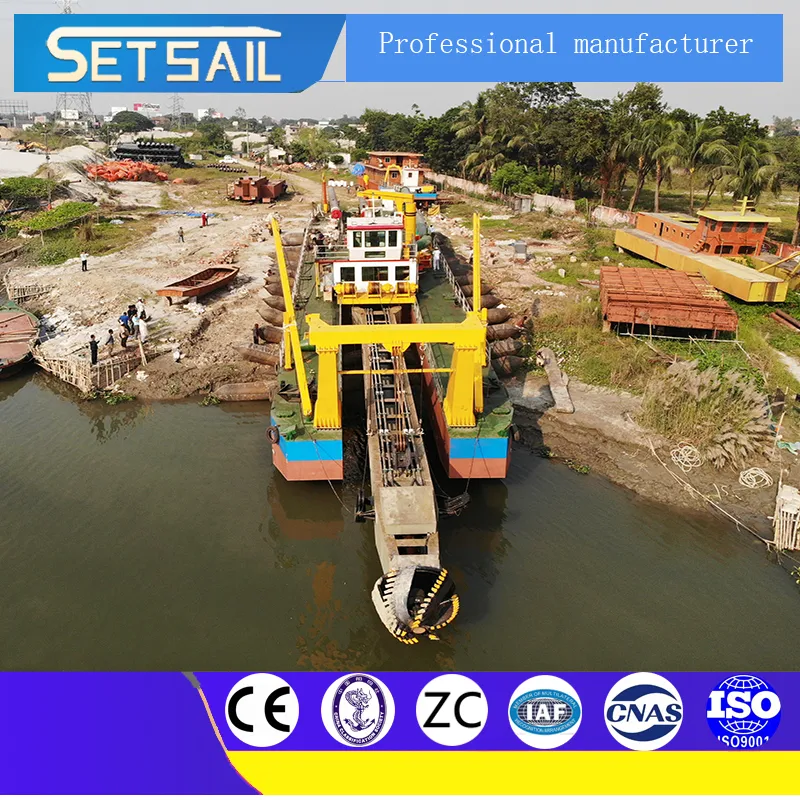

Dredger Detail

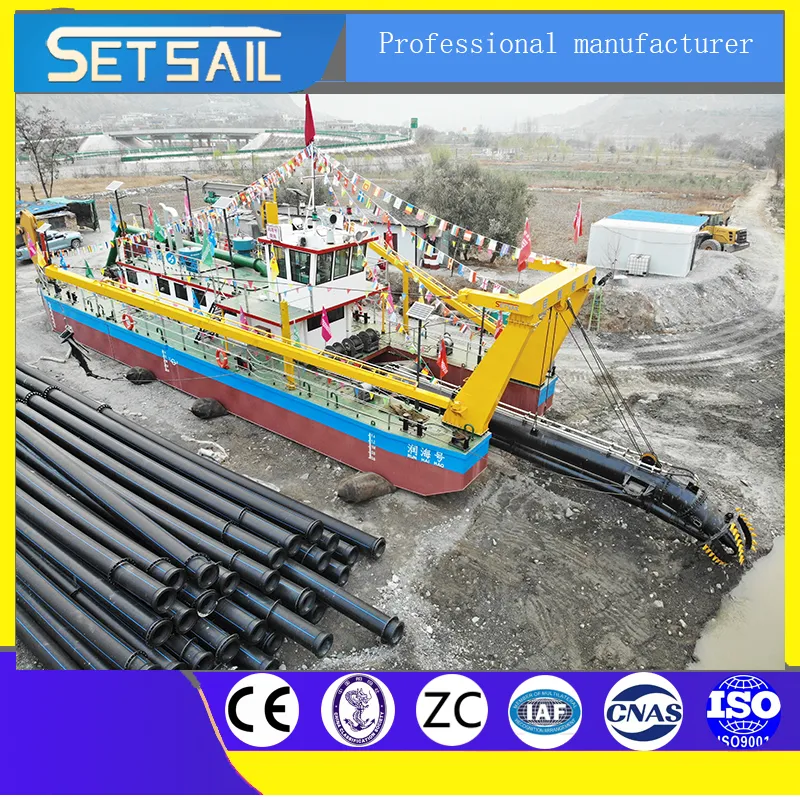

Dredger On Water

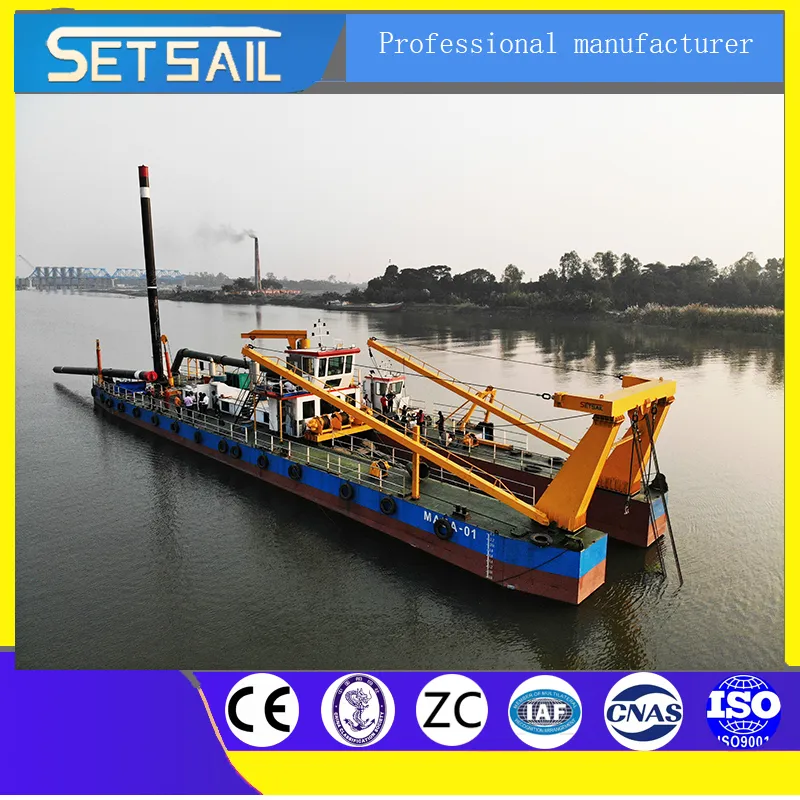

Dredger Components

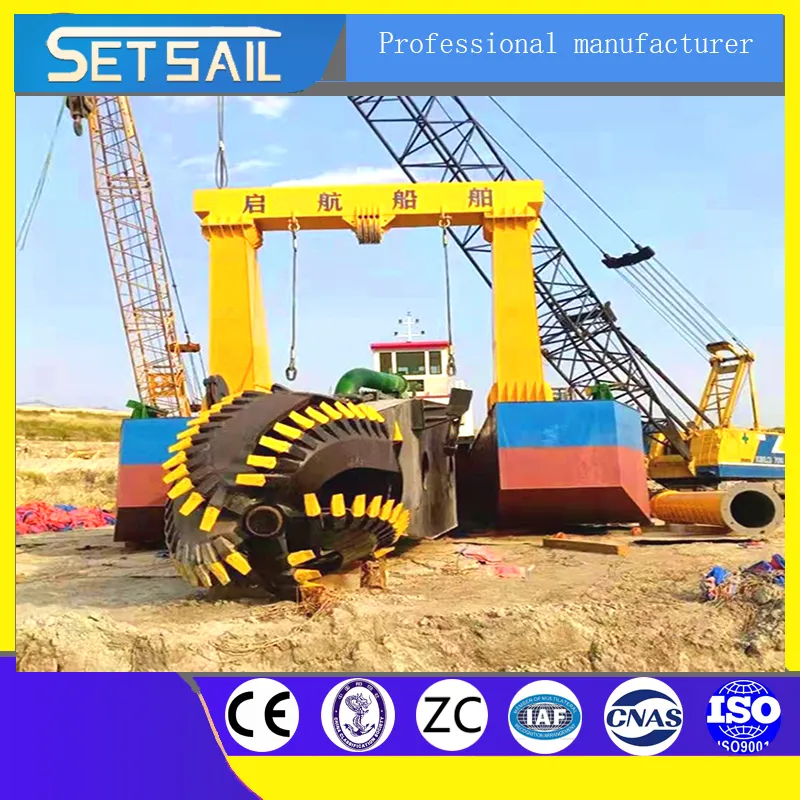

Factory Testing

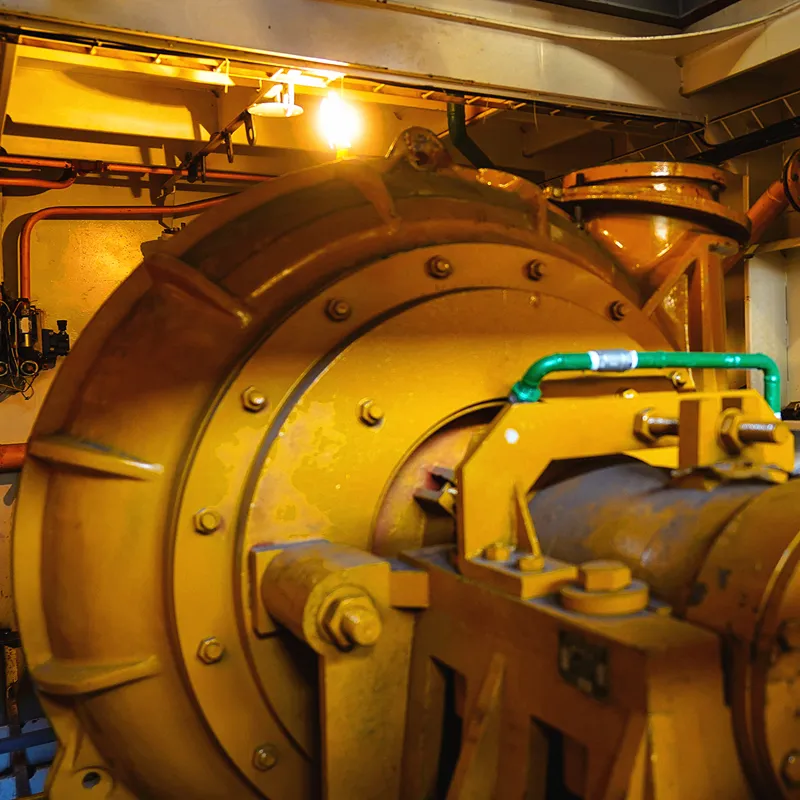

Control Room
✅ Key Features & Advantages
1
Reliable Performance: Key components like diesel engines and slurry pumps adopt international brands.
2
Fully Tested: Quality testing is performed for each dredger before delivery to ensure smooth operation.
3
Dismountable Structure: Easily disassembled and assembled for convenient transportation by road, rail, or water.
4
Easy Operation: Equipped with advanced PLC and hydraulic systems; all operations are handled within the cabin.
🚚 Installation & Packaging

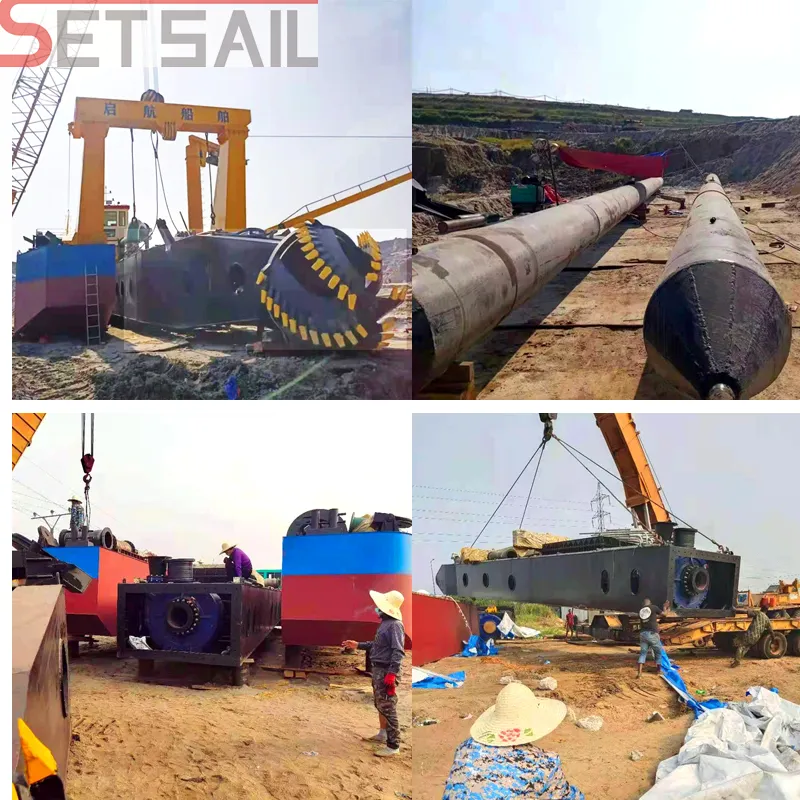

Installation Site

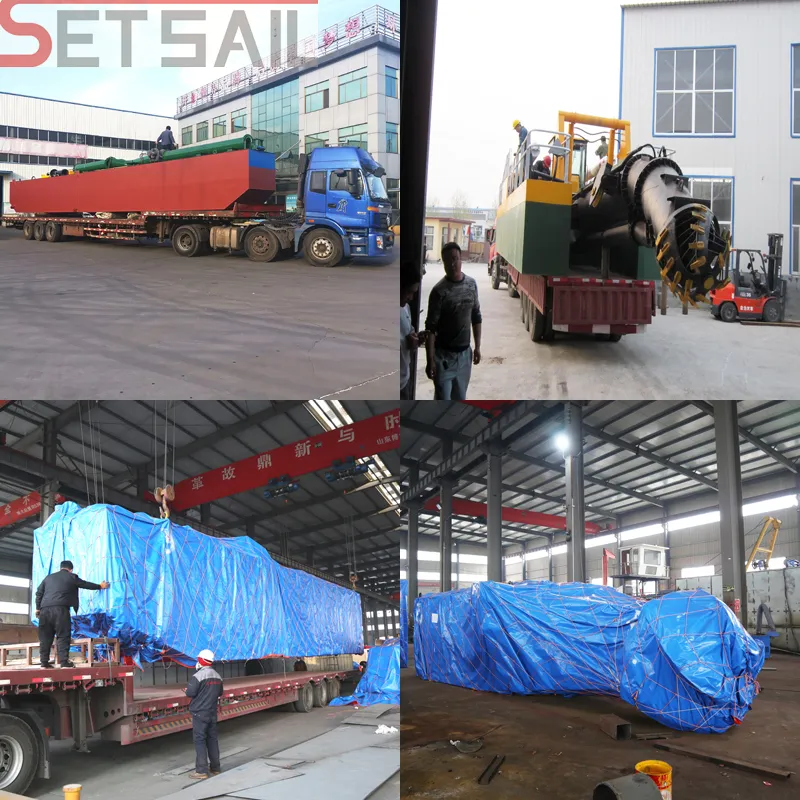

Packaging
Certification
❓ Frequently Asked Questions
What is the maximum dredging depth of this 24-inch dredger?
The standard maximum dredging depth is 20 meters, though different models range from 8 to 17 meters depending on the size.
What brands of engines and hydraulic systems are used?
We use world-renowned brands such as Cummins engines, Siemens PLC control systems, and Rexroth hydraulic systems to ensure high reliability.
Can the dredger be customized for specific projects?
Yes, all products can be customized according to specific requirements including water flow capacity, dredging depth, and discharge distance.
How is the equipment transported to international sites?
The dredgers feature a dismountable structure, allowing them to be disassembled and transported via bulk carrier or containers by road, rail, or sea.
What kind of after-sales support is provided?
Lifelong after-sales service is provided, including experienced engineers for on-site installation, worker training, and spare parts support.
What are the main applications for these dredgers?
They are widely used for maintenance dredging, sand mining, waterway cleaning, canal deepening, and reservoir desilting.
