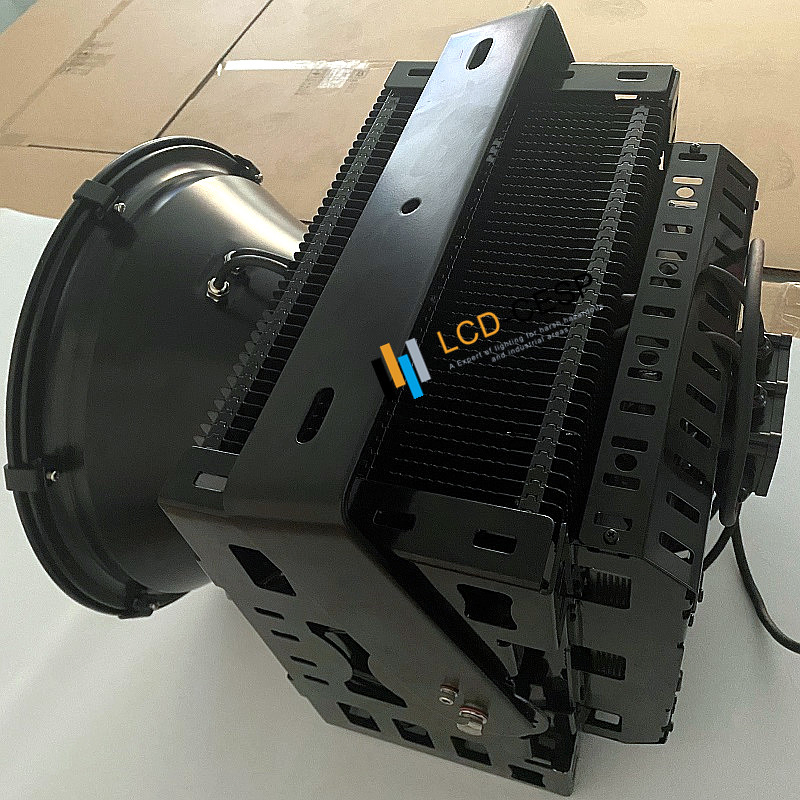

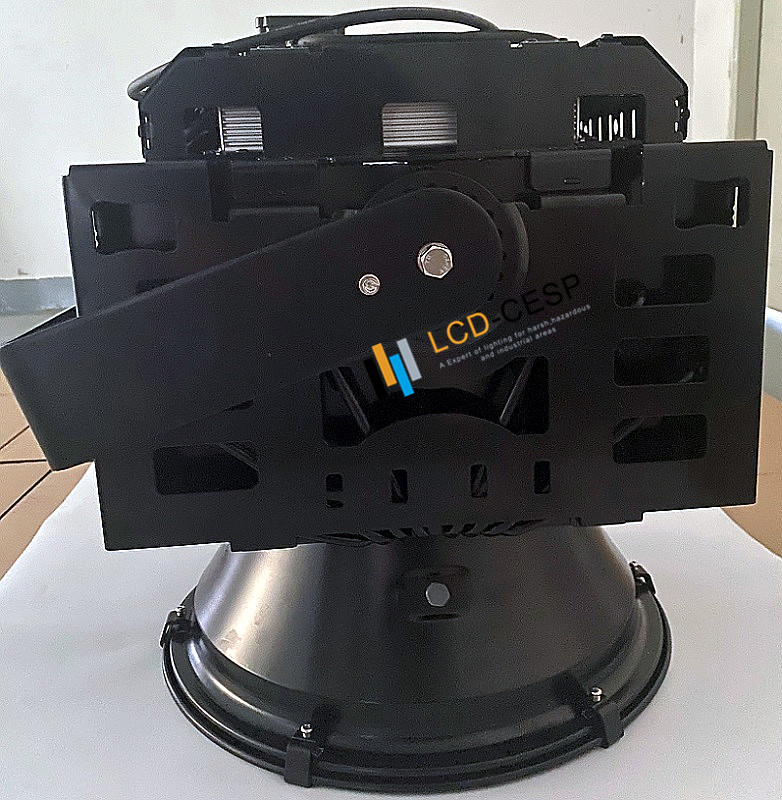

Professional Commercial LED Flood Lights 1000W IP65 Beam Angle 60deg Security Industrial LED Floodlight Fixtures Lighting 4000K

Basic Specifications

Model NO.LCD-H2-HYQ-1002-LN60-4K

Pole Height30-35m

Power Range300W-1100W

Projection Distance100-500m

UsageStadium / Port / Large Area

IP RatingIP65 / IP66

Input Voltage220V (85~305VAC)

LED Chips BrandCREE

HS Code9405421000

CertificationCE, RoHS, FCC, TUV, SAA, etc.

Professional LED Flood Light & High Bay

1000W Outdoor & Indoor King LED Flood Light and High Bay Light

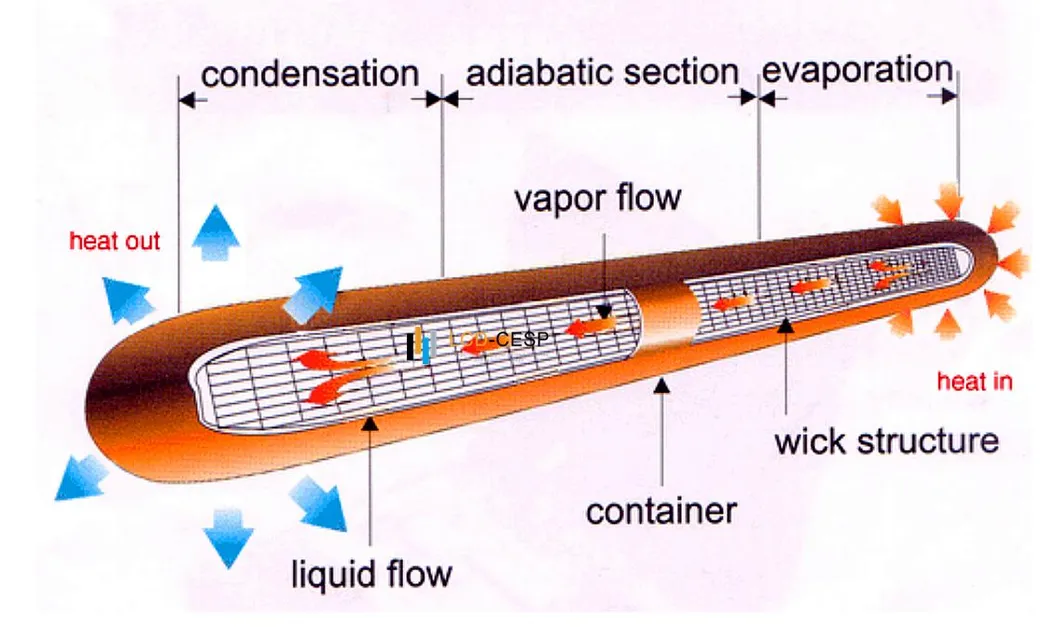

Cutting-edge thermal management Heat-pipe-SSL system
5 years warranty for long-life span
Low profile & durable design

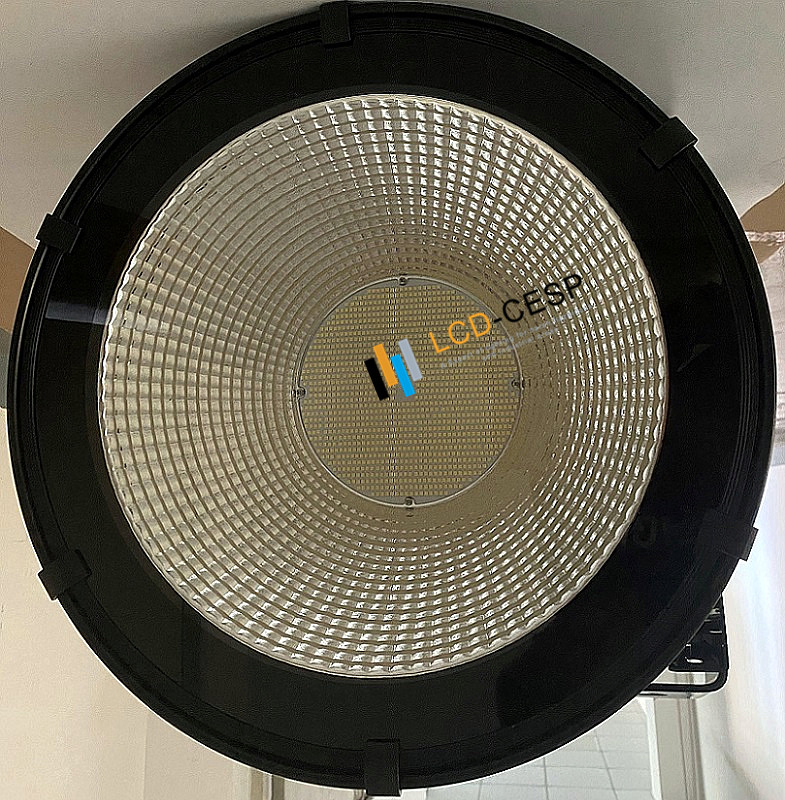

UGR < 19 with anti-glaring reflector
Zero lighting pollution & no neighbor complaints
Luminous efficacy: 115-120 lm/w

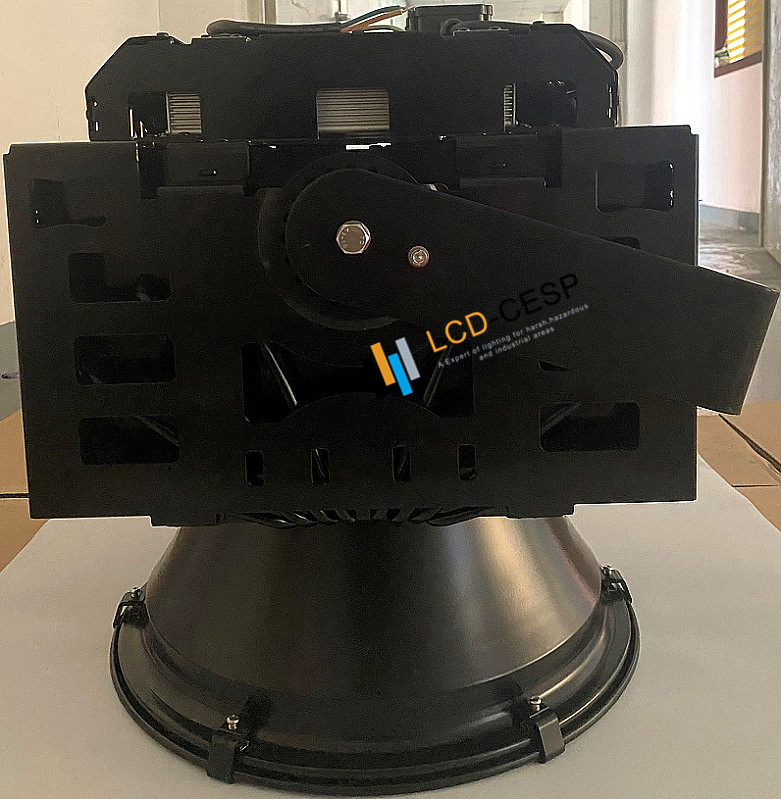

The LCD-H3-FHB series is a versatile high wattage luminaire combining floodlight and high bay capabilities. Equipped with a state-of-the-art LED light engine, it offers uniform lighting output and superior thermal management via heatpipe-SSL systems. Its unique mounting allows for adjustable steel yoke or steel hook installations.

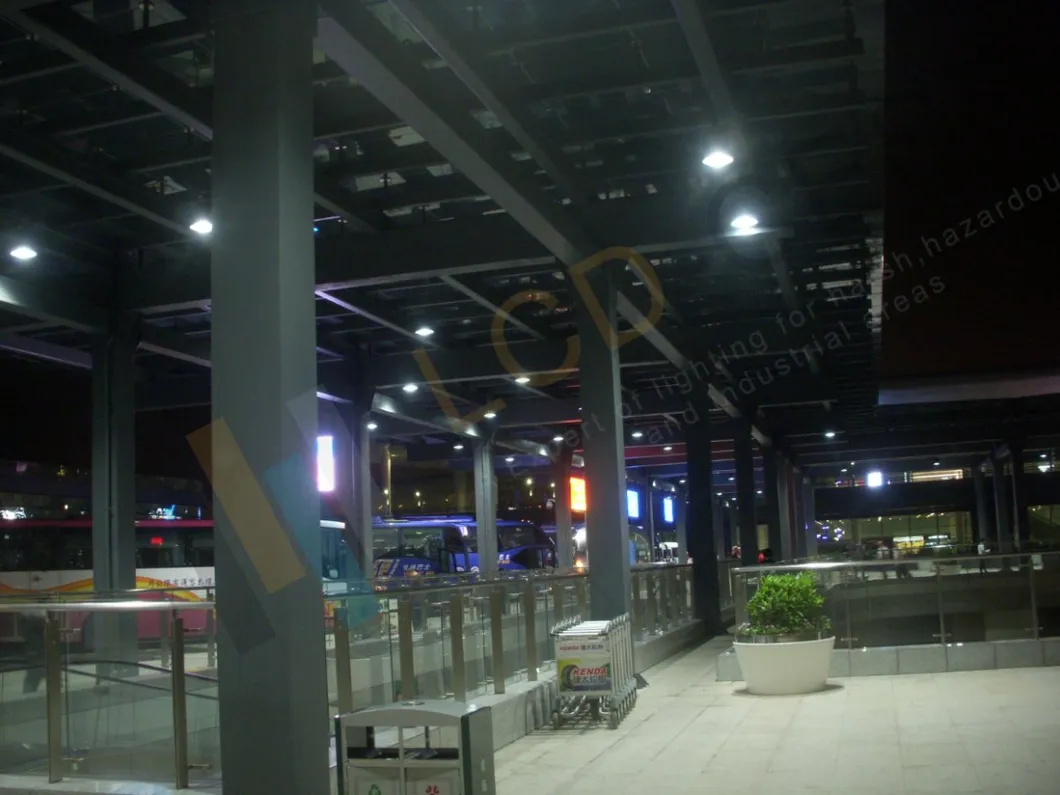

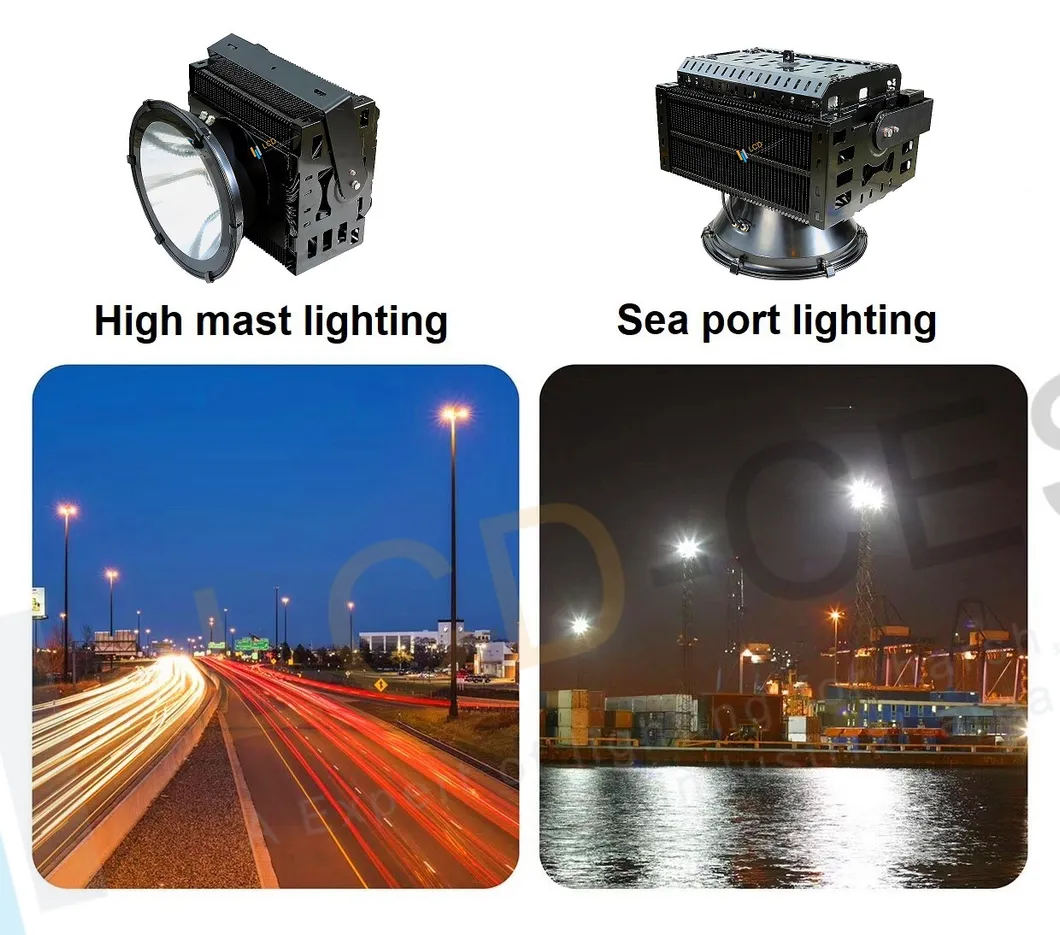

🏟️Large Area Lighting Solutions

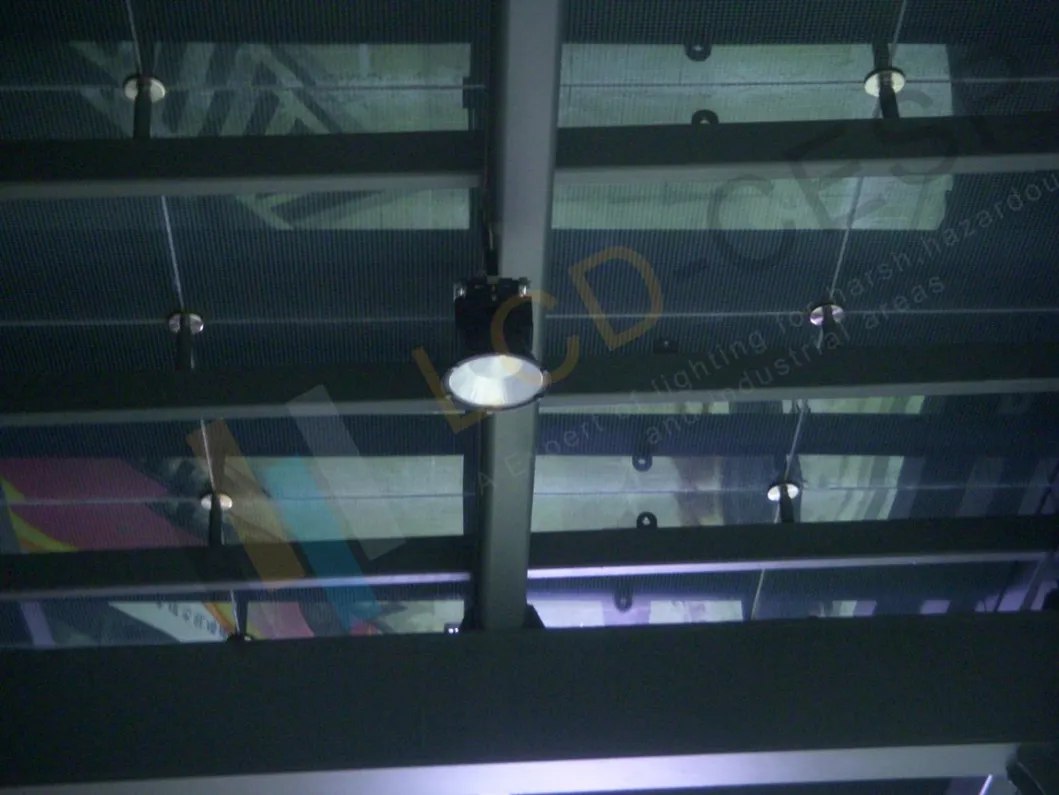

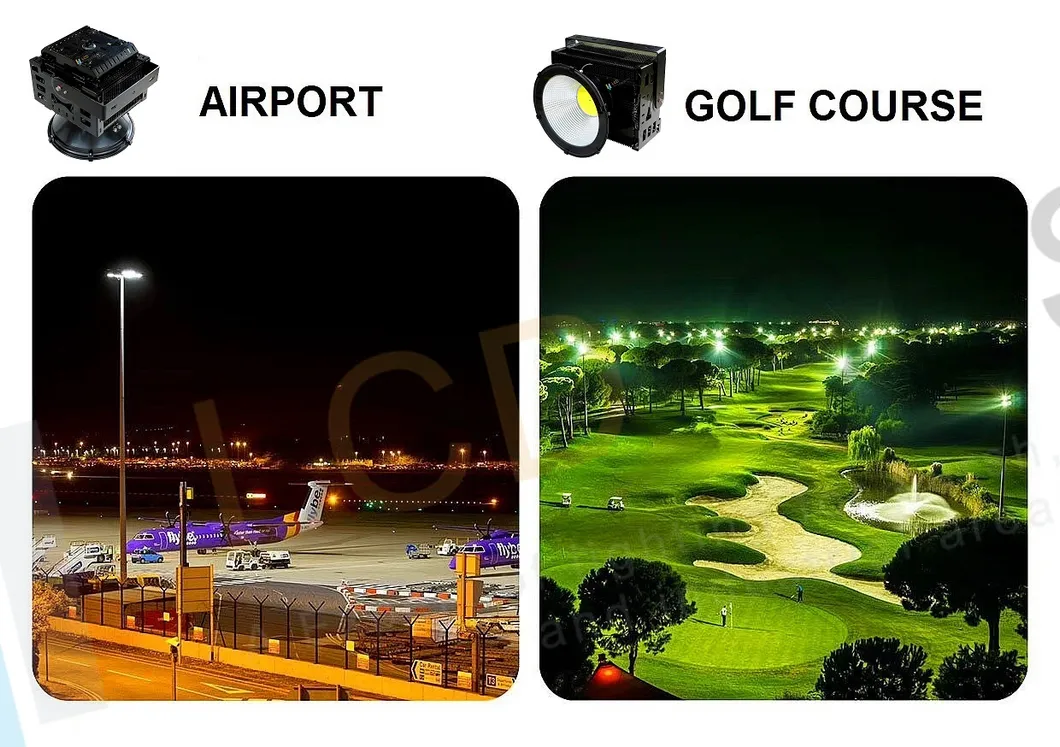

LCD-H3-FHB series provides bright, uniform illumination for sports areas, sea ports, and airport aprons, maximizing efficiency while minimizing operating costs. It can replace traditional 2000W-5000W HID solutions effortlessly.

Outstanding Performance & Tech

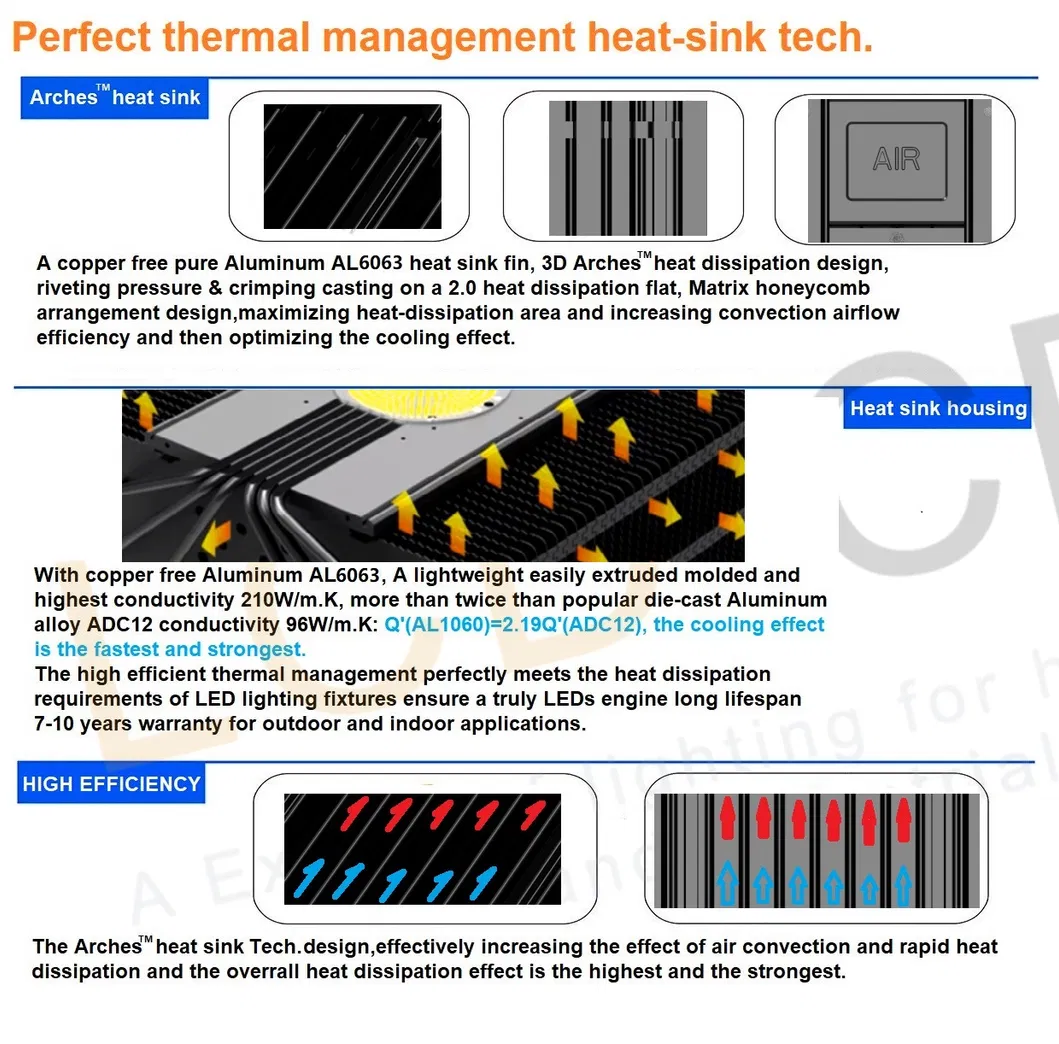

❄️Advanced Cooling System

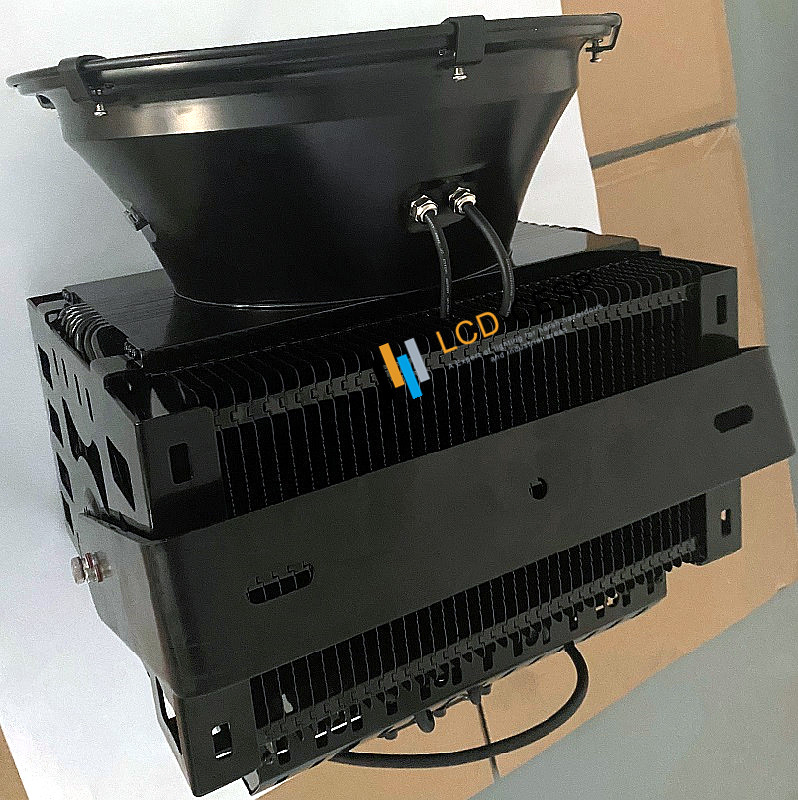

Utilizing copper-free pure Aluminum AL6063 with a conductivity of 210W/m.K and Arches™ LED heat sink technology, the system ensures super-thermal management for a long lifespan.

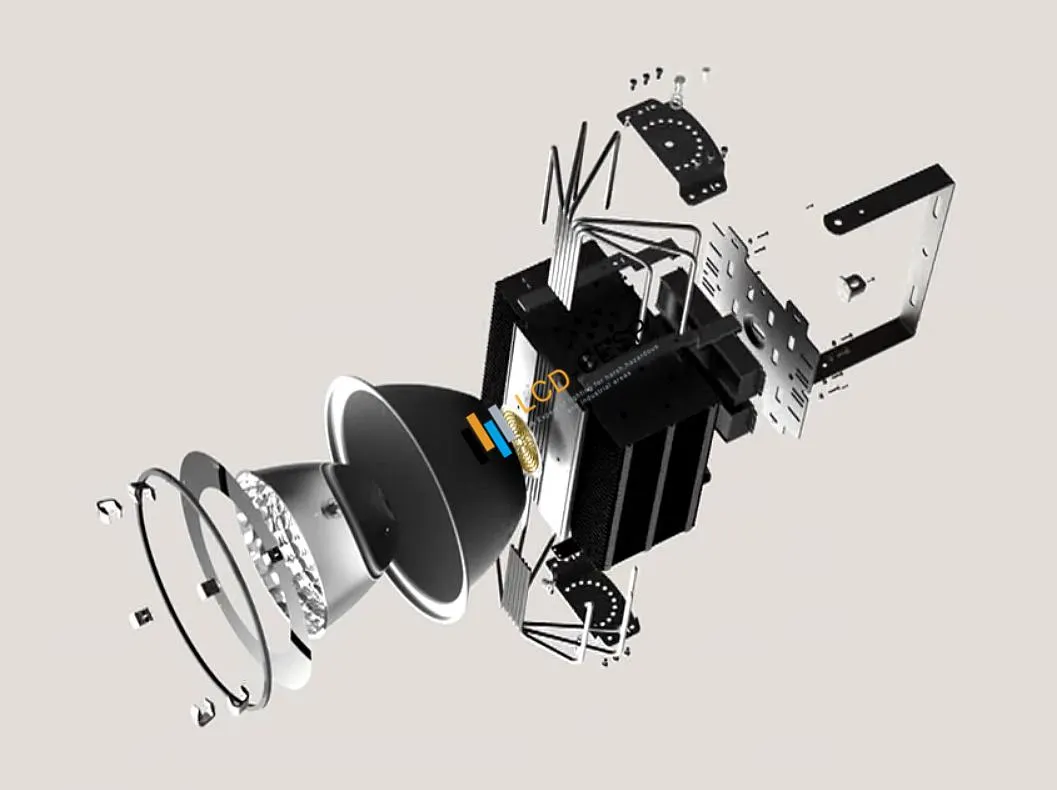

⚙️Modular Construction

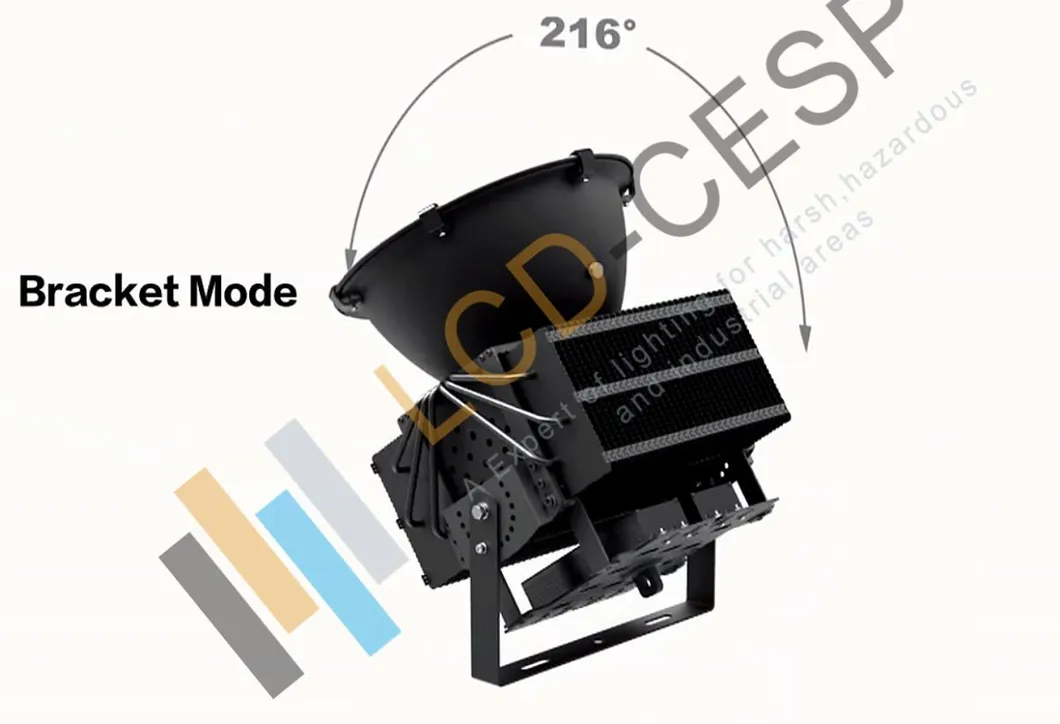

The flexible optical system enables various configurations. Each single LED module can be tilted (± 216°), optimizing the lighting design process for any specific site requirements.

Technical Specifications

Feature	Details	Feature	Details
Lumen Output	Up to 130LM/W	Lifespan	50,000 - 100,000 Hours (L80)
CCT	3000K / 4000K / 6500K	CRI	≥ 75
Impact Protection	IK08 / IK10	Surge Protection	4KV - 10KV
Operation Temp	-40°C to +55°C	Beam Angles	45°, 60°, 90°

Product Range & Models

Model No.	Power	Lumens	Dimensions (mm)	Weight
LCD-LYEGM-125	120W	18,000	310116191	3.20 kg
LCD-LYEGM-245	240W	36,000	36531060	3.33 kg
LCD-LYEGM-485	480W	72,000	36542060	4.65 kg
LCD-LYEGM-725	720W	108,000	59038763	8.20 kg
LCD-LYEGM-965	960W	144,000	34620065	11.70 kg
LCD-LYEGM-1505	1500W	225,000	36536560	Max 26 kg

Frequently Asked Questions

1. What is the warranty period for this LED flood light? The fixture comes with a standard 5-year warranty, supported by the cutting-edge Heat-pipe-SSL thermal management system which ensures a long lifespan.

2. Can this light be used in coastal or high-corrosion environments? Yes, the main body is made of copper-free pure Aluminum (1070/6063) with high resistance to corrosion and an optional marine coating for harsh environments.

3. What are the available beam angles for different sports applications? We offer precision specular reflectors with 45°, 60°, and 90° beam angles to produce uniform lighting distribution for either stadium floodlighting or high bay usage.

4. Is the driver protected against electrical surges? Yes, the high-quality constant current driver has an IP67 rating and built-in surge protection of 2.5kV (standard), with up to 10kV available upon request.

5. Does the light produce significant glare? No, the design includes an anti-glaring reflector diffuser achieving a UGR < 19, ensuring comfortable lighting for athletes and spectators without neighbor complaints.

6. What HID wattage can the 1000W LED replace? The 1000W LED model can conservatively replace up to a 5000W HID luminaire, significantly reducing energy consumption and maintenance costs.
