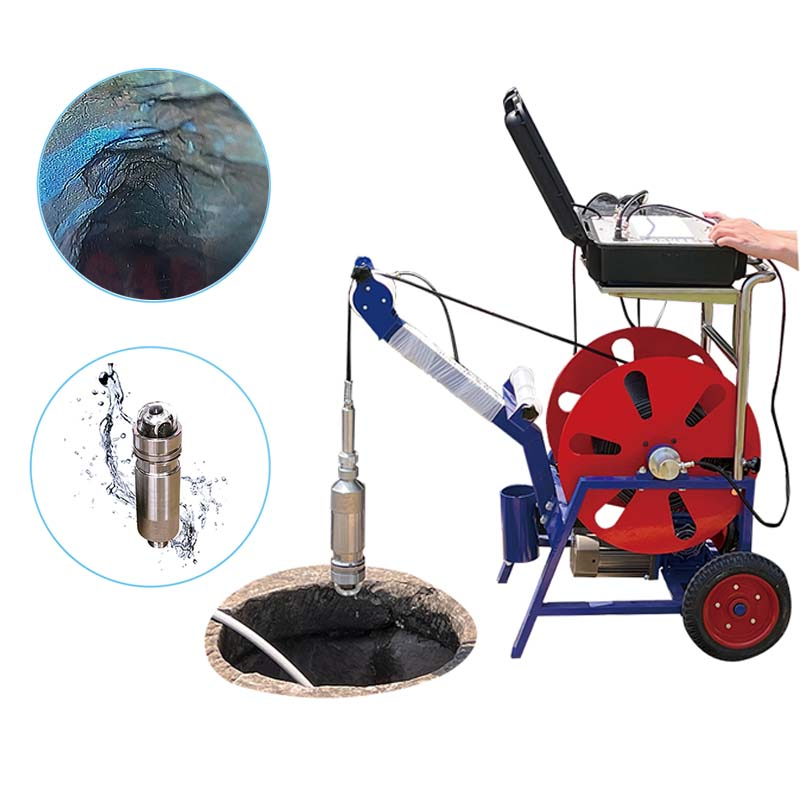

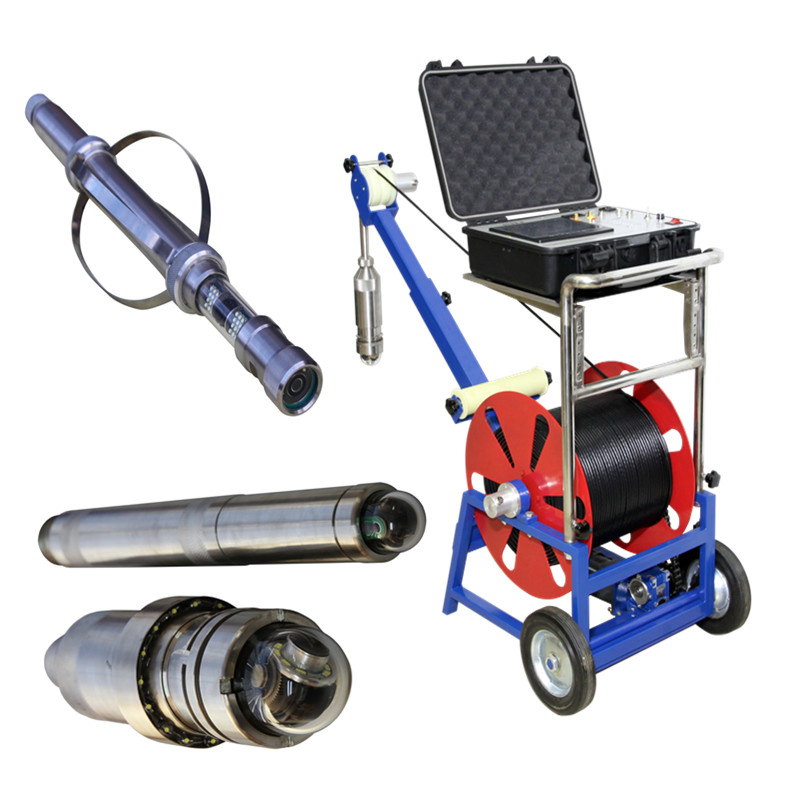

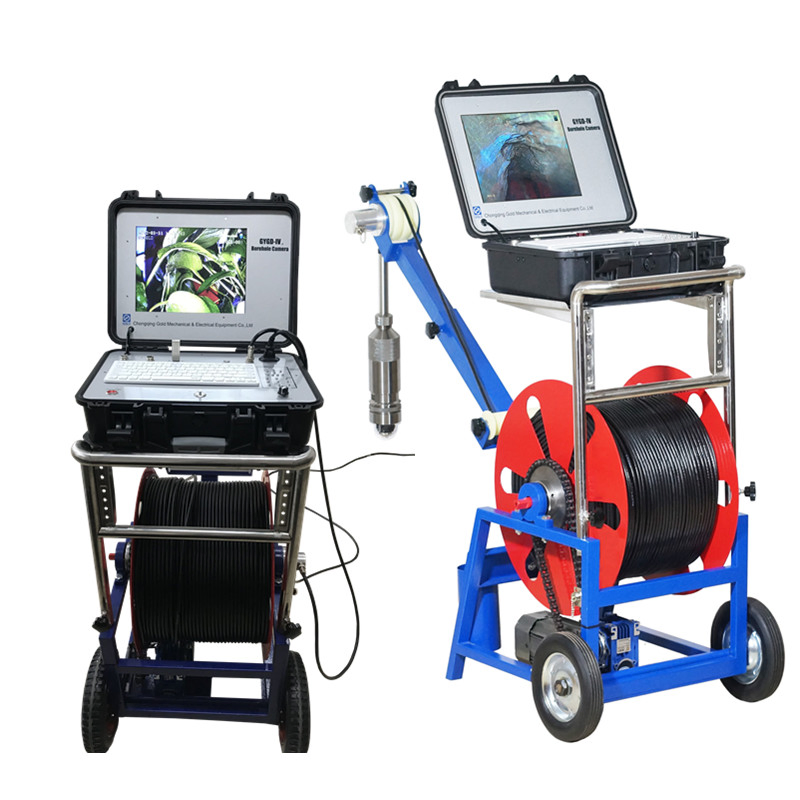

Borehole Camera 500m Camera for Underwater Wells Deep Well Camera for Underwater Wells
Borehole Camera 500m Camera for Underwater Wells Deep Well Camera for Underwater Wells
Borehole Camera 500m Camera for Underwater Wells Deep Well Camera for Underwater Wells
Borehole Camera 500m Camera for Underwater Wells Deep Well Camera for Underwater Wells
Borehole Camera 500m Camera for Underwater Wells Deep Well Camera for Underwater Wells
1 / 5
Borehole Camera 500m Camera for Underwater Wells Deep Well Camera for Underwater Wells
Borehole Camera 500m Camera for Underwater Wells Deep Well Camera for Underwater Wells
Borehole Camera 500m Camera for Underwater Wells Deep Well Camera for Underwater Wells
Borehole Camera 500m Camera for Underwater Wells Deep Well Camera for Underwater Wells
Borehole Camera 500m Camera for Underwater Wells Deep Well Camera for Underwater Wells

Borehole Camera 500m Camera for Underwater Wells Deep Well Camera for Underwater Wells

Customization: Available
Camera Probe Diameter: 40/75mm
Camera Probe Length: 470mm
Send Inquiry

Product Description

Technical Specifications

Model NO.
GYGD borehole inspection camera
Max Pressure
20MPa
Camera Sensor
Sony Inducer 1/3'' CCD
Cable Length
0-2000m (Optional)
Recording
HD DVR (SD Card Support)
Standard Depth
500m Borehole Inspection
Production Capacity
50 Units/Month
Certification
ISO9001
Borehole Camera Overview

Main Applications

🌐
Stratum structure division and analysis.
🔍
Well wall stratum crack detection.
💎
Karst development discrimination and distribution mapping.
⚡
Distinguishing fractured development zones.
📹
Long-term underground borehole monitoring.
💧
Dual inspection for water wells and deep bore wells.

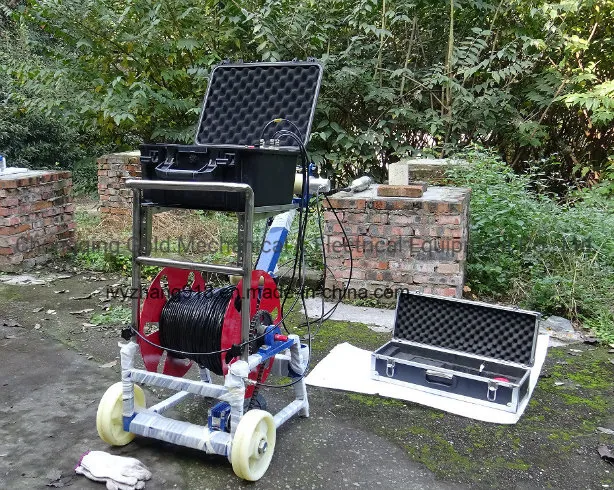

Deep Well Camera Equipment

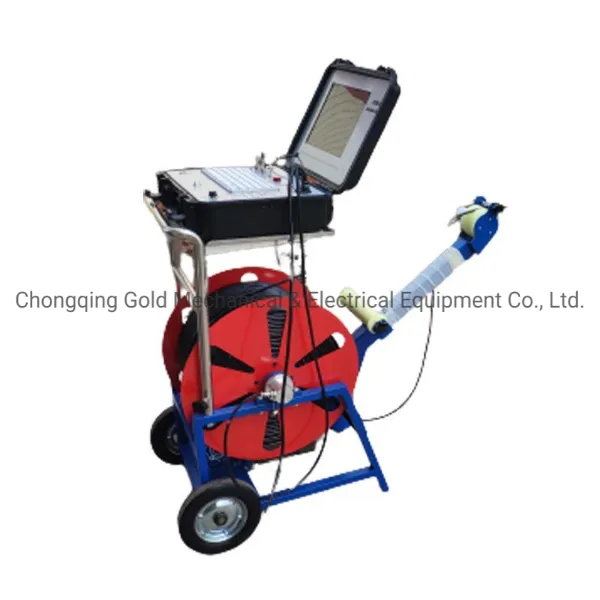

Well Inspection Tools

Main Features

✅
Real-time video collection and HD recording.
✅
Clear image display on ground instrument for precise observation.
✅
Versatile operation: vertical, horizontal, or arbitrary drilling holes.
✅
Wide industry application: oil fields, coal fields, dam reservoirs, and engineering geology.

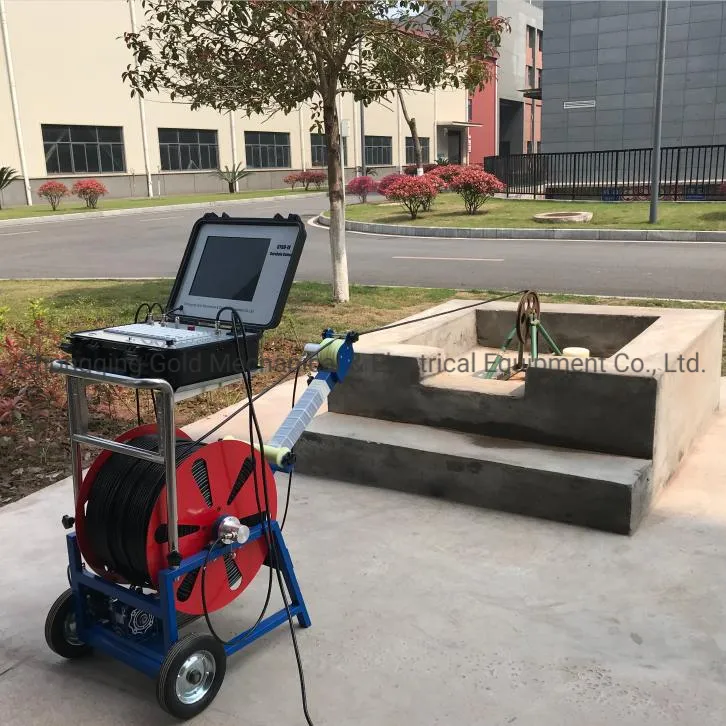

Instrument Display

Detailed Component Specification

Configuration Dimensions Specifications
Camera Probe Dia: 50/80mm
Length: 470mm		 High-quality resin lens; Solid steel body; Max pressure 20Mpa; 6-12 LED lamps.
Camera - Sony 1/3'' CCD; HD 850 TVL; Waterproof; Panoramic or electric rotating options.
Specialized Cable 0-2000m (Optional) Steel wire reinforced; Max tension 260kg.
Control Unit - 220V/380V/12V modes; Aeronautic aluminium case.
Downhold Pulley - Equipped with logging depth counter.
Logging Winch - Manual & electric winch available.

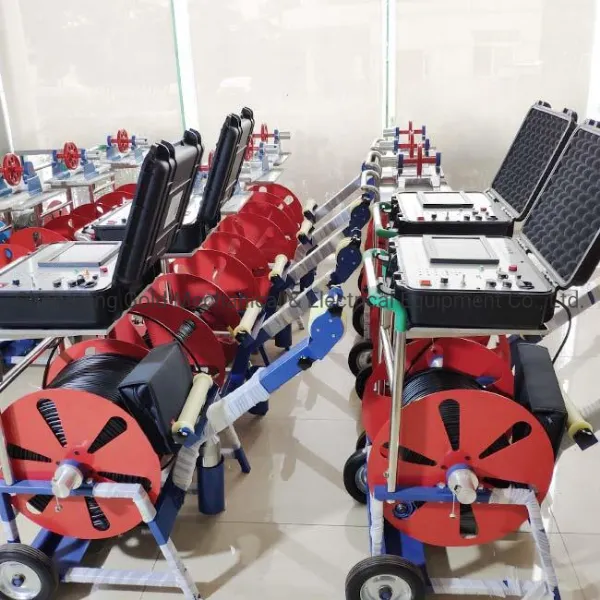

Borehole Device
Deep Water Camera Kit

Frequently Asked Questions

❓ What is the maximum depth the GYGD camera can reach?
The system supports specialized cables ranging from 0 to 2000 meters, allowing for deep well and borehole inspections at significant depths.
❓ Is the camera probe pressure resistant?
Yes, the probe is built with a high-quality solid steel body and resins, capable of withstanding a maximum pressure of 20MPa.
❓ Can the camera record video footage?
Yes, the system includes an HD DVR that records real-time video directly to an SD card for ground analysis.
❓ What lighting is used for dark underwater environments?
The camera probe is equipped with 6 to 12 high-intensity LED lamps to ensure clear image definition even in complete darkness.
❓ Can this camera be used for horizontal drilling?
Absolutely. The system is designed for vertical, horizontal, and arbitrary drilling hole inspections across various engineering geological applications.
❓ What industries is this borehole camera suitable for?
It is widely used in water well maintenance, oil field exploration, coal field inspection, engineering geology, dam and reservoir monitoring, and ocean engineering.
