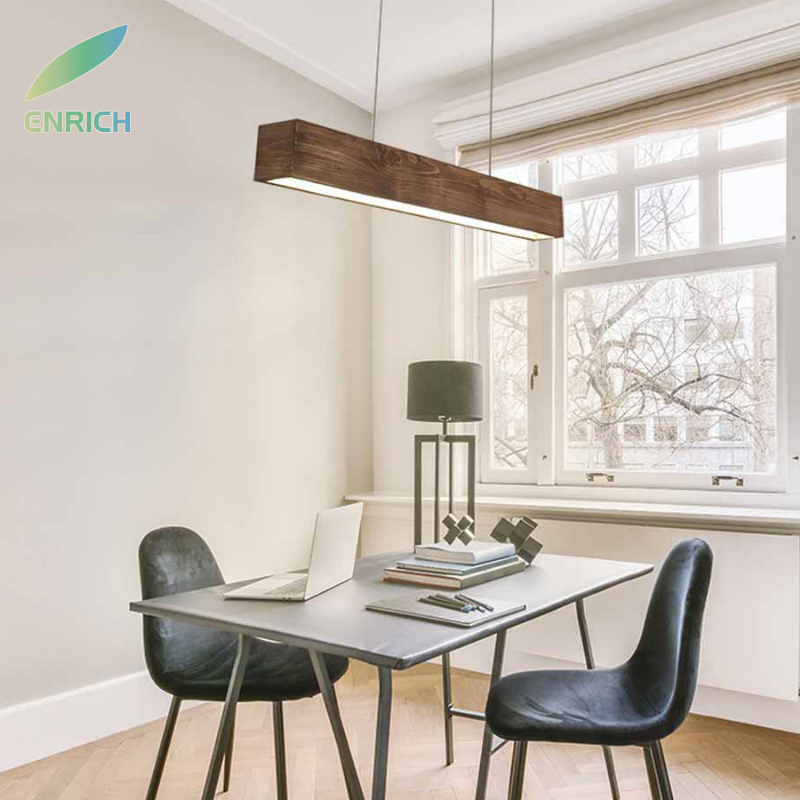

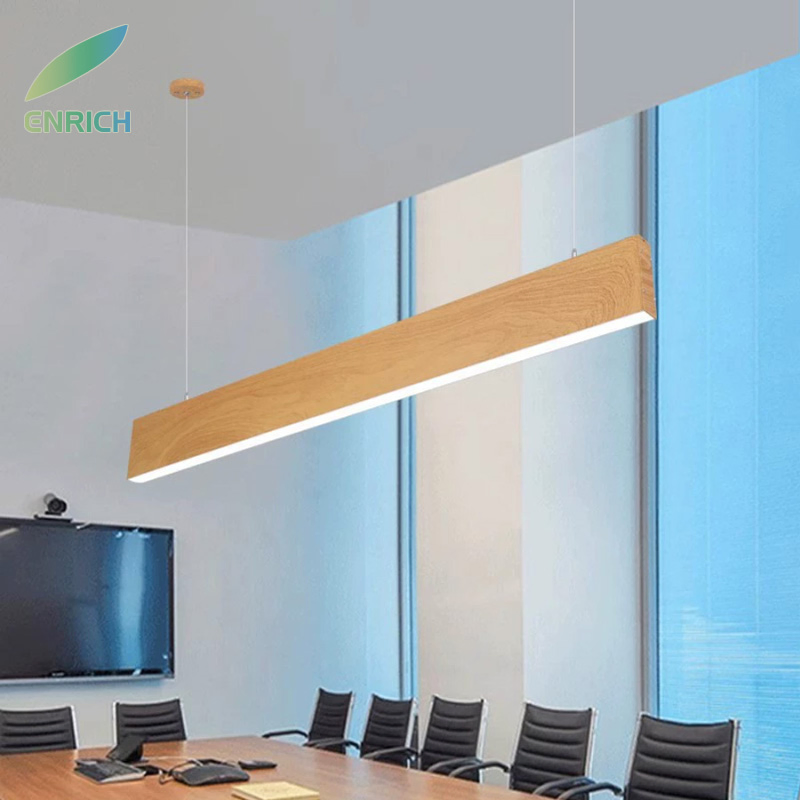

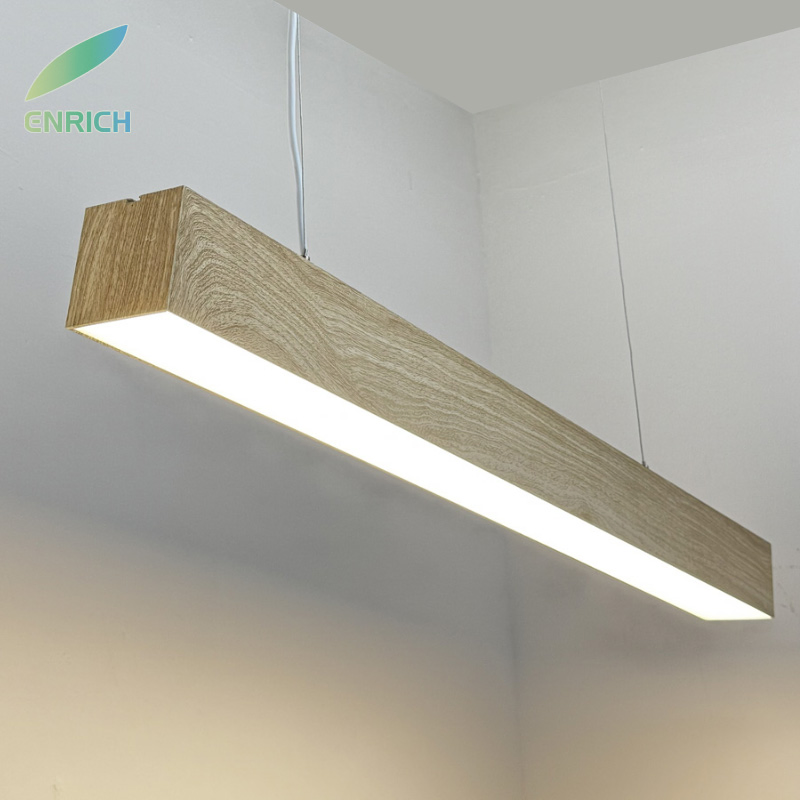

Architectural Wood Grain LED Linear Pendant Low Glare Commercial Studio Lighting
Architectural Wood Grain LED Linear Pendant Low Glare Commercial Studio Lighting
Architectural Wood Grain LED Linear Pendant Low Glare Commercial Studio Lighting
Architectural Wood Grain LED Linear Pendant Low Glare Commercial Studio Lighting
Architectural Wood Grain LED Linear Pendant Low Glare Commercial Studio Lighting
1 / 5
Architectural Wood Grain LED Linear Pendant Low Glare Commercial Studio Lighting
Architectural Wood Grain LED Linear Pendant Low Glare Commercial Studio Lighting
Architectural Wood Grain LED Linear Pendant Low Glare Commercial Studio Lighting
Architectural Wood Grain LED Linear Pendant Low Glare Commercial Studio Lighting
Architectural Wood Grain LED Linear Pendant Low Glare Commercial Studio Lighting

Architectural Wood Grain LED Linear Pendant Low Glare Commercial Studio Lighting

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Product Overview

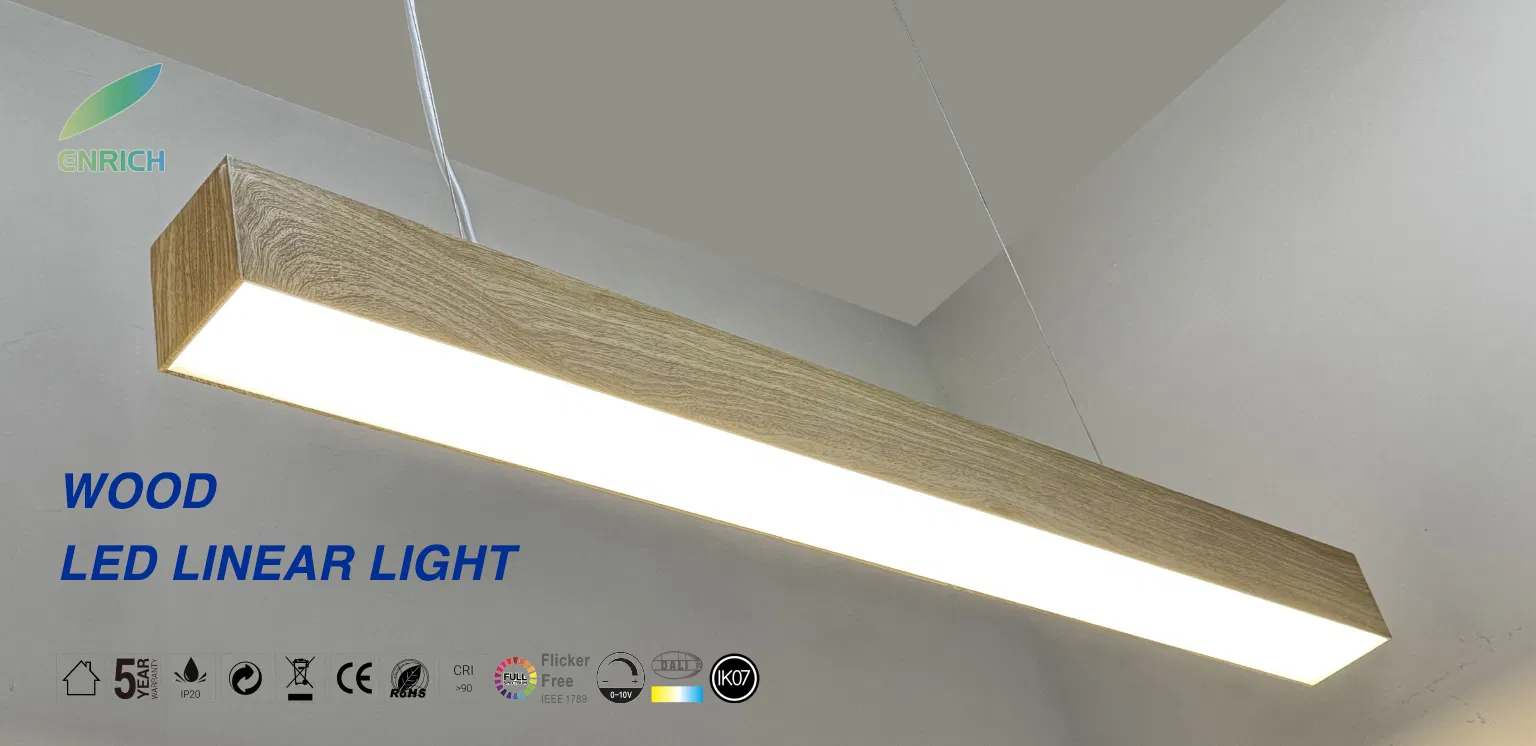

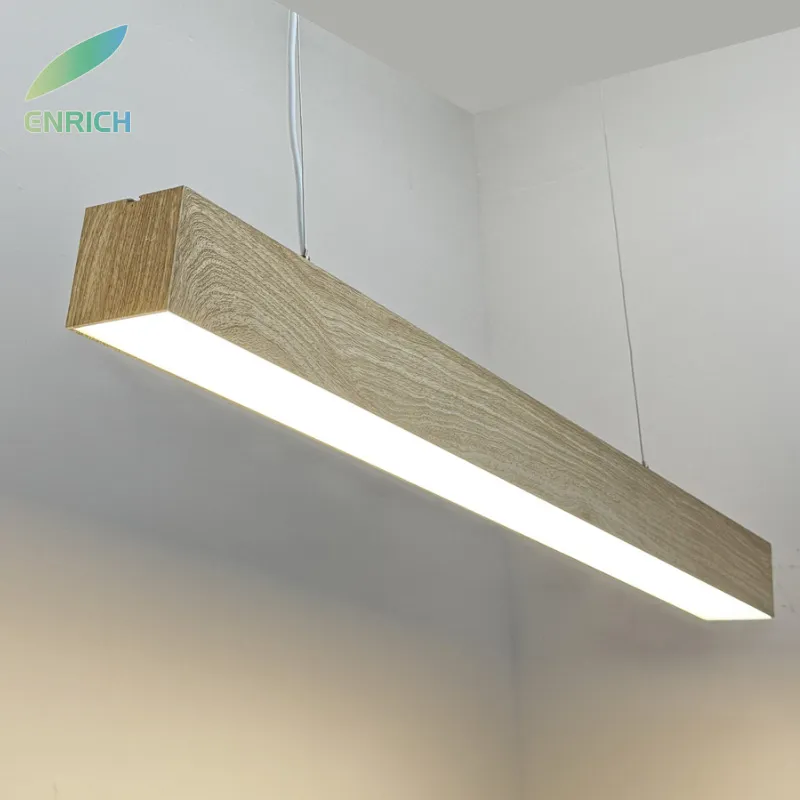

Wood Grain LED Linear Light
The Wood LED Linear Light combines authentic wood grain surface finish with precision-engineered aluminum construction, delivering a warm, natural aesthetic without compromising professional lighting performance. Designed for architectural and commercial interiors, it creates visually comfortable, refined illumination while seamlessly integrating into modern spaces such as offices, hotels, cafés, studios, and premium residential environments.
Model NO.Wood
IP RatingIP20
Profile SizeW50xh100mm, W73xh83mm
Lighting DistributionDown, up and Down
Input VoltageAC200-240V, AC100-277V
MountingSuspended, Surface Mounted, Recessed
Power20W-80W
Luminous Efficiency120-140lm/W
Surface FinishWood Grain
Color Temperature3000K, 4000K, 6000K, Tunable White, RGBW
Color RenderingCRI>80, CRI>90, CRI>95
LifespanL90b10 @ 50,000hrs
Warranty5 Years
CertificationCE, RoHS
HS Code9405110000
Production Capacity5000PCS/Month

Key Features

🌳 Premium Wood Grain Finish

Features a high-quality wood grain surface finish that brings warmth and natural texture into contemporary lighting design, softening architectural lines.

👁️ Visual Comfort

Available with opal and prismatic diffusers for effective glare control (UGR<19). Supports human-centric lighting with Tunable White options.

⚙️ Smart Control

Compatible with 0–10V, DALI, Casambi, and touch-dim systems for seamless integration into intelligent environments.

Technical Specifications

Code Length Power Luminous Flux
EN-50100-LS40W121200mm / 4ft40W5600lm
EN-50100-LS60W181800mm / 6ft60W8400lm
EN-50100-LS80W242400mm / 8ft80W11200lm

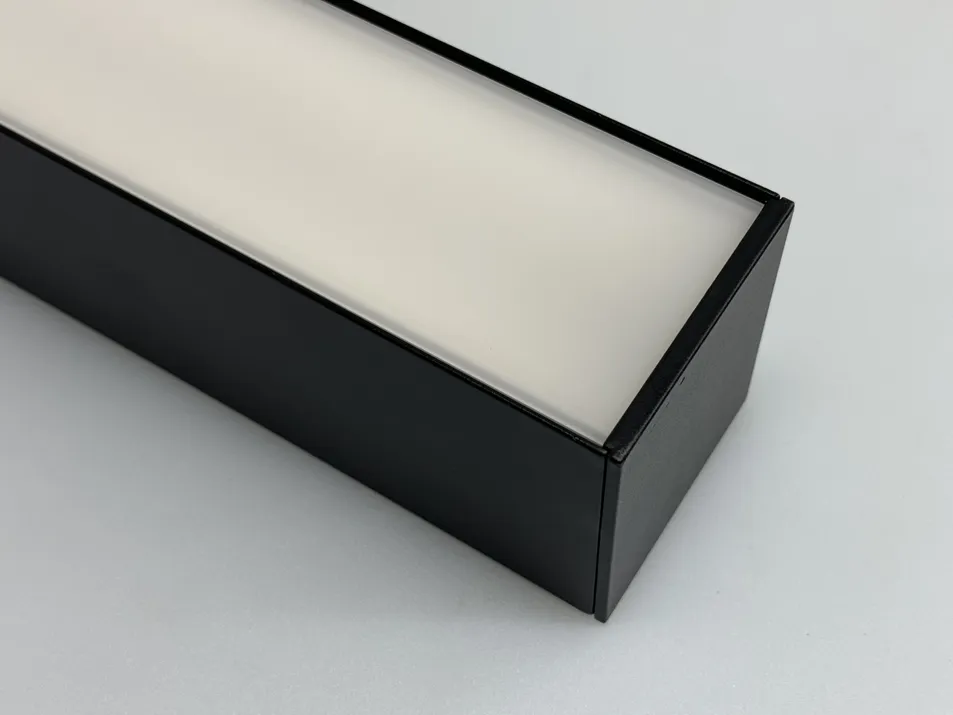

Opal Diffuser

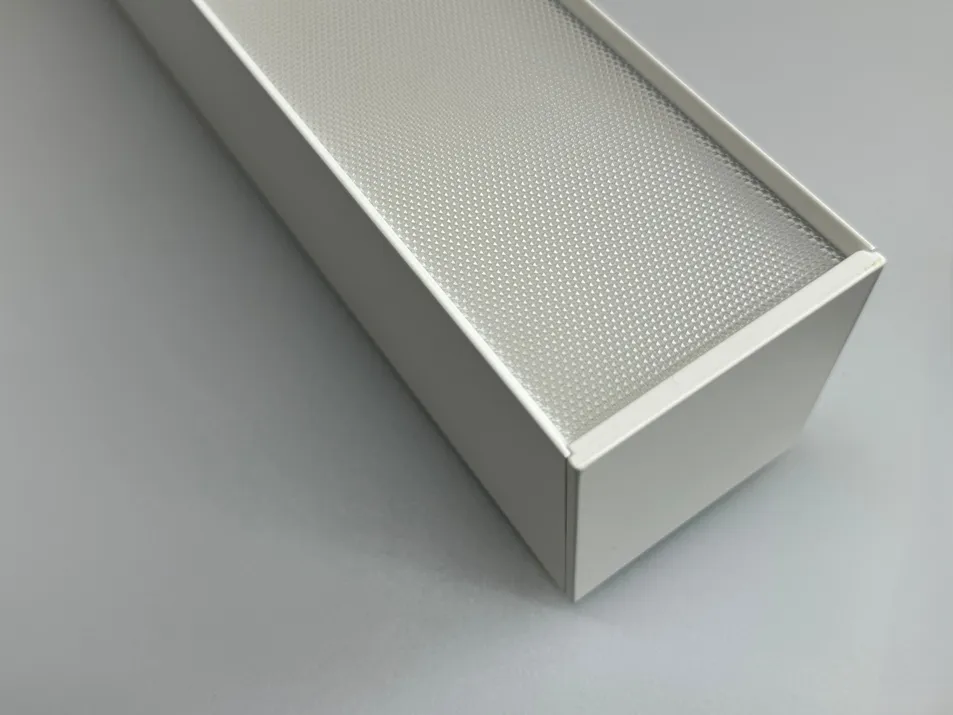

Prismatic Diffuser

Installation Methods

Perfect for various ceiling structures and design requirements:

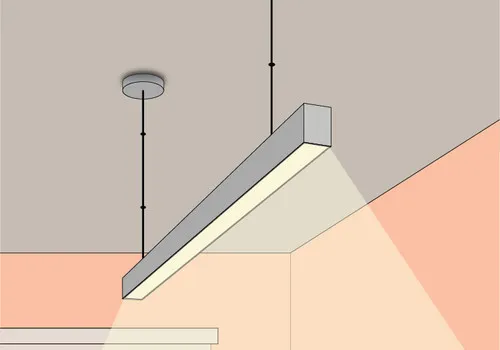

Suspended PendantSuspended Pendant

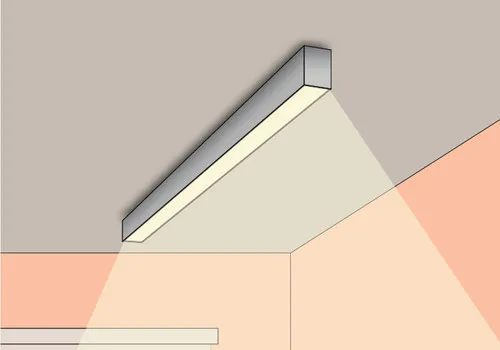

Surface MountedSurface Mounted

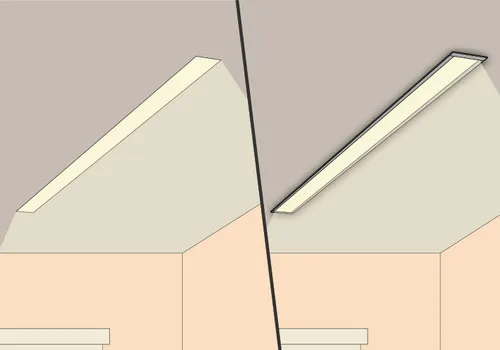

RecessedRecessed

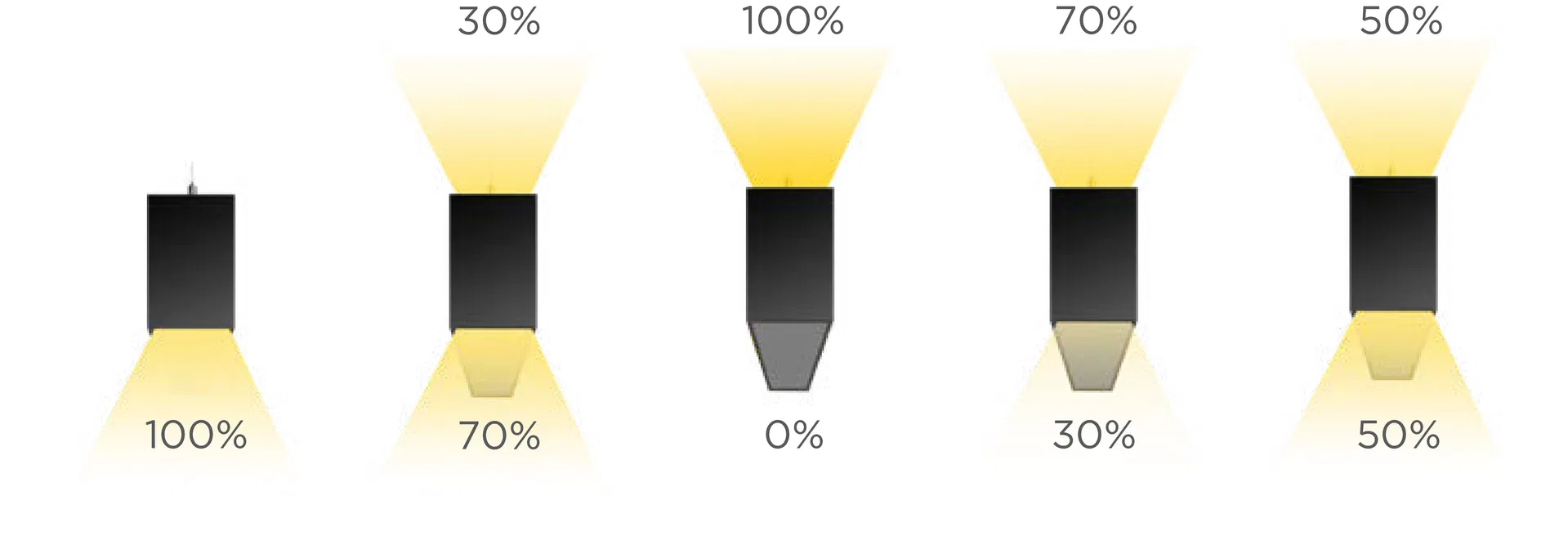

Up and Down Distribution

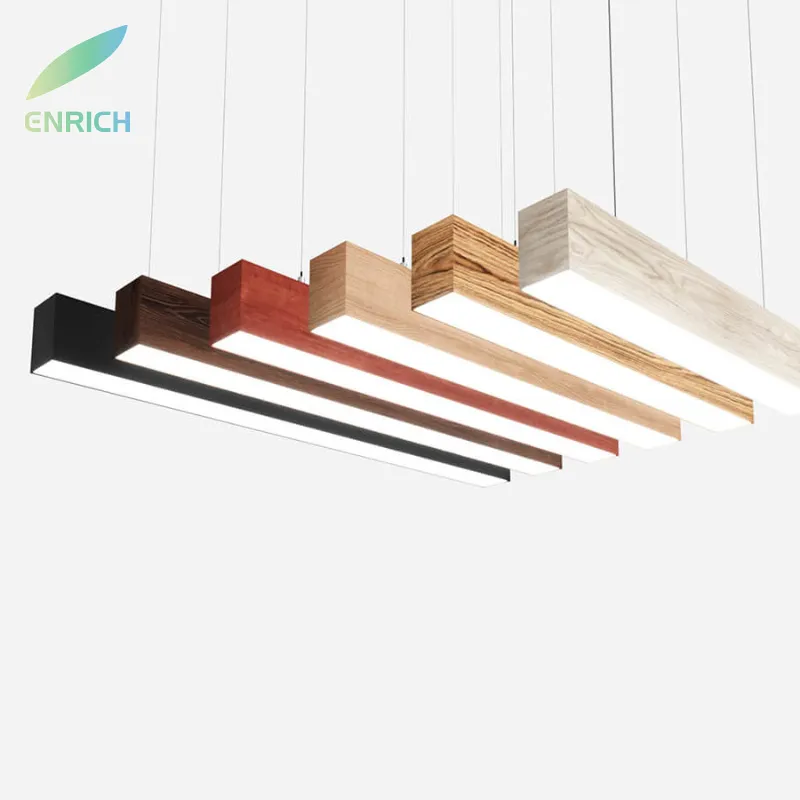

Product Gallery

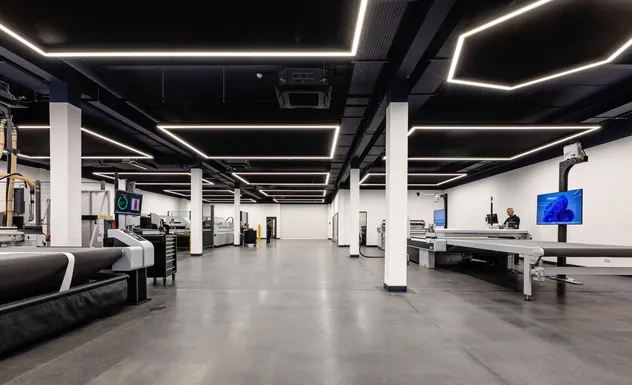

Applications

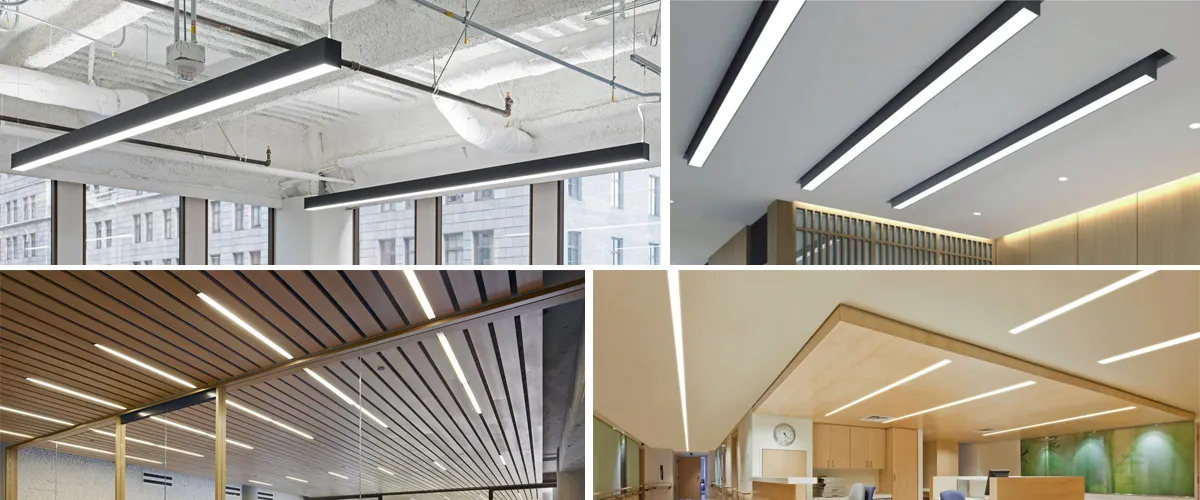

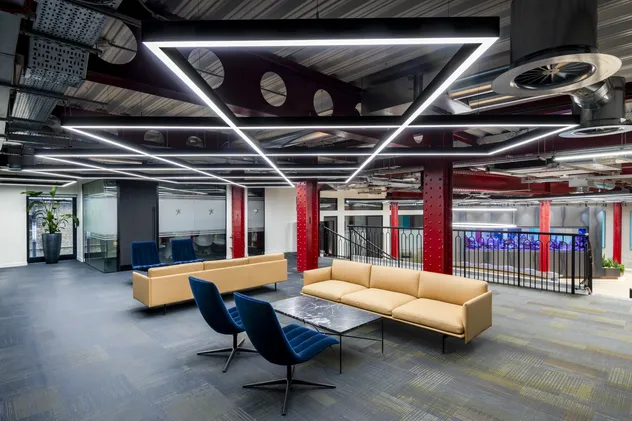

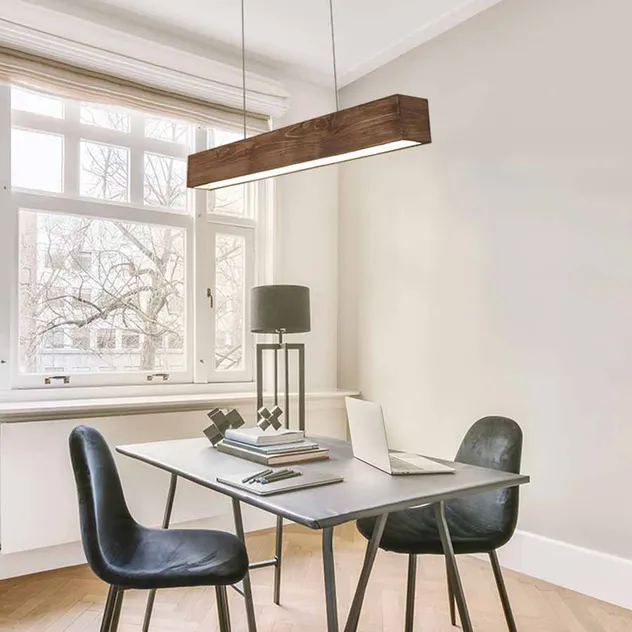

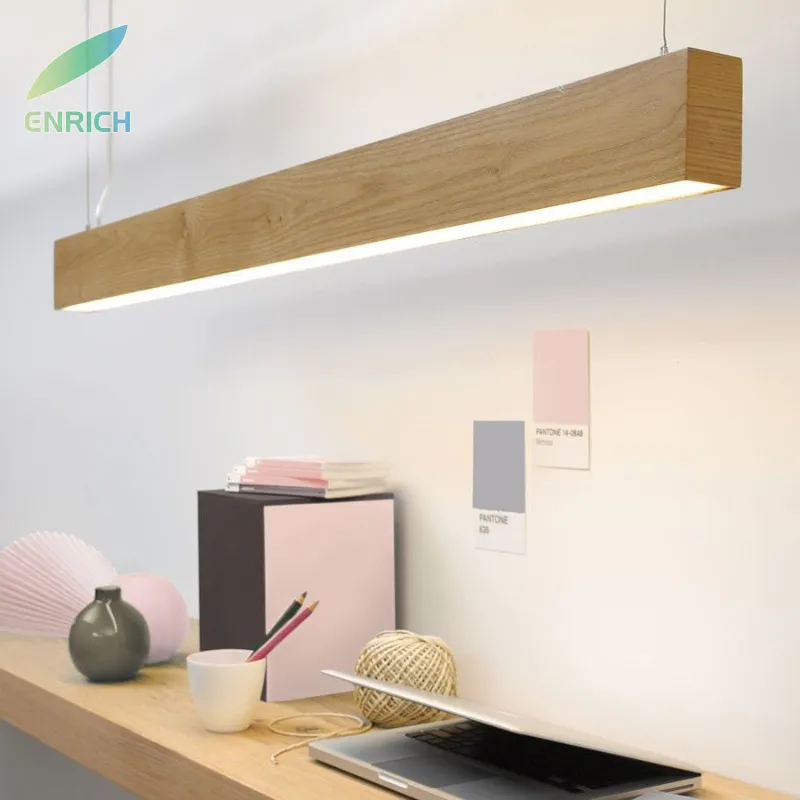

Application Scene

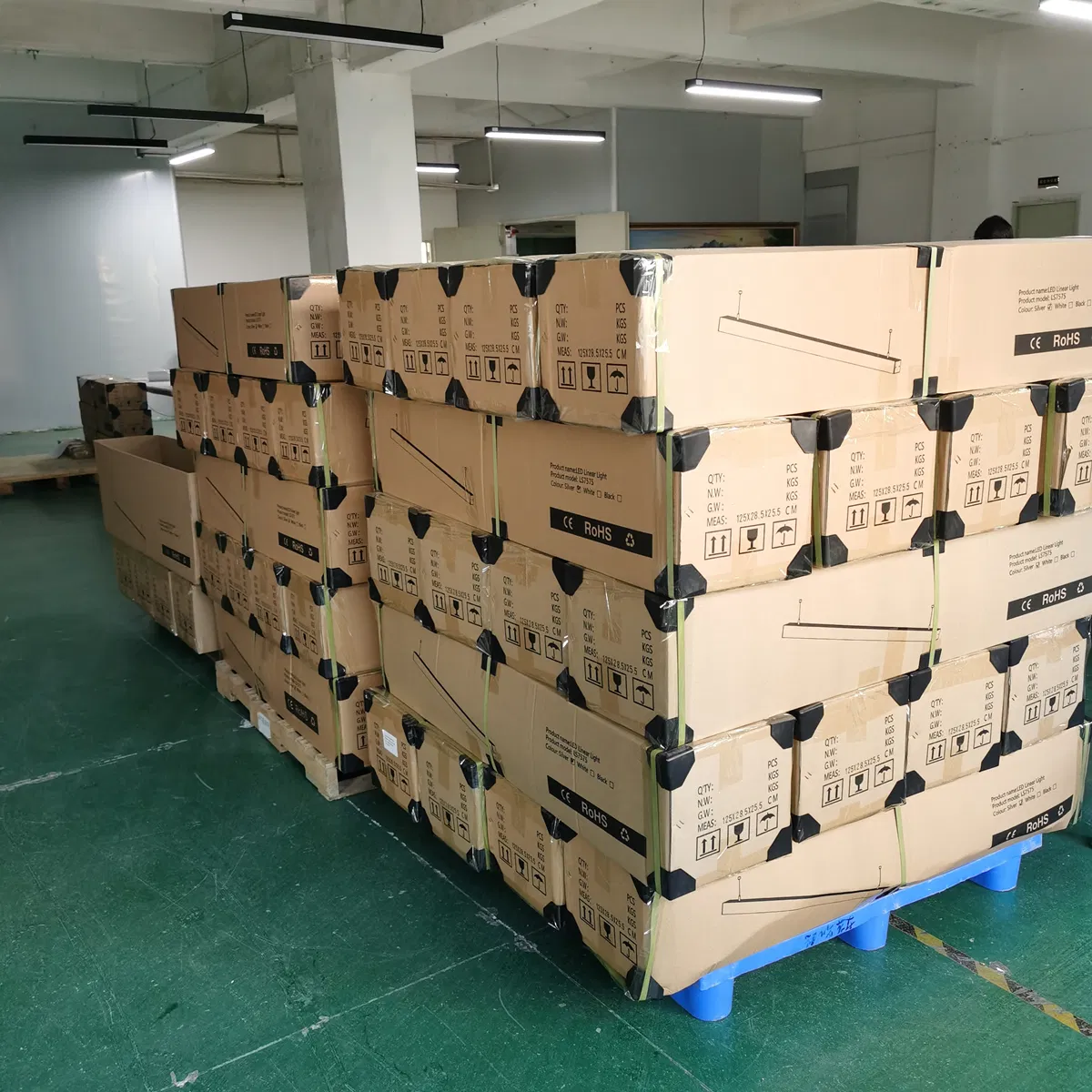

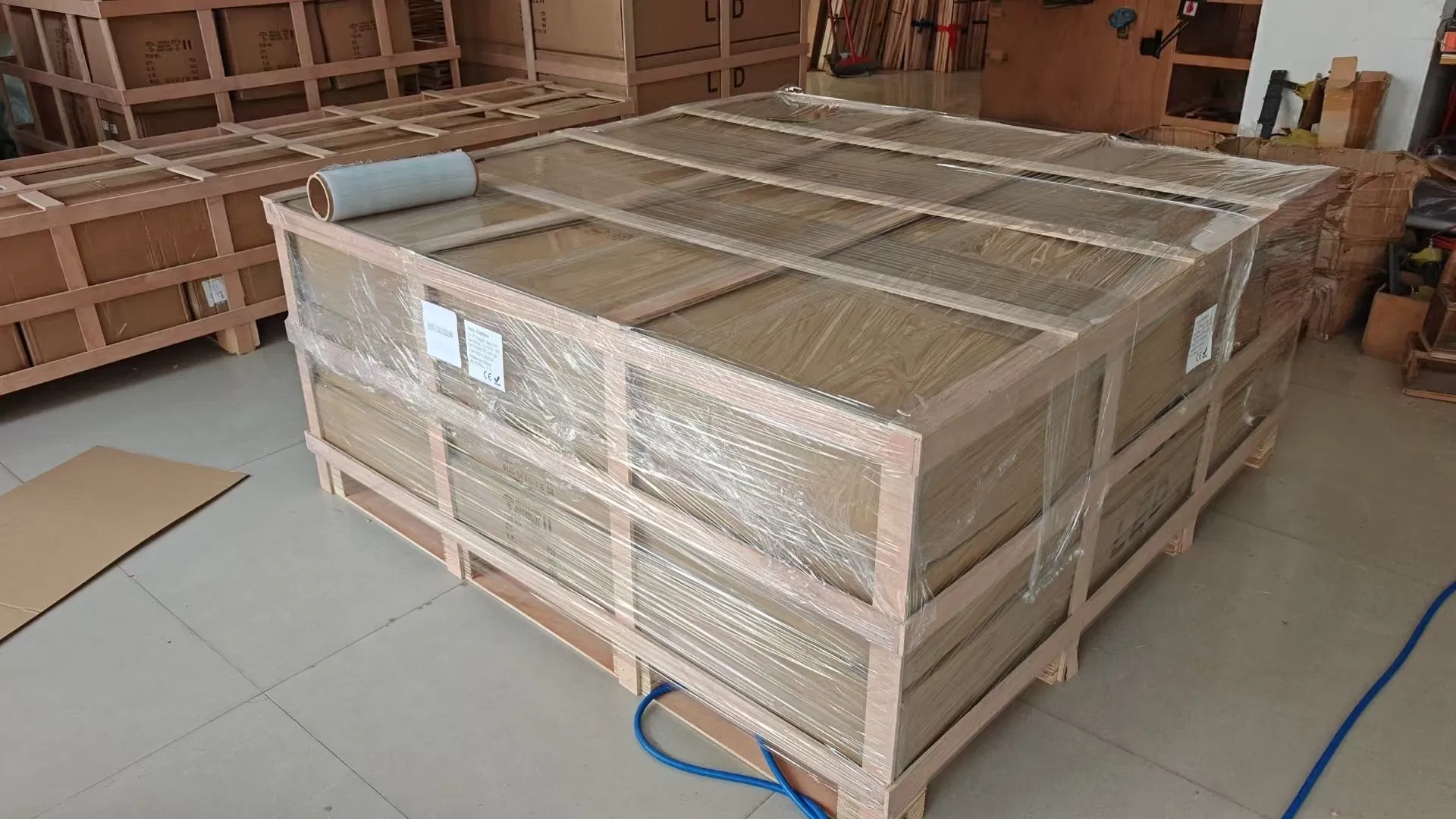

Packaging & Shipping

Frequently Asked Questions

What installation options are available for the wood linear light?
The fixture supports three main installation methods: suspended (pendant), surface mounted, and recessed, making it adaptable to various architectural ceiling types.
Is the light suitable for office environments where glare is a concern?
Yes, when equipped with the prismatic/microprism optic diffuser, the light achieves a UGR<19 rating, which provides excellent glare reduction specifically for workplaces.
Can the color temperature be adjusted?
Yes, we offer standard color temperatures (3000K, 4000K, 6000K) as well as Tunable White and RGBW options for dynamic lighting needs.
What is the lifespan and warranty of this LED product?
The light has a lifespan of L90B10 @ 50,000 hours and comes with a 5-year professional warranty.
Does it support smart dimming systems?
Absolutely. It is compatible with various control gears including On-Off, DALI, 0-10V, Triac, and CASAMBI wireless controls.
What are the available sizes for the linear profiles?
Standard profile sizes include W50xH100mm and W73xH83mm, with lengths ranging from 600mm up to 2400mm.
