80W IP65 LED Outdoor Architectural Flood Lighting
80W IP65 LED Outdoor Architectural Flood Lighting
80W IP65 LED Outdoor Architectural Flood Lighting
80W IP65 LED Outdoor Architectural Flood Lighting
80W IP65 LED Outdoor Architectural Flood Lighting
1 / 5
80W IP65 LED Outdoor Architectural Flood Lighting
80W IP65 LED Outdoor Architectural Flood Lighting
80W IP65 LED Outdoor Architectural Flood Lighting
80W IP65 LED Outdoor Architectural Flood Lighting
80W IP65 LED Outdoor Architectural Flood Lighting

80W IP65 LED Outdoor Architectural Flood Lighting

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
SLFAP810
Power
80W
Projection Distance
12-18m
IP Rating
IP65
Certification
CE, RoHS
Operating Voltage
100-240V
Luminous Efficacy
90 Lm/W
Warranty
3 Years
Specification
206.5*160.5*31.5mm
LED Type
SMD
80W IP65 LED Outdoor Architectural Flood Lighting
T

Full Series Parameters

Item Actual Wattage CRI Color Temp(K) IP Grade Dimension (cm) Power Factor Luminous Surge Protection LED Chips
SLFAP81 10WSMD 10W70CW,NW,WWIP65104*83.4*25.7>0.51000LM2.5KV12 PCS 2835
SLFAP82 20WSMD 20W70CW,NW,WWIP65121*95.3*26.1>0.52000LM2.5KV24 PCS 2835
SLFAP83 30WSMD 30W70CW,NW,WWIP65161*123.2*29.6>0.53000LM2.5KV36 PCS 2835
SLFAP85 50WSMD 50W70CW,NW,WWIP65207*161*31.5>0.55000LM2.5KV60 PCS 2835
SLFAP810 80WSMD 80W70CW,NW,WWIP65269*209*34>0.58000LM2.5KV96 PCS 2835
SLFAP810 100WSMD 100W70CW,NW,WWIP65269*209*34>0.510000lm2.5KV120 PCS 2835
SLFAP815 150WSMD 150W70CW,NW,WWIP65269*209*34>0.515000lm2.5KV180 PCS 2835
SLFAP820 200WSMD 200W70CW,NW,WWIP65330*250*34>0.520000lm2.5KV240 PCS 2835
SLFAP830 300WSMD 300W70CW,NW,WWIP65445*334*45.5>0.530000lm2.5KV360 PCS 2835
SLFAP840 400WSMD 400W70CW,NW,WWIP65490*410*48>0.540000lm2.5KV480 PCS 2835
P

Product Gallery

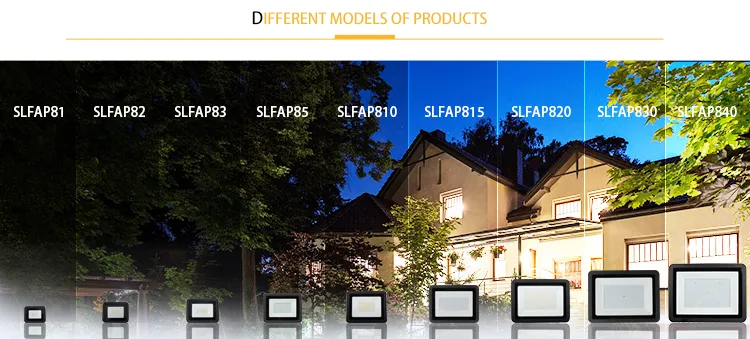

Flood Light View 1

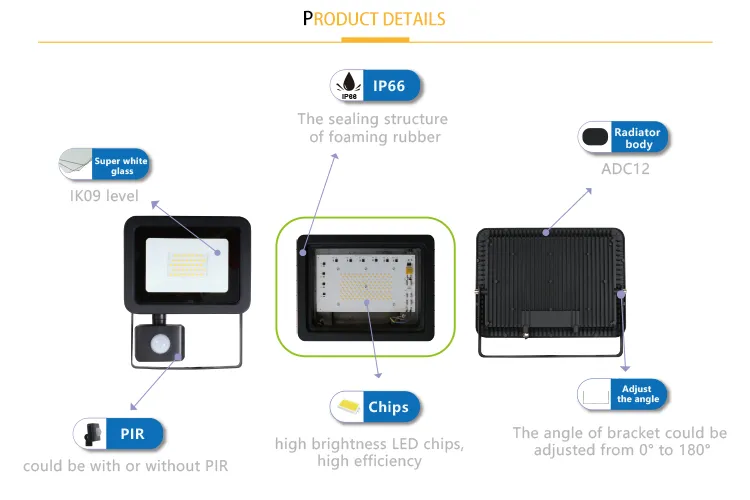

Flood Light View 2

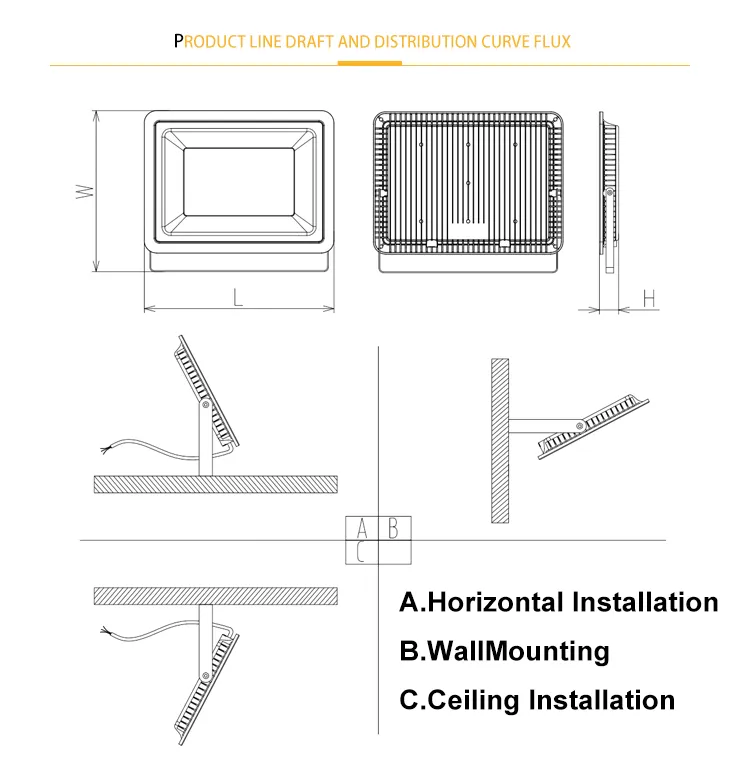

Flood Light View 3

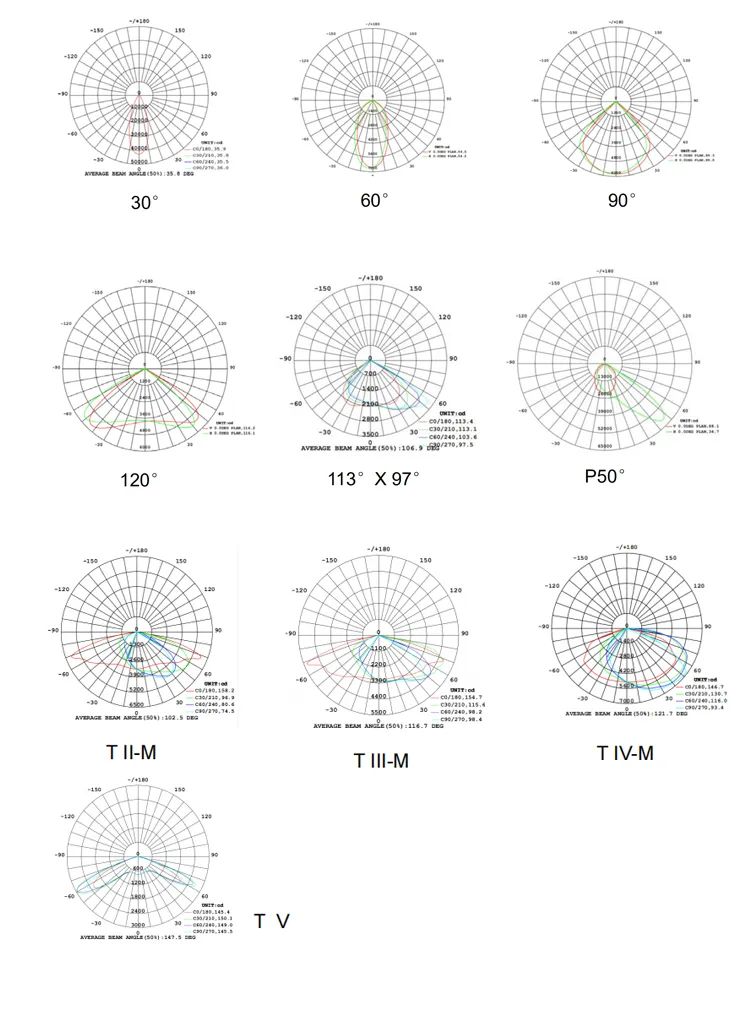

Flood Light View 4

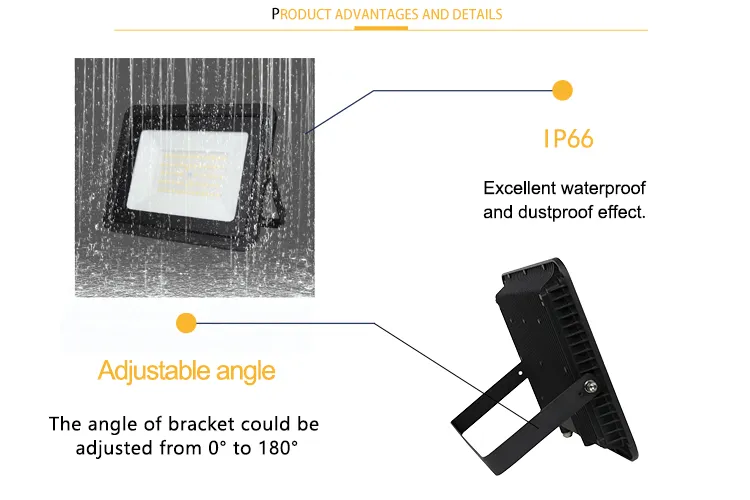

Flood Light View 5

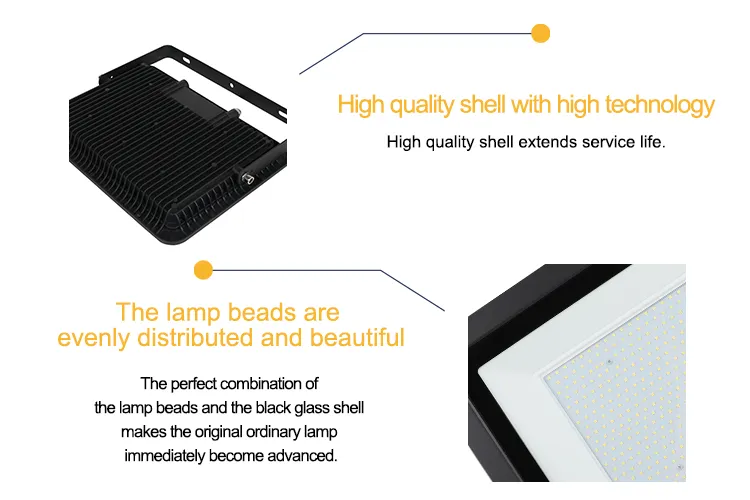

Flood Light View 6
F

Key Features

✔ IP65 waterproof / dust proof / explosion proof / IK08
✔ Pure Aluminum shape for superior heat dissipation
✔ Angle Bracket for easy installation
✔ SMD 3030 LED Chips with Ra>70
✔ 50,000 times switching cycle before failure
✔ Total harmonic distortion (THD) < 20%

Versatile Applications

Commercial: Large retailers, Schools, Billboards, Building facades.

Public: Airports, Stadiums, Train and Bus stations.

Industrial: Warehouses, Parking lots, Exhibition centers, Gas and Toll stations.

Electrical Characteristics

Input Voltage: AC100-240V / AC127V / AC180-240V

Frequency: 50/60Hz

Power Efficiency: >=0.90

Temperature Limits

Operating Range: -20°C to +45°C

Storage Range: -40°C to +60°C

Ambient Reference: 25°C

!

Installation & Maintenance

  • Please read the instruction manual carefully before installation.
  • Installation and testing must be performed by a certified electrician.
  • Verify local voltage requirements before connecting power.
  • Ensure power is off and the lamp is cooled down before cleaning or revamping.
  • Use a soft cloth and neutral detergent for cleaning; maintain stainless steel regularly.
  • Do not cover the fixtures with flammable materials.

Frequently Asked Questions

What is the IP rating of this flood light?
This light has an IP65 rating, making it completely dust-proof and protected against water jets from any angle.
How long is the warranty for this product?
We provide a 3-year warranty for the LED outdoor architectural flood lighting series.
What kind of maintenance does it require?
The fixture should be cleaned periodically with a soft cloth and PH-neutral detergent once it has cooled down completely.
Can this light be used in extreme temperatures?
Yes, it is designed to operate in temperatures ranging from -20°C to +45°C.
What is the expected lifespan in terms of switching cycles?
The product is tested to withstand up to 50,000 switching cycles before failure.
What is the main material of the light body?
The body is made of pure aluminum, which provides excellent heat dissipation to ensure a long lifespan.
