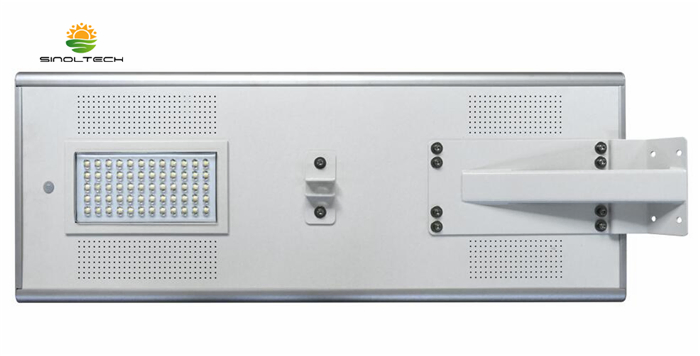

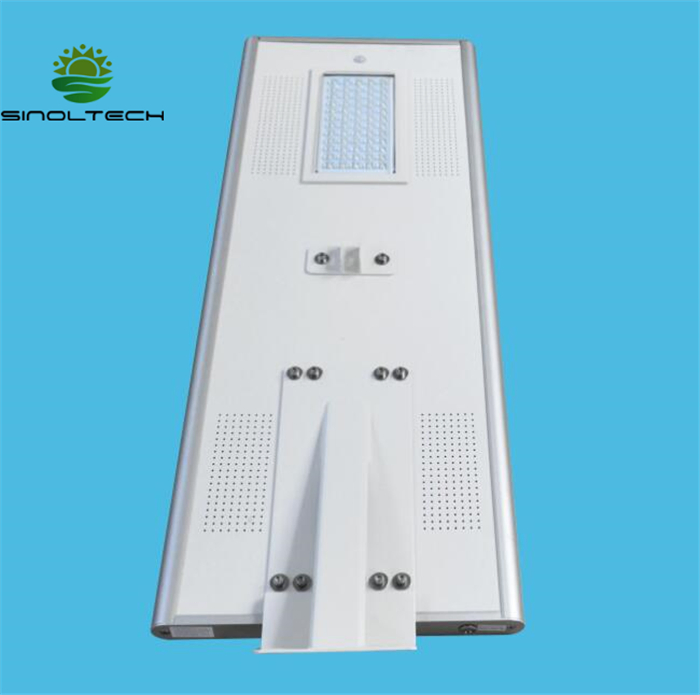

60W LED 85W PV Integrated Solar Powered LED Street Lighting (SNSTY-260)

1 / 5

60W LED 85W PV Integrated Solar Powered LED Street Lighting (SNSTY-260)

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊

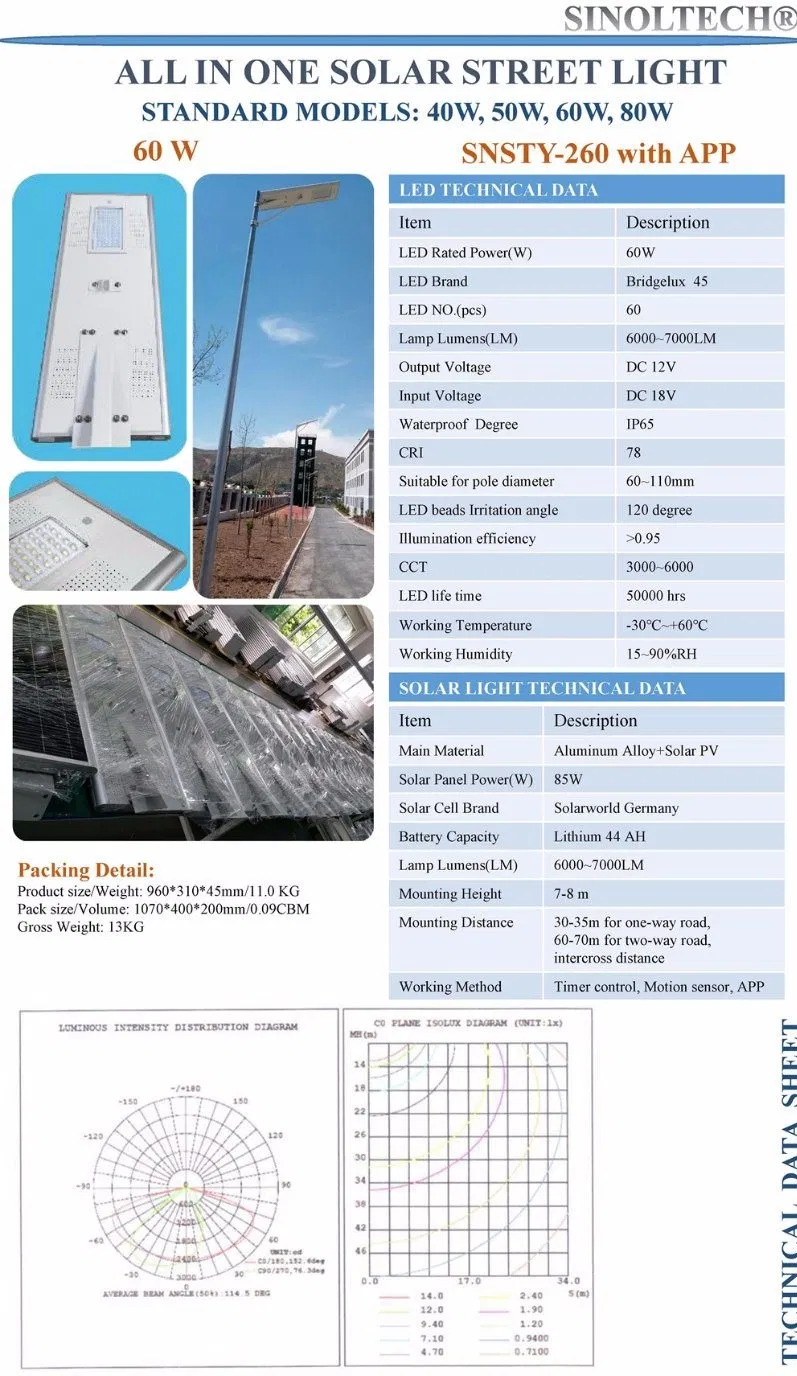

Basic Specifications

Model NO.

SNSTY-260

Light Type

Solar

Color Temperature

Pure White

Power

≥30W

Illumination Time

10h

Cell Type

Lithium Battery

Charging Time

10 Hours

IP Rating

IP65

Voltage

12/24V

Lumen Output

6000-7000lm

LED Power

60W

Solar Panel

85W

Battery Capacity

44Ah

Install Height

7-8m

💡

Product Overview

60W LED 85W PV Integrated Solar Powered LED Street Lighting (SNSTY-260)

Key Technical Details:

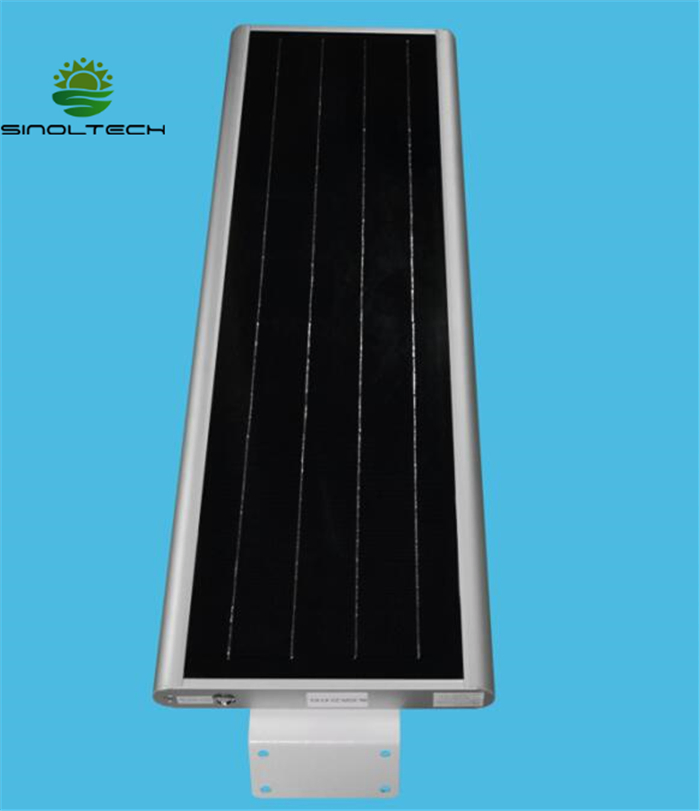

LED power: 60W | Solar panel: 85W (Solarworld Cells)
Lithium Battery: 44AH High-capacity Lithium
Lumen: 6000~7000lm | Waterproof: IP65
Working Method: Timer control, Motion sensor, APP control
LED Brand: Bridgelux 45 | CCT: 3000~6000K
Working Temp: -30°C to +60°C

🌟

Core Features

Integrated Design: Combines light source, high-capacity lithium batteries, solar modules, and automatic controller with motion sensor.
Easy Maintenance: Wireless installation without special poles; modular design for quick servicing.
Green Energy: Utilizes inexhaustible solar power for environmental optimization.
Advanced Battery Tech: Long-life lithium-ion batteries provide high energy in a lightweight, eco-friendly package.

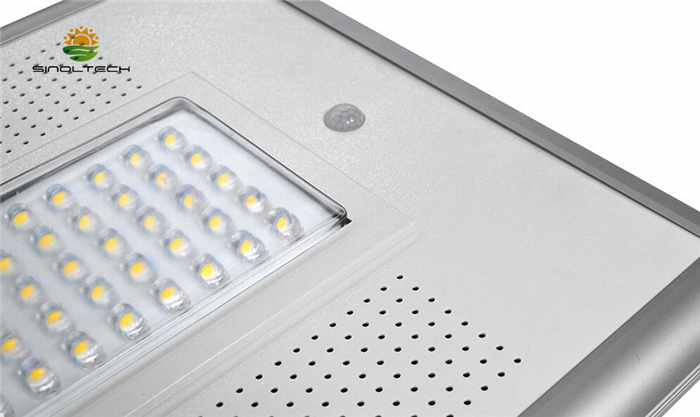

High Efficiency: Unique secondary optical design and Bridgelux LED source ensure wider exposure and uniform light color.
Durable Construction: Aluminum shell offers corrosion and abrasion resistance, ideal for moist or acidic environments.

📏

Installation Selection Guide

Height 7-10M: Select SNSTY-230 to SNSTY-260 (30W-60W). Ideal for sports fields, docks, and 15-25m wide roads.

Height 5-7M: Select SNSTY-215 to SNSTY-225 (15W-25W). Suitable for residential areas, parks, and 10-15m wide roads.

Height 3-5M: Select SNSTY-208 to SNSTY-212 (8W-12W). Best for rural roads, gardens, and 2-10m wide paths.

📱

Smart Mobile APP Functions

Bluetooth connection for mutual data exchange.
Real-time display of charging/discharging, battery capacity, and voltage.
Remote lamp On/Off control.
Seasonal brightness adjustment (Spring/Summer/Autumn/Winter).
Rainy day backup settings (3-10 days adjustment).
Dawn/Dusk lighting duration and postpone time settings.

🛠️

Custom Service & Warranty

Warranty: 3 years product warranty including components. Defective parts replaced free of charge (non-human factors).

Customization Options:

Shell Material: Aluminum alloy or Galvanized iron with custom colors.
Working Modes: Human sensor (dimming) or Time control (programmed brightness).
Color Temperature: 2700K to 7000K options.
Mounting: Screw/bracket fixing or tube mounting.
Additional: Camera support, AC hybrid charging, and Remote control.

🖼️

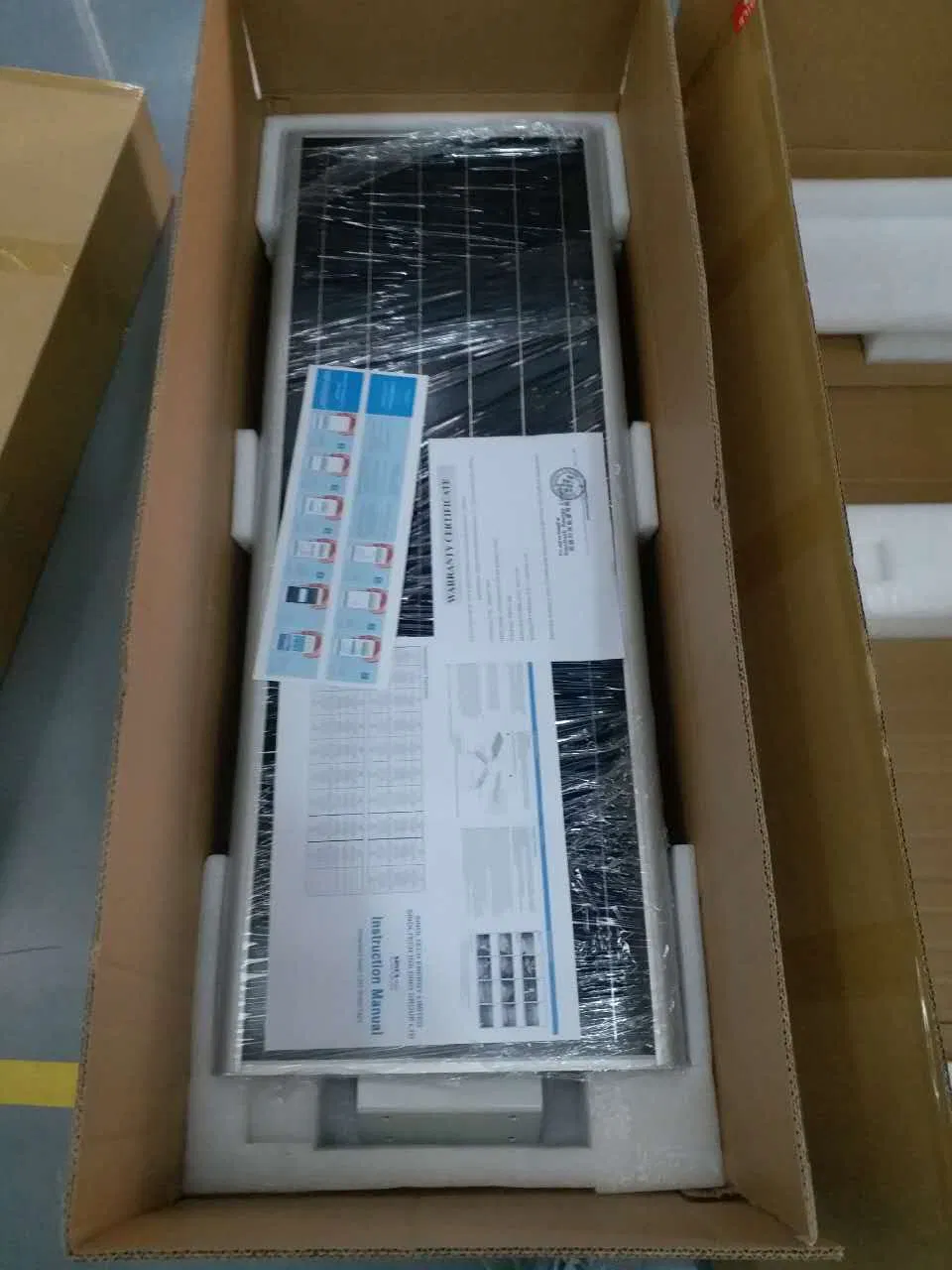

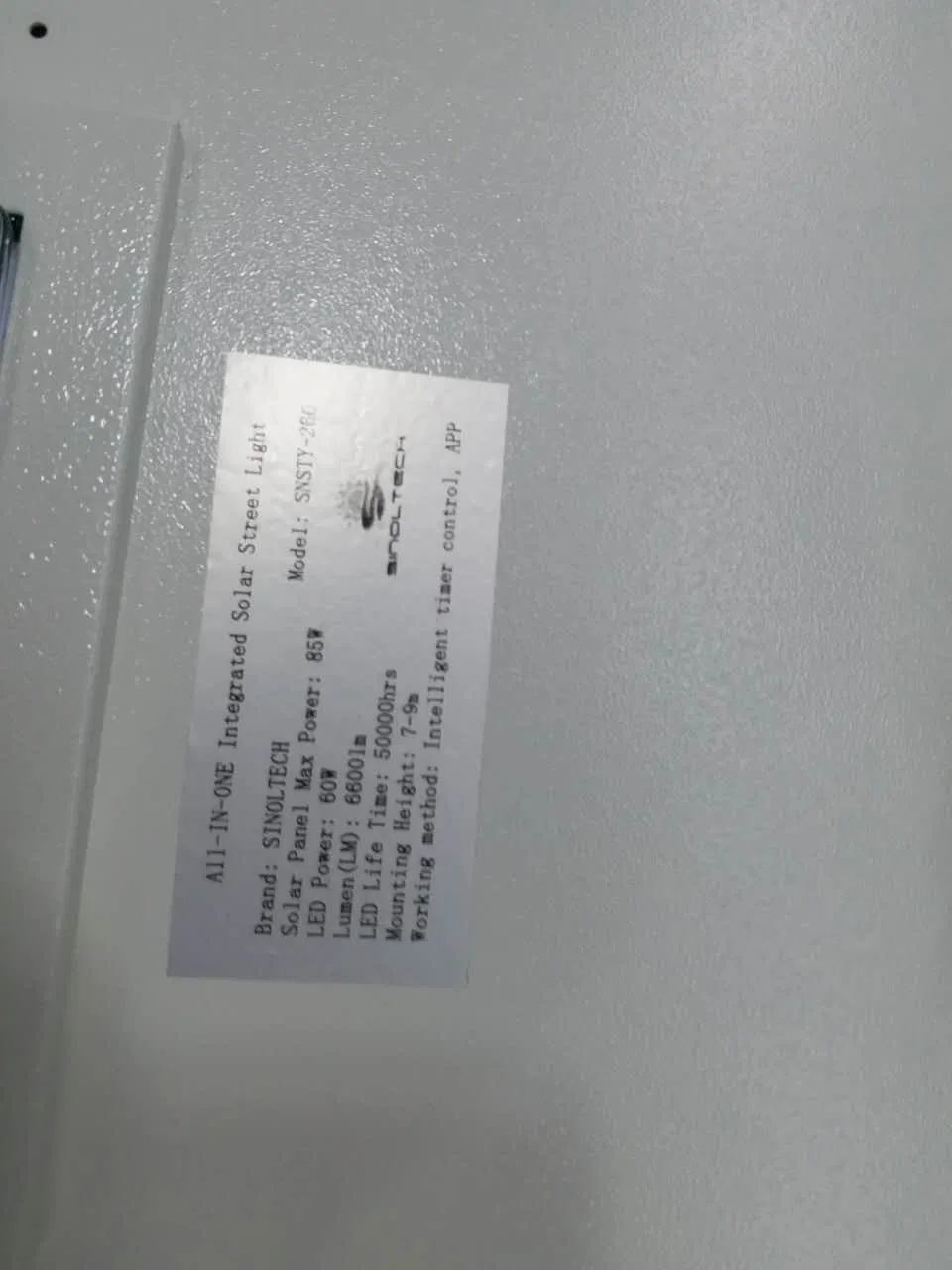

Product Gallery

❓

Frequently Asked Questions

1. How long does the light stay illuminated at night? The system is designed for 10 hours of illumination time per night.

2. What is the lifespan of the solar panel and LED? The solar panel comes with a 25-year 80% power output guarantee, and the Bridgelux LED source has a lifespan of 50,000 hours.

3. Is the solar street light waterproof? Yes, the product has an IP65 rating, making it fully protected against dust and low-pressure water jets from any direction.

4. Can I adjust the settings via my smartphone? Yes, the light features a mobile APP function via Bluetooth that allows you to monitor data, turn the lamp on/off, and adjust brightness.

5. What is the recommended installation height for the SNSTY-260? The recommended mounting height for this 60W model is between 7 to 8 meters.

6. What does the warranty cover? We offer a 3-year warranty covering all components, including the LED lamp, controller, battery, and solar panel, against non-human manufacturing defects.
