40W Linkable LED Architectural Recessed Linear Office Lighting
40W Linkable LED Architectural Recessed Linear Office Lighting
40W Linkable LED Architectural Recessed Linear Office Lighting
40W Linkable LED Architectural Recessed Linear Office Lighting
40W Linkable LED Architectural Recessed Linear Office Lighting
1 / 5
40W Linkable LED Architectural Recessed Linear Office Lighting
40W Linkable LED Architectural Recessed Linear Office Lighting
40W Linkable LED Architectural Recessed Linear Office Lighting
40W Linkable LED Architectural Recessed Linear Office Lighting
40W Linkable LED Architectural Recessed Linear Office Lighting

40W Linkable LED Architectural Recessed Linear Office Lighting

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
EN-9035
LED Chip
SMD2835
CRI
>80
CCT
3000K / 4000K / 6000K
Working Temp
0℃ to +50℃
Material
Aluminum + PC
Dimension
L2405*W90*H35mm
Hole Size
L2390*W75*H60mm
Specification
CE RoHS
Capacity
5000PCS/Month
💡

Product Description

40W Linkable LED Architectural Recessed Linear Office Lighting

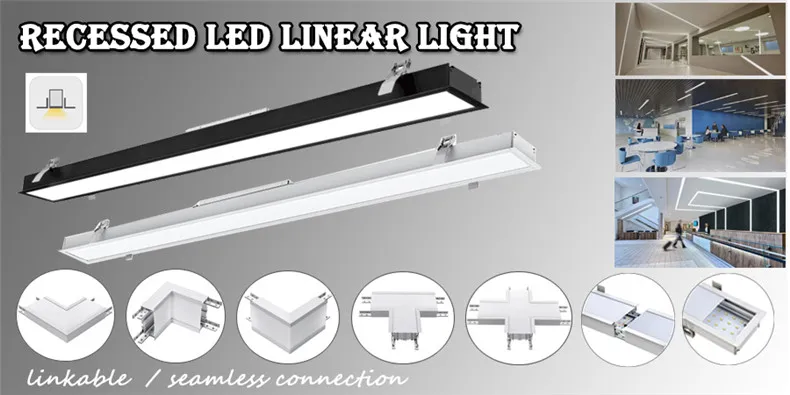

LED Architectural Recessed Linear Lighting
Technical Parameter Comparison:
Model (EN-7035) 20W 40W 60W 80W
Input VoltageAC185-265VAC185-265VAC185-265VAC185-265V
Beam Angle120°120°120°120°
LED Chip (SMD 2835)126pcs252pcs378pcs504pcs
Luminous Efficiency2100LM4200LM6300LM8400LM
Dimension (mm)L620*W70*H35L1215*W70*H35L1810*W70*H35L2405*W70*H35
Model (EN-9035) 20W 40W 60W 80W
Input VoltageAC185-265VAC185-265VAC185-265VAC185-265V
Beam Angle120°120°120°120°
LED Chip (SMD 2835)144pcs288pcs432pcs576pcs
Luminous Efficiency2100LM4200LM6300LM8400LM
Dimension (mm)L620*W90*H35L1215*W90*H35L1810*W90*H35L2405*W90*H35
🔍

Product View

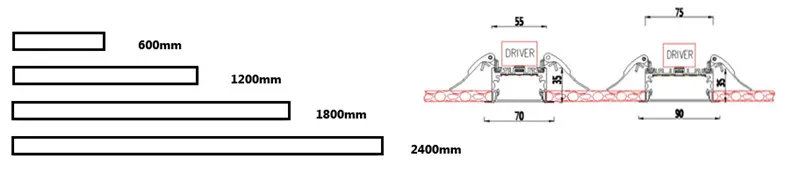

Product View 1

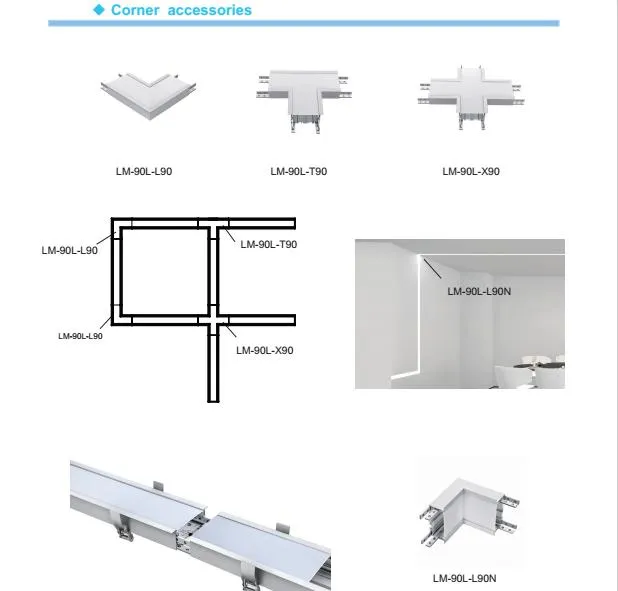

Product View 2
🛠️

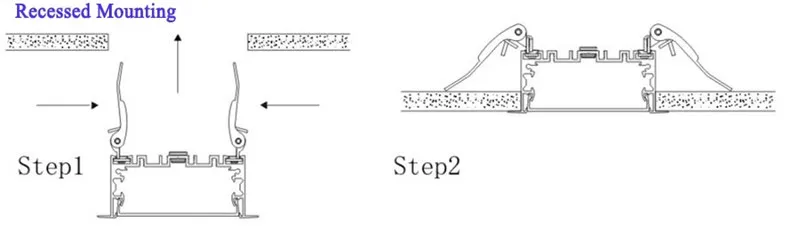

Installation Guide

Installation Diagram
🏢

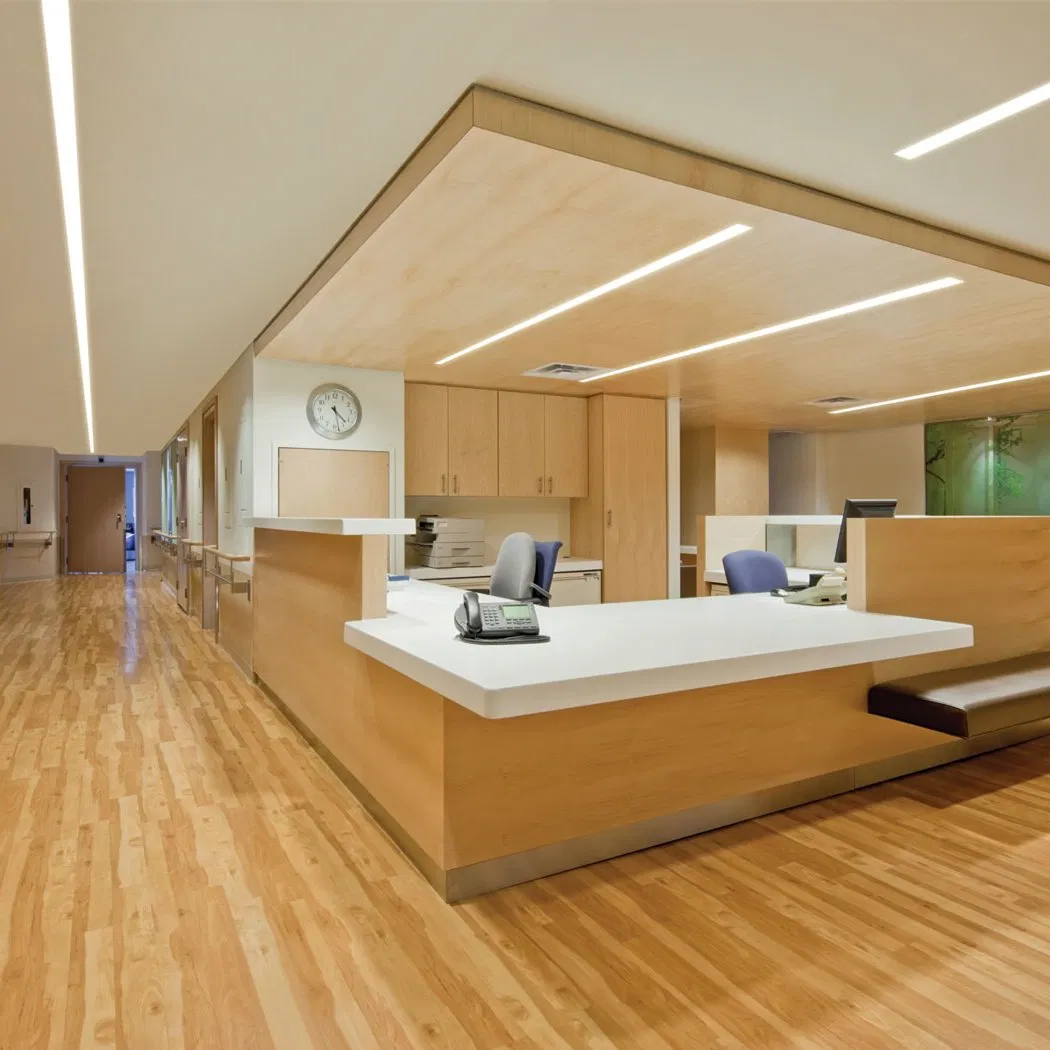

Applications

Widely used in both household and commercial lighting environments, such as offices, supermarkets, workshops, schools, hospitals, banks, and warehouses.

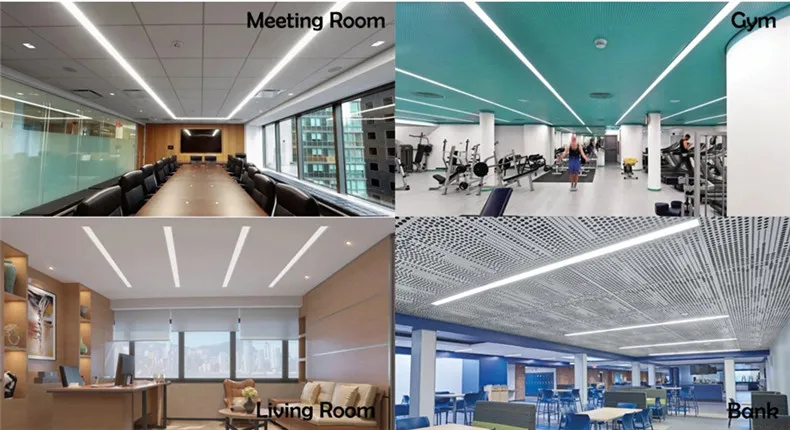

Application 1

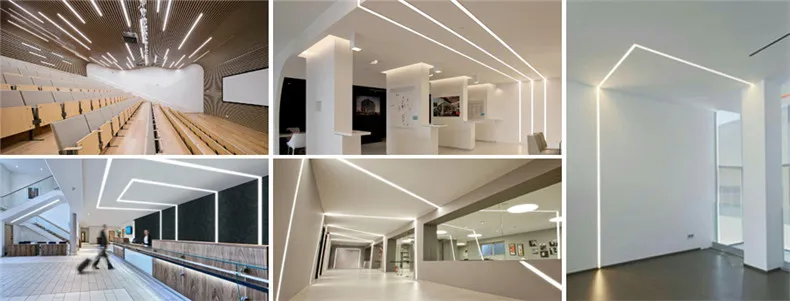

Application 2

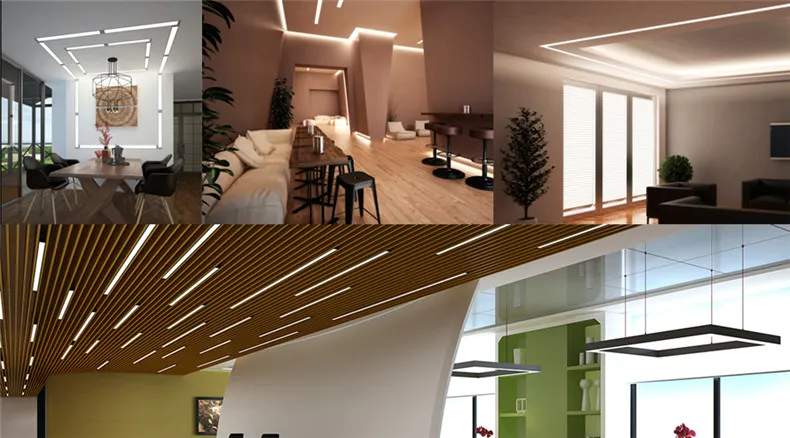

Application 3
🌍

Global Exhibition Presence

Hong Kong Lighting Fair

Exhibition 1

Dubai Light Trade Show

Exhibition 2

International Lighting Events

Exhibition 3
❓

Frequently Asked Questions

What materials are used for the linear office lights?
The lights are constructed using high-quality Aluminum and a PC cover for durability and optimal light diffusion.
What color temperatures (CCT) are available?
We offer three standard color temperature options: 3000K (Warm White), 4000K (Natural White), and 6000K (Cool White).

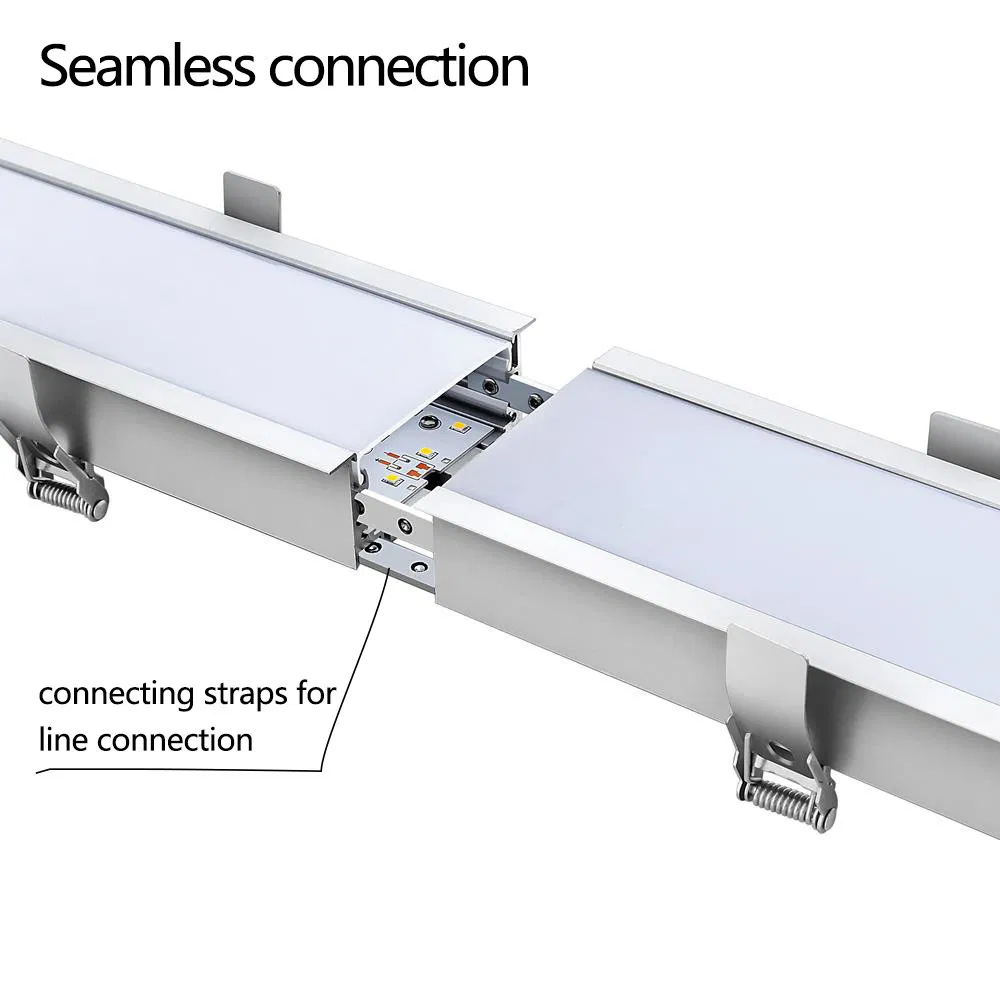

Are these LED linear lights linkable?
Yes, these architectural recessed linear lights are designed to be linkable, allowing for continuous lighting runs in office or commercial spaces.
What is the input voltage for these products?
The standard input voltage range is AC185-265V, suitable for most commercial power systems.
What certifications do these lights hold?
All models in this series are CE and RoHS compliant, ensuring they meet international safety and environmental standards.
What is the beam angle of the LED chip?
The lights utilize Epistar SMD 2835 chips with a wide beam angle of 120°, providing uniform illumination across the area.
