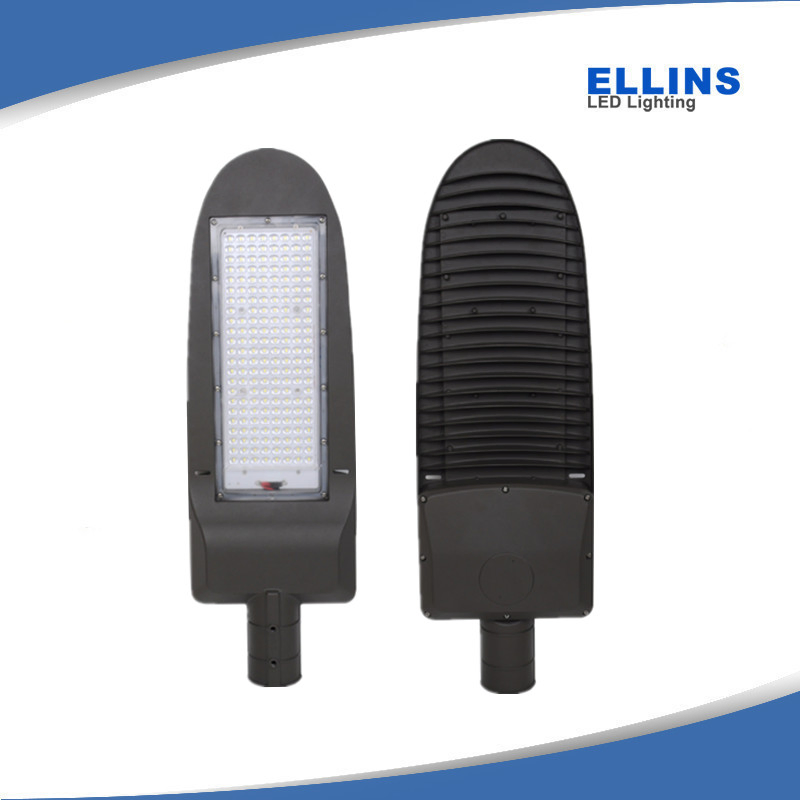

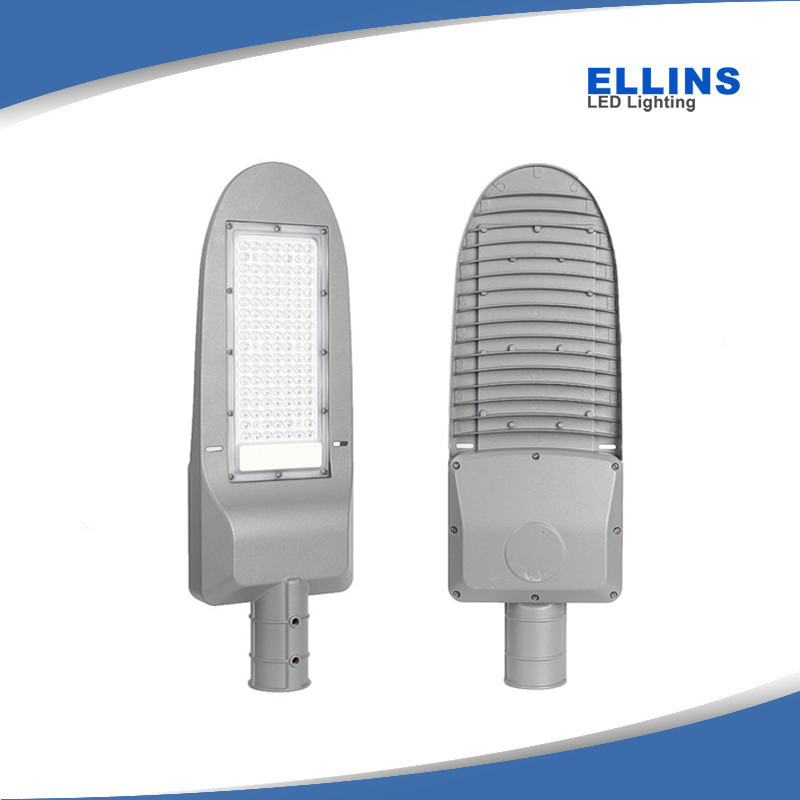

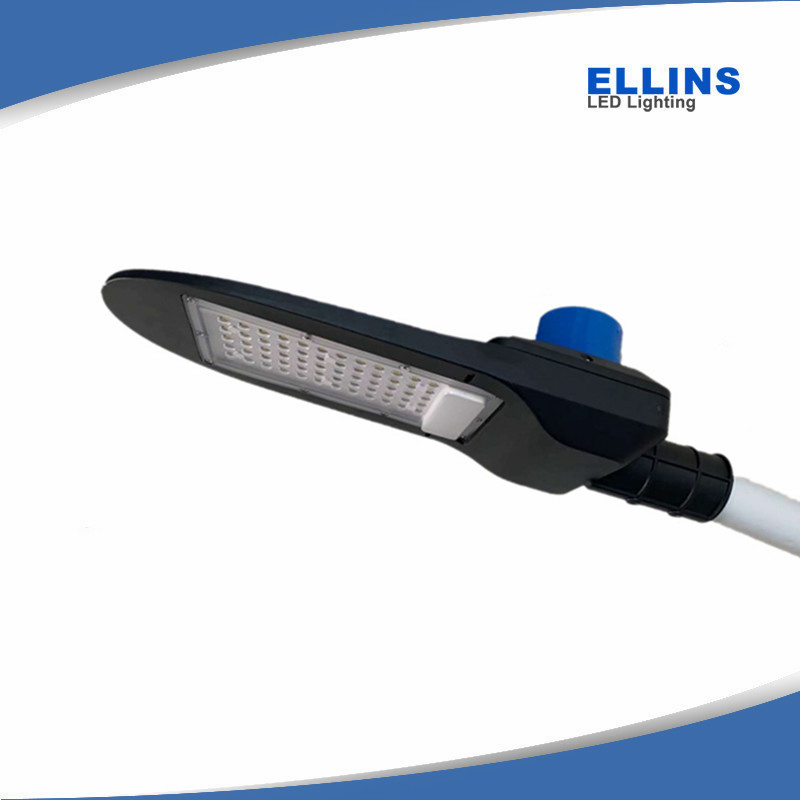

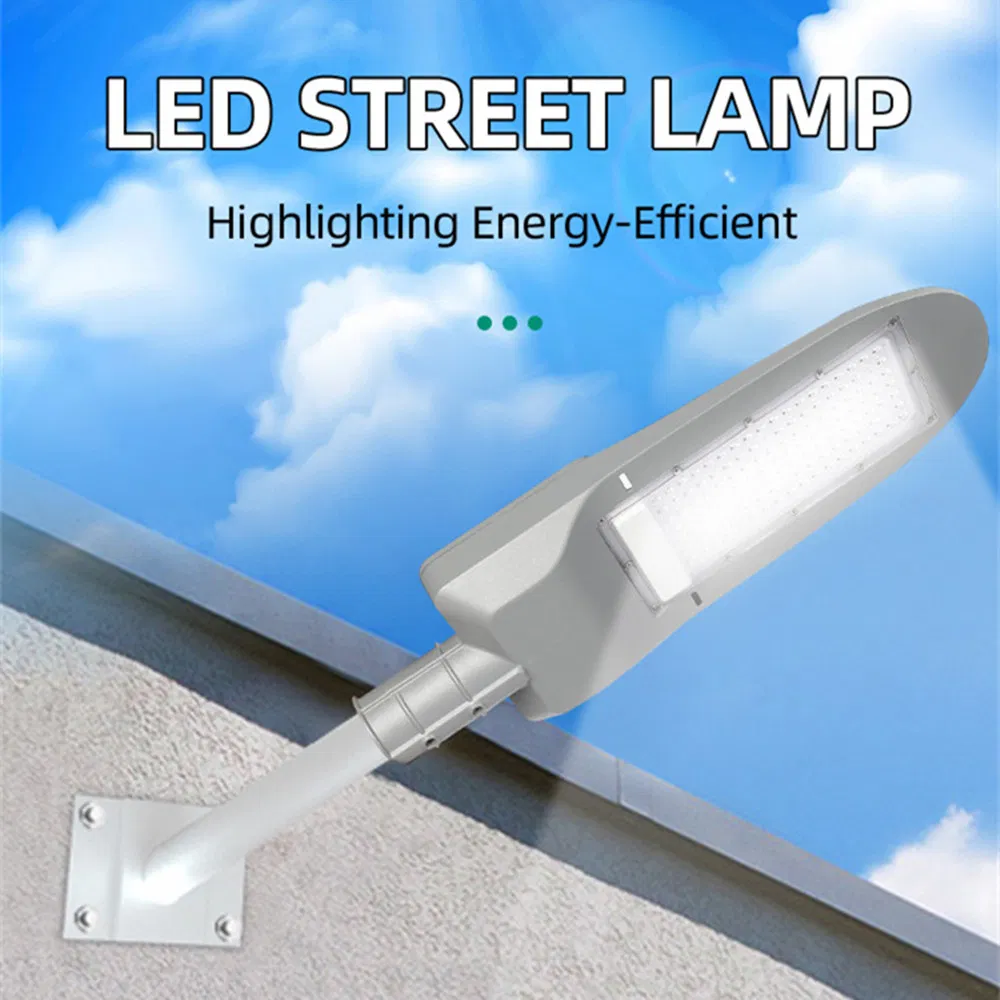

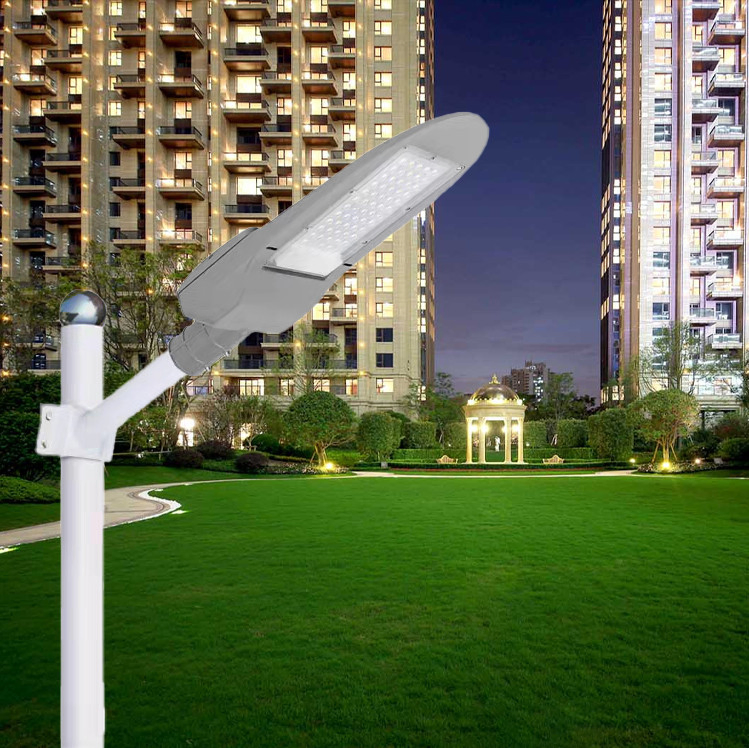

120W 150W Outdoor Public Area Lighting LED Roadway Lamp Security Lighting

Customization: Available
Power Supply: AC
Color Temperature: 3000K 4000K 5000K 5700K 6500K

Product Description

Basic Information

Model NO.
ELS-ST08
Lamp Body
Aluminum
Power Range
30W - 240W
IP Rating
IP66
Input Voltage
100-240V
LED Chips
CREE
Lumen Output
160 Lm/W
Driver Brand
Meanwell / Inventronics
Lifetime
100,000 Hours
IK Class
IK10
LED Roadway Lamp

Product Description

Durable LED Street Lantern Road Lights

Designed for standard road lamps, this lighting solution significantly improves vertical illuminance for high levels of visibility. The extreme cut-off ensures low glare, enhancing the clarity of the lit scene.

Slim and compact profile for maximum wind resistance
Circuit interrupter for safe maintenance access
Adjustable installation angle for flexible deployment
IP66 rated for all-weather durability
High-efficiency CREE LED light source
Excellent heat dissipation with stylish design

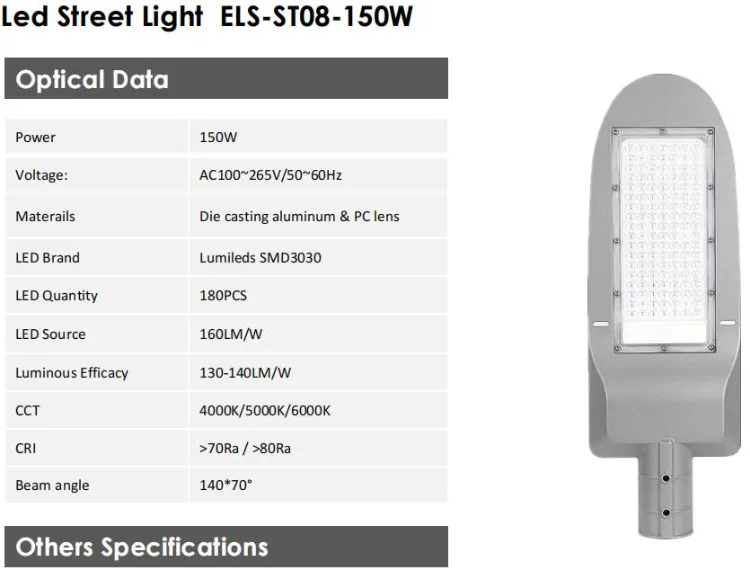

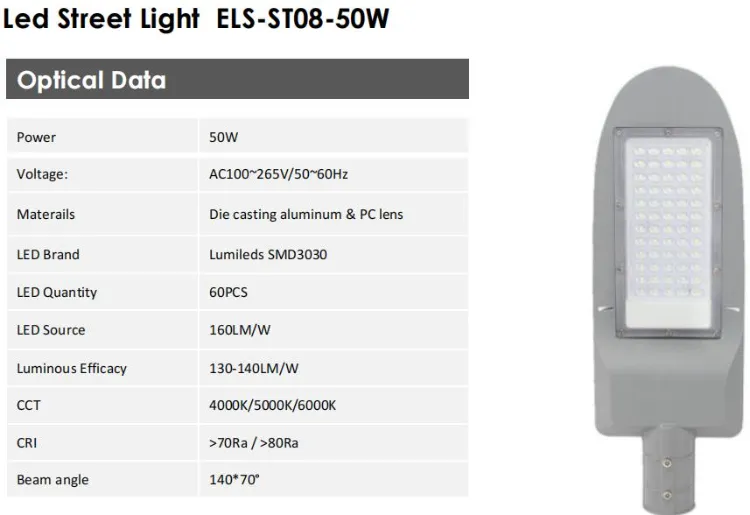

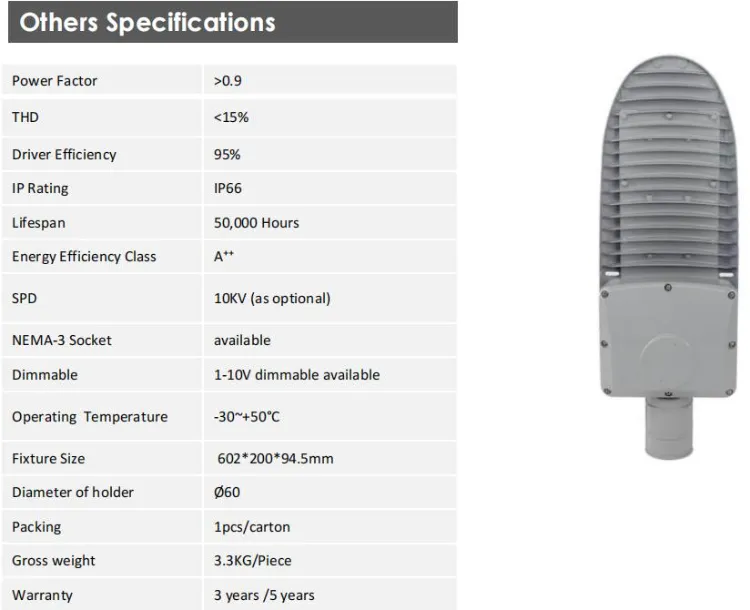

Technical Parameters

ModelELS-ST08
Power30W / 50W60W / 80W100W / 120W150W / 200W
VoltageAC100-277V / 50-60Hz
MaterialDie-casting Aluminum
LED SourceSMD3030 / SMD5050
Lumen160 lm/w
Beam Angle140*70 degree
Warranty5 - 10 Years

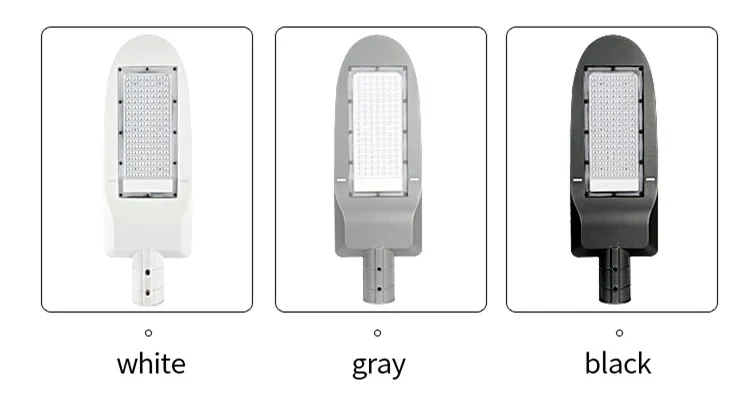

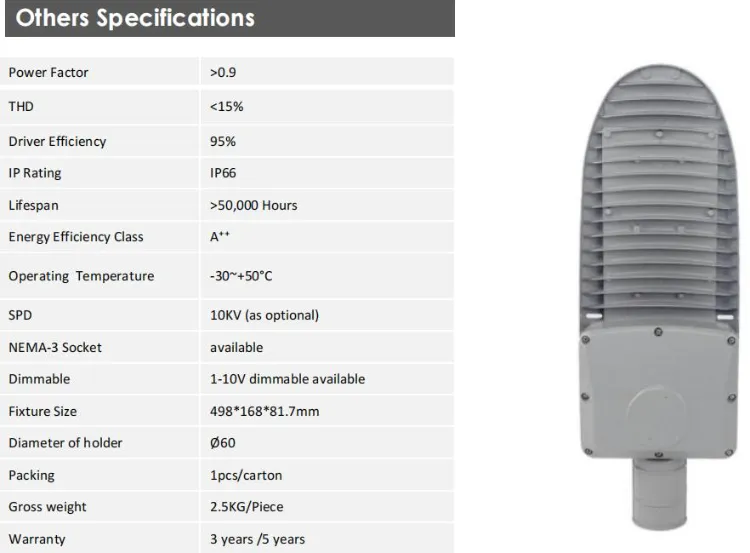

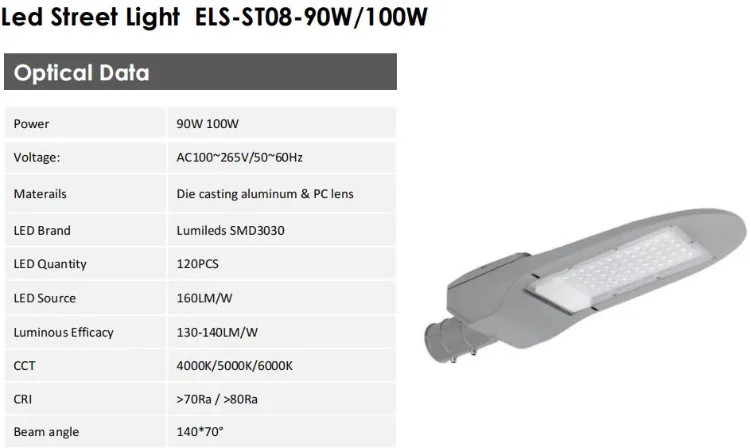

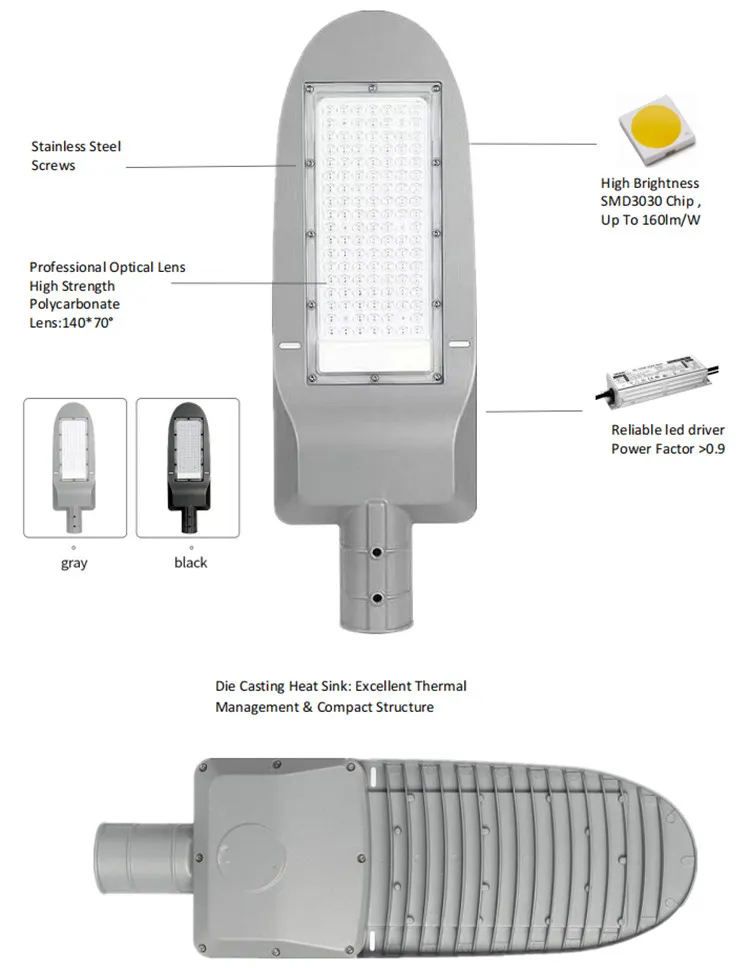

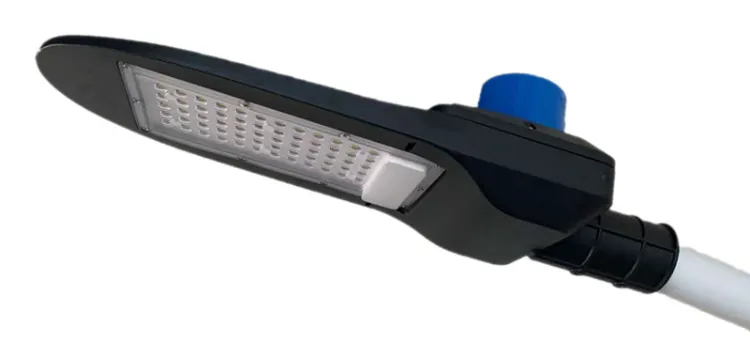

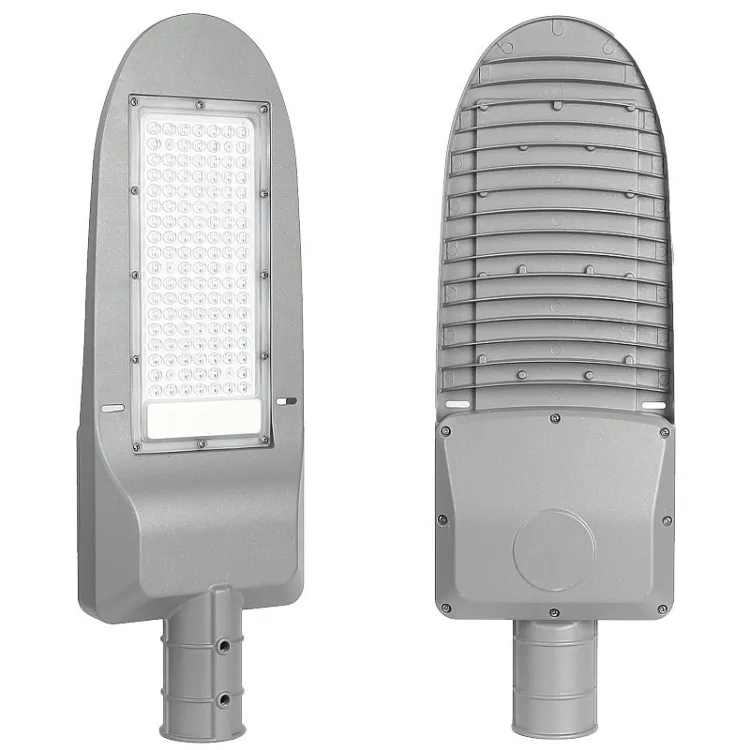

Detailed Photos

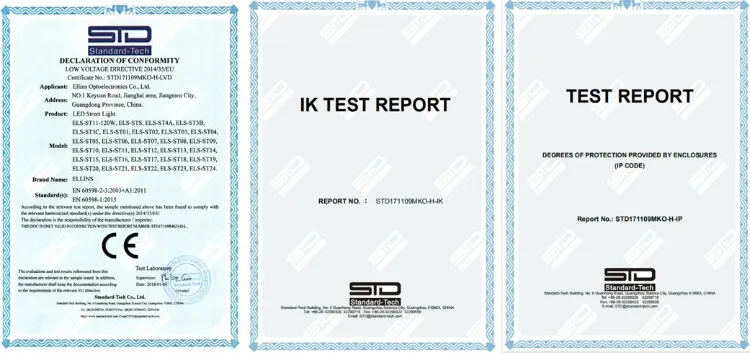

Certifications & Production

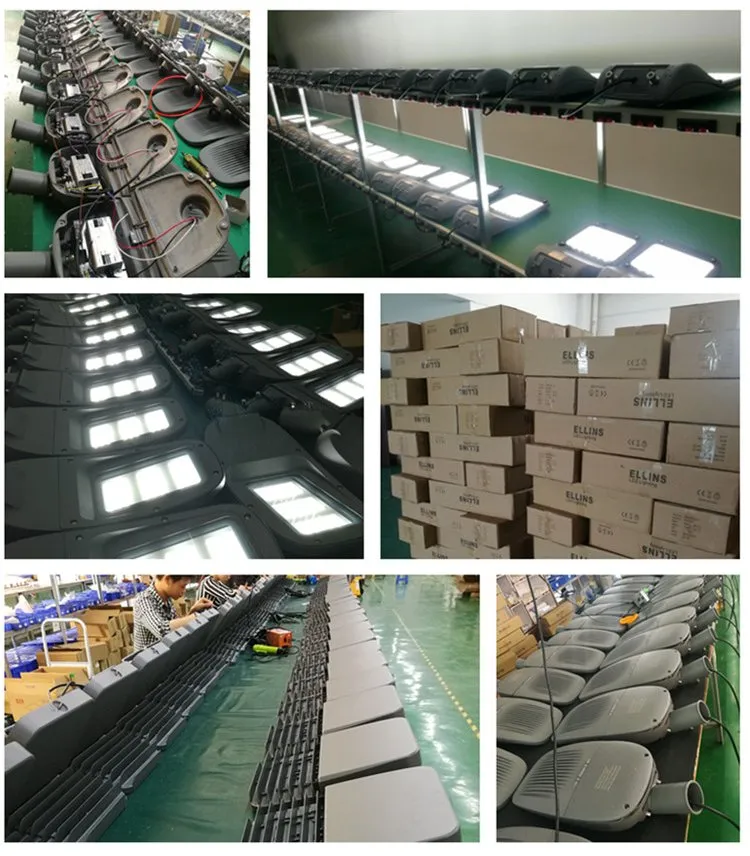

Production Process

Professional Profile

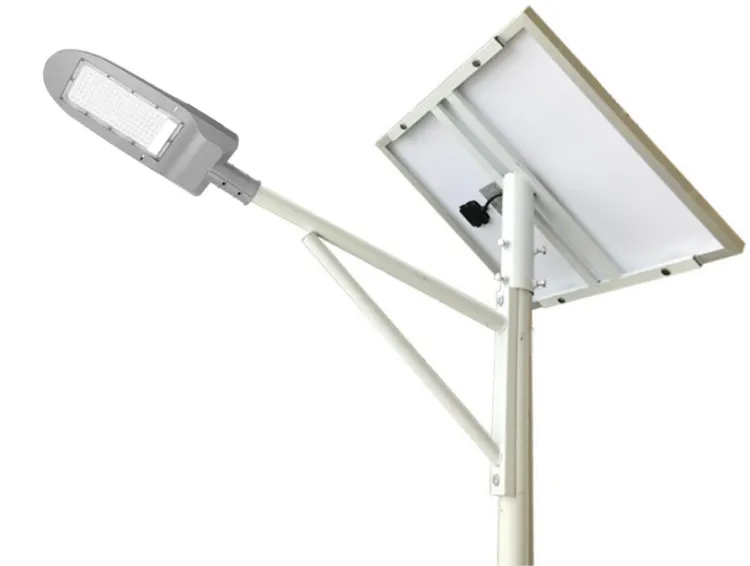

Our focus is on R&D and professional manufacturing of LED outdoor lighting. The product range includes LED Street lights, High Bay lights, Garden lights, and Solar-powered solutions.

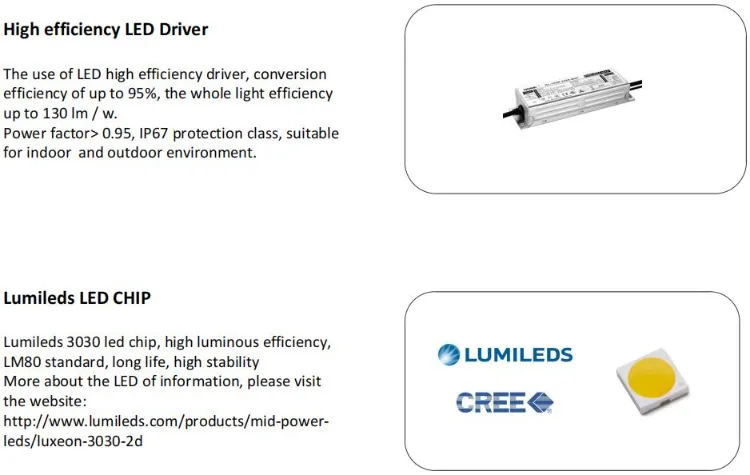

We utilize high-quality components, including CREE LEDs and reliable drivers from Meanwell and Inventronics, ensuring all products meet strict performance standards and carry necessary certifications like CE, RoHS, and TUV.

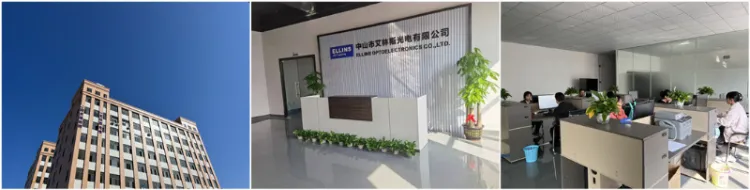

Manufacturing Overview

Frequently Asked Questions

What is the weather resistance rating of these street lights?
The lights are IP66 rated, making them completely protected against dust and powerful water jets, suitable for extreme weather conditions.
Which LED chips and drivers are used in the ELS-ST08 series?
We use high-performance CREE LED chips and industry-leading Meanwell or Inventronics drivers to ensure maximum stability and lifespan.
What is the typical lifespan of these LED roadway lamps?
The ELS-ST08 series is designed for a long operational life of up to 100,000 hours with minimal maintenance requirements.
Can the installation angle be adjusted?
Yes, the design features an adjustable installation angle to accommodate different pole types and lighting requirements.
Is there a warranty provided for this product?
Yes, we offer a comprehensive warranty ranging from 5 to 10 years depending on the specific configuration chosen.
Are these lights compatible with dimming systems?
Yes, they support 1-10V dimming and timer dimming functions, and can be integrated with daylight or motion sensors.
