Product Description

Basic Specifications

Model NO.
RD100S+M2C2305-100
Type
Video Camera
Sensor
CMOS
Horizontal Resolution
5MP
Certification
CE, FCC, RoHS
Effective Distance
≧30m
Camera Cable
100m, 4.2mm Diameter
Monitor
10.1inch Touch Screen
Camera Housing
316L Stainless Steel
Special Function
Video, Photo, Zoom, WiFi

Product Overview

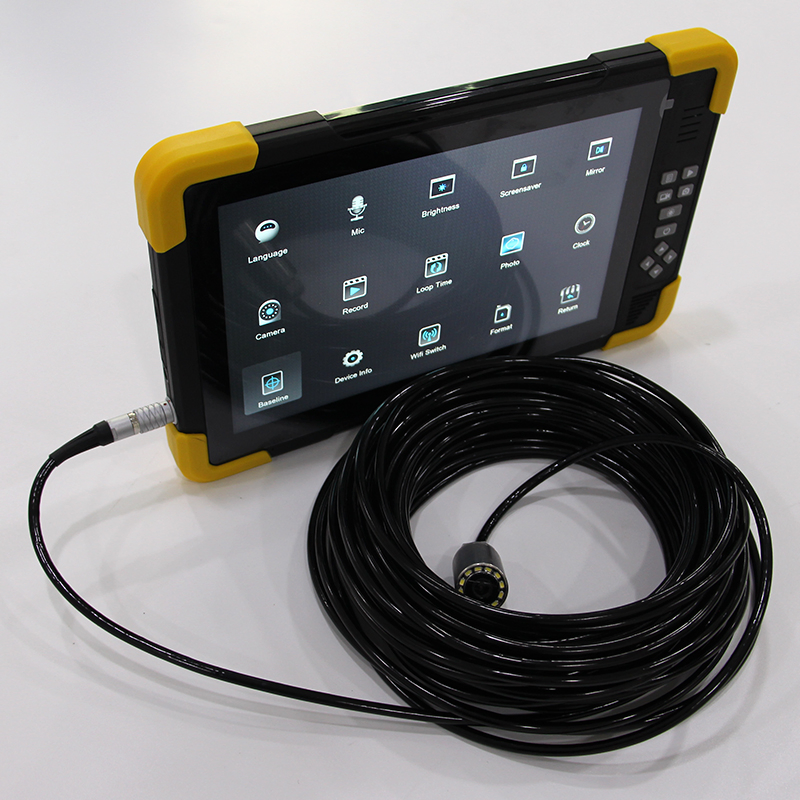

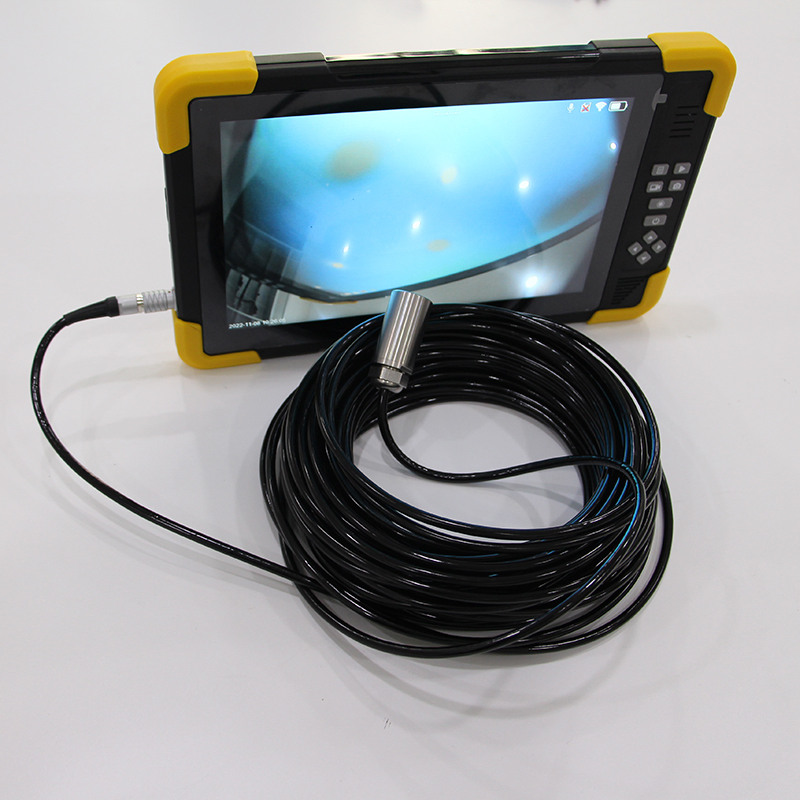

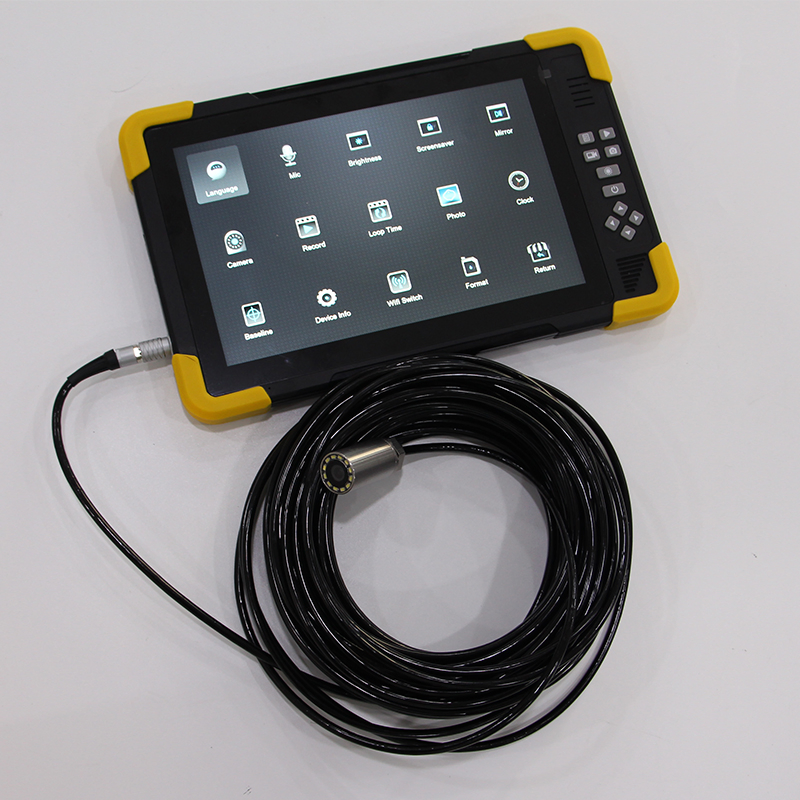

10.1inch Touch Screen 4K 5MP IP68 Underwater Marine Diving Inspection Camera System

Model: M2C2305+RD100S (100M Cable)

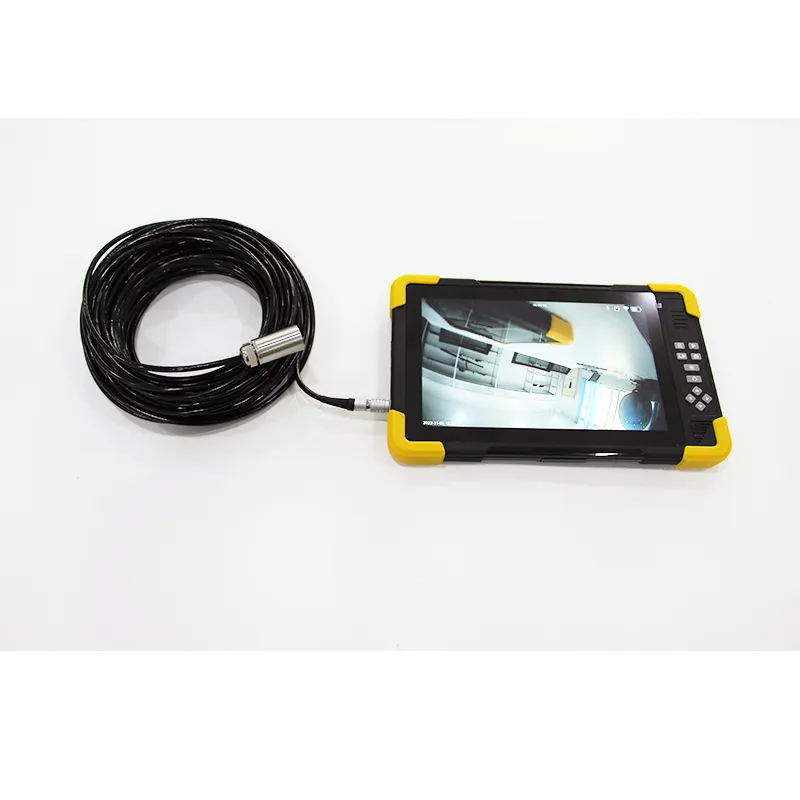

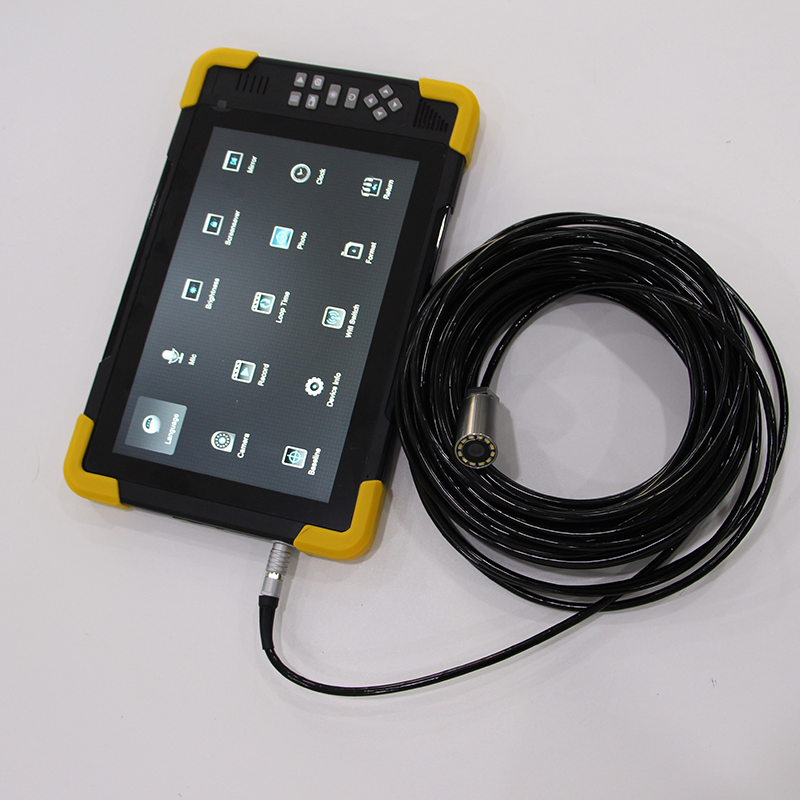

Inspection Camera System Main View

System Description

The M2C2305(5MP)+RD100S system consists of a 10.1" 4K touch screen monitor and an IP68 underwater camera. The camera features a 316 stainless steel housing, 12pcs high-intensity LEDs, and a 140-degree wide-angle lens. The monitor provides full control over LED brightness and includes 4x digital zoom, video recording, and photo editing capabilities.

This professional-grade system is designed for contractors and divers to perform high-resolution inspections in deep wells, sewers, and marine environments.

Key Selling Points

  • 5MP High Definition: SONY image sensor for crystal clear 2560*1440 resolution.
  • Extreme Durability: IP68 waterproof rating, capable of withstanding 200m water pressure (2MPa).
  • Advanced Monitor: 10.1-inch IP66 touch screen supporting 4K/2K recording and HDMI output.
  • Wireless Connectivity: WiFi transmission for real-time viewing on mobile devices via App.
  • Long Battery Life: Dual 6200mAh removable batteries providing over 5 hours of operation.

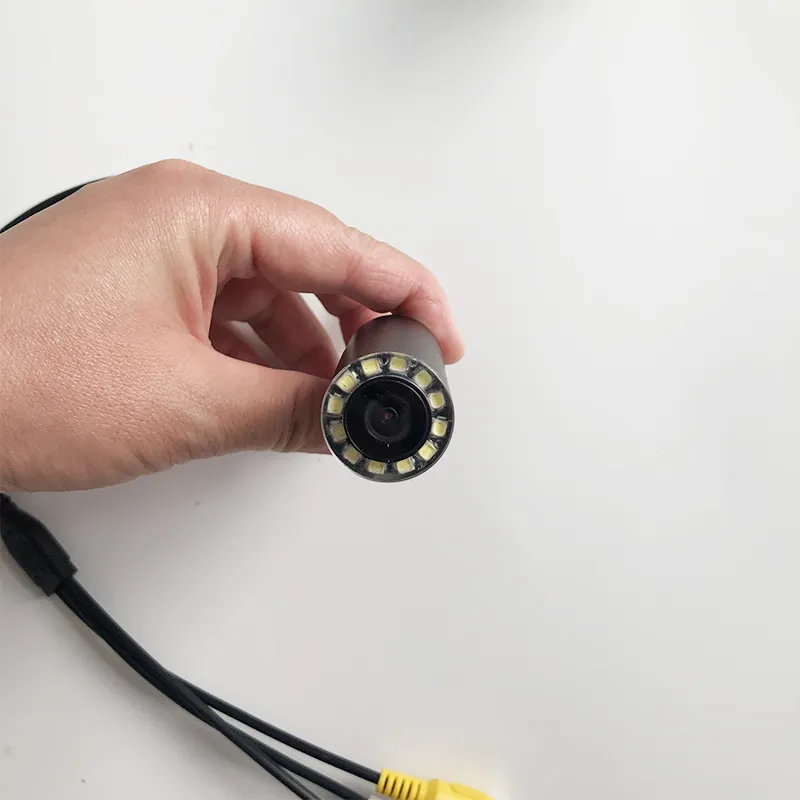

Underwater Camera Detail

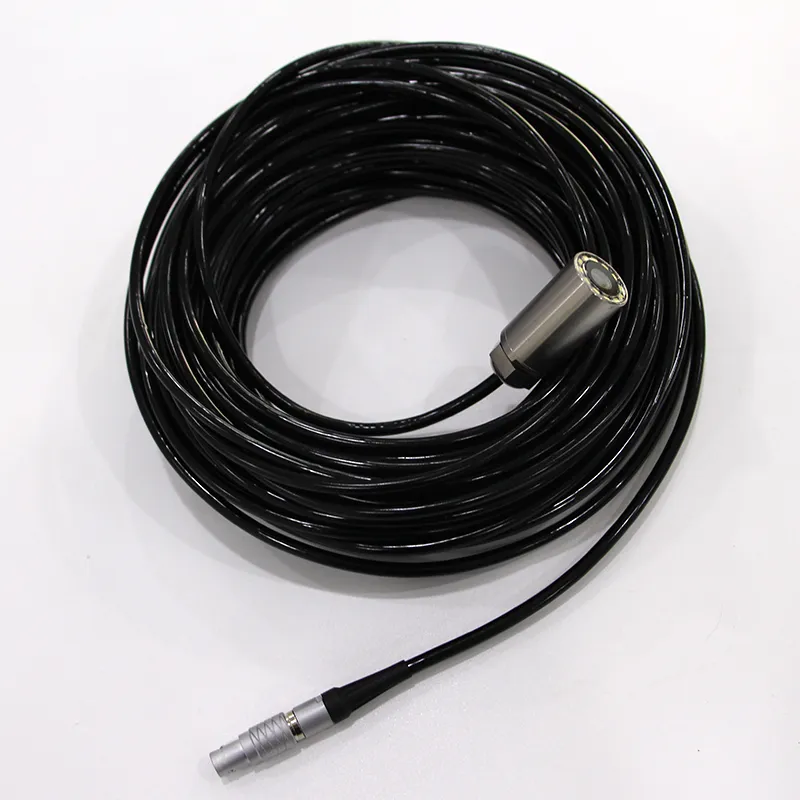

Cable Reel and Monitor

Technical Specifications

Underwater Camera
Image Sensor5MP SONY Image Sensor
View Angle140°
Light Source12 pcs LED (8-grade brightness control)
Min. Illumination0.0001Lux/F1.2
Waterproof RateIP68 (316L Stainless Steel)
Dimension23mm x 53mm
DVR Monitor
Screen Size10.1 inch Touch Screen (1280*800 pix)
Video Input4K, 2K, 1080P, 720P AHD/CVBS
StorageSupports up to 256GB TF Card (64GB Default)
Zoom10 Times Digital Zoom
Battery2x 6200mAh (Working time >= 5 hours)
ConnectivityWiFi, HDMI Output (1080P)

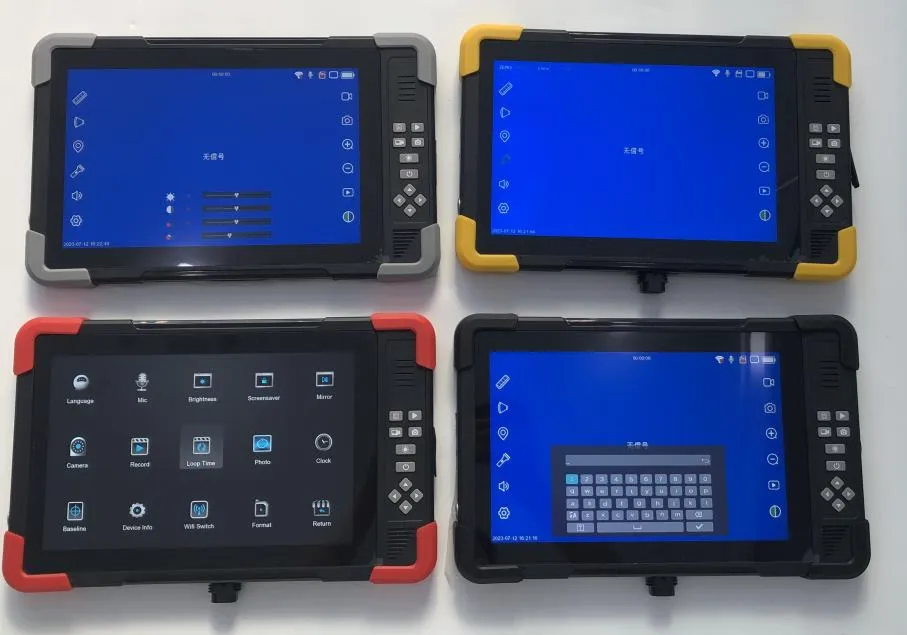

Monitor Interface
Full Kit Display

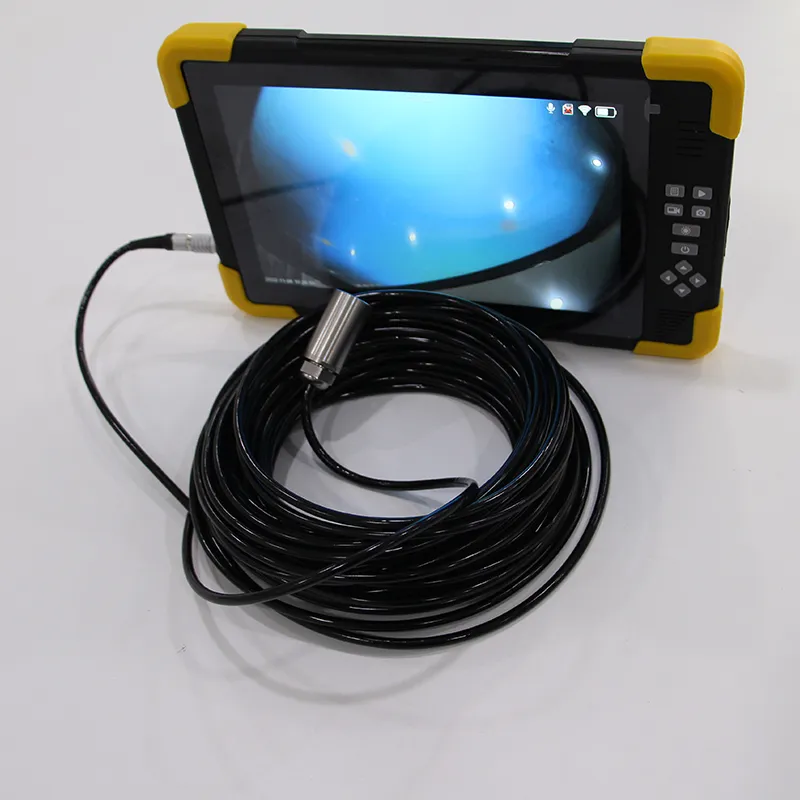

Application Scene
Product Dimensions and Layout

Frequently Asked Questions

Q1: What is the maximum depth the camera can operate in? A: The camera is IP68 rated and built with 316L stainless steel, allowing it to withstand water pressure up to 200 meters (2MPa). The standard cable provided is 100 meters long.
Q2: Can I view the live video on my smartphone? A: Yes, the system supports WiFi wireless transmission. You can view the live feed and manage files on your mobile device via a dedicated App.
Q3: How long does the battery last on a full charge? A: The system uses two 6200mAh removable Li-batteries, providing a continuous working time of 5 hours or more.
Q4: Does the camera perform well in low-light conditions? A: Absolutely. The camera features a high-sensitivity SONY sensor with 0.0001Lux/F1.2 illumination and 12 adjustable high-brightness LEDs to ensure clear images in pitch-black environments.
Q5: Can I record video and take photos during inspection? A: Yes, the monitor supports 4K and 2K video recording, as well as 12MP photo capture. It also includes functions for photo notes and 10x digital zoom.
Q6: What is the material of the camera housing? A: The camera is housed in 316L Stainless Steel, which is highly anti-corrosive and ideal for marine and underwater diving inspections.
